Right Angle Pin Header of 3.96 Pitch With Rear Bend

Availability:
Quantity:
Inquire Add to Basket

  • M3965R-N-A

  • HRB

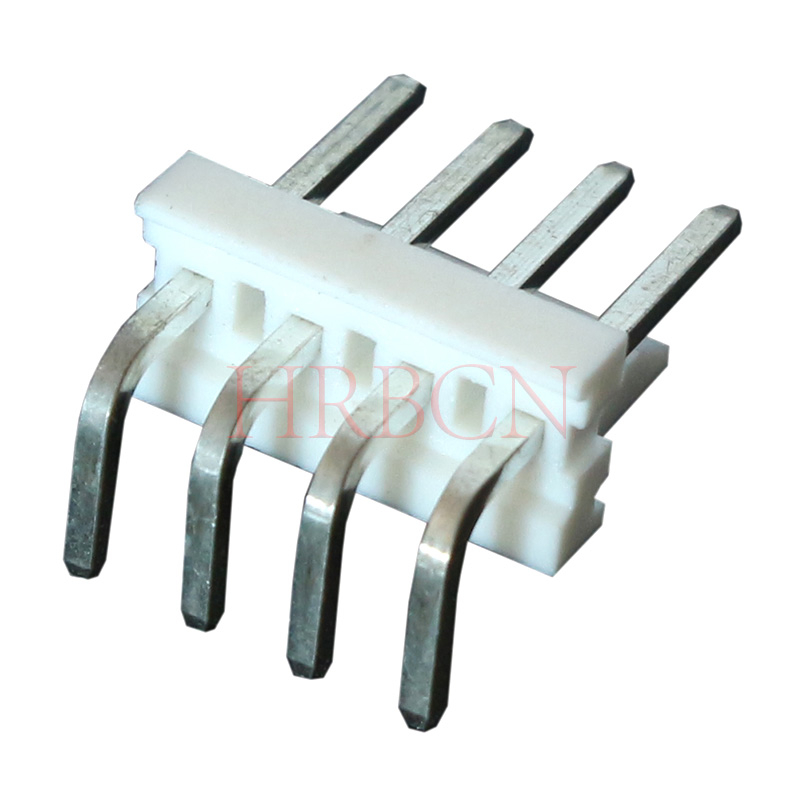

3.96 pitch PCB pin header, Right Angle pin header With Rear Bend posts.


1) Current Rating: 7A AC, DC
2) Voltage Rating: 600V AC, DC
3) Temperature Range: - 40°C~+130°C
4) Contact Resistance: 3.0mΩ Max.
5) Insulation Resistance: 5000MΩ Min.
6) Withstanding Voltage: 2200V AC/minute
7) cUL file No.: E304945
8) Material: Housing: Polyester UL94V-0
                   Pin: Brass, Tin plated.
