IDC dust cover M7061-N-W

Availability:
Quantity:
Inquire Add to Basket

  • M7061-N-W

  • HRB


M7061-N-W.pdf

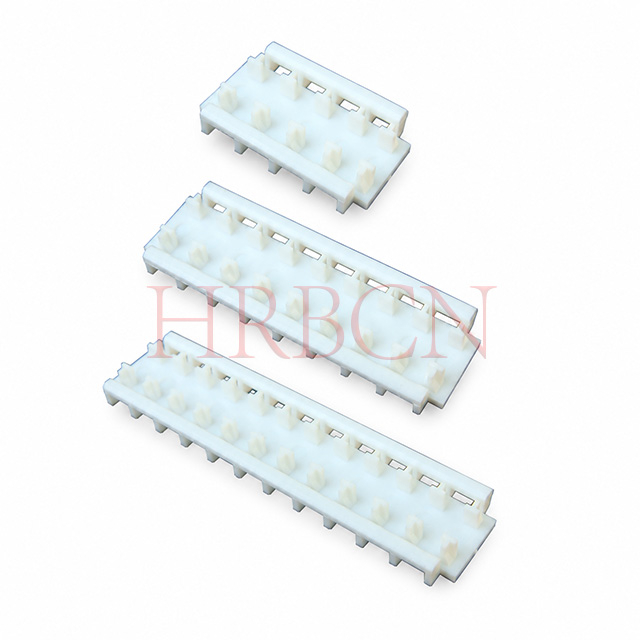

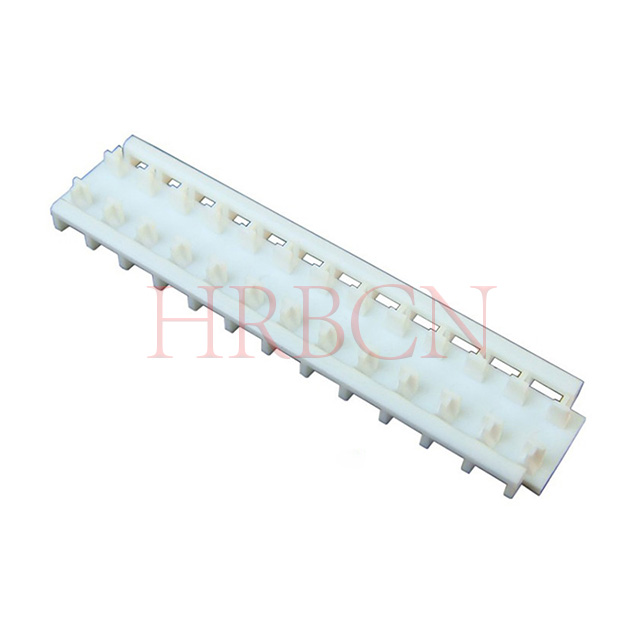

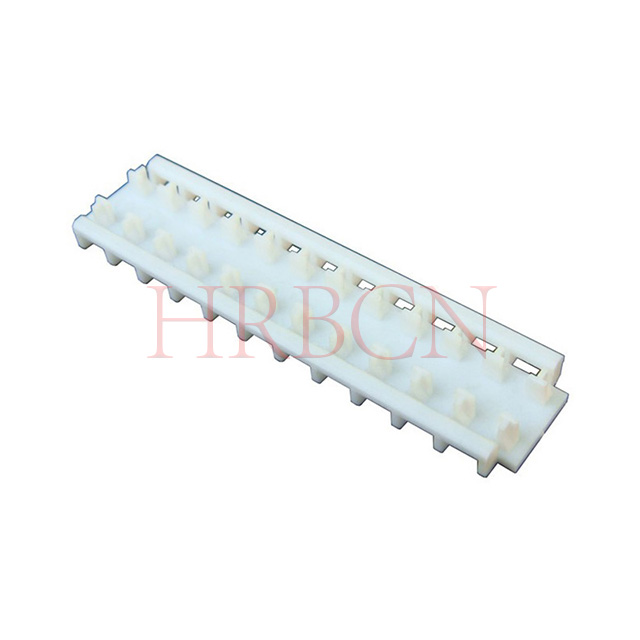

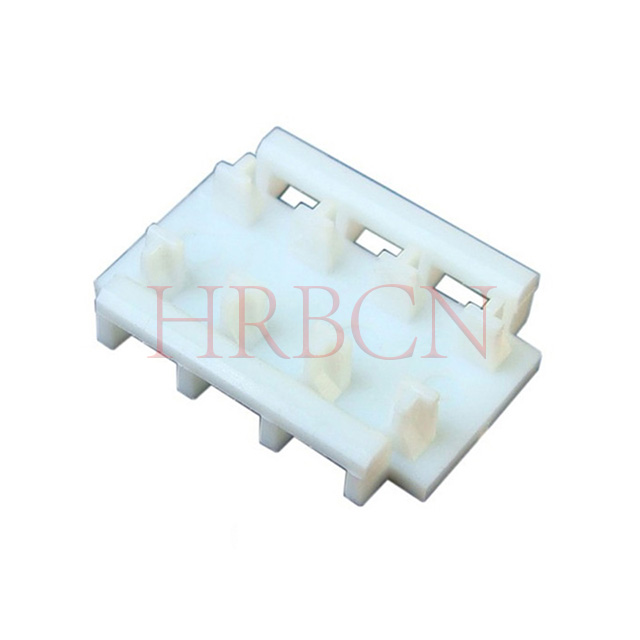

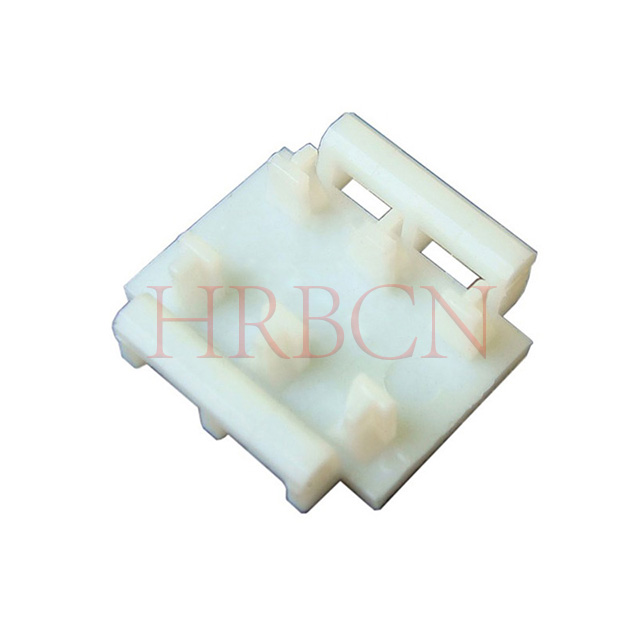

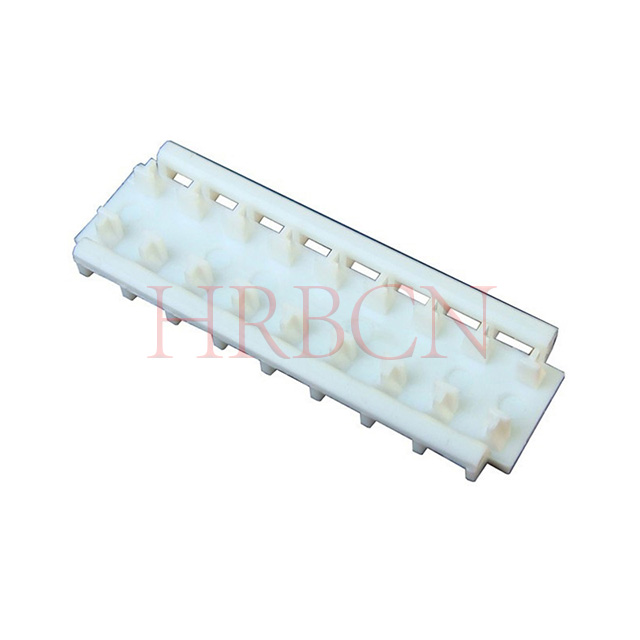

3.96mm pitch dust proof cover, use with M7060 series IDC.


Part No.
Dimensions Part No.
Dimensions Part No.
Dimensions
TYP UL94V-0 Circuits Dim: A Dim: B
TYP UL94V-0

 Circuits Dim: A Dim: B
TYP UL94V-0

 Circuits Dim: A Dim: B
M7061-2-W 2 8.10 3.96 M7061-10-W 10 39.85 35.64 M7061-18-W 18 71.69 67.32
M7061-3-W 3 11.99 7.92 M7061-11-W 11 43.83 39.60 M7061-19-W 19 75.67 71.28
M7061-4-W 4 15.97 11.88 M7061-12-W 12 47.81 43.56 M7061-20-W 20 79.65 75.24
M7061-5-W 5 19.95 15.84 M7061-13-W 13 51.79 47.52 M7061-21-W 21 83.63 79.20
M7061-6-W 6 23.93 19.80 M7061-14-W 14 55.77 51.48 M7061-22-W 22 87.61 83.16
M7061-7-W 7 27.91 23.76   M7061-15-W 15 59.75 55.44 M7061-23-W 23 91.59 87.12
M7061-8-W 8 31.89 27.72 M7061-16-W 16 63.73 59.40 M7061-24-W 24 95.57 91.08
M7061-9-W 9 35.87 31.68  M7061-17-W 17 67.71 63.36





1) Current Rating: 7A AC, DC

2) Voltage Rating: 600V AC, DC

3) Operating Temperature: -40 ºC to +105 ºC
4) Contact Resistance: 3.0mΩ max

5) Insulation Resistance: 5000MΩ min.

6) Withstanding Voltage: 2200V AC/minute
7) Material: Housing: Nylon 66 UL94V-0
