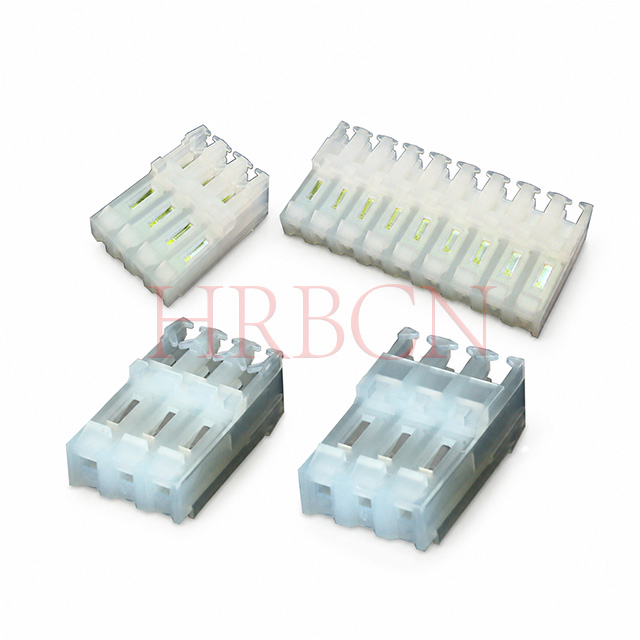

Q1: What is the pitch of M7060(I) IDC connector?
A: The pitch is 3.96mm, a common specification for medium-power electronic connections.

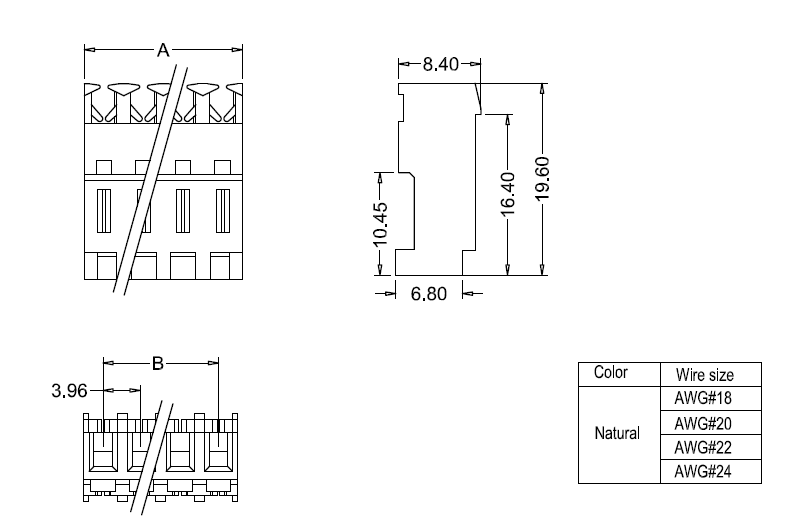

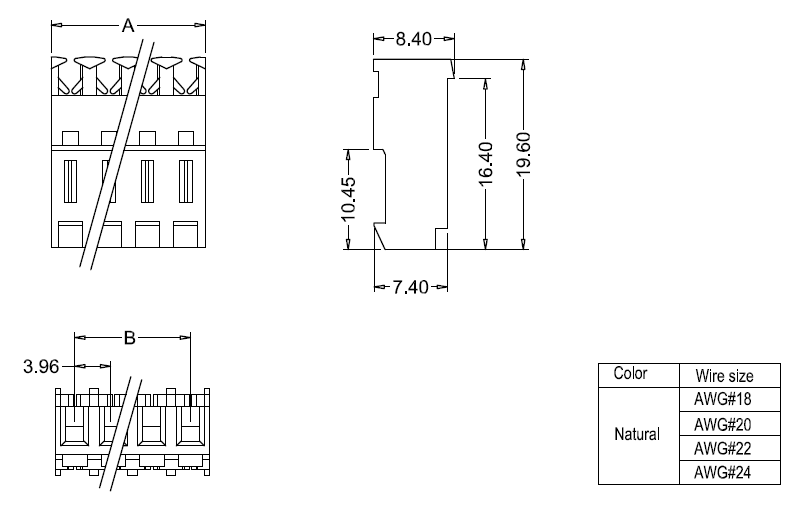

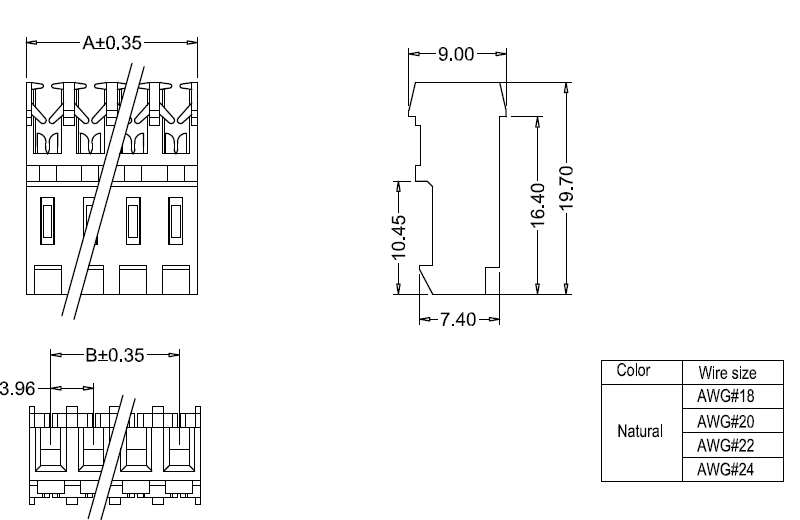

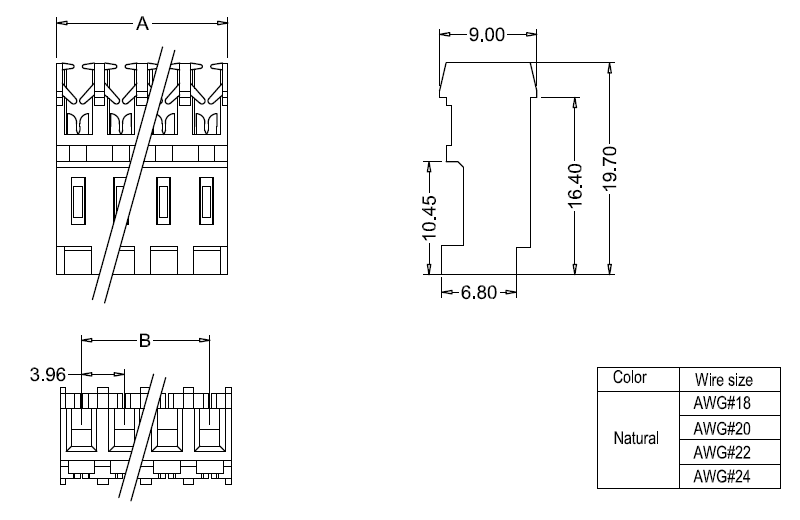

Q2: What orientations are available for this series?

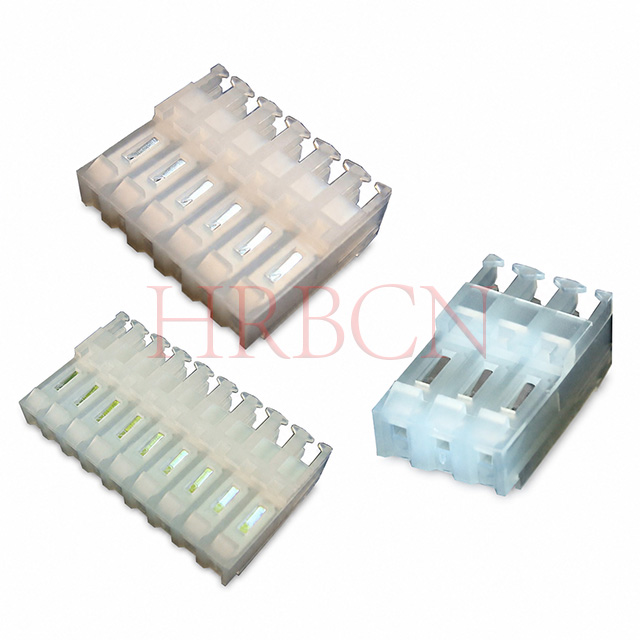

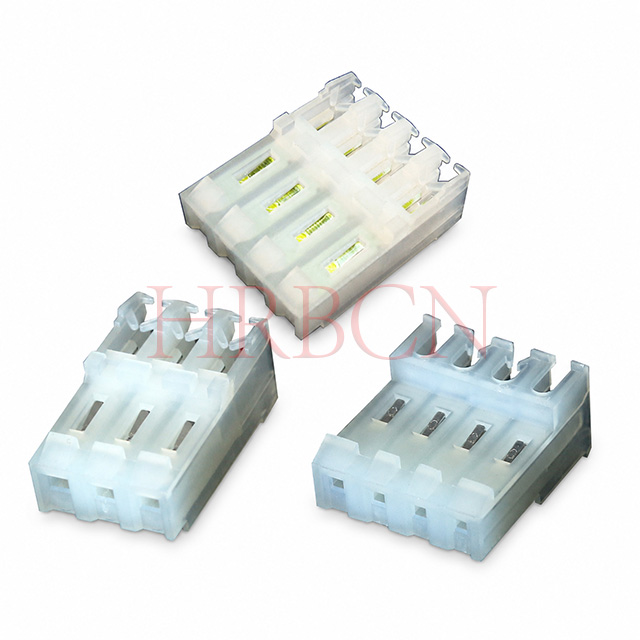

A: Two main styles: 90° closed end (model with suffix R) and 180° feed-through (standard model). Polarizing tabs are optional to prevent wrong insertion.
Q3: What are the material and flame retardant grade of the housing?
A: The housing is Nylon 66 with UL94V-2 flame retardant rating, operating temperature: -25℃ ~ +85℃.
Q4: What is the electrical rating?
A: Rated current: 7A AC/DC; Rated voltage: 600V AC/DC; Withstanding voltage: 2200V AC per minute.
Q5: What wire gauge does this IDC connector support?
A: It fits AWG18 to AWG24 wires, widely used for internal wiring of home appliances and industrial equipment.
Q6: What is the terminal material and plating?
A: Terminals are made of brass, available in tin plating and gold plating for different application demands.
Q7: How many pin options are there?
A: This series covers 2 pins to 20 pins to meet diverse circuit requirements.
Q8: What are the applications of these IDC connectors?

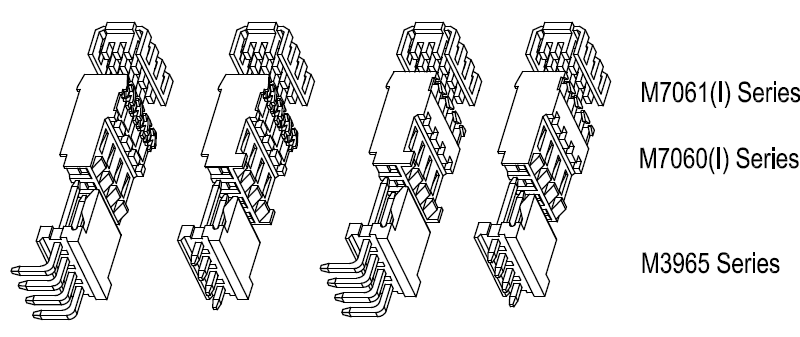

A: These 3.96mm pitch IDC connectors (M7060(I) series) are widely used for wire-to-wire and wire-to-board connections in both consumer and industrial electronics, especially where fast, reliable, and cost‑effective wiring is required.
Common applications include:
Home appliances – refrigerators, washing machines, air conditioners, microwave ovens, and small kitchen appliances.
Industrial control & automation – PLCs, control panels, sensors, actuators, and industrial machinery internal wiring.
LED lighting & smart lighting – power and signal connections for lighting fixtures, strips, and control modules.
Consumer electronics – power supplies, adapters, and internal connections for audio/video devices.
HVAC & building equipment – heating, ventilation, and air‑conditioning systems, thermostats, and control units.
Vending machines, gaming devices, and office equipment – internal power and signal harnesses.
They are suitable for AWG18–AWG24 wires, rated 5A / 600V, and perform well in temperatures from −25℃ to +85℃ (V‑2). The locking ramp design ensures vibration resistance and secure mating, making them ideal for high‑volume production and harsh environments.
