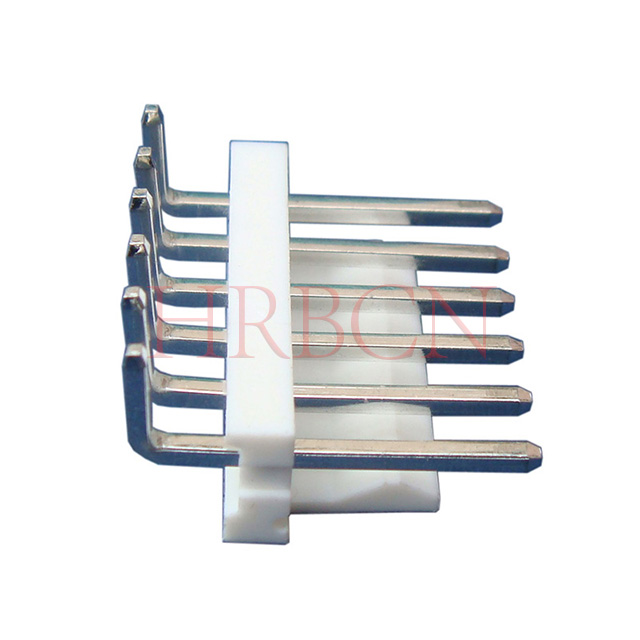

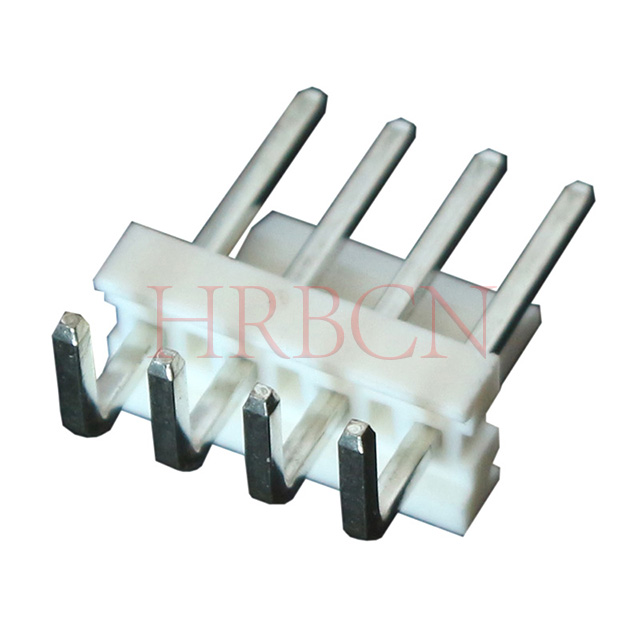

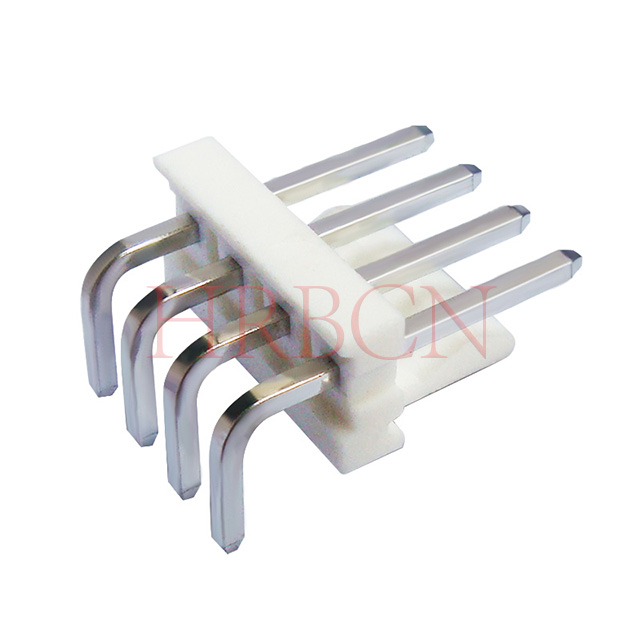

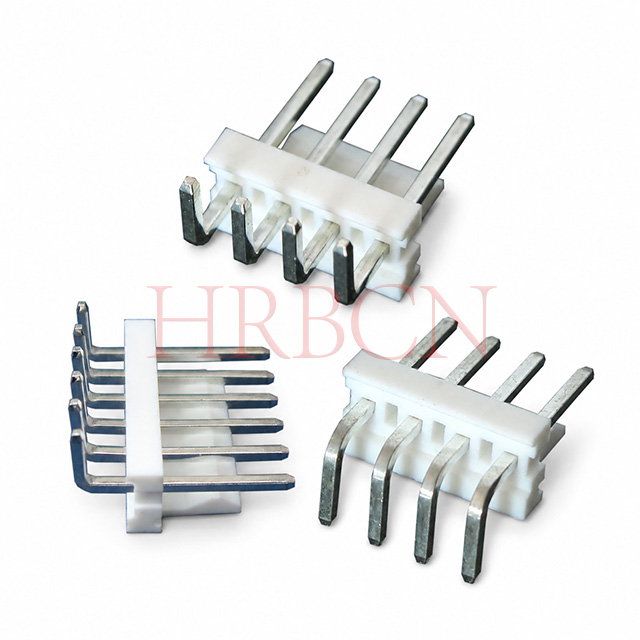

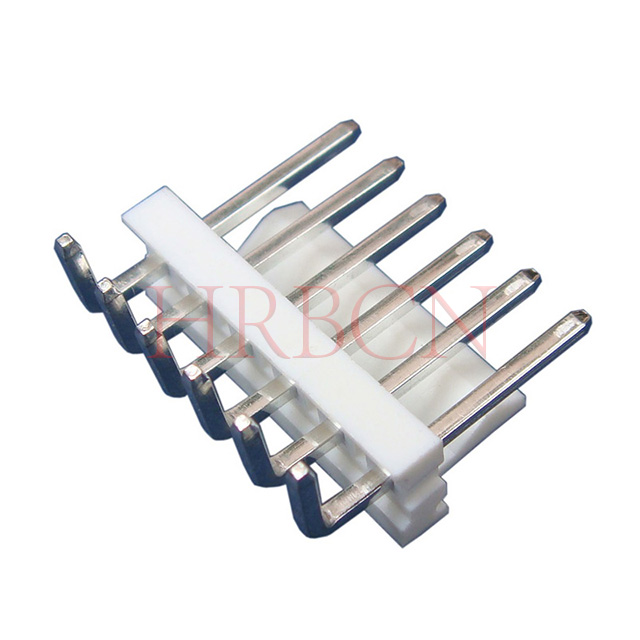

HRB 3.96mm Pitch Right Angle Header M3965R-N-K

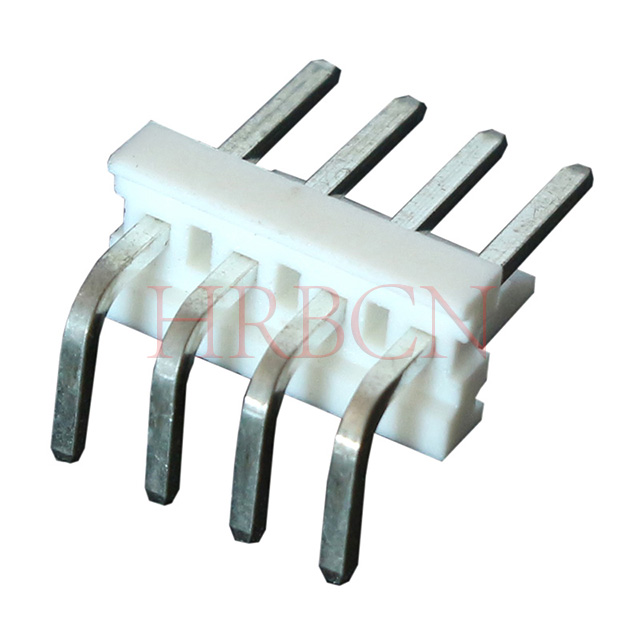

HRB M3965R‑N‑K is a 3.96mm pitch single‑row right angle pin header designed for wire‑to‑board connections. Featuring through‑hole mounting and rear‑bend posts, it ensures stable PCB assembly and space‑saving routing. The housing is made of UL94 V‑0 rated polyester, while pins are brass with tin plating for low contact resistance. Rated at 7A AC/DC, 600V, with an operating temperature range of −40°C to +120°C, this header delivers excellent electrical performance and durability. Available in 2 to 20 pin configurations, it is cUL approved, RoHS compliant, and widely used in industrial control, power supplies, and consumer electronics.
  • Fully RoHS & REACH Compliant
  • UL&cUL Certified
  • UL 94V-0 Flame Retardant Housing
Availability:
Quantity:
Inquiry Add to RFQ List

  • M3965R-N-K(S)

  • HRB

  • 8536909000

3.96mm (.156") Pitch Right Angle Wire-to-Board Header, Single Row, Through Hole Mount

HRB P/N Definition

M3965R-N-K(S)

    ①   ②③  ④

①M3965: HRB series

②R: Right angle

③N: Number of pins: 2-20

④K(S): Shrouded

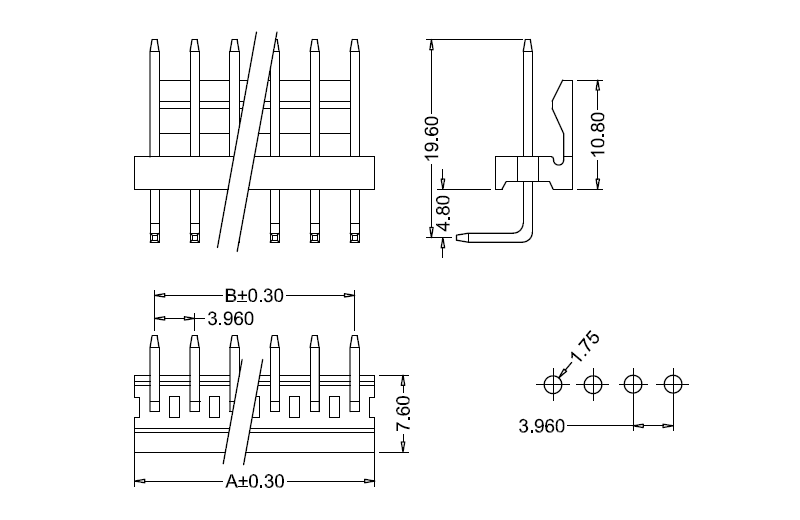

M3965R-N-K(S) Dimension


Part No.
Dimensions Part No.
Dimensions Part No.
Dimensions
UL94V-0 Circuits Dim: A Dim: B UL94V-0 Circuits Dim: A Dim: B UL94V-0 Circuits Dim: A Dim: B
M3965R-2-K(S) 2 7.92 3.96 M3965R-9-K(S) 9 35.64 31.68 M3965R-16-K(S) 16 63.36 59.40
M3965R-3-K(S) 3 11.88 7.92 M3965R-10-K(S) 10 39.60 35.64 M3965R-17-K(S) 17 67.32 63.36
M3965R-4-K(S) 4 15.84 11.88 M3965R-11-K(S) 11 43.56 39.60 M3965R-18-K(S) 18 71.28 67.32
M3965R-5-K(S) 5 19.80 15.84 M3965R-12-K(S) 12 47.52 43.56 M3965R-19-K(S) 19 75.24 71.28
M3965R-6-K(S) 6 23.76 19.80 M3965R-13-K(S) 13 51.48 47.52 M3965R-20-K(S) 20 79.20 75.24
M3965R-7-K(S) 7 27.72 23.76 M3965R-14-K(S) 14 55.44 51.48



M3965R-8-K(S) 8 31.68 27.72 M3965R-15-K(S) 15 59.40 55.44




Key Specifications

Mechanical & Physical Properties

  • Pitch: 3.96mm / .156" centerline

  • Configuration: Single row, Right angle 90° orientation

  • Mounting Style: Through-hole DIP soldering

  • Available Positions: 2 to 20 pins, custom pin counts acceptable

  • Housing Material: UL94 V-0 flame retardant polyester

  • Contact Material: Brass with tin plating

  • Operating Temperature: -40°C to +120°C


Electrical Ratings

  • Rated Current: 7A (max per contact)

  • Rated Voltage: 600 V AC

  • Contact Resistance: 3mΩ max.

  • Insulation Resistance: 5000 MΩ min.

  • Withstanding Voltage: 2200V/AC (1minute)

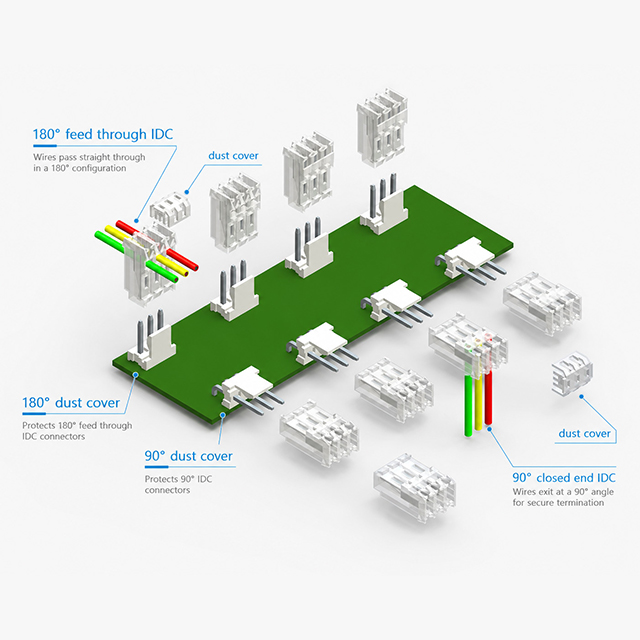

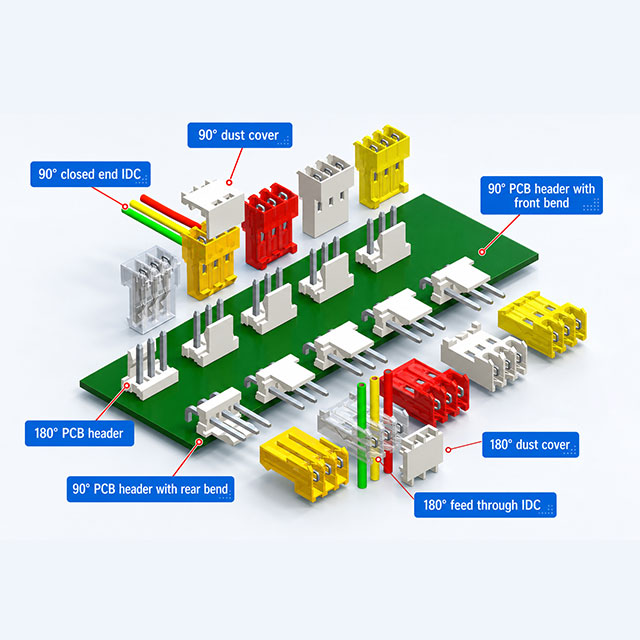

Mating diagram

Mating with 90° closed end IDC

Mating with 180° feed through IDC

3.96mm-IDC-AMP3.96mm-IDC-ITW


Frequently Asked Questions (FAQs)

Technical FAQs

Q: What mating connectors work with this right header?

A: It matches standard 3.96mm pitch IDC connectors, including 90° closed-end and 180° feed-through IDC cable assemblies for universal wire-to-board mating.

Q: Can I customize pin count or special specifications?

A: Standard options range from 2 pins to 20 pins. Custom pin length, special plating and non-standard positions are available upon request.
Q: What soldering method is suitable for this header?
A: It supports wave soldering and manual soldering. Please follow standard lead-free soldering temperature parameters for stable welding effect.
Q: What is the pitch and mounting type of this connector?

A: It adopts standard 3.96mm (.156") pitch, single row vertical 180° design, through-hole DIP mounting for PCB installation.


Procurement FAQs


Q: Do you have this vertical wire-to-board header in stock?
A: Most regular pin sizes are in stock. For large orders or special customized specifications, please confirm delivery time with our sales team in advance.
Q: What is the MOQ for this series?
A: We support low minimum order quantity, both sample trial orders and bulk wholesale orders are welcome.
Q: Can I mix different pin models in one order?
A: Yes, mixed shipment of different pin configurations is acceptable to meet your project procurement needs.
Q: What is the production lead time for bulk orders?

A: In-stock goods can be shipped within 3–5 working days. Out-of-stock and customized orders take about 4–6 weeks according to quantity.

Q: Can you provide export documents and test reports?

A: We can provide commercial invoice, packing list, certificate of origin, RoHS certificate and mechanical performance test reports.
Q: Can I get free samples for testing?
A: Free evaluation samples are provided, customers only need to bear the courier freight cost. Samples can be arranged within 1–3 working days.




Current Rating
7A AC DC
Voltage Rating
600V AC DC
Temperature Range
- 40°C~+120°C
Contact Resistance
3.0mΩ Max.
Insulation Resistance
5000MΩ Min.
Withstanding Voltage
2200V AC/minute
Material
Housing: Polyester UL94V-0
Terminal: Brass
Terminal Finish
Tin plated
Gold plated
Orientation
90°
