Choosing the right connector plating affects your product's cost, reliability, and performance. Gold, tin, or silver—which material fits your use? The answer depends on what matters most to you. Gold gives the best reliability and many mating cycles. Tin is a cost-effective choice. Silver provides high conductivity.
This guide compares these three plating options in detail. You'll learn their properties, best uses, and possible risks. Knowing the basics of connector plating helps you make a smart choice for your electrical designs. Each material has a different job, and matching the plating to your needs prevents costly failures. Whether you care most about signal quality, budget, or lasting in harsh conditions, this comparison gives you the knowledge to pick the right contacts for your project.
Key Takeaways
Gold plating makes low-signal connections reliable for many plug-ins, but it costs more.
Tin plating is low-cost and works well for basic connections that are plugged in only a few times.
Silver plating gives the best electrical flow for high-power uses.
Never mix gold and tin contacts because they will corrode and get damaged.
Quick Plating Comparison
Before we look at each material in detail, here is a quick overview of how gold, tin, and silver compare. This fast reference helps you see the right path for your design without reading every technical detail first.
At-a-Glance Properties Table
The table below shows the five most important factors for connector plating choices. Use it as your starting point, then explore each material's section for more information.
Property | Gold | Tin | Silver |
Relative Cost | Highest | Lowest | Moderate |
Contact Resistance | Very low, stable | Low at first, goes up with age | Lowest available |
Corrosion Resistance | Excellent (noble metal) | Poor; oxidizes over time | Susceptible to tarnishing |
Mating Cycles | High (100+ with proper thickness) | Low (10-25 typical) | Moderate |
Typical Applications | Medical, automotive, aerospace | Consumer electronics, appliances | High-current power systems |
This table shows the main trade-offs at a glance. Gold keeps your signal strong through many insertions. Tin keeps your costs down. Silver gives the best conductivity for heavy power needs. Your project's priorities decide which column matters most.
Key Rules of Thumb for Selection
You can simplify most connector plating choices with three practical tips. These rules cover most design situations you will face.
Use gold for low-signal, high-cycle applications. Use tin for cost-sensitive, low-cycle applications. Use silver for high-current applications.
Gold fits sensitive circuits where even tiny resistance changes cause signal errors. You will see gold contacts in medical devices and automotive safety systems where failure is not an option. Tin works well for consumer products with few insertion cycles, like a power supply you plug in once and leave alone. Silver handles high-current power distribution where heat and voltage drop matter more than how often you connect it.
Remember that your environment also affects your choice. Humid or corrosive places push you toward gold even though it costs more. Clean, controlled indoor spaces let tin work fine. High-temperature power uses may accept silver's tarnishing risk for its better electrical performance. Match the plating to your operating environment, not just your budget.
Gold Plating for High-Reliability Connectors
Gold is different from other contact plating materials because it is a noble metal. That means it fights off oxidation and corrosion much better than tin or silver. When you put gold plating on your connector pins, the surface stays clean and steady for many years. You don't have to worry about oxide forming on the contact surface. If oxide did form, it would raise resistance and hurt your signal.
Gold Plating: Performance and Cost
Gold gives great electrical performance because it keeps low contact resistance through many connection cycles. Every time you plug and unplug your connector, the gold surface stays in good shape. This steadiness makes gold the top pick for circuits that use low-voltage signals. A small rise in resistance can mess up those signals or cause problems that come and go.
Gold plating costs the most out of the three materials. You pay more for the metal itself and for the careful way it's made. But you should think about the upfront cost versus the cost of a failure. In a medical monitor or a car safety system, one bad connection can cost way more than the money saved from cheaper plating. Gold's dependability often makes its price worth it.
Property | Gold Performance |
Oxidation resistance | Excellent, no oxidation |
Corrosion test | Salt spray, mixed flowing gas |
Contact resistance | Very low, stable over time |
Mating cycles | High, with proper thickness |
Gold also handles corrosion well in tough environments. Tests with salt spray and mixed flowing gas show that gold surfaces stay the same. Tin gets tarnished over time, and silver gets tarnished and wears from rubbing. Gold just doesn't react with these things. That makes it the safest pick for hard jobs.
Ideal Applications for Gold Contacts
You should pick gold contacts for uses where dependability is the most important thing. Medical devices, car electronics, and airplane systems all need steady performance. A heart monitor can't handle a connection that gets worse after fifty plug-ins. An airbag sensor must work every time, even after years of shaking and temperature shifts.
HRB&HRBCN Connector has wire-to-board connectors with gold plating choices. These connectors fit car and medical uses just right. You get the electrical steadiness you need without losing mechanical strength. The gold plating guards your signal path from the time you put in the connector.
Gold also works well for devices that get plugged and unplugged a lot. Test gear, programming tools, and modular instruments all gain from gold's ability to resist wear. You can push in and pull out these connectors hundreds of times without losing performance. Tin plating would wear out much quicker, showing the base metal and raising resistance.
For low-current uses, gold is the clear choice. Signal quality matters more than handling lots of power. You need every tiny bit of voltage to get where it's going without loss. Gold makes sure your signal stays clean from one side of the circuit to the other.
Tin Plating: Cost-Effective and Practical
Tin plating offers the most budget-friendly option for connector contacts. You pay far less for tin than for gold or silver. This cost advantage makes tin the default choice for many high-volume products. But you must understand its trade-offs before you commit to this material.
Tin Plating: Properties and Limitations
Tin provides good solderability, which means solder flows easily onto the surface during assembly. This property speeds up your manufacturing process and reduces defects. You also get a flat, even surface that works well for power connections. Tin's soft nature allows it to deform slightly under pressure, creating a larger contact area.
However, tin is not a noble metal. It oxidizes over time, forming a thin layer on the surface. This oxide layer increases contact resistance, which can weaken your signal. The oxidation process speeds up in warm or humid environments. You also face limits on mating cycles. Tin plating typically handles only 10 to 25 insertions before wear becomes noticeable. Each connection scrapes away a tiny bit of the tin surface.
The corrosion resistance of tin plating falls short of gold. In harsh conditions, tin can degrade faster than you expect. You should also know that tin works best when you mate it with another tin surface. Mixing tin with gold creates galvanic corrosion, which we cover later in this guide.
When to Choose Tin Contacts
You should choose tin contacts for applications with few mating cycles and tight budgets. Consumer electronics fit this pattern perfectly. A power supply that you plug in once and leave alone does not need gold. A toy or household appliance with a fixed connection works fine with tin.
The table below shows how plating choices split across consumer electronics:
Application Area | Plating Choice | Rationale |
Power circuits in consumer electronics | Tin | Low-cost solution, suitable for cost-sensitive projects |
Signal connectors in consumer electronics | Gold | Premium solution, not driven by cost constraints |
This table shows the practical split. Power circuits carry higher current, so small resistance changes matter less. Signal connectors carry delicate data, so you need gold's stability. Tin plating serves the power side well. The terminal plating on your power pins can be tin without hurting performance.
You also benefit from tin's good solderability during board assembly. The solder wets quickly and forms strong joints. This reliability reduces rework and scrap. For large production runs, these savings add up fast. Tin gives you a dependable connector at a fraction of the cost of gold.
Silver Plating: High Conductivity Specialist
Silver differs from gold and tin in one main way. It conducts electricity better than any other metal. This makes it a strong option when performance is the top priority. But you also need to know its weak points before choosing it for your project.
Silver Plating: Benefits and Vulnerabilities
Silver gives you the best conductive performance available. The IACS (International Annealed Copper Standard) conductivity values show this clearly:
This contact plating reaches about 105% IACS, matching pure silver. Your connector pins carry current with less resistance than copper or gold contacts. For high-current paths, lower resistance means less heat and better energy efficiency.
The main weakness of silver is tarnishing. It reacts with sulfur compounds in the air. When hydrogen sulfide levels go past 10 ppb or relative humidity stays above 85%, silver sulfide forms on the surface. This tarnish layer raises contact resistance compared to pure silver. In very low voltage applications, the resistance increase can disrupt signal transmission. Silver does not offer the same good corrosion resistance as gold. However, the tarnish layer is conductive and often acceptable for power applications.
Best Use Cases for Silver Contacts
Silver excels in high-current applications where conductive performance is critical. The industry uses it in several key areas:
Silver's thermal conductivity also helps dissipate heat from hot spots in high-current power transmission. The material maintains stable connections under high vibration, temperature cycling, and compact designs.
An important advantage of this contact plating is its compatibility with other finishes. You can mate silver with gold or tin surfaces without causing galvanic corrosion. This flexibility simplifies your design.
For high-current applications, silver offers the best balance of performance and cost. The tarnishing risk is manageable in controlled indoor environments. Your connector stays reliable through many operating cycles.
Electrical Contact Plating Properties
Contact Resistance and Signal Integrity
Contact resistance shows how well a signal moves through a connector. Gold keeps this resistance very low, even after thousands of plug-ins. That steady performance makes gold the top pick for low-voltage signal circuits. Tin starts with okay resistance, but oxidation slowly makes it worse. Every time you connect, the tin surface gets scraped, and fresh metal oxidizes again. Over time, this cycle weakens the signal.
Silver has the lowest resistance of the three. Its conductivity hits about 105% IACS, which beats copper. For power circuits, that means less heat and better efficiency. But silver tarnishes in humid or sulfur-heavy air. The tarnish adds some resistance, yet it still conducts well enough for most power uses.
The table below shows how each plating type performs electrically:
Plating Type | Contact Resistance | Signal Integrity |
Gold | Very low, stable | Excellent over many cycles |
Tin | Low initially, rises with age | Degrades with repeated use |
Silver | Lowest available | Good, but tarnish adds resistance |
Durability and Mating Cycles
Mechanical durability decides how many times you can plug and unplug your connector pins. Gold plating thickness matters a lot here. Standard thickness runs from 0.75 to 1.25 microns, which works for most uses. For tough jobs like aerospace or military, you need thicker gold up to 2.5 microns. These thicker layers handle thousands of mating cycles without wearing through.
Gold Plating Thickness | Mating Cycle Suitability | Key Characteristic |
1.27 microns or above | High mating cycles | Superior corrosion resistance |
0.25–0.76 microns | Low-stress environments | Cost-effective but porous |
Hard gold (with impurities) | High mating cycles | Toughness prevents degradation |
Tin plating fails sooner than gold because of several wear issues. Fretting corrosion happens when vibration causes tiny movements that expose fresh tin, which oxidizes and blocks current. High heat triggers reactions between copper and tin, plus mechanical creep. Hot mating erosion occurs when you connect under power, creating sparks that burn holes in the tin.
For uses with fewer than 25 mating cycles, tin works fine. Past that, you risk exposing the base metal and losing electrical performance. Gold's durability justifies its higher cost when your product needs frequent connections or long-term reliability.
Tin vs Gold vs Silver: How to Choose
You now know what each material does well and where it falls short. The next step is matching those traits to your project. Your choice comes down to two main questions: what does your signal need, and where will your connector be used? Answer those, and the right pick becomes obvious.
Signal vs. Power: Matching Plating to Needs
Your circuit's job decides which contact plating works best. Signal applications carry low-voltage data that needs clean, steady transmission. Power applications carry higher current where small resistance changes matter less.
For signal circuits, gold is the clear winner. A low-voltage signal can't handle resistance changes. Tin oxide forms on tin surfaces over time, and this oxide blocks electrical flow. That resistance increase becomes a big problem for low-voltage signal applications. You might see random errors or total signal loss as the oxide builds up. Gold avoids this issue completely because it doesn't oxidize.
Tin plated connectors should also stay limited to low-frequency uses. High-speed digital signals lose strength when they pass through tin surfaces. More conductive platings work better for high frequency signal transmission. If your design moves data at high speeds, gold gives you the performance you need.
Power circuits follow a different rule. High-current applications benefit from silver's superior conductivity. Silver plating carries more current with less heat buildup. This makes silver the practical choice for high-current power transmission systems like electric vehicle charging hardware or industrial power distribution.
Cost-sensitive designs with modest power needs can use tin. A simple power supply connection that you plug in once works fine with tin. The solderability of tin also helps during manufacturing, creating strong joints quickly. Just remember that tin handles only 10 to 25 mating cycles before wear shows up.
Environmental Factors and Operating Conditions
Your operating environment often overrides your performance priorities. A connector that works perfectly in a clean lab may fail quickly in a humid factory or a dusty outdoor setting.
Corrosion resistance becomes critical in harsh environments. Gold resists corrosion from salt spray, humidity, and industrial chemicals. Silver tarnishes when exposed to sulfur compounds in the air. Tin oxidizes faster in warm, humid conditions. Each material reacts differently to the same environment.
You also need to think about tin whiskers in certain conditions. Tin whiskers are conductive filaments that grow slowly over time. They can reach several millimeters in length. These conductive extensions can cause short circuits or electrical arcing between components. This risk makes tin unsuitable for mission-critical systems where failure creates safety hazards.

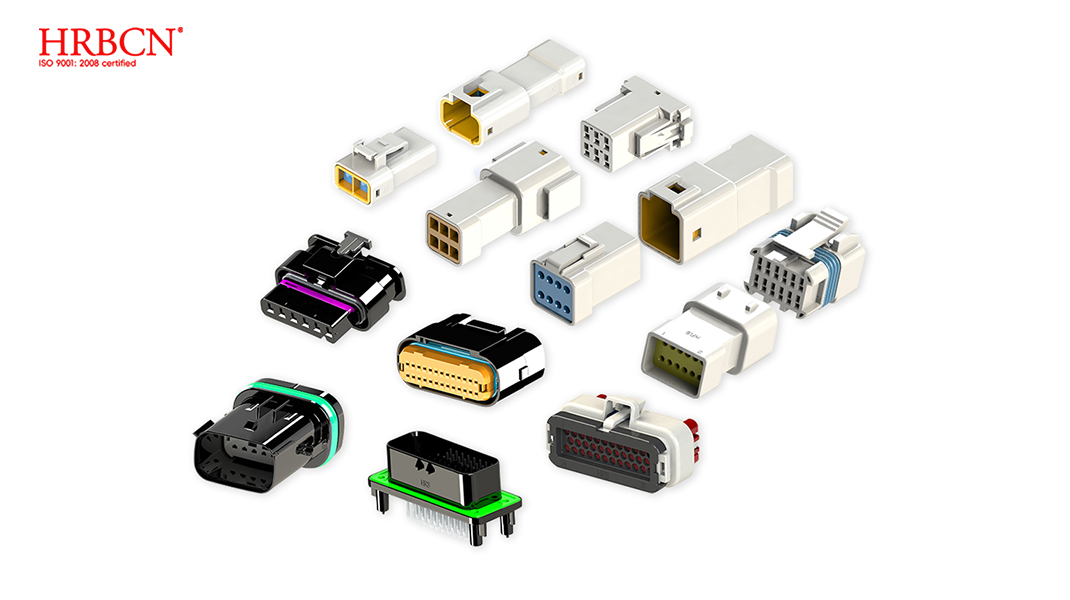

HRB&HRBCN Connector designs its IP67 waterproof connectors for exactly these challenging conditions. These connectors use sealed housings and tin-plated contacts to withstand water, dust, and vibration. The IP67 rating ensures protection against temporary immersion in water. For outdoor lighting, automotive systems, or marine equipment, this design provides dependable performance.
Your connector plating selection should factor in both temperature range and exposure to contaminants. A controlled indoor environment lets you choose tin for cost savings. An outdoor installation with temperature swings pushes you toward gold or silver. The IP67 waterproof connectors demonstrate how thoughtful design combines sealing with appropriate plating choices.
The table below summarizes your decision path:
Your Priority | Best Plating Choice | Key Reason |
Signal integrity, many mating cycles | Gold | Stable resistance, no oxidation |
High-current power, low cost | Silver | Best conductivity, handles heat |
Budget, few cycles, clean environment | Tin | Lowest cost, good solderability |
Your final choice balances electrical needs, environmental exposure, and budget. No single material wins every category. Match the plating to your specific conditions, and your connector will deliver reliable performance for years.
Risks of Mixing Plating Types
You might think any plating combination works as long as the connector fits. That idea can ruin your product. Mixing incompatible platings causes galvanic corrosion. This slowly damages your connection until it fails completely. Knowing this risk keeps your design from failing early.
Understanding Galvanic Corrosion
Galvanic corrosion happens when two different metals touch each other with an electrolyte present. Moisture, humidity, or condensation can act as that electrolyte. The metals form a small battery. One metal corrodes faster than it would alone. The bigger the difference between the metals, the stronger the corrosion force.
The anodic index measures this difference. A higher number means the metal corrodes more easily. Here is how gold and tin compare:
Metal | Anodic Index (V) |
Gold (solid/plated) | -0.00 |
Tin (plate/solder) | -0.65 |
Galvanic potential difference | 0.65 V |
That 0.65 V gap between gold and tin creates a strong force for corrosion. In this pair, tin becomes the anode and corrodes faster. Gold acts as the cathode and stays fine. The tin surface breaks down. Tin oxide deposits can form on the gold surface. This contamination raises contact resistance and weakens your signal path.
A real case study shows how serious this problem is. Tin-lead solder mated to gold degrades much faster than tin-lead against itself. Under fretting, contact resistance jumps from 0.001 Ω to 10 Ω in only a few thousand cycles. That is a ten-thousand-fold increase in resistance. Your signal goes from clean to unusable in a short time.
Best Practices for Mating Different Platings
The critical rule is simple: never mate gold with tin. This combination guarantees galvanic corrosion when moisture appears. Always prefer gold-to-gold or tin-to-tin connections. Matching platings removes the voltage difference that drives corrosion.
Silver offers a useful exception. You can mate silver with either gold or tin without creating the same corrosion risk. This flexibility makes silver a practical middle choice for mixed systems. For high-current power applications, silver-to-tin connections work well in controlled environments.
The SAE ARP6903 standard gives formal guidance for choosing compatible finishes. This standard includes a galvanic compatibility table. It helps you pick safe plating combinations. It also lists performance parameters for each plating type and connector specification. Following this standard lowers your risk of corrosion failures.
Critical warning: Tin-lead solder mated to gold degrades quickly under fretting. Contact resistance increases from 0.001 Ω to 10 Ω in only a few thousand cycles. Never combine these two metals in your connector design.
You should also think about your operating environment. A dry, sealed enclosure reduces corrosion risk because no electrolyte reaches the metals. Outdoor or humid environments speed up galvanic corrosion a lot. If your product faces moisture, matching platings becomes even more important.
When you design your connector system, write down the plating of both mating halves. Check that your supplier uses compatible finishes. A small mistake in plating selection can cause field failures. Those failures cost far more than the savings from mixing metals. Your connector pins deserve the same care you give to every other part in your design.
Your choice of plating comes down to four factors: cost, reliability, electrical performance, and environmental conditions. No single material works best for every situation. The right choice depends on your specific application.
Evaluate your priorities carefully. Do you need many mating cycles? Gold suits high-reliability designs. Does your budget limit you? Tin works for cost-sensitive applications. Do you carry high-current power? Silver delivers the best conductivity.
HRB&HRBCN Connector offers products with various finish options. Their team can help you match the right contacts to your needs. Your connector pins and their corrosion resistance directly affect long-term product success. Good material selection ensures customer satisfaction for years to come.
FAQ
How do I pick between gold, tin, and silver plating?
Pick the plating based on what you need. Gold is good for low-signal designs that need many connections. Tin works for low-cost projects that don't get plugged in many times. Silver takes care of high-current power needs. Also think about where you use it. Wet or corrosive places make gold a better choice. Clean indoor spaces let tin work fine.
Can I use gold and tin contacts together in one connector?
Never put gold with tin. This mix causes galvanic corrosion when water or moisture is present. The 0.65 V difference between them makes them break down fast. Contact resistance can go from 0.001 Ω to 10 Ω after a few thousand uses. Always use gold with gold or tin with tin. Silver can be used with either gold or tin without problems.
What plating is best for high-current uses?
Silver gives you the best electrical flow, about 105% IACS. That makes it perfect for power lines, EV charging, and factory machines. Silver gets tarnished in wet or sulfur-heavy air, but the tarnish still lets electricity through for power uses. You can use silver with gold or tin safely.
How many times can each plating be plugged in?
Gold can handle 100 or more plug-ins if it's thick enough. Tin only lasts 10 to 25 plug-ins before it wears out. Silver is in between. Thicker gold lasts even longer. If you plug in often, gold gives you the toughness you need. Tin only works when you don't plug in many times.
Does tin plating resist corrosion well?
Tin does not resist corrosion as well as gold. It oxidizes over time, making a layer that raises contact resistance. Warm or wet places make this happen faster. Tin can also grow tiny whiskers that may cause short circuits. For tough conditions, gold plating gives you much better protection.
