Q1: What certifications and documents can you offer for M1103 series for EU export clearance?
A1: This wire-to-wire connector fully complies with RoHS & REACH. The PA6 housing is UL94V-0 flame retardant. We can provide material certificates, MSDS, full performance test reports, and HS code 8536909000 customs documents for European bulk orders.
Q2: What’s your standard lead time for mass production of M1103F & M1103M housings plus matched terminals?
A2: Standard black & orange housings are in stock, delivery within 3–7 working days. Mass orders over 10,000 pcs take 15–20 working days. We own independent injection and stamping workshops without outsourced production to guarantee stable delivery schedules.
Q3: Can I get free samples for project validation? What is your sample shipping policy?
A3: We supply free small engineering samples for OEM qualification testing. Customers only bear international freight cost. We support sample delivery to Europe, Southeast Asia and North America for laboratory verification.

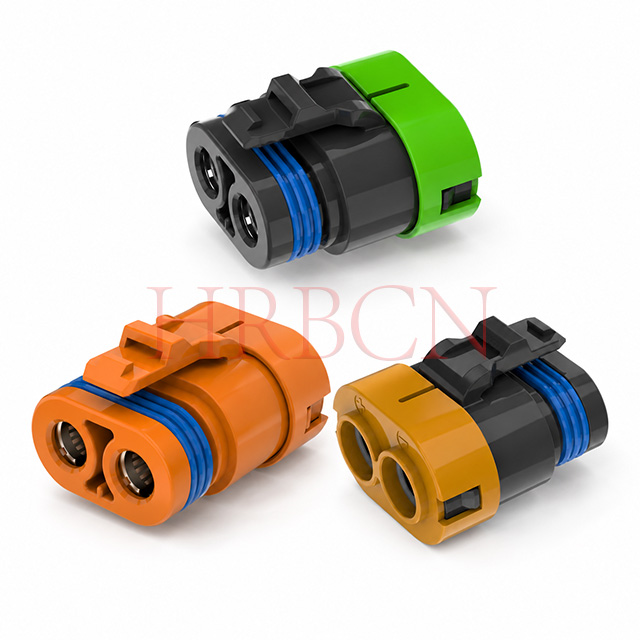

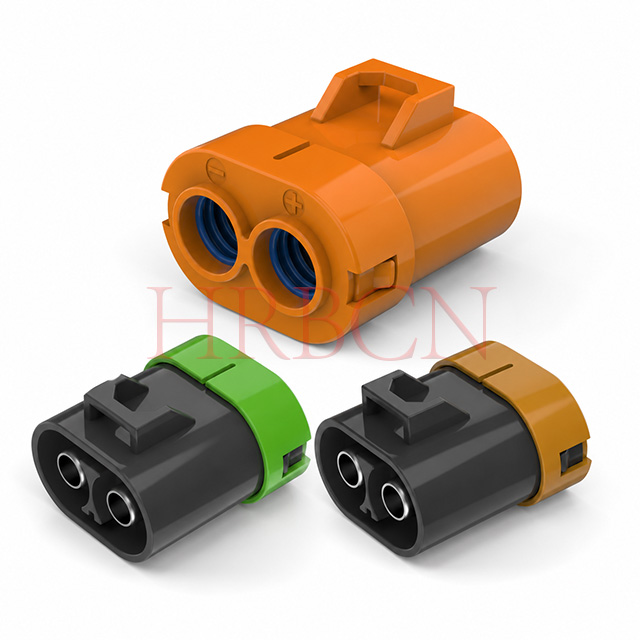

Q4: Are black and orange housing colors both available? Can we customize special colors for large-volume orders?
A4: Black and orange housings are regular stock options. For orders above 50,000 pcs per batch, customized plastic colors are available with reasonable mold modification fees.
Q5: Can M1103 replace imported high-current waterproof connectors? Can you provide cross-reference datasheet?
A5: Yes, M1103 wire-to-wire series is a direct drop-in replacement for mainstream international 11mm high-power waterproof connectors. We can provide full cross-reference comparison table to help you optimize BOM and reduce purchasing costs.
Q6: Do you support long-term framework supply for energy storage, agricultural drone and automotive Tier1 customers?
A6: We have stable mass supply experience serving more than 30 automotive Tier1, energy storage and drone manufacturers. We arrange dedicated safety stock for long-term contract customers to avoid material shortage risks.
Engineering & R&D FAQs
Q1: What AWG wire gauges does M1103 housing support? How to match the silicone seal plugs?
A1: Three seal options are available: A for AWG6# (wire OD 8.00–8.60mm blue seal), B for AWG8# (OD5.90–6.80mm green seal), C for AWG10# (OD3.80–4.60mm yellow seal. Matching seals are mandatory to maintain IPX7 waterproof performance.
Q2: What electrical parameters does this 80A high-current connector have? Do I need current derating under high temperature?
A2: Rated 80A AC/DC max, 600V AC/DC, withstand voltage 2200V AC/min, insulation resistance ≥2000MΩ. For continuous operation above 100°C ambient temperature, we suggest 20% current derating to prevent overheating.

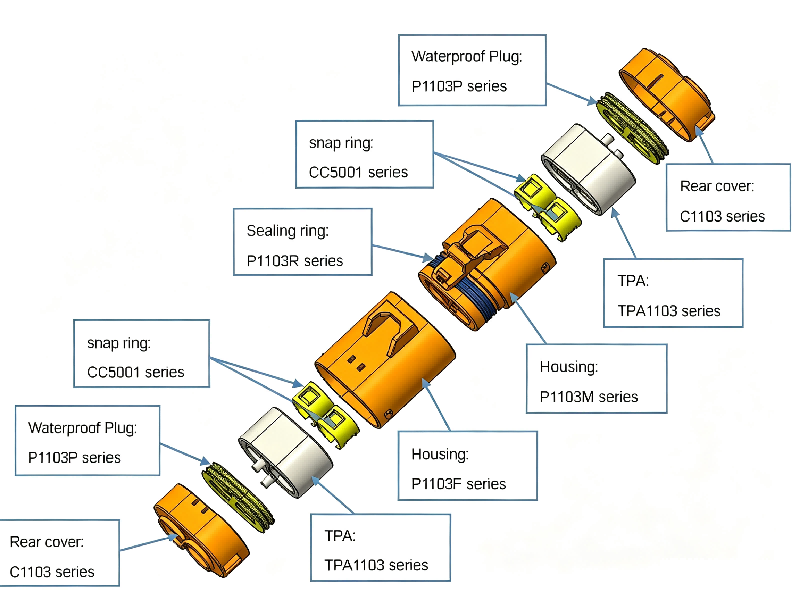

Q3: Does M1103 adopt integrated TPA anti-retention structure? How does it resist vibration back-out?
A3: It has built-in molded TPA locking ribs inside housing without extra external snap buckles. Internal barbs lock crimp terminals tightly to stop backward sliding under continuous vibration of EV, water pumps and drones, effectively eliminating intermittent circuit faults.
Q4: What temperature range can the connector withstand? Is the housing material suitable for long-term outdoor use?
A4: Operating temperature range: -40°C ~ +125°C. PA6 UL94V-0 plastic has excellent anti-aging performance, ideal for all-weather outdoor energy storage, vehicle and HVAC equipment.
Q5: What’s the terminal material and plating? Is it anti-corrosion for humid or coastal environments?
A5: Terminals are copper alloy with tin plating, offering stable conductivity and basic anti-corrosion performance. For coastal high-salt applications, customized gold-plated terminals can be developed upon request.
Q6: Can you provide crimp specifications, dimension drawings and 3D STEP files for structural design?
A6: We freely provide official dimension outlines, crimp parameter guides and 3D model STEP files for PCB and mechanical design. The complete male/female housing + terminal matching system simplifies harness development.
General Application FAQs
Q1: What scenarios is M1103 11.0mm wire-to-wire connector mainly used for?
A1: Widely applied in outdoor energy storage cabinets, portable power stations, electric scooters, ATV, yachts, agricultural drone battery wiring, high-power HVAC pumps, industrial cleaning equipment and smart city outdoor monitoring power supply.
Q2: What IP waterproof rating does this series reach? Can it work in rainy, dusty outdoor environments?
A2: Standard IPX7 waterproof grade, fully sealed with multi-color silicone wire seals, resisting rain splashing and dust intrusion, suitable for long-term outdoor harsh working conditions.
Q3: Does this series support scattered separate shipment of housings, terminals and seals?
A3: Yes. Male/female housings, crimp terminals and different specification seal plugs can be delivered separately according to harness factory assembly requirements.
Q4: Is overmolded waterproof cable assembly service available based on M1103 series?
A4: We support customized overmolded waterproof wire harnesses with M1103 connectors for special industrial machinery, energy storage and drone OEM projects.

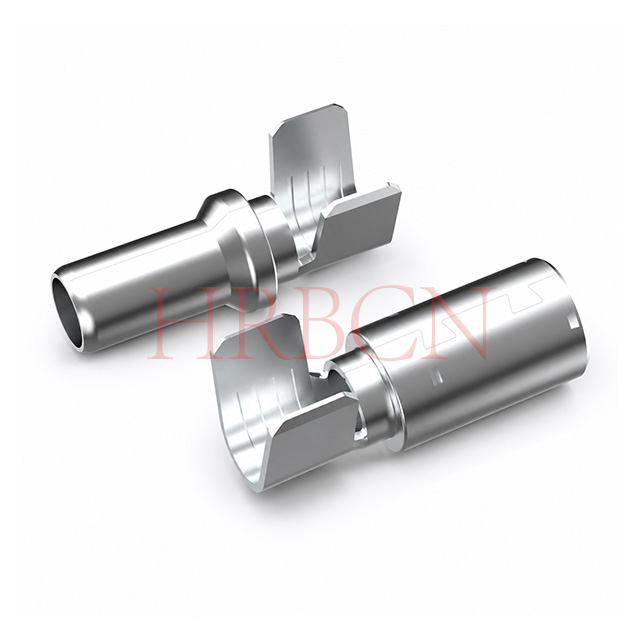

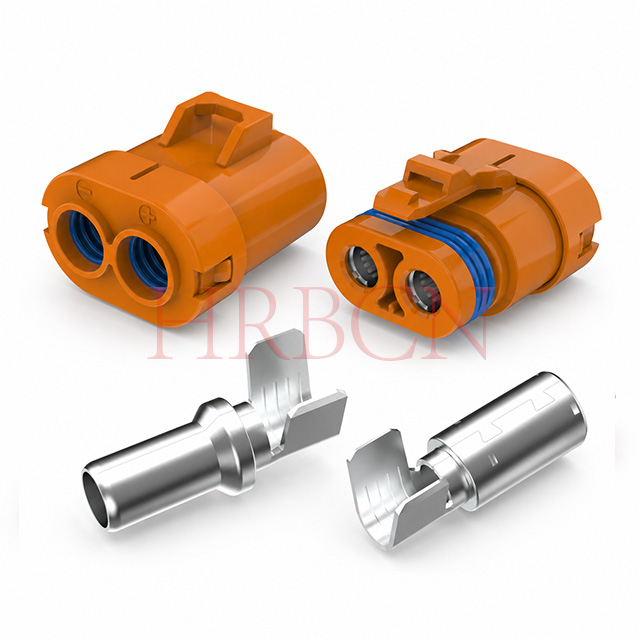

Q5: What terminal part numbers match M1103 male and female housings?
A5: Male terminal model T11019PS, female terminal model T11020PS; three size options L/M/S corresponding to AWG6/AWG8/AWG10 wires for matching assembly.
