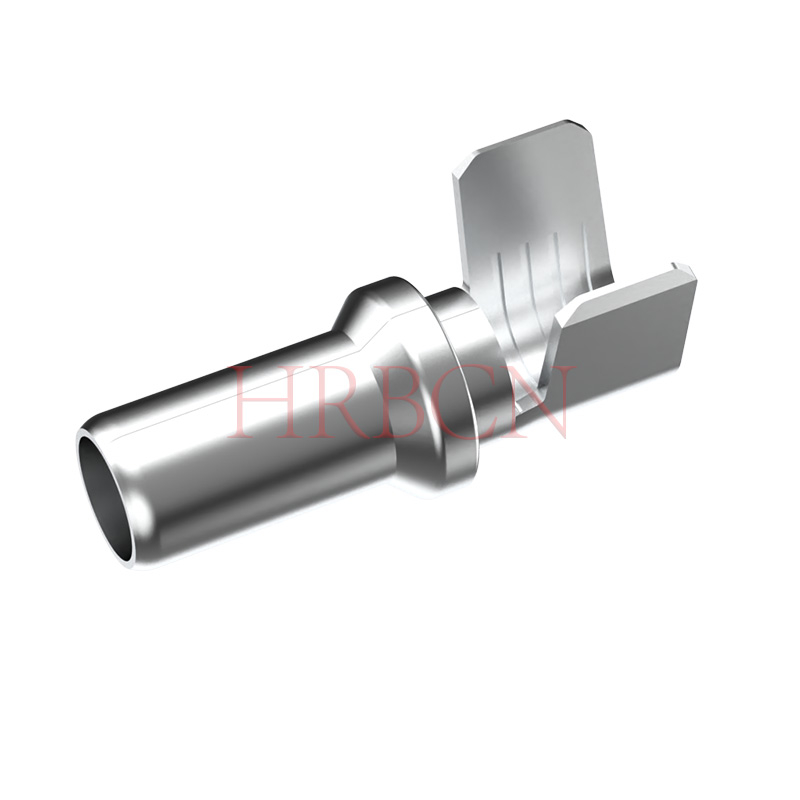

TERMINAL
Material: Copper alloy
Finish:Tin-Plated
Applicable Wire: AWG#10-#6
Used With: Housing: M1103F-1x2-*-*
SPECIFICATIONS
Voltage rating: 600V AC, DC Max.
Current rating: 80A AC, DC Max.
Contact resistance:2000MΩ Min.
Withstanding Voltage: 2200V AC/minute
Contact resistance: 5MΩ Max.
Temperature range: -40° C~ +125° C
| S/N | Part No. | Plated | Voltage Rating | Current Rating | Applicable wire | Insulation O.D. | Reel Packaged |
1
| T11019PS-P-L-2 | tin | 600 | 80
| AWG#6(13.25m㎡)
| 8.60
| 1500pcs |
| 2 | T11019PS-P-M-2 | tin | 600 | 70 | AWG#8(8.34m㎡) | 6.1-8.5
| 1500pcs |
| 3 | T11019PS-P-S-2 | tin | 600 | 40 | AWG#10(5.3m㎡) | 3.8-5.6
| 1500pcs |
