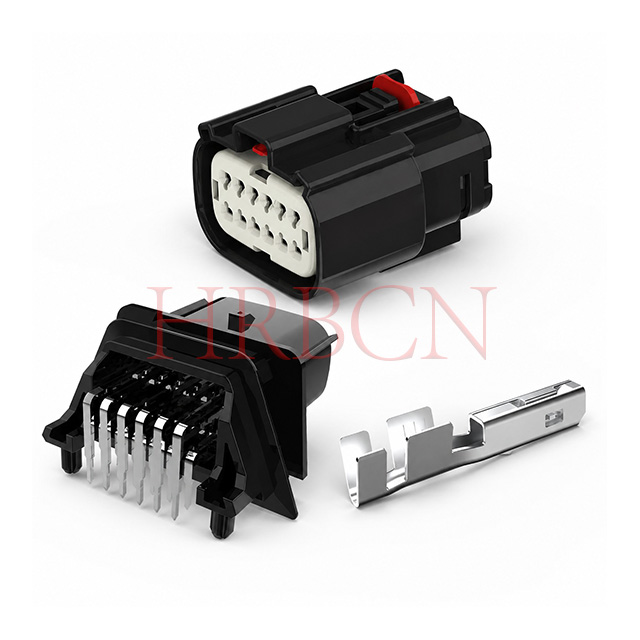

3.5mm Pitch Waterproof Wire To Board Connector

P/N Definition

A-M35004-2xN-X-C-X-X

        ①           ②③ ④⑤⑥

①: HRB item series number

②: Number of pins per row: 2/3/4/6/8/10

③: Keying code: A/B/C/D-type

④: HSG Color: B: black, Y: yellow, LG: Light gray, DG: dark gray, SG: Stone gray, N: Natural

⑤: Ring seal color: GN: green, R: Red

⑥: C: With CPA, Blank: Without CPA

A-M35009-2xN-X-C

        ①           ② ③④

①: HRB item series number

②: Number of pins per row: 2/3/4/6/8/10

③: Keying code: A/B/C/D-type

④: Color: Black, Light Gray, Dark Gray, Stone Gray;

PCB Layout Specification

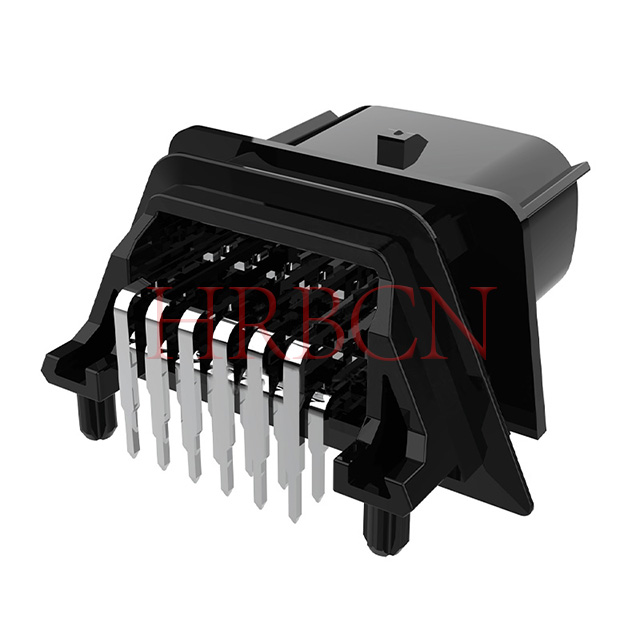

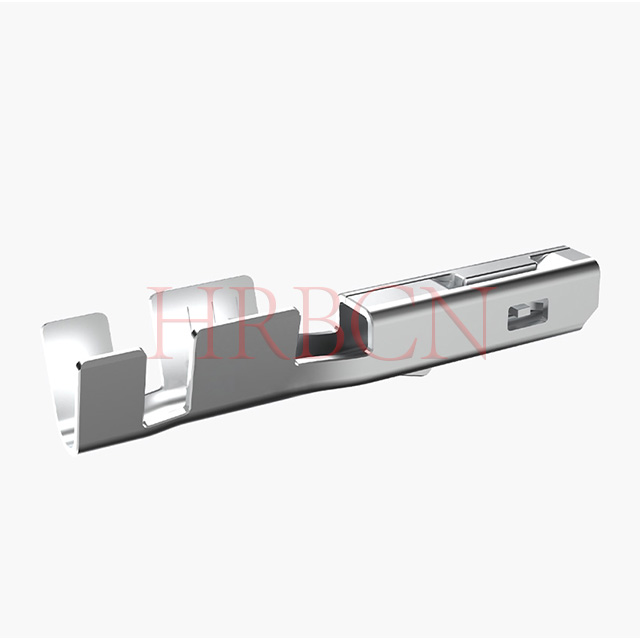

Connector Type: Solder Tail Harness PCB Header

Recommended PCB Thickness: 1.60 mm

Mount Orientation: 90° right angle horizontal PCB installation

Compliance Standard

• Compliant with LV214 automotive specification

• Fully RoHS & REACH Compliant

• TUV Certified

Key Product Advantages

1. Dual IP67 & IP69K sealing, withstand industrial high-pressure washing and outdoor rain/dust

2. 90° right-angle solder tail design, perfect fit for 1.6mm standard PCB boards

3. Optional CPA secondary lock prevents terminal backout under long-term vibration

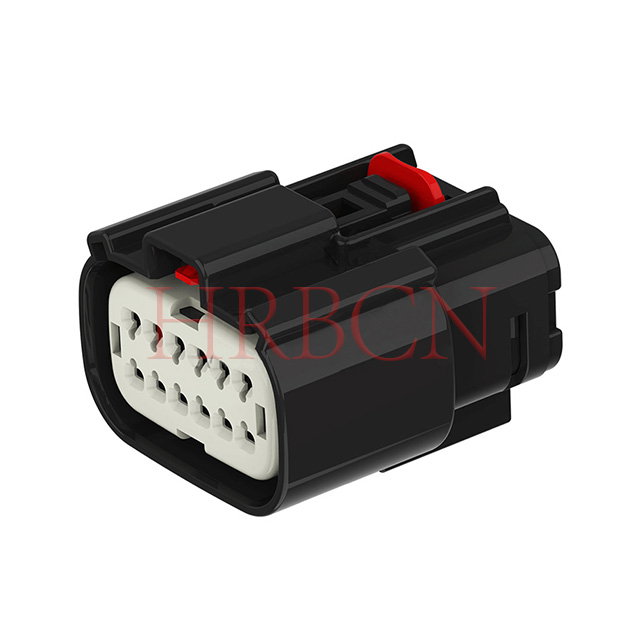

4. Multi-type key codes (A/B/C) avoid cross-circuit misplugging

5. Wide temperature range adapts automotive engine, farm machinery and outdoor monitoring

6. Full certifications: LV214 automotive standard, TUV, RoHS, REACH compliant

7. Multiple housing color options for circuit identification
