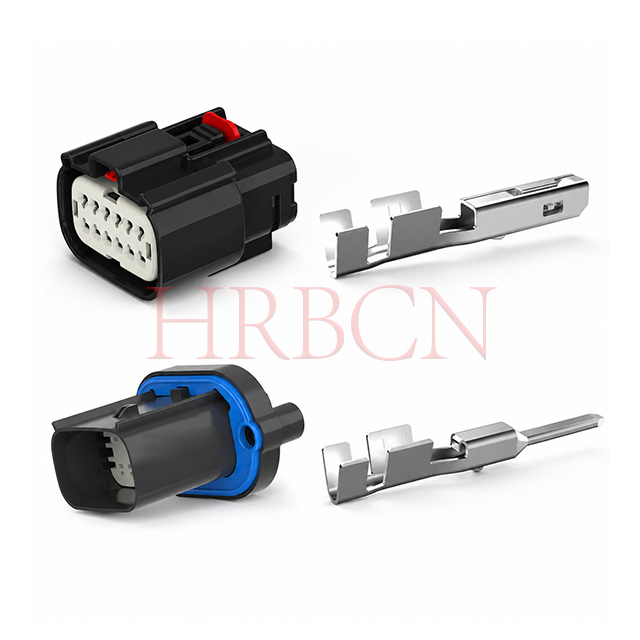

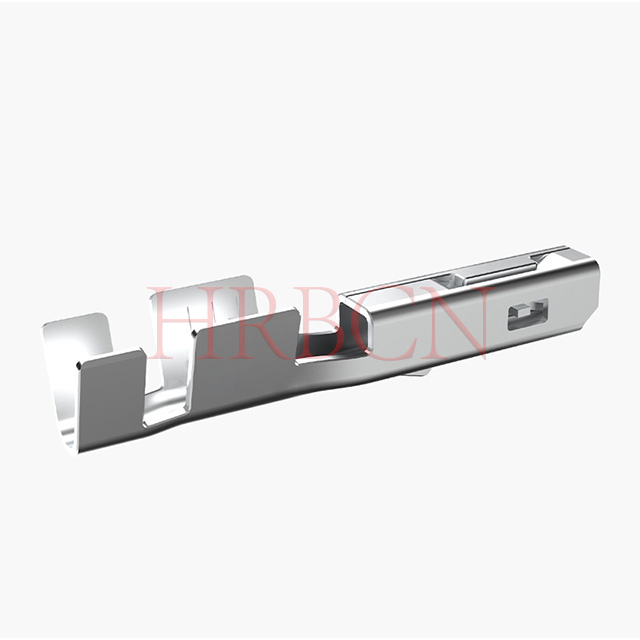

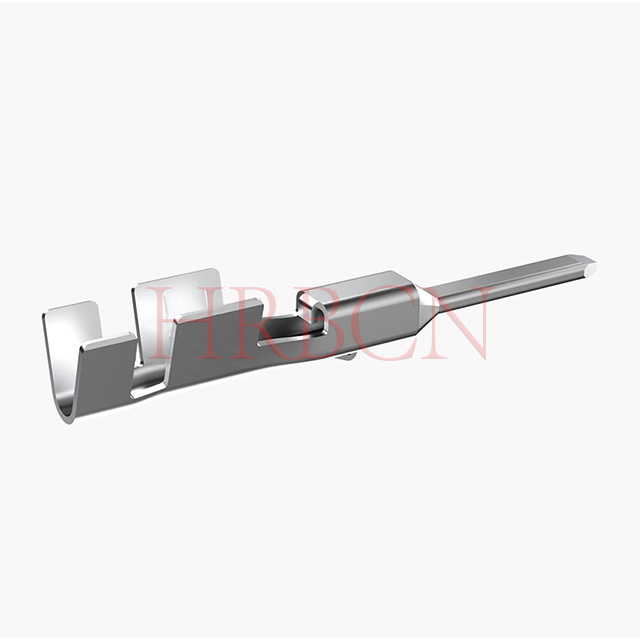

A-M3500 Series IP67 & IP69K Waterproof Wire-To-Wire Connector With Panel Mount | HRB ​

P/N Definition

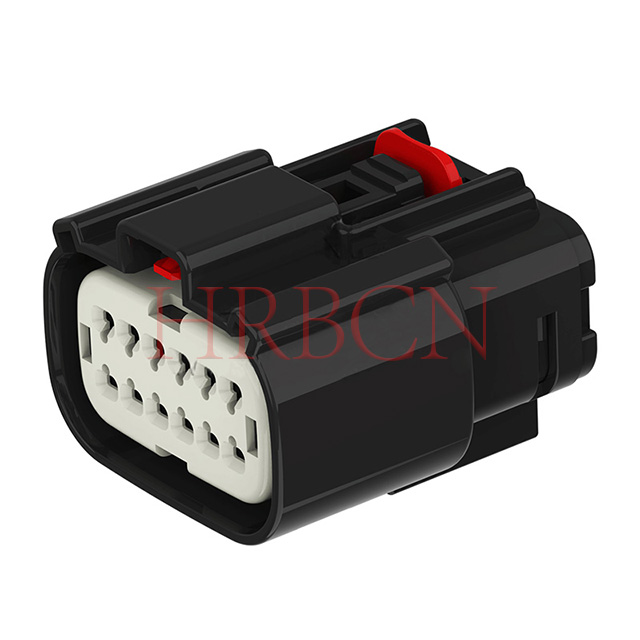

A-M35004-2xN-X-C-X-X

        ①           ②③ ④⑤⑥

①: HRB item series number

②: Number of pins per row: 2/3/4/6/8/10

③: Keying code: A/B/C/D-type

④: HSG Color: B: black, Y: yellow, LG: Light gray, DG: dark gray, SG: Stone gray, N: Natural

⑤: Ring seal color: GN: green, R: Red

⑥: C: With CPA, Blank: Without CPA

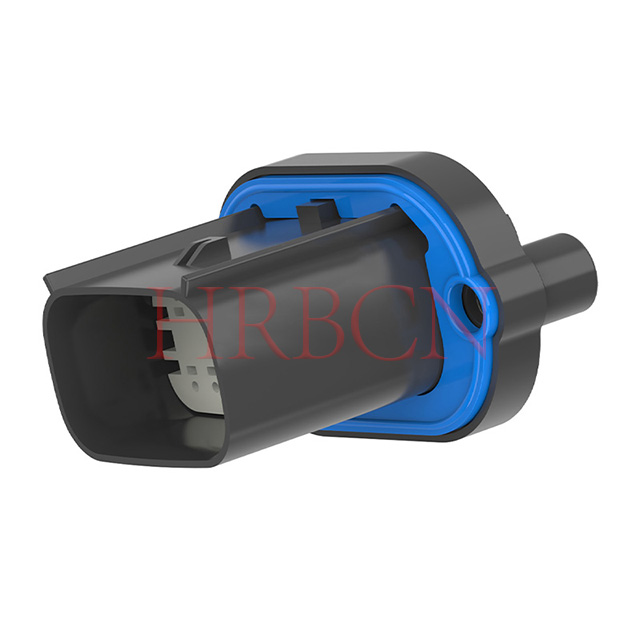

A-M35008-2xN-X-X

        ①           ② ③④

①: HRB item series number

②: Number of pins per row: 2/3/4/6/8/10

③: Keying code: A/B/C/D-type

④: Without Nut color: B: Black, LG: Light Gray, DG: Dark Gray, SG: Stone Gray;

      With Nut color: C: Black, D: Light Gray, E: Dark Gray, F: Stone Gray;

Torque Specification for Panel Screws

Standard manual tightening torque:

M3 screw: 0.6–0.8 N·m

M4 screw: 1.0–1.2 N·m

Customers shall conduct testing on the actual screw size and type to validate suitability for their specific application.

Key Advantages

1. Dual IP67 & IP69K protection, withstand high-pressure industrial washing

2. Two installation styles: inline wire-to-wire & flange panel mount for cabinet assembly

3. A/B/C/D color keying prevents wrong mating between different circuits

4. Optional CPA lock enhances terminal anti-backout performance under vibration

5. Wide temperature range adapts engine, outdoor and agricultural harsh environments

6. Multiple housing & seal color options for circuit differentiation

7. Standard M3/M4 mounting screw torque for stable panel installation
