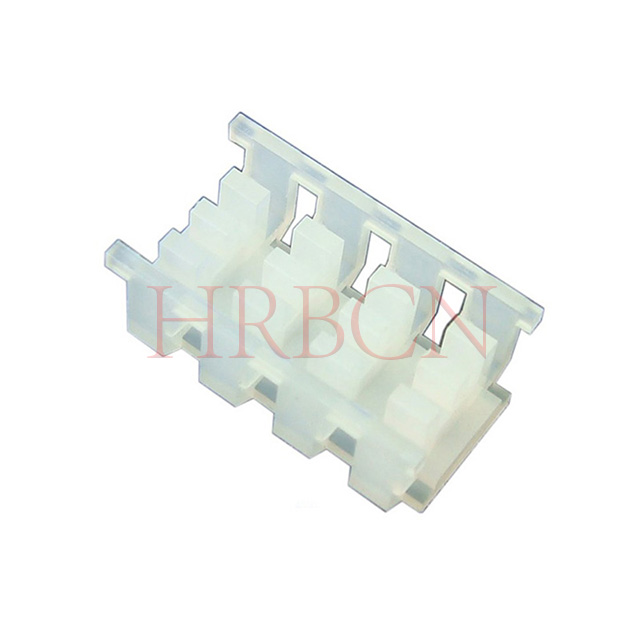

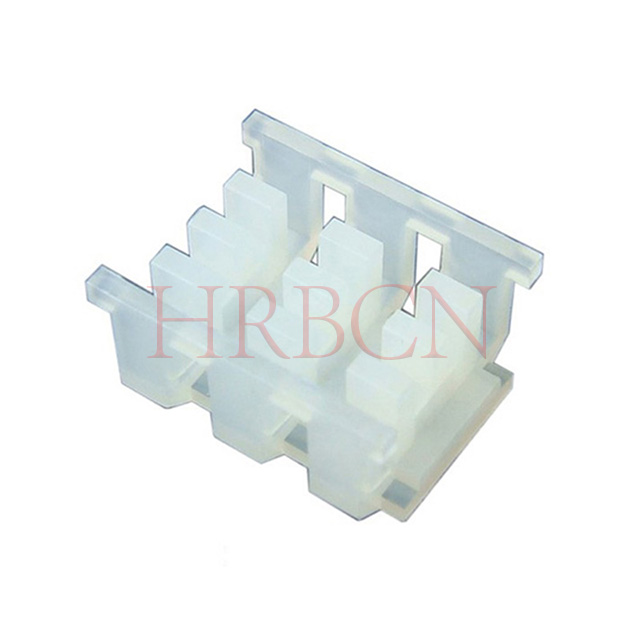

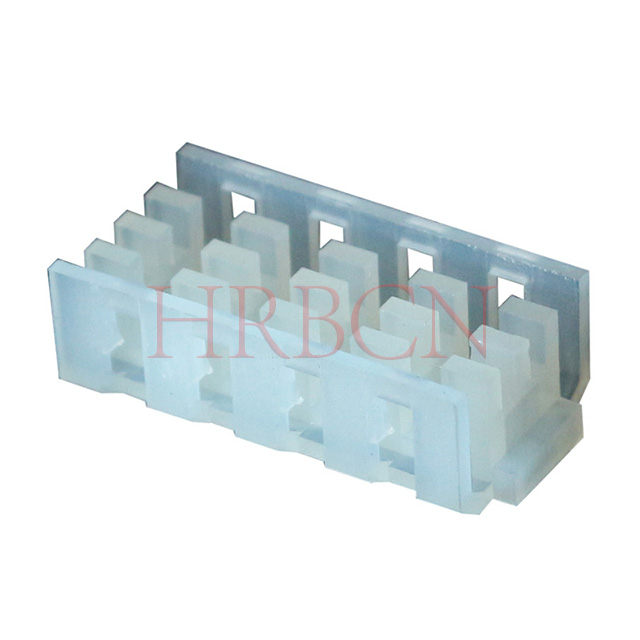

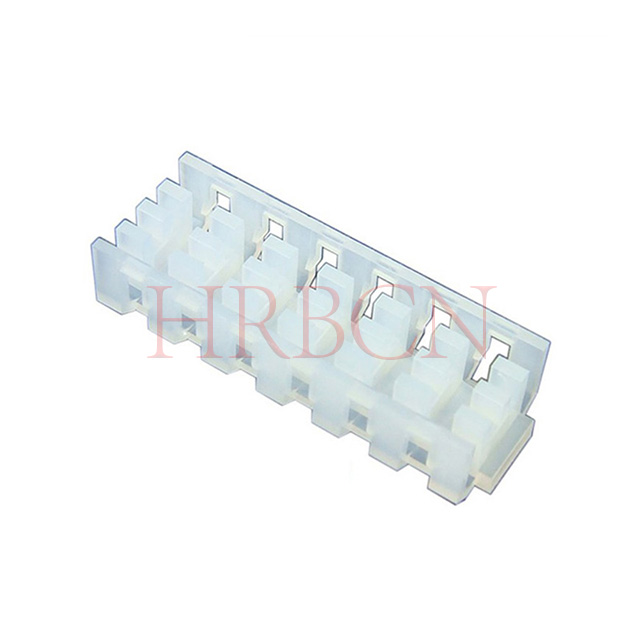

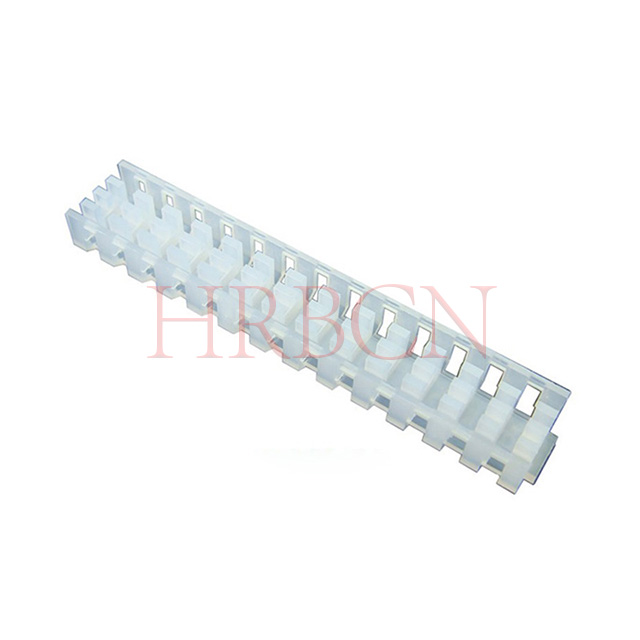

M7061(I)-N dust cover of 3.96 pitch IDC

Quantity:
  • M7061(I)-N
  • HRB

M7061(I)-N.pdf

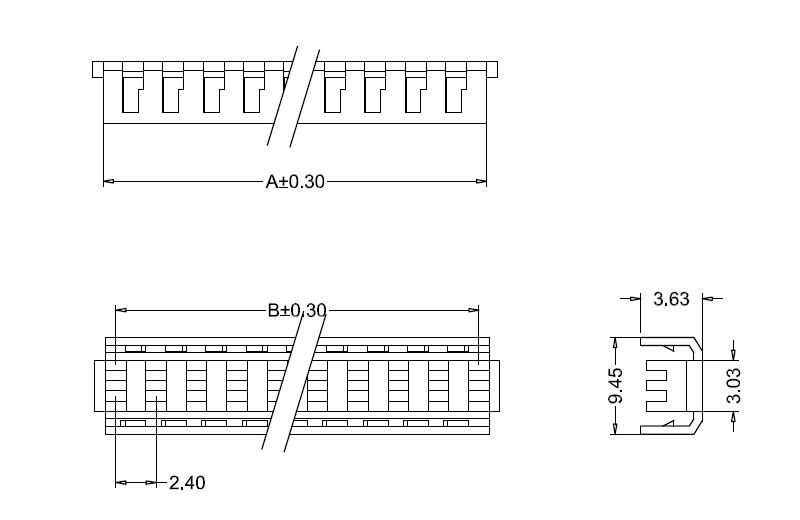

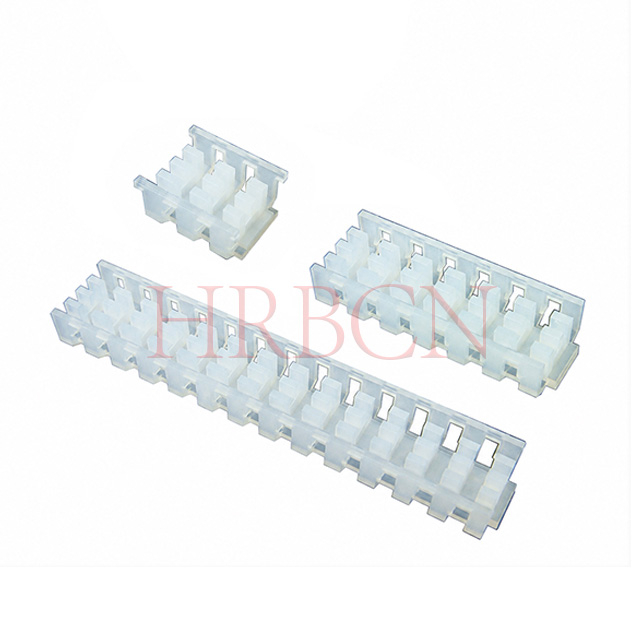

3.96mm pitch dust proof cover for M7060(I) and M7060(I)R


Part No.
Dimensions Part No.
Dimensions Part No.
Dimensions
TYP UL94V-2 Cir Dim: A Dim: B TYP UL94V-2 Cir Dim: A Dim: B TYP UL94V-2 Cir Dim: A Dim: B
M7061(I)-2 2 5.83 3.96 M7061(I)-9 9 33.55 31.68 M7061(I)-16 16 61.27 59.40
M7061(I)-3 3 9.79 7.92 M7061I)-10 10 37.51 35.64 M7061(I)-17 17 65.23 63.36
M7061(I)-4 4 13.75 11.88 M7061(I)-11 11 41.47 39.60 M7061(I)-18 18 69.19 67.32
M7061(I)-5 5 17.71 15.84 M7061(I)-12 12 45.43 43.56 M7061(I)-19 19 73.15 71.28
M7061(I)-6 6 21.67 19.80 M7061(I)-13 13 49.39 47.52 M7061(I)-20 20 77.11 75.24
M7061(I)-7 7 25.63 23.76 M7061(I)-14 14 53.35 51.48



M7061(I)-8 8 29.59 27.72 M7061(I)-15 15 57.31 55.44




1) Current Rating: 7A AC, DC

2) Voltage Rating: 600V AC, DC

3) Operating Temperature: -25 ºC to +85 ºC
4) Contact Resistance: 3.0mΩ max

5) Insulation Resistance: 5000MΩ min.

6) Withstanding Voltage: 2200V AC/minute
7) Material: Housing: Nylon 66 UL94V-2
