P42474 Housing Special

Availability:
Quantity:
Inquire Add to Basket

  • P42474-2x3-A(C)

  • HRB

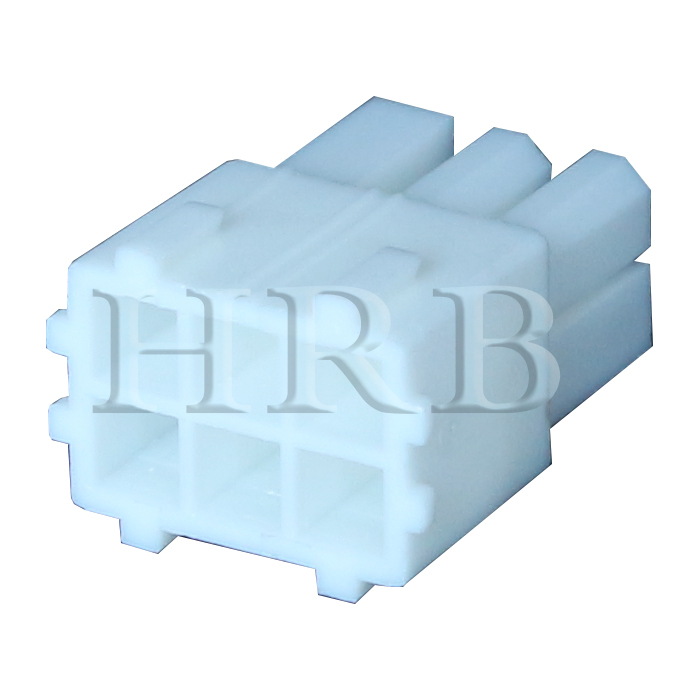

4.20mm pitch receptacle housing, panel mounting, dual row, 6 circuits.
9A 600V AC DC
Nylon66 UL94V-0
CUL-E304945

1) Current Rating: 9A AC, DC
2) Voltage Rating: 600V AC, DC
3) Operating Temperature:V2: -25ºC to +85ºC
                                           V0: -40ºC to +130ºC
4) Contact Resistance: 10mΩ max
5) Insulation Resistance: 1000MΩ min.
6) Withstanding Voltage: 1500V AC/minute
7) Material: NylonUL94V-2/NylonUL94V-0
8) Terminal in housing retention force requirement: 6.5kg(min.)
