P4200-2xN-B; P4200-2xN-A
HRB
P4200-2xN-B; P4200-2xN-A
Describe:

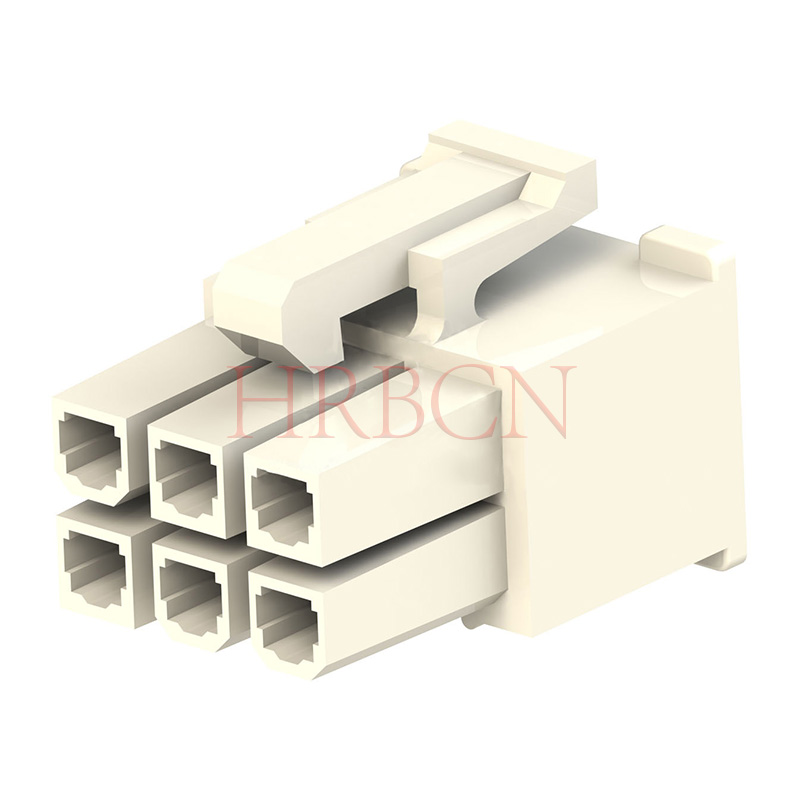

HRB 4.2 pitch wire-to-wire connector system consists of connector housing and crimp terminals, usually in male and female crimp housings, male and female crimp terminals.
P4200-2×N-B (nylon UL94V-2), P4200-2×N-A (nylon UL94V-0) series are male connector electrical enclosures and double-row connector enclosures, both of which can provide multiple circuits from 2 poles to 24 poles. Use with T4200 series male terminals (AWG#22-26; AWG#20-18, AWG#18-16 fully tin-plated and gold-plated for customer selection), with P4201-2×NB, P4201-2×N-K-B and P4201-2×N-A,P4201-2×N-K-A Series (wire-to-wire connector), M4257-2×N-B, M4257-2×N-A, M4257R-2×N-B, M4257R-2×N-A, etc. (wire-to-board connection)
Technical Parameters:
1) Rated current: 9A AC, DC
2) Rated voltage: 600V AC, DC
3) Operating temperature: V2: -25ºC to +85ºC
V0: -40ºC to +105ºC
4) Contact resistance: maximum 10mΩ
5) Insulation resistance: minimum 1000MΩ.
6) Withstand voltage: 1500V AC/minute
7) Material: NylonUL94V-2/NylonUL94V-0
8) Housing retention requirement: 6.5kg (minimum)
Ordering Information:
Socket housing connector, double row, 2 to 24 circuits, UL 94V-2 and UL 94V-0, natural and opalescent.
P4200-2×N-B/A
① ② ③ ④
①: HRB product series number
②: Number of rows of crimped housing
③: Circuit/number of poles
④：Crimp housing material: B: UL94V-2, A: UL94V-0.
| Part Number | Dimensions | Part Number | Dimensions | ||||||
| TYP UL94V-2 | TYP UL94V-0 | circuit | Dim: A | Dim: B | TYP UL94V-2 | TYP UL94V-0 | circuit | Dim: A | Dim: B |
| P4200-2×1-B | P4200-2×1-A | 2 | / | 5.50 | P4200-2×7-B | P4200-2×7-A | 14 | 25.20 | 30.70 |
| P4200-2×2-B | P4200-2×2-A | 4 | 4.20 | 9.70 | P4200-2×8-B | P4200-2×8-A | 16 | 29.40 | 34.90 |
| P4200-2×3-B | P4200-2×3-A | 6 | 8.40 | 13.90 | P4200-2×9-B | P4200-2×9-A | 18 | 33.60 | 39.20 |
| P4200-2×4-B | P4200-2×4-A | 8 | 12.6 | 18.10 | P4200-2×10-B | P4200-2×10-A | 20 | 37.80 | 43.50 |
| P4200-2×5-B | P4200-2×5-A | 10 | 16.8 | 22.30 | P4200-2×11-B | P4200-2×11-A | 20 | 42.00 | 47.80 |
| P4200-2×6-B | P4200-2×6-A | 12 | 21.0 | 26.50 | P4200-2×12-B | P4200-2×12-A | 24 | 46.20 | 52.00 |
Details:
| category | Crimp housing connector |
| Brand | HRB |
| application | Power supply, wire-to-wire connector, wire-to-board connector |
| circuit | 2-24 |
| color | white/natural |
| Flammable | UL94V-0, UL94V-2 |
| gender | container |
| Glow wire compliant | Both 'yes' and 'no' are OK |
| Materials - Resignation | nylon |
| Rows | Dual |
| type of packaging | Bag |
| Panel mounting | Yes |
| Spacing - mating interface | Power connector 4.2mm pitch |
| Pitch - Terminal Interface | Power connector 4.2mm pitch |
| polarized to the mating part | Yes |
| Stackable | No |
| Temperature Range - Operation | -25ºC to +85ºC and -40°C to +105°C |
| Current - maximum per contact | 13.0A |
Applications:
white goods
copier
Office Supplies
printer
Automation equipment
industrial network
rack server
Router/Switch
Mating (wire-to-wire connection, wire-to-board connection):
wire to wire：(HRB#P4201-2xN-KB,P4201-2xN-KA Series) double row plug housing connector with panel mounting lugs.
wire to wire：(HRB#P4201-2xN-B, P4201-2xN-A Series) double row plug housing connector without panel mounting ears.
wire to board:( HRB M4257 Vertical with nails, vertical without nails, right corner double row with flange, right angle double row with nails, plug connector.
Used for:
(HRBŤ4200 Female crimp terminal.
