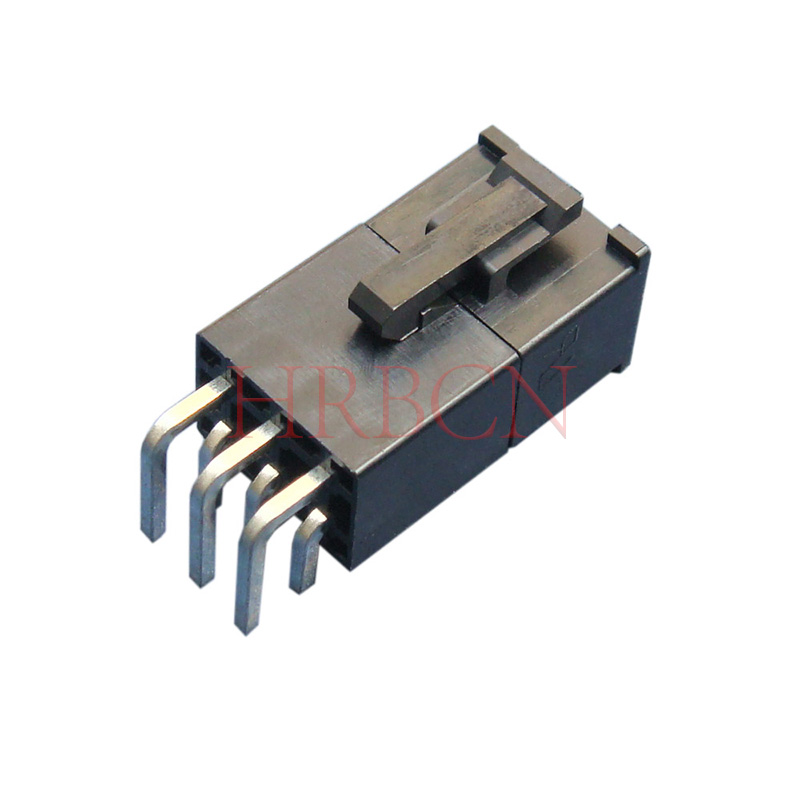

HRB Right Angle Dual Header Connector M4257R

Availability:
Quantity:
Inquire Add to Basket

  • M4257R-2xN-B HRB

  • HRB

 M4257R-2xN-B(Molex 5569 alternative) PCB header connector.pdf


Ordering Information:


 Header connector, Dual Row, Right Angle, without Snap-in Plastic Peg PCB Lock, 2 to 24 Circuits, PA Polyamide Nylon 6/6 94V-2, 94V-0.



       Part No.        Dimensions        Part No.        Dimensions
       TYP UL94V-0        TYP UL94V-2        Cir        Dim: A        Dim: B        Dim: C        TYP UL94V-0        TYP UL94V-2        Cir        Dim: A        Dim: B        Dim: C
       M4257R-2×1-A        M4257R-2×1-B        2        4.20        9.80        4.20        M4257R-2×7-A        M4257R-2×7-B        14        25.20        30.80        25.20
       M4257R-2×2-A        M4257R-2×2-B        4        8.40        13.80        8.40        M4257R-2×8-A        M4257R-2×8-B        16        29.40        35.00        29.40
       M4257R-2×3-A        M4257R-2×3-B        6        12.60        18.00        12.60        M4257R-2×9-A        M4257R-2×9-B        18        33.60        39.20        33.60
       M4257R-2×4-A        M4257R-2×4-B        8           16.80        22.20        16.80        M4257R-2×10-A        M4257R-2×10-B        20        37.80        43.40        37.80
       M4257R-2×5-A        M4257R-2×5-B        10        21.00        26.40        21.00        M4257R-2×11-A        M4257R-2×11-B        22        42.00        47.60        42.00
       M4257R-2×6-A        M4257R-2×6-B        12        25.20        30.60        25.20        M4257R-2×12-A        M4257R-2×12-B        24        46.20        51.80        46.20


Detail Information:


Category PCB header connector
Brand HRB
Application Power, wire to board connector
Circuits 2-24
Color White/Natural
Flammability UL94V-0/UL94V-2
Durability (mating cycles max) 30
First Mate / Last Break No
Glow-wire compliant  "Yes" and "No" are both available
Guide to Mating Part No
Keying to Mating Part None
Lock to Mating Part Yes
Material - Metal Brass
Material - Plating Mating Tin/Gold plated
Material - Plating Termination Tin/Gold plated
Material-Resign
 Nylon
Number of rows Dual
Orientation Right Angle
PCB Locator Yes
PCB Retention Yes
PCB Thickness - Recommended 1.78mm
Packing type
 Bag
Pitch - Termination Interface 4.2mm pitch
Pitch - Mating Interface 4.2mm pitch
Polarized to PCB Yes
Polarized to Mating Part Yes
Surface Mount Compatible (SMC) No
Temperature Range - Operating -25°C to +105°C and -25ºC to +85ºC
Termination Interface: Style Through Hole
Current - Maximum per Contact 9.0A


Product Application:


White goods


Copiers

Office equipment

Printers


Automation equipment

Industrial networks


Rack-mount server

Router/Switch



Mate with:


(HRB P4200) Receptacle Housing connector.

 1) Current Rating: 9A AC, DC

 2) Voltage Rating: 600V AC, DC

 3) Operating Temperature:V2: -25ºC to +85ºC

                                           V0: -40ºC to +105ºC

 4) Contact Resistance: 10mΩ max

 5) Insulation Resistance: 1000MΩ min.

 6) Withstanding Voltage: 1500V AC/minute

 7) Material: Housing: NylonUL94V-2/NylonUL94V-0

                       Pin: Brass. Tin plated

 8) Pin to header retention force requirement: 3.5kg(Min.)
