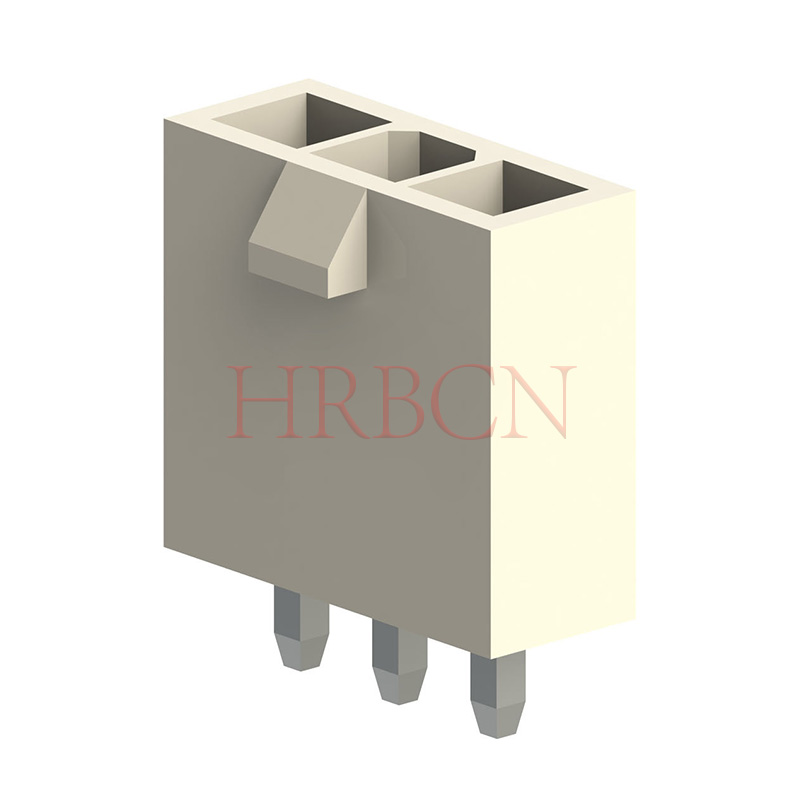

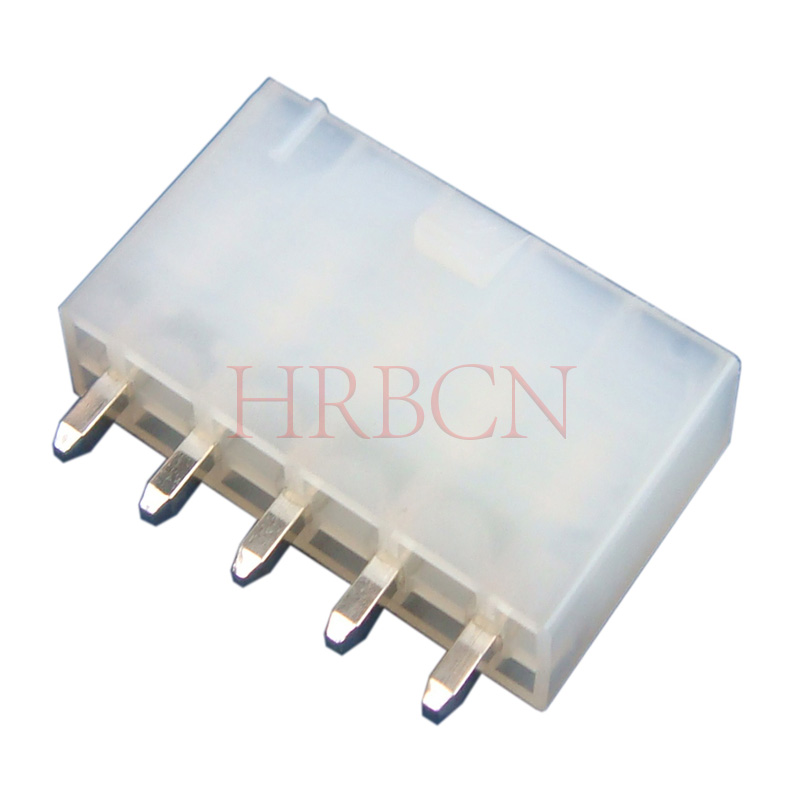

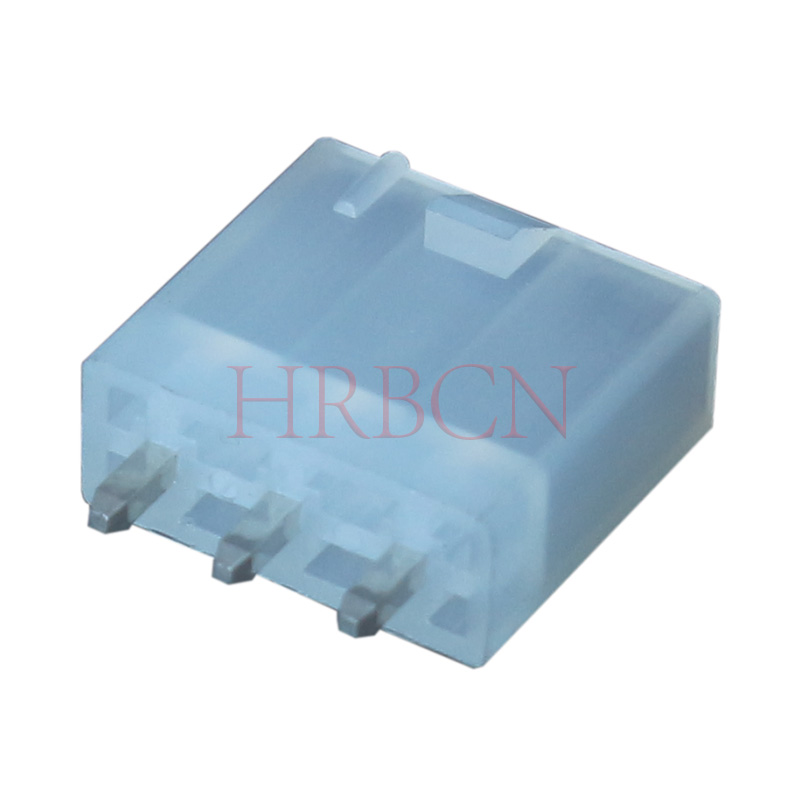

M4257-1xN-B HRB
HRB
Ordering Information:
Vertical Header, 4.20mm Pitch, Single Row, 2 to 12 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural&White.
Part No. | Dimensions | Part No. | Dimensions | ||||||||
TYP UL94V-0 | TYP UL94V-2 | Cir | Dim: A | Dim: B | Dim: C | TYP UL94V-0 | TYP UL94V-2 | Cir | Dim: A | Dim: B | Dim: C |
M4257-1×2-A | M4257-1×2-B | 2 | 4.20 | 9.80 | 4.20 | M4257-1×8-A | M4257-1×8-B | 8 | 29.40 | 34.80 | 29.40 |
M4257-1×3-A | M4257-1×3-B | 4 | 8.40 | 13.80 | 8.40 | M4257-1×9-A | M4257-1×9-B | 9 | 33.60 | 39.00 | 33.60 |
M4257-1×4-A | M4257-1×4-B | 6 | 12.60 | 18.00 | 12.60 | M4257-1×10-A | M4257-1×10-B | 10 | 37.80 | 43.20 | 37.80 |
M4257-1×5-A | M4257-1×5-B | 8 | 16.80 | 22.20 | 16.80 | M4257-1×11-A | M4257-1×11-B | 11 | 42.00 | 47.40 | 42.00 |
M4257-1×6-A | M4257-1×6-B | 10 | 21.00 | 26.40 | 21.00 | M4257-1×12-A | M4257-1×12-B | 12 | 46.20 | 51.60 | 46.20 |
M4257-1×7-A | M4257-1×7-B | 12 | 25.20 | 30.60 | 25.20 |
Detail Information:
Category | PCB header connector |
Brand | HRB |
Application | Power, wire to board connector |
Circuits | 2-24 |
Color | Natural |
Flammability | UL94V-0/UL94V-2 |
Durability (mating cycles max) | 30 |
First Mate / Last Break | No |
Glow-wire compliant | "Yes" and "No" are both available |
Guide to Mating Part | No |
Keying to Mating Part | None |
Lock to Mating Part | Yes |
Material - Metal | Brass |
Material - Plating Mating | Tin/Gold plated |
Material - Plating Termination | Tin/Gold plated |
Material-Resign | Nylon |
Number of rows | Single |
Orientation | Vertical |
PCB Locator | Yes |
PCB Retention | Yes |
Packing type | Bag |
Pitch - Termination Interface | 4.2mm pitch |
Pitch - Mating Interface | 4.2mm pitch |
Polarized to PCB | Yes |
Polarized to Mating Part | NO |
Surface Mount Compatible (SMC) | No |
Temperature Range - Operating | -25°C to +85°C and -25°C to +105°C |
Termination Interface: Style | Through Hole |
Current - Maximum per Contact | 9.0A |
Product Application:
White goods
Copiers
Office equipment
Printers
Automation equipment
Industrial networks
Rack-mount server
Router/Switch

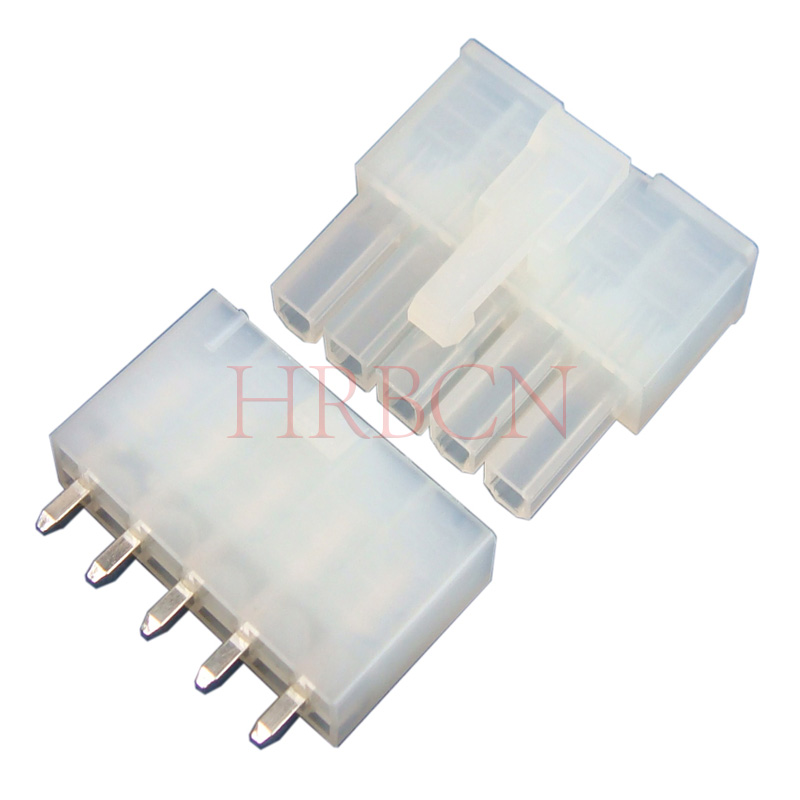

Mates With Part(s):
Receptacle Housing connector P4200
Ordering Information:
Vertical Header, 4.20mm Pitch, Single Row, 2 to 12 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural&White.
Part No. | Dimensions | Part No. | Dimensions | ||||||||
TYP UL94V-0 | TYP UL94V-2 | Cir | Dim: A | Dim: B | Dim: C | TYP UL94V-0 | TYP UL94V-2 | Cir | Dim: A | Dim: B | Dim: C |
M4257-1×2-A | M4257-1×2-B | 2 | 4.20 | 9.80 | 4.20 | M4257-1×8-A | M4257-1×8-B | 8 | 29.40 | 34.80 | 29.40 |
M4257-1×3-A | M4257-1×3-B | 4 | 8.40 | 13.80 | 8.40 | M4257-1×9-A | M4257-1×9-B | 9 | 33.60 | 39.00 | 33.60 |
M4257-1×4-A | M4257-1×4-B | 6 | 12.60 | 18.00 | 12.60 | M4257-1×10-A | M4257-1×10-B | 10 | 37.80 | 43.20 | 37.80 |
M4257-1×5-A | M4257-1×5-B | 8 | 16.80 | 22.20 | 16.80 | M4257-1×11-A | M4257-1×11-B | 11 | 42.00 | 47.40 | 42.00 |
M4257-1×6-A | M4257-1×6-B | 10 | 21.00 | 26.40 | 21.00 | M4257-1×12-A | M4257-1×12-B | 12 | 46.20 | 51.60 | 46.20 |
M4257-1×7-A | M4257-1×7-B | 12 | 25.20 | 30.60 | 25.20 |
Detail Information:
Category | PCB header connector |
Brand | HRB |
Application | Power, wire to board connector |
Circuits | 2-24 |
Color | Natural |
Flammability | UL94V-0/UL94V-2 |
Durability (mating cycles max) | 30 |
First Mate / Last Break | No |
Glow-wire compliant | "Yes" and "No" are both available |
Guide to Mating Part | No |
Keying to Mating Part | None |
Lock to Mating Part | Yes |
Material - Metal | Brass |
Material - Plating Mating | Tin/Gold plated |
Material - Plating Termination | Tin/Gold plated |
Material-Resign | Nylon |
Number of rows | Single |
Orientation | Vertical |
PCB Locator | Yes |
PCB Retention | Yes |
Packing type | Bag |
Pitch - Termination Interface | 4.2mm pitch |
Pitch - Mating Interface | 4.2mm pitch |
Polarized to PCB | Yes |
Polarized to Mating Part | NO |
Surface Mount Compatible (SMC) | No |
Temperature Range - Operating | -25°C to +85°C and -25°C to +105°C |
Termination Interface: Style | Through Hole |
Current - Maximum per Contact | 9.0A |
Product Application:
White goods
Copiers
Office equipment
Printers
Automation equipment
Industrial networks
Rack-mount server
Router/Switch
Mates With Part(s):
Receptacle Housing connector P4200
1) Current Rating: 9A AC, DC
2) Voltage Rating: 600V AC, DC
3) Operating Temperature:V2: -25ºC to +85ºC
V0: -40ºC to +105ºC
4) Contact Resistance: 10mΩ max
5) Insulation Resistance: 1000MΩ min.
6) Withstanding Voltage: 1500V AC/minute
7) Material: Housing: NylonUL94V-2&NylonUL94V-0
Pin: Brass. Tin plated
8) Pin in housing retention force requirement: 3.5kg(Min.)
1) Current Rating: 9A AC, DC
2) Voltage Rating: 600V AC, DC
3) Operating Temperature:V2: -25ºC to +85ºC
V0: -40ºC to +105ºC
4) Contact Resistance: 10mΩ max
5) Insulation Resistance: 1000MΩ min.
6) Withstanding Voltage: 1500V AC/minute
7) Material: Housing: NylonUL94V-2&NylonUL94V-0
Pin: Brass. Tin plated
8) Pin in housing retention force requirement: 3.5kg(Min.)
