HRB 4.2mm Wire-to-wire BMI socket housing Connector for Vacuum Cleaners Application

Describe:

HRB 4.2 pitch wire-to-wire connector system consists of connector housing and crimp terminals, usually in male and female crimp housings, male and female crimp terminals.

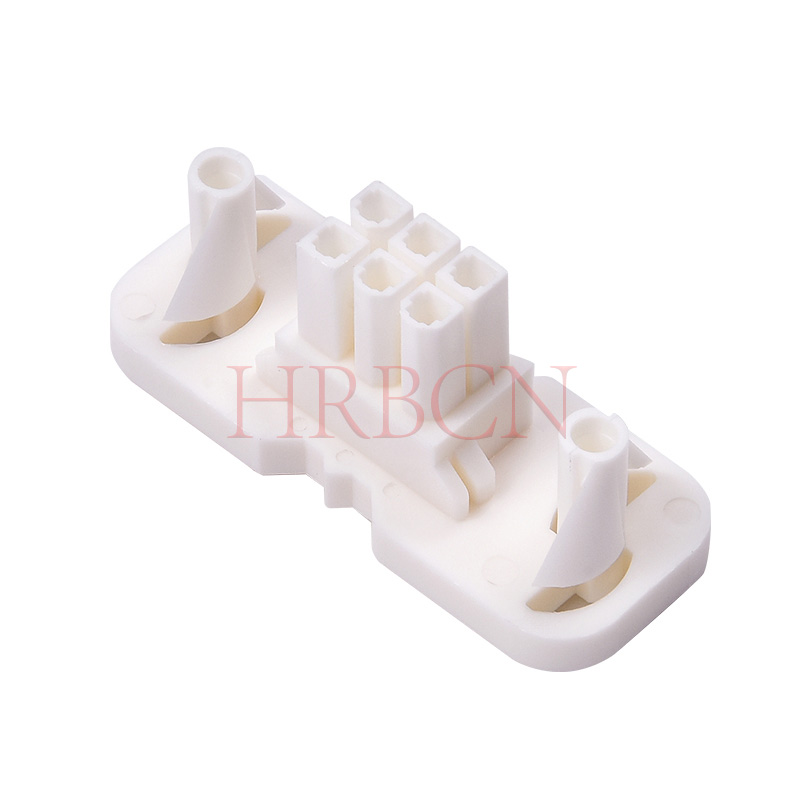

P42474-2×N-B (nylon UL94V-2), P42475-2×N-A (nylon UL94V-0), the series are male connector electrical enclosures, double rows with panel mounting lugs, can provide multiple circuits from 4 poles to 24 poles, using T4200 series female terminals (AWG#22-26; AWG#20-18, AWG#18-16 fully tin-plated and gold-plated for customers to choose), mated with P42475-2×NB series (wire-to-wire connector) , as well as with the M42474 and M42440 series (wire-to-board connection).

Technical Parameters:

1) Rated current: 9A AC, DC

2) Rated voltage: 600V AC, DC
3) Operating temperature: V2: -25ºC to +85ºC
                                   V0: -40ºC to +130ºC
4) Contact resistance: maximum 10mΩ
5) Insulation resistance: minimum 1000MΩ.
6) Withstand voltage: 1500V AC/minute
7) Material: NylonUL94V-2/NylonUL94V-0
8) Shell retention requirement: 6.5kg (minimum)

Ordering Information:

BMI socket housing connector, 4.20mm pitch, double row with panel mounting lugs, PA polyamide nylon 6/6, UL 94V-2 and UL 94V-0, 4 to 24 circuits.

P42474-2×N-B/A

      ①    ②  ③  ④

①: HRB product series number

②: Number of rows of crimped housing

③: Circuit/number of poles

④: Crimp housing material: B: UL94V-2,A: UL94V-0
