You face a frustrating reality: electrical connector failures cause costly downtime and serious safety risks. Hartford Steam Boiler data shows that 30.3 percent of electrical distribution system failures come from loose connections. This is a direct connector issue. These problems often appear off and on, making them hard to find.
This guide gives you a simple way to find and fix connector failures. You will learn the root causes, from environmental stress to improper mating. You will also learn proven prevention strategies used by industry leaders like HRB&HRBCN Connector. Knowing why connectors fail helps you avoid expensive repairs. Proper mating techniques lower the risk of bad connections. Every connection deserves attention. Your electrical connector system works better when you fix these issues early. Reliable connectors prevent unexpected shutdowns.
Key Takeaways
Moisture and chemicals can corrode connectors, causing many failures. Use IP67-rated waterproof connectors to keep these dangers out.
Overheating comes from loose connections and high resistance. Prevent it by derating connectors and picking good designs.
Vibration causes fretting corrosion and random failures. Locking connectors and full mating prevent this harm.
People can make hidden weak spots when they install connectors by mistake. Teach your team well and use IDC connectors to cut down on errors.
Corrosion in Electrical Connectors
Corrosion is one of the top reasons connectors fail around the world. Moisture, humidity, salt spray, factory chemicals, and dirt in the air all cause this damage. Knowing these environmental dangers helps you keep your systems safe.
Root Causes of Connector Corrosion
Corrosion harms metal contacts through several paths in the environment. Humidity and moisture create the liquid needed for chemical corrosion. Coastal humidity often reaches 80-90 percent. Daily temperature changes cause water to form inside housings. Moisture gets in through seals and cable openings. Repeated wet and dry cycles build up corrosive dirt on every contact point.
Salt and chloride bring another serious danger. Coastal salt spray leaves moisture-attracting salts on connector surfaces. These salts pull water from the air. Evaporation cycles make chlorides stronger. Chloride ions speed up corrosion on most connection metals. The risk drops as you move away from the coast. Factory areas create similar problems for your connection systems.
Industrial dirt adds a third level of risk. Sulfur compounds like hydrogen sulfide from oil and gas work corrode copper and silver fast. Airborne desert dust holds moisture against contact surfaces. Chemical process fumes introduce harsh agents. These agents keep parts wet longer and speed up damage to your electrical connector.
Environmental Factor | Specific Mechanism | Impact on Connectors |
|---|
Humidity & Moisture | Coastal humidity exceeds 80-90%; daily temperature cycling causes condensation; moisture ingress through seals and cable entries | Provides the electrolyte necessary for electrochemical corrosion; repeated condensation concentrates corrosive contaminants |
Salt & Chloride | Coastal salt spray deposits hygroscopic salts; evaporation cycles concentrate chlorides; severity decreases with distance from coast | Chloride ions accelerate corrosion of most connection materials; concentrated salts maintain wet corrosive conditions |
Industrial Contaminants | Sulfur compounds (e.g., hydrogen sulfide) from oil/gas and wastewater; airborne desert dust holds moisture; chemical process emissions | Copper and silver corrode rapidly in sulfur atmospheres; dust prolongs wet time and accelerates degradation |
Solutions: HRB&HRBCN Waterproof Connectors
You can stop corrosion by picking the right connector. HRB&HRBCN waterproof connectors give strong protection for tough places. These connectors have corrosion-resistant contacts. The contacts resist oxidation and give a steady mating surface. Repeated plugging and unplugging keeps contact resistance low.
The IP rating follows the world standard IEC 60529. This standard sorts protection against dust entry and short water submersion. The IP Code gives more exact details than unclear marketing words like "waterproof."
The IP Code (International Protection Rating) is defined in the international standard IEC 60529. This standard classifies the degrees of protection provided against the intrusion of solid objects (including dust) and water in electrical enclosures.
HRB&HRBCN waterproof connectors use sealed rubber parts and housing-to-terminal locks. These features stop moisture from getting in at key spots. The connectors work well across a wide temperature range. Contact resistance is low, giving steady electrical performance for every connection you make.
Regular care extends connector life in corrosive places. Check your connectors often for signs of corrosion. Replace damaged seals right away. Choose waterproof connectors with appropriate IP ratings for outdoor, marine, or factory use. Proper mating methods reduce stress on contact surfaces. These steps cut downtime and stop costly failures.
Overheating and Connector Failure
Heat ruins more connectors than anything else. You see the warning signs too late: housings that changed color, melted insulation, or a burning smell from your equipment panel. Learning why connectors get too hot helps you stop big failures before they start.
Why Connectors Overheat
Joule's law explains the main problem. Heat made equals current squared times resistance (Q = I² × R). For any given current, higher contact resistance makes more heat. Think of a high-power device that carries 1300A with a contact resistance of 12 μΩ. That connection makes 20.28W of heat. It raises the local temperature 40-80°C above the room. This heat does not stay put. It speeds up oxidation on contact surfaces, which raises resistance more, which makes more heat. You create a harmful cycle that keeps getting worse.
Loose connections make this problem much worse. A loose connection cuts the contact area between mating surfaces. Smaller contact area means higher resistance at that point. The heat from this resistance makes the metal expand and oxidize faster. Gaps between contacts let series arcing happen. Each arc sends intense heat right into the connection point. Over time, you see charring, pitting, and melting of both connectors and insulation. Normal circuit breakers often do not trip because the current stays below the set limit. The damage grows quietly until the connector fully fails.
Industry tests show how serious this problem is. Under UL/CSA testing rules, a connector fails the test if its temperature rise goes above 125°C over room temperature during the 500-cycle over-current aging test. In real life, most connectors fail when the temperature rise reaches 100-125°C over room temperature in open air. These numbers show you how little room there is between normal use and total failure.
Prevention and Thermal Management

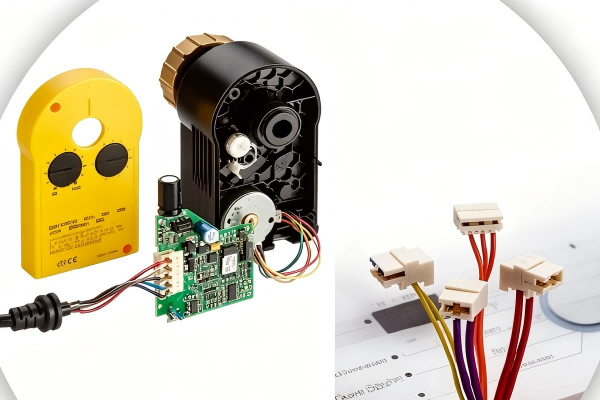

You stop overheating by picking the right connector and designing your system well. HRB&HRBCN wire-to-wire connectors have strong build for high-power uses. These connectors give larger contact surfaces that spread heat better. The secure locking parts keep steady mating force. This stops the loosening that causes arcing and heat damage.
Derating your connectors protects them in hot places. A maker's derating chart for a typical power connector series shows that at 70°C room temperature, you must lower the allowed current by 20% compared to the rated value. Follow these simple rules for safe use:
Lower the allowed power by 20-30% in sealed or poorly ventilated boxes
Lower the current by 5-10% at heights between 2,000-4,000 meters
Lower the current by 15-30% at heights between 4,000-6,000 meters
Run important long-life devices at 50-70% of the catalog current
Regular checks catch problems early. Look at your connections for signs of color change, loose fit, or unusual heat during use. Use thermal cameras to find hot spots before they become failures. Good mating technique also matters. Make sure each connection fits fully and locks tight. These upkeep habits make connectors last longer and stop costly downtime.
Vibration and Connector Failure
Vibration harms your electrical connector in hidden ways. The damage builds up slowly. One day, the system works fine. The next day, you face a failure that comes and goes. It defeats every diagnostic tool you own. Knowing how vibration breaks connections helps you stop these annoying problems.
How Vibration Causes Connector Failure
Fretting corrosion starts when vibration makes tiny movements between touching surfaces. These movements are only a few micrometers, but they cause big damage. Studies show fretting begins when movement passes a certain limit. This limit does not depend on vibration frequency. The fretting rate goes up evenly with vibration strength for single-frequency motion. Stronger normal forces cut fretting damage. Some contact finishes resist wear better than others.
The process follows a harmful cycle. Vibration creates small motion at the contact point. This motion rubs oxide layers off the metal surface. Fresh metal oxidizes right away. The process repeats thousands of times each minute. Oxide bits pile up between contacts. Contact resistance climbs steadily. At last, an insulating layer forms. Your connection fails without any warning.
Resonance makes the problem worse. When outside vibrations match the natural frequency of connector parts, amplification happens. Motion between contacts grows much stronger. This mechanical instability speeds up oxide layer growth and debris buildup at contact points.
When outside vibrations match or come close to the natural frequency of connector parts, resonance amplification occurs. It makes motion between contact surfaces stronger. This mechanical instability speeds up oxide layer growth and debris buildup at contact points. These create insulating layers that lower electrical performance over time.
Real-world cases show how serious this is. A recall of 12,000 electric vehicles involved vibration-damaged rearview camera harnesses. Even small vibration caused failure when mounting was poor. Constant mechanical vibration also makes individual wire strands rub together. This wear creates tiny particles that finally cut the conductor. The harness looks fine on the outside, but the connection is dead.
Mitigation with Secure Locking Connectors
You stop vibration damage by picking connectors with good locking parts. HRB&HRBCN connectors have housing-to-terminal locks that keep contacts firmly in place. These locks stop the small motion that drives fretting corrosion.
Several locking designs fight vibration well:
Click-and-lock systems give automatic locking with a clear click sound
Self-locking flanges use side snap flanges that lock with mounting noses
Screw flanges use side threads that hold the plug-in connector tight
Snap-in locking uses pin strips that stop accidental loosening
These parts keep steady mating force for the connector's whole life. Steady mating force means stable contact resistance. Stable contact resistance means reliable performance under vibration.
Proper mating technique matters just as much. You must push each connector fully until the lock clicks in. Listen for the click. Test the connection by pulling gently. A partly mated connector invites vibration damage.
Regular upkeep catches early signs of loosening. Check connectors in high-vibration areas often. Look for visible wear on locking parts. Replace damaged housings right away. These habits stop the on-and-off failures that trouble vibration-prone uses.
Contamination and Connector Failure
Contamination is one of the most ignored reasons connectors fail. You may not see the harm happening, but dust, chemicals, and moisture work quietly inside your equipment. These contaminants collect over time, turning a steady connection into one that fails off and on.
Common Contaminants and Their Effects
Airborne contaminants enter your connectors through open ports, worn seals, and cable openings. Each type harms your system in its own way. The table below shows the most common culprits you will find in industrial settings.
Airborne Contaminant | Specific Examples | Failure Mechanism |
|---|
Particulate / Solid | Dust | Settles inside contact chambers of unmated ports, causing physical blockage or bridging of contacts |
Chemical / Corrosive | Airborne salinity (salt spray) | Attacks base metals, coating contact pins in non-conductive oxidation layers |
Chemical / Corrosive | Caustic vapors (chemical processing lines) | Triggers chemical reactions that permanently compromise electrical performance and signal clarity |
These contaminants raise contact resistance at the mating surface. Dust particles create a physical barrier between contacts. Salt and caustic vapors form non-conductive layers on metal surfaces. Your connection then carries less current than designed. You see intermittent faults, signal loss, and eventual total failure. The damage worsens with each thermal cycle, making the problem worse over time.
Cleaning and Sealed Connector Solutions
You can restore contaminated connectors with proper cleaning techniques. Follow these best practices to avoid causing additional damage:
Disconnect the power source – Always switch off power and unplug devices before cleaning to prevent electrical shock.
Use a specialized contact cleaner – Select a cleaner designed for electronic connectors; these solvents remove dirt and oxidation without harming surfaces.
Clean the contacts gently – Apply gentle pressure with a cotton swab or soft-bristled brush to avoid scratching or bending pins.
Allow sufficient drying time – Let contacts dry completely before reconnecting power to prevent moisture-induced corrosion.
Apply dielectric grease for protection – After drying, lightly coat metal contacts and seals with insulating silicone grease to block future contamination.
Replace rather than repair when severely damaged – If corrosion is severe or housing is damaged, replacement offers a more reliable option than cleaning.
Prevention beats cleaning every time. HRB&HRBCN waterproof connectors stop contaminants before they reach your contacts. The sealed housing blocks dust and moisture completely. The IP rating under IEC 60529 guarantees protection against dust ingress and water. You eliminate the root cause of contamination-related failures entirely.
Regular maintenance keeps your system protected. Inspect connectors in dusty or chemical-heavy environments frequently. Reapply dielectric grease after several months of service. Choose sealed connectors for new installations. These habits reduce downtime and extend equipment life. Your electrical connector performs reliably when you control the environment around it.
Physical Damage and Human Error
Human error is one of the most preventable reasons connectors fail. You might not realize it, but how you handle, install, and maintain your connectors directly affects how long they last. Poor connections often come from simple mistakes made during installation. These errors create hidden weaknesses that later show up as intermittent faults or complete system shutdowns.
Poor Connector Connection from Human Error
Bad crimping technique is one of the most common installation mistakes. Crimping needs a special tool to create a tight, air-free bond between wire and terminal. When you use the wrong technique, loose crimps let moisture get into the joint. This moisture causes corrosion inside the connection. Short circuits, open circuits, or total electrical failure in the wire harness soon follow.
Mis-mating from orientation errors creates another problem. A connector that is symmetrical on one axis can be inserted the wrong way, especially in poor lighting or with heavy gloves. This mistake does not cause immediate failure. Instead, it slowly degrades performance, leading to localized heating and eventual equipment failure or fire.
Incomplete mating happens when you leave the latch unengaged. Without precise locks or audible cues, you may only partially mate the connector. This raises contact resistance, causes heat buildup, and speeds up component degradation. Contamination can also get in even with proper mating. Moisture, dust, or chemicals enter the housing through improper sealing or handling. These contaminants increase the risk of arc flashes and equipment fires.
Over-torquing during mating damages both housing and contacts. Over-tightening a heavy-duty connector cracks the protective outer shell, weakening its structural integrity. Too much force bends inner contacts, causing misalignment and preventing proper mating between connector halves. These causes of poor connection all come from human action during installation.
Training and Reliable Connector Design
You can reduce these errors with proper training and smarter connector choices. Training programs teach proper connection techniques that prevent damage during installation. Technicians learn to recognize correct mating force, check latch engagement, and inspect crimp quality. Regular maintenance schedules catch early signs of wear before failures occur.
HRB&HRBCN IDC connectors offer a design that reduces human error. Insulation displacement technology presses an insulated wire into a terminal slot smaller than the conductor diameter. The connector's clamping hooks pierce the insulation layer directly, so you do not need wire strippers. This prevents damage to copper wires, reduces steps, and lowers error rates.
The IDC design also supports bulk termination. You can terminate dozens of connection points in one operation, maximizing efficiency and reducing the chance of mis-wiring. The daisy-chain structure ensures even pressure on each blade, contributing to reliable contact. This approach reduces safety risks by lowering the potential for short circuits or electric shocks during wiring.
These countermeasures for poor connection focus on prevention rather than repair. When damage does occur, replacement often costs less than trying to repair compromised parts. Investing in quality connectors and proper training pays off through reduced downtime and longer equipment life. Your attention to installation detail directly improves system reliability.
Automotive Connector Failures: Specific Challenges
Your car's systems face tough conditions. Under-hood temperatures vary widely, causing plastic parts to become unstable. This hurts how well connections work. Vibration, moisture, salt spray, and high power needs add to the danger. Knowing these factors helps you stop failures.
Root Causes of Automotive Connector Failures
Temperature extremes cause the most harm. Heating and cooling cycles weaken your connection points. Housings expand and shrink many times. This loosens the grip on terminals. Contact resistance goes up. Heat builds at the connection. The cycle speeds up until failure happens.
Vibration is a second big threat. The engine creates constant motion. This causes fretting between contact surfaces. Tiny movements wear away protective coatings. Exposed metal oxidizes. Your connection slowly gets worse. The failure seems off and on at first. It becomes permanent over time.
Moisture and salt spray finish the harsh environment. Road salt creates paths for electricity. Salt speeds up corrosion. Moisture enters through seals. The mix of corrosion and dirt raises contact resistance. Your connection carries less power than designed.
Crimp terminals with wide, deep barrel crimps handle heat changes better than solder joints. Solder joints crack under stress. Proper crimping keeps a stable connection.
Wiring placement matters. Keep wiring away from heat sources. Use reflective sleeves or high-temperature jackets. Poor heat release leads to insulation breakdown.
Solutions for Automotive Environments
HRB&HRBCN connectors are designed for automotive applications. These connectors handle hard conditions.
The waterproof connector series provides protection against moisture. Sealed housings block moisture. The contacts are designed to fight corrosion. These connectors keep a stable connection in wet places.
Wire-to-board solutions support car electronics. These connectors handle high power needs. Strong locking parts keep contacts secure. Proper mating means full contact engagement. Mating force must be steady. A fully seated connection resists loosening better than a partly mated one. Check your mating method often.
Regular care extends connector life. Inspect connectors for wear. Check for corrosion. Replace damaged seals. Quick replacement stops system failures.
Knowing common types of automotive connectors helps you pick the right one. Each type has a purpose. Waterproof types protect exposed connections. Wire-to-board types handle inside electronics. Wire-to-wire types join harness sections. Picking the correct type prevents many common failure causes.
Your attention to selection and setup affects reliability. Choose the right connector. Follow proper mating steps. Inspect often. These habits reduce downtime.
You now know the main connector failure problems: corrosion, overheating, vibration, contamination, physical damage, and automotive connector failures. Each one comes from environmental stress, human error, or material limits. Your best defense combines regular upkeep, picking the right connector, and solid training.
Finding problems early saves you money and prevents safety risks. Start your upkeep routine today. Check your current connectors, set a regular inspection schedule, and make sure each connection is fully mated. Swap out worn parts with quality replacement parts from HRB&HRBCN Connector. Their sealed, locking designs handle tough environments. Your electrical system inspections will catch issues before they get worse. Every connection deserves attention. Reliable connectors keep your operations running smoothly.
FAQ
How can I tell if a connector is failing before it stops working?
You can spot early warning signs during routine checks. Look for discolored housings, melted insulation, or a burning smell. Feel for unusual heat during operation. Listen for intermittent operation in your equipment. These signs point to rising contact resistance. Address them quickly to prevent total failure.
How often should I inspect my electrical connectors?
Inspect your connectors regularly. Perform more frequent checks in harsh conditions with vibration, moisture, or chemicals. Use thermal imaging to find hot spots. Look for corrosion, loose fittings, or damaged seals. Regular inspection catches problems before they cause downtime.
Should I repair a damaged connector or replace it entirely?
Replace severely corroded or physically damaged connectors. Repair only minor issues like loose mating or surface contamination. Cleaning and re-seating a connection works for light oxidation. However, cracked housings or bent contacts need full replacement. A compromised connector will fail again. Replacement offers more reliable long-term performance.
What is the most common cause of connector failure?
Corrosion ranks as the leading cause worldwide. Moisture, humidity, salt spray, and industrial chemicals attack metal contacts. Overheating from loose connections follows closely behind. Both problems create a cycle of increasing resistance and heat. Choosing sealed connectors with proper ratings prevents most of these failures.
How do I choose the right connector for a harsh environment?
Match your connector to the specific conditions you face. Use waterproof connectors with appropriate IP ratings for wet or dusty areas. Select connectors with locking mechanisms for vibration-prone applications. Consider corrosion-resistant contacts for protection against environmental factors. Verify temperature ratings match your operating range. The right choice prevents most common failure modes.
