3.0mm Pitch IP67 Panel Mount Waterproof Wire To Wire Connector

P/N definition

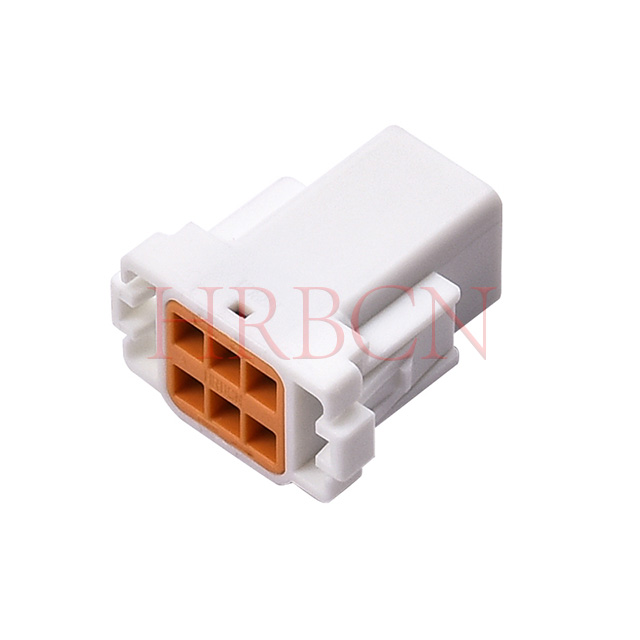

M30032WP-NXN-X-X

           ①      ② ③ ④ ⑤

①M30032WP: HRB series, Plug

②1: single row; 2: dual row

③N: Number of Pins per row 2/3/4/5/6pin

④Housing color: B: Black, W: White, G: Gray

⑤Seal Plug Color:

-GN: Green (Wire insulation OD 1.5-2.1mm)

Blank: Blue (Wire insulation OD 1.6- 2.4mm)

M30033WP-NXN-X-P-X

           ①      ② ③ ④ ⑤⑥

①M30033WP: HRB series, Receptacle

②1: single row; 2: dual row

③N: Number of Pins per row 2/3/4/5/6pin

④Housing color: B: Black, W: White, G: Gray

⑤P: With panel mount

⑥Seal Plug Color:

-GN: Green (Wire insulation OD 1.5-2.1mm)

Blank: Blue (Wire insulation OD 1.6- 2.4mm)

Core Features

• IP67 waterproof rating (IEC 60529), integrated silicone sealing for harsh‑environment use

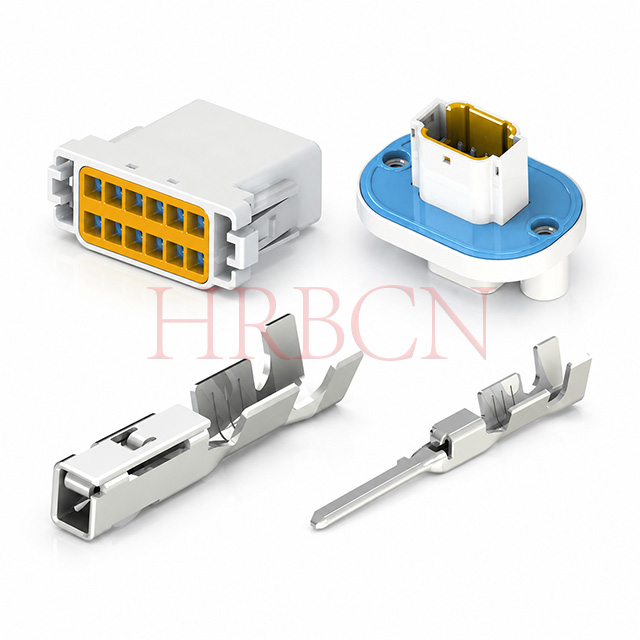

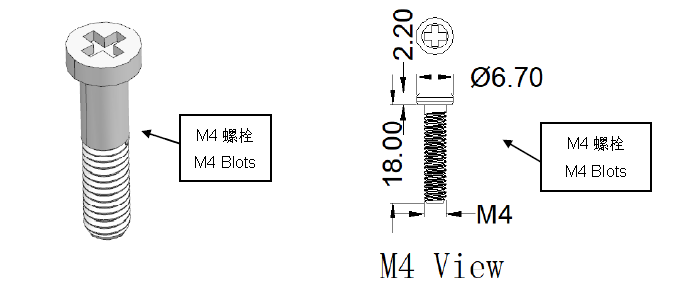

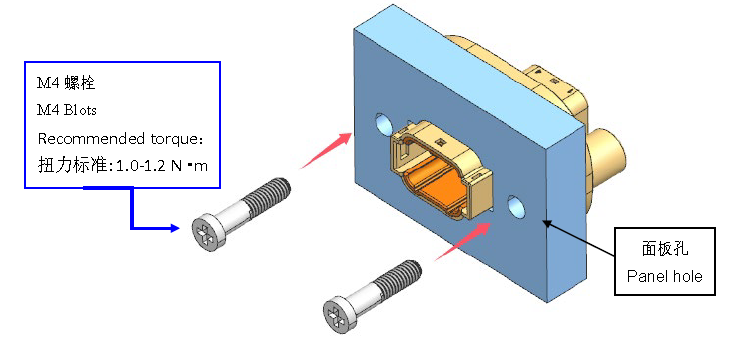

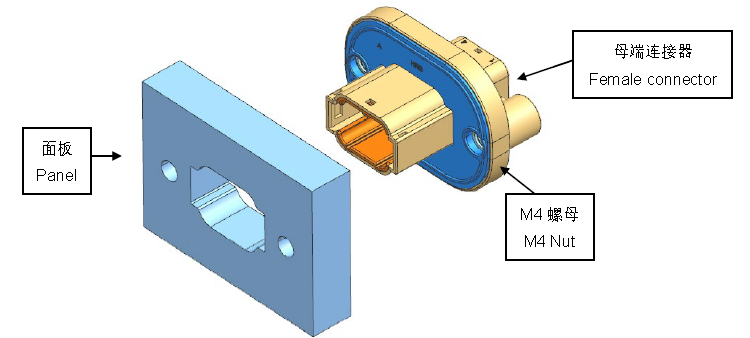

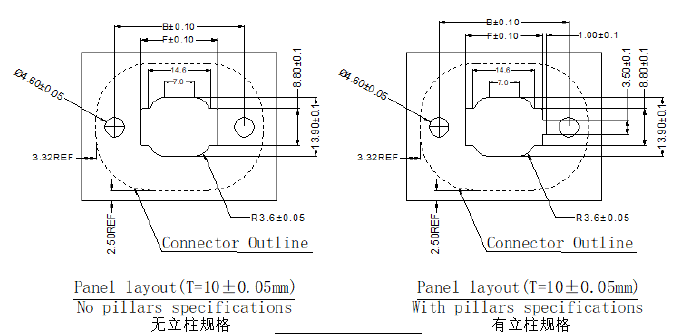

• Panel‑mount design with mounting lugs for secure wire‑to‑wire connection

• TPA secondary lock prevents terminal back‑out against vibration and shock

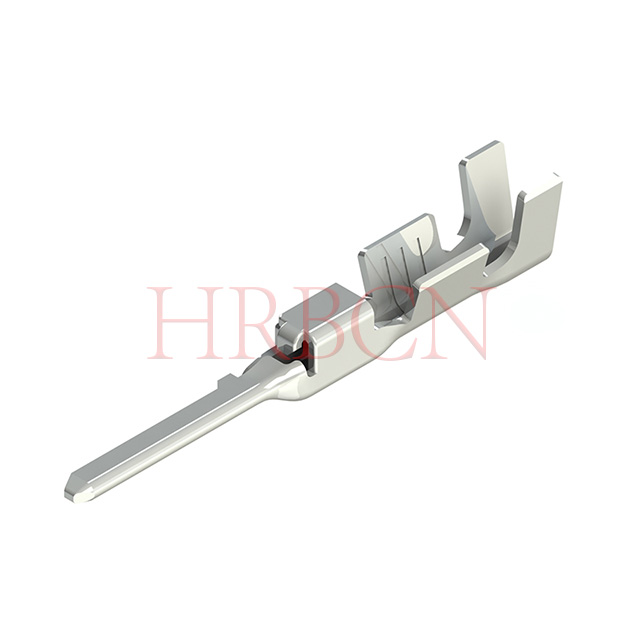

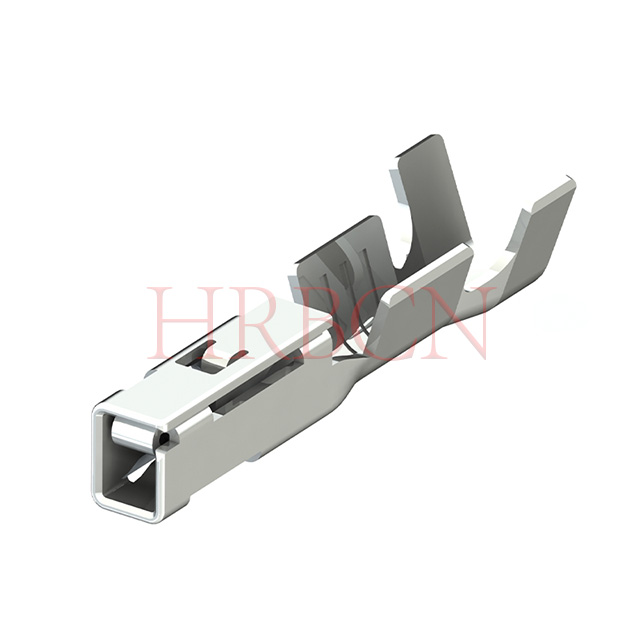

• PBT UL94 V‑0 housing & tin‑plated phosphor bronze contacts, ‑40℃ ~ +105℃ operating range

• 10A / 250V rating, low contact resistance for stable power & signal transmission

• Multiple pin options, fits AWG 18‑22 wires, RoHS & REACH compliant

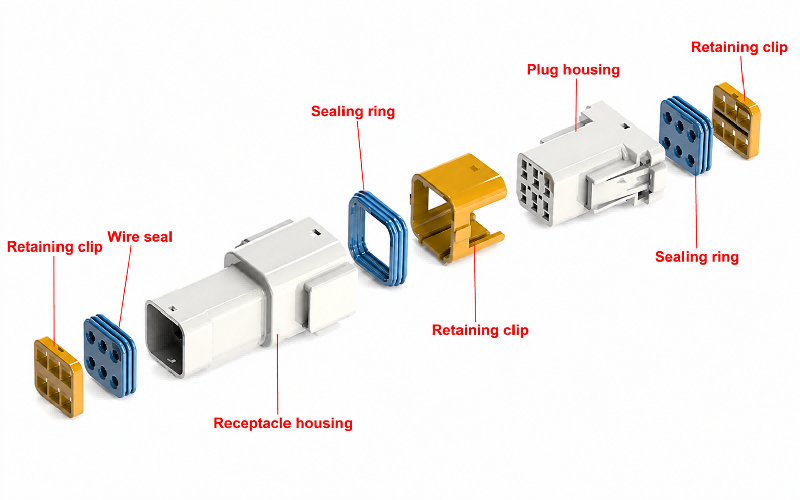

Exploded view

Waterproof plugs, retaining clips, sealing rings, terminals and male‑female housings work together to deliver reliable wire‑end mating, sealing protection and stable assembly.

Application Scenarios

• Outdoor Equipment

Reliable IP-rated waterproof connectors withstand outdoor humidity, dust and temperature fluctuations, delivering stable power & signal transmission for lawn mowers and outdoor gardening machinery.

• Electric Motors

Robust structure and anti-vibration locking design guarantee long-term steady connection for industrial motors, effectively avoiding terminal loosening under continuous operation vibration.

• Agricultural Drones

Compact layout + dustproof & waterproof performance adapts to farm complex working conditions, supporting safe power supply and signal control for plant protection drones during field spraying operations.

• Outdoor Spotlights

Integrated sealing structure prevents rainwater & dust ingress, ensuring durable connection performance for landscape spotlights under long-term outdoor exposure.

• Automotive Door Locks

Stable low-resistance contacts & anti-shock structure match automotive-grade requirements, realizing precise signal transmission for vehicle door lock control systems.

• Smart Wheelchairs

Safe current carrying capacity and reliable locking structure support stable power output and control signal transmission, securing daily safe operation of mobility assist devices.
