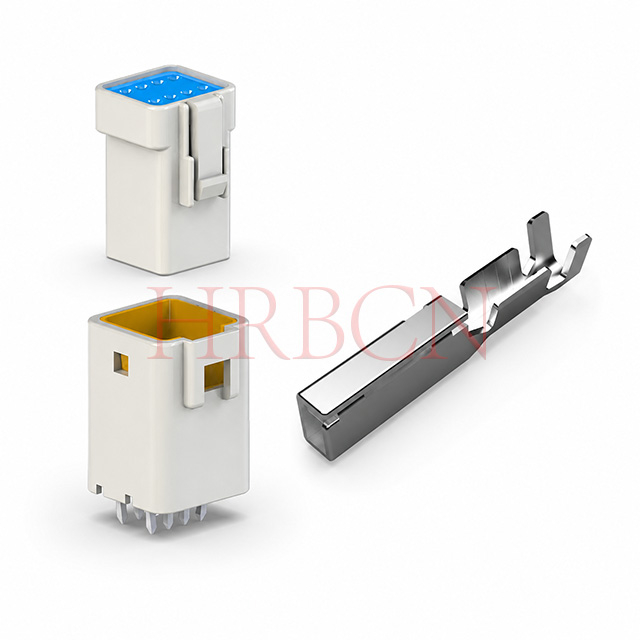

P/N definition
M20032-2XN-W
① ② ③ ④
①M20032: HRB series, Plug
②2: dual row;
③N: Number of Pins per row 3/4pin
④W: Housing color is white
M20036-2XN-W
① ② ③ ④
①M20036: HRB series, 180° PCB header
②2: dual row;
③N: Number of Pins per row 3/4pin
④W: Housing color is white
Key Features
IP67 waterproof & dust‑proof rating per IEC 60529 for dusty and moist outdoor operating conditions

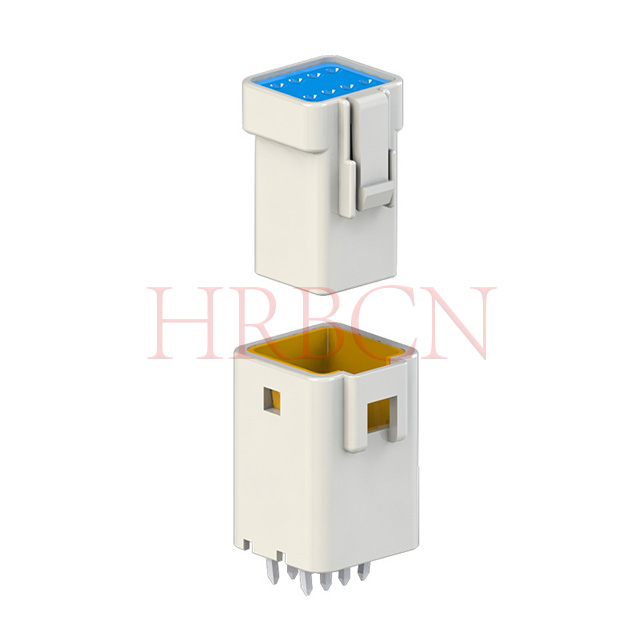

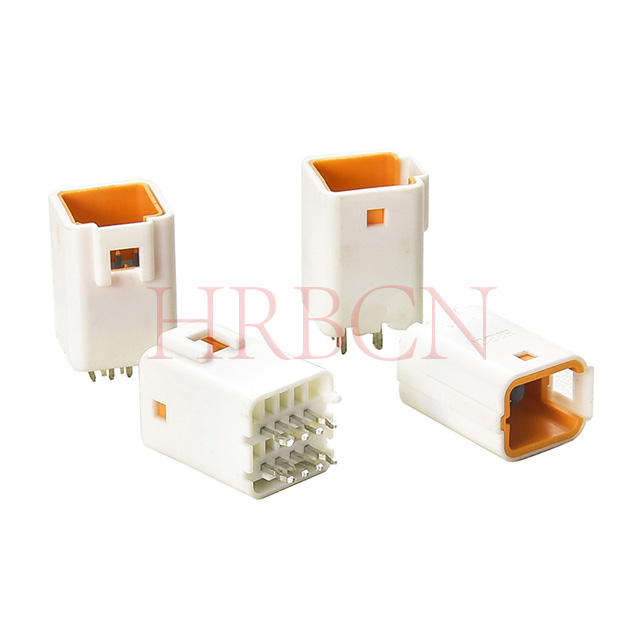

Dual‑row 180° straight vertical PCB header, compact high‑density layout for PCB‑mount wire‑to‑board interconnection
TPA secondary lock mechanism prevents terminal back‑out under vibration & shock for long‑term harness reliability

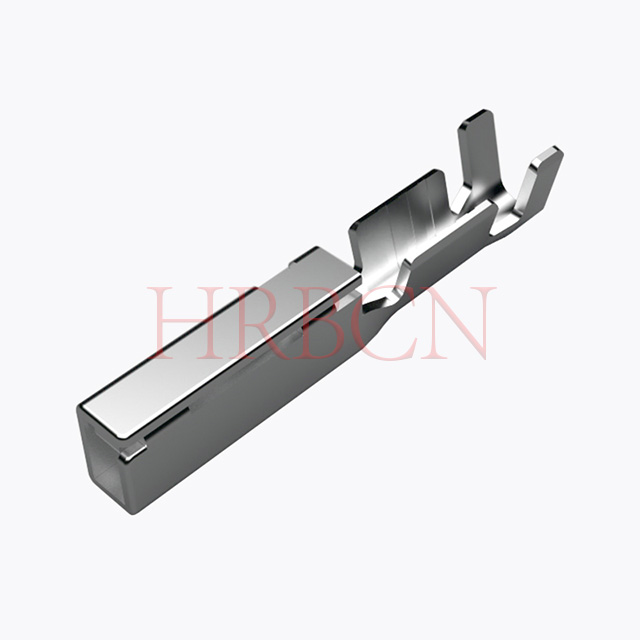

PBT UL94 V‑0 flame‑retardant housing, tin‑plated copper‑alloy contacts, wide operating temperature: ‑40℃ ~ +130℃
Rated 3A / 100V AC/DC, supports AWG 22‑24 wire gauges
Integrated silicone sealing elements ensure complete sealing when fully mated

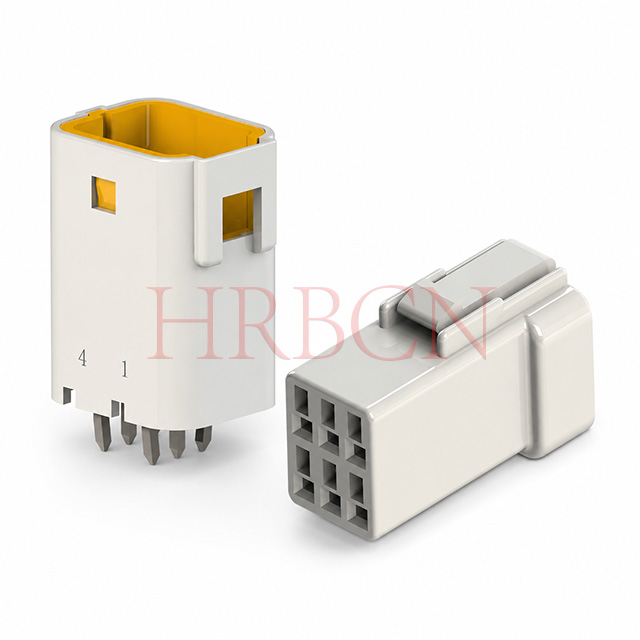

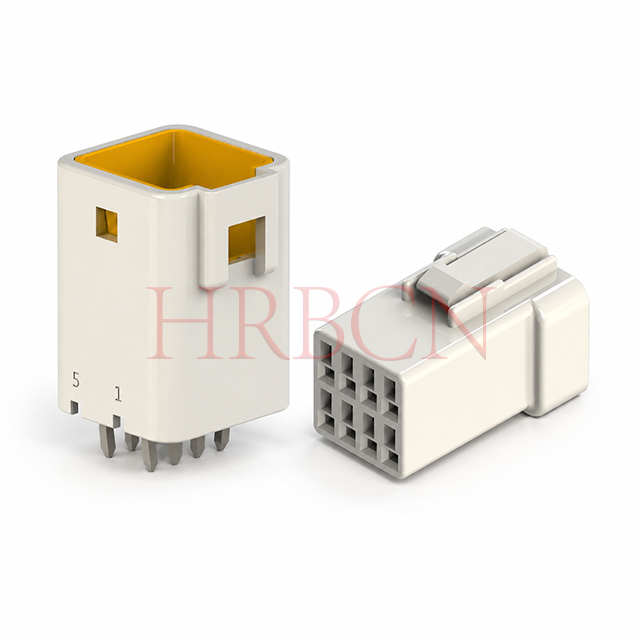

Available in 2×3‑pin, 2×4‑pin dual‑row configurations
RoHS & REACH compliant
Application Fields
HRB waterproof connectors are widely deployed across multiple harsh‑condition application scenarios, delivering stable signal and
power transmission for outdoor and mobility‑oriented devices.
- Outdoor Equipment: Lawn mowers and other garden machinery, withstand dust, moisture and outdoor temperature fluctuation.
- Vehicle 360° Surround System: Automotive panoramic imaging systems, reliable connection for on‑vehicle camera signal
transmission.
- Agricultural UAV: Agricultural spraying drones, resistant to humidity, dust and farm‑site harsh environment.
- Automotive Rearview Camera: Automobile rear‑view camera wiring harness, stable signal output for vehicle vision components.
- Outdoor Bicycles: E‑bikes and outdoor bicycles, durable connection for power and signal circuits.
- Powered Wheelchair: Electric mobility wheelchairs, guarantee safe and reliable power interconnection for mobility aids.
