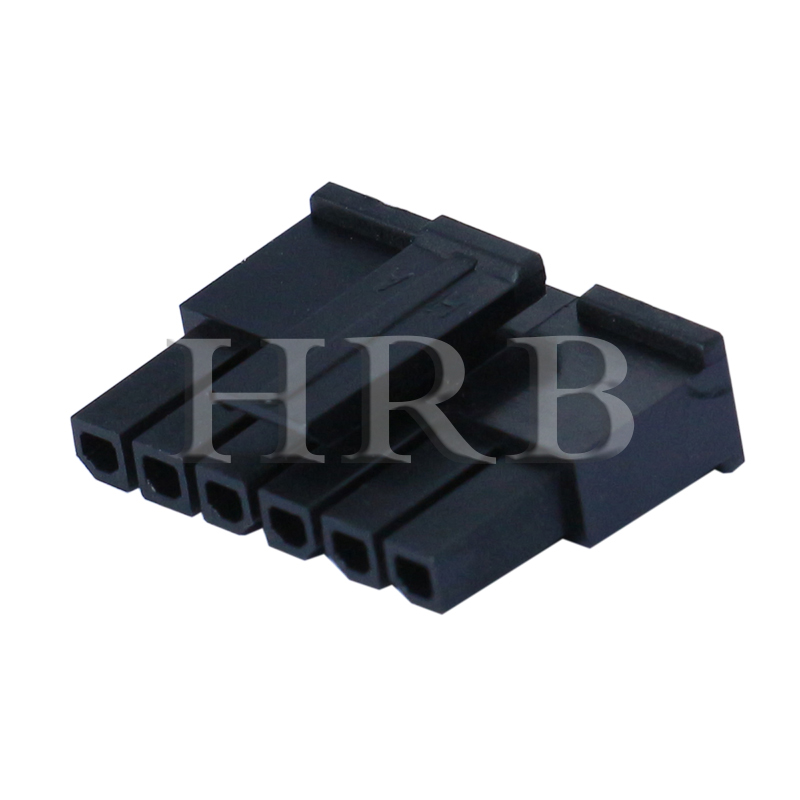

P3025 Single Row Male Housing Connector

Quantity:
  • P3025-1xN-B-H HRB
  • HRB

Description:


The HRB 3.0 pitch wire to wire, wire to board connector system is made up of connector housing, crimp terminal and pin header(wafer), generally in Male crimp housing, Female crimp housing, Female and male crimp terminals, right angle and vertical pin header(wafer).

P3025-1×N-B-H series is male connector electrical housing, single row, available in multiple circuits from 2 poles to 12 poles, using with T3025 series female terminal(AWG#20-24; AWG#26-30 both tin plated and gold plated for customer's selection), mating with P3020-1×N-B-C, P3020-1×N-B-K series(Wire to wire connector), mating with M3045, M3045R series pin header(wafer)(wire to board).



Ordering Information:



3.0 Receptacle Male Crimp Housing connector,Single Row, 2 to 12 Circuits.


P3025-1×N-B-H

       ①     ②   ③ ④ ⑤

①: HRB product series number

②: crimp housing row number

③: number of circuits/poles per row

④: crimp housing color: Black

⑤: without panel mount ears



Part No.
Dimensions Part No.
Dimensions
TYP UL94V-2 TYP UL94V-0 Circuits Dim: A Dim: B TYP UL94V-2 TYP UL94V-0 Circuits Dim: A Dim: B
P3025-1×2-B-H P3025-1×2-B-H(V0) 2 300 6.85 P3025-1×8-B-H P3025-1×8-B-H(V0) 8 21.00 24.85
P3025-1×3-B-H P3025-1×3-B-H(V0) 3 6.00 9.85 P3025-1×9-B-H P3025-1×9-B-H(V0) 9 24.00 27.85
P3025-1×4-B-H P3025-1×4-B-H(V0) 4 9.00 12.85 P3025-1×10-B-H P3025-1×10-B-H(V0) 10 27.00 30.85
P3025-1×5-B-H P3025-1×5-B-H(V0) 5 12.00 15.85 P3025-1×11-B-H P3025-1×11-B-H(V0) 11 30.00 33.85
P3025-1×6-B-H P3025-1×6-B-H(V0) 6 15.00 18.85 P3025-1×12-B-H P3025-1×12-B-H(V0) 12 33.00 36.85
P3025-1×7-B-H P3025-1×7-B-H(V0) 7 18.00 21.85





Part No. Poles SPQ(Poly bag packing) CAD files
P3025-1×2-B-H 2 1000 P3025-1x2-B-H.pdf
P3025-1×3-B-H 3 1000 P3025-1x3-B-H.pdf
P3025-1×4-B-H 4 1000 P3025-1x4-B-H.pdf
P3025-1×5-B-H 5 1000 P3025-1x5-B-H.pdf
P3025-1×6-B-H 6 1000 P3025-1x6-B-H.pdf
P3025-1×7-B-H 7 1000 P3025-1x7-B-H.pdf
P3025-1×8-B-H 8 1000 P3025-1x8-B-H.pdf
P3025-1×9-B-H 9 1000
P3025-1×10-B-H 10 1000
P3025-1×11-B-H 11 1000
P3025-1×12-B-H 12 1000


Detail Information:



Category Crimp Housings connector
Brand HRB connector
Application Power, wire to wire connector, wire to board connector
Circuits 2-12 circuits
Color Black(white customized)
Flammability UL94V-2/UL94V-0
Gender Male
Glow-Wire Compliant "Yes" or "No" are both available
Keying to Mating Part None
Lock to Mating Part Yes
Material - Resin Nylon
Number of Rows Single
Packaging Type Poly bag
Panel Mount No
Pitch - Mating Interface 3.0mm pitch
Pitch - Termination Interface 3.0mm pitch
Polarized to Mating Part Yes
Stackable No
Temperature Range - Operating -25 ºC to +85 ºC and -40 ºC to +130 ºC



Product application:



Dryers

Freezers

Gaming Machines

Printers

Refrigerator

Scanner

Security Systems

Vending Machines

Washing machine

White goods



Solar Power



Hubs

Power supplies and distribution

Routers

Servers



Mate with parts(wire to wire):



P3020-1×N-B-C 3.0 plug Female crimp housings connector without panel mount ears.

P3020-1×N-B-K 3.0 plug Female crimp housings connector with panel mount ears.



Mate with parts(wire to board):


M3045 3.0 header connector.



Use with:



T3025 3.0 female crimp terminals


P3025-1xN-B-H connector.pdf



1) Current Rating: 5A AC, DC

2) Voltage Rating: 250V AC, DC

3) Operating temperature: V2: -25 ºC to +85 ºC

                                          V0: -40 ºC to +130 ºC

4) Contact resistance: 10mΩ Max

5) Insulation Resistance:1000MΩ Min

6) Withstanding Voltage:1500V AC/minute

7) Material: Nylon66-UL 94V-2/UL94V-0

8) cUL File No.: E304945

9) Terminal in housing retention force requirement: 2.5kg(Min.)
