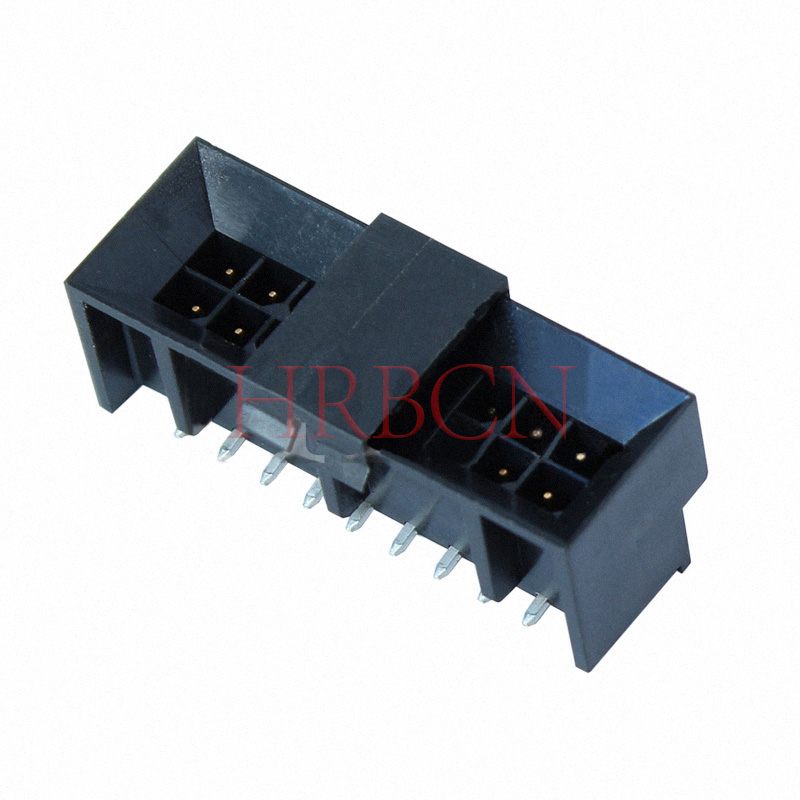

Vertical Dual Row 3.0 Pitch Wire To Board Pin Header

Availability:
Quantity:
  • M3047-2xN-B-C

  • HRB

Description:


The HRB 3.0 pitch wire to wire connector system is made up of connector housing and crimp terminal, generally in Male and Female crimp housing, Male and Female crimp terminals.

M3047-2×N-B-C series is available in multiple circuits from 2 poles to 24 poles, tin plated and gold plated for customer's selection, mating with P3025-2×N-B-H series(Wire to board connector).


Technical parameters


1) Current Rating: 5A AC, DC

2) Voltage Rating: 250V AC, DC

3) Operating Temperature: -40ºC to +130ºC

4) Contact Resistance: 10mΩ max

5) Insulation Resistance: 1000MΩ min.

6) Withstanding Voltage: 1500V AC/minute

7) Material:Housing: NylonUL66 UL94V-0

                  Pin: brass, tin plated

8) Mate with: P3025 series

9) Housing and pin retention force requirement: 2.0kg(Min.)


Ordering Information:


3.0 Vertical Header connector, 3.00mm Pitch, Dual Row, 2 to 24 Circuits, Tin, Black.


M3047-2×N-B-C

       ①   ②③  ④ ⑤ ⑥

①: HRB product series number

②: R: Right angle header, Blank: Vertical header

③: pin header row number

④: number of circuits/poles per row

⑤: crimp housing color: Black


Detail Information:


CategoryPCB headers connector
BrandHRB connector
Application
Power, wire to board connector
Circuits2-24 circuits
ColorBlack
FlammabilityUL94V-0
Glow-Wire Compliant"Yes" or "No" are both available
Material-MetalBrass
Material - Plating MatingTin/Gold(selective 1U'', 15U'', 30U'')
Material - Plating TerminationTin/Gold(selective 1U'', 15U'', 30U'')
Material - ResinHigh Temperature Thermoplastic
Number of RowsDual
OrientationVertical
PCB LocatorYes
PCB RetentionYes
ShroudedFully
Packaging TypeTray
Pitch - Mating Interface3.0mm pitch
Polarized to PCBYes
Surface Mount Compatible (SMC)Yes
StackableNo
Temperature Range - Operating -40 ºC to +130 ºC


Product application:


Dryers

Freezers

Gaming Machines

Printers

Refrigerator

Scanner

Security Systems

Vending Machines

Washing machine

White goods


Solar Power


Hubs

Power supplies and distribution

Routers

Servers


Mate with parts(wire to board):



3.0 Pitch  P3025 receptacle male crimp housings connector.
