P3020-1xN-B-C hrb
HRB
Description:

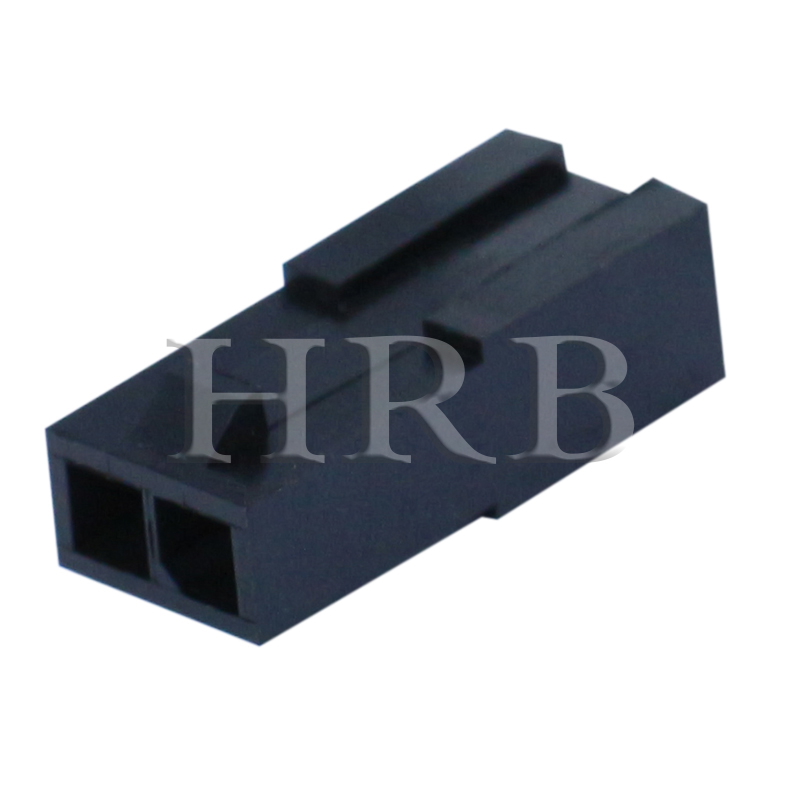

The HRB 3.0 pitch wire to wire connector system is made up of connector housing and crimp terminal, generally in Male and Female crimp housing, Male and Female crimp terminals.
P3020-1×N-B-C series is Female connector electrical housing, single row without panel mount ears, available in multiple circuits from 2 poles to 12 poles, using with T3020 series male terminal(AWG#20-24; AWG#26-30 both tin plated and gold plated for customer's selection), mating with P3025-1×N-B-H series(Wire to wire connector).
Technical parameters
1) Current Rating: 5A AC, DC
2) Voltage Rating: 250V AC, DC
3) Operating temperature: V2: -25 ºC to +85 ºC
V0: -40 ºC to +130 ºC
4) Contact resistance: 10mΩ Max
5) Insulation Resistance:1000MΩ Min
6) Withstanding Voltage:1500V AC/minute
7) Material: Nylon66-UL 94V-2/UL94V-0
8) cUL File No.: E304945
9) Terminal in housing retention force requirement: 2.5kg(Min.)
Ordering Information:
HRB 3.0 Female Plug Crimp Housing connector, Single Row, 2 to 12 Circuits, UL 94V-2/0, without Panel Mount Ears, Black
P3020-1×N-B-C
① ② ③ ④ ⑤
①: HRB product series number
②: crimp housing row number
③: number of circuits/poles
④: crimp housing color: Black
⑤: without panel mount ears
| Part No. | Dimensions | Part No. | Dimensions | ||||||
TYP UL94V-2 | TYP UL94V-0 | Circuits | Dim: A | Dim: B | TYP UL94V-2 | TYP UL94V-0 | Circuits | Dim: A | Dim: B |
| P3020-1×2-B-C | P3020-1×2-B-C(V0) | 2 | 300 | 6.85 | P3020-1×8-B-C | P3020-1×8-B-C(V0) | 8 | 21.00 | 24.85 |
| P3020-1×3-B-C | P3020-1×3-B-C(V0) | 3 | 6.00 | 9.85 | P3020-1×9-B-C | P3020-1×9-B-C(V0) | 9 | 24.00 | 27.85 |
| P3020-1×4-B-C | P3020-1×4-B-C(V0) | 4 | 9.00 | 12.85 | P3020-1×10-B-C | P3020-1×10-B-C(V0) | 10 | 27.00 | 30.85 |
| P3020-1×5-B-C | P3020-1×5-B-C(V0) | 5 | 12.00 | 15.85 | P3020-1×11-B-C | P3020-1×11-B-C(V0) | 11 | 30.00 | 33.85 |
| P3020-1×6-B-C | P3020-1×6-B-C(V0) | 6 | 15.00 | 18.85 | P3020-1×12-B-C | P3020-1×12-B-C(V0) | 12 | 33.00 | 36.85 |
| P3020-1×7-B-C | P3020-1×7-B-C(V0) | 7 | 18.00 | 21.85 | |||||
| Part No. | Poles | SPQ(Packing: Poly Bag) | CAD files |
| P3020-1×2-B-K | 2 | 1000 |  P3020-1x2-B-C.pdf |
| P3020-1×3-B-K | 3 | 1000 | P3020-1x3-B-C.pdf |
| P3020-1×4-B-K | 4 | 1000 | P3020-1x4-B-C.pdf |
| P3020-1×5-B-K | 5 | 1000 | P3020-1x5-B-C.pdf |
| P3020-1×6-B-K | 6 | 1000 | P3020-1x6-B-C.pdf |
| P3020-1×7-B-K | 7 | 1000 | P3020-1x7-B-C.pdf |
| P3020-1×8-B-K | 8 | 1000 | P3020-1x8-B-C.pdf |
| P3020-1×9-B-K | 9 | 1000 | P3020-1x9-B-C.pdf |
| P3020-1×10-B-K | 10 | 1000 | P3020-1x10-B-C.pdf |
| P3020-1×11-B-K | 11 | 1000 | P3020-1x11-B-C.pdf |
| P3020-1×12-B-K | 12 | 1000 | P3020-1x12-B-C.pdf |
Detail Information:
| Category | Crimp Housings connector |
| Brand | HRB connector |
| Application | Power, wire to wire connector |
| Circuits | 2-12 circuits |
| Color | Black(white customized) |
| Flammability | UL94V-2/UL94V-0 |
| Gender | Female |
| Glow-Wire Compliant | "Yes" and "No" are both available |
| Keying to Mating Part | None |
| Lock to Mating Part | Yes |
| Material - Resin | Nylon |
| Number of Rows | Single |
| Packaging Type | Poly bag |
| Panel Mount | No |
| Pitch - Mating Interface | 3.0mm pitch |
| Pitch - Termination Interface | 3.0mm pitch |
| Polarized to Mating Part | Yes |
| Stackable | No |
| Temperature Range - Operating | -25 ºC to +85 ºC and -40 ºC to +130 ºC |
Product application:
Dryers
Freezers
Gaming Machines
Printers
Refrigerator
Scanner
Security Systems
Vending Machines
Washing machine
White goods
Solar Power
Hubs
Power supplies and distribution
Routers
Servers
Mate with parts(wire to wire):
P3025 3.0 receptacle housings connector
Use with:
T3020 3.0 male crimp terminals connector
