P4201-2×N-A(B)
HRB

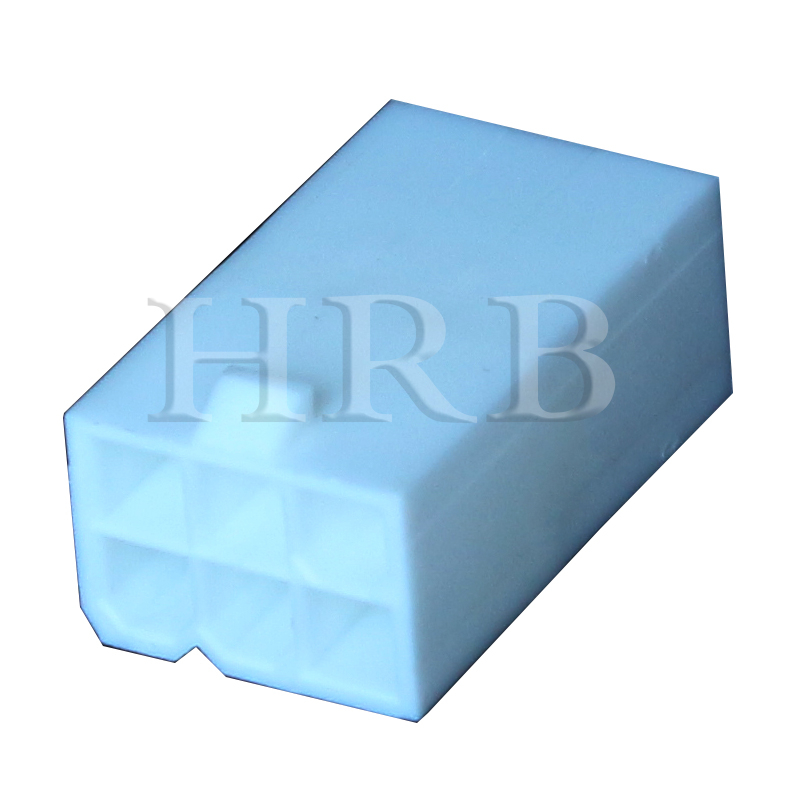

4.20mm pitch plug housing, molding, dual row, 2 to 24circuits.
9A 600V AC DC
Nylon66 UL94V-0
CUL-E304945
Circuits | Dim: A | Dim: B | Circuits | Dim: A | Dim: B |
2×1 | 5.60 | / | 2×7 | 30.80 | 25.20 |
2×2 | 9.80 | 4.20 | 2×8 | 35.00 | 29.40 |
2×3 | 14.00 | 8.40 | 2×9 | 39.20 | 33.60 |
2×4 | 18.20 | 12.60 | 2×10 | 42.40 | 37.80 |
2×5 | 22.40 | 16.80 | 2×11 | 47.60 | 42.00 |
2×6 | 26.60 | 21.00 | 2×12 | 51.80 | 46.20 |
4.20mm pitch plug housing, molding, dual row, 2 to 24circuits.
9A 600V AC DC
Nylon66 UL94V-0
CUL-E304945
Circuits | Dim: A | Dim: B | Circuits | Dim: A | Dim: B |
2×1 | 5.60 | / | 2×7 | 30.80 | 25.20 |
2×2 | 9.80 | 4.20 | 2×8 | 35.00 | 29.40 |
2×3 | 14.00 | 8.40 | 2×9 | 39.20 | 33.60 |
2×4 | 18.20 | 12.60 | 2×10 | 42.40 | 37.80 |
2×5 | 22.40 | 16.80 | 2×11 | 47.60 | 42.00 |
2×6 | 26.60 | 21.00 | 2×12 | 51.80 | 46.20 |
1) Current Rating: 9A AC, DC
2) Voltage Rating: 600V AC, DC
3) Operating Temperature:V2: -25ºC to +85ºC
V0: -40ºC to +130ºC
4) Contact Resistance: 10mΩ max
5) Insulation Resistance: 1000MΩ min.
6) Withstanding Voltage: 1500V AC/minute
7) Material: NylonUL94V-2/NylonUL94V-0
8) Terminal in housing retention force requirement: 6.5kg(min.)
