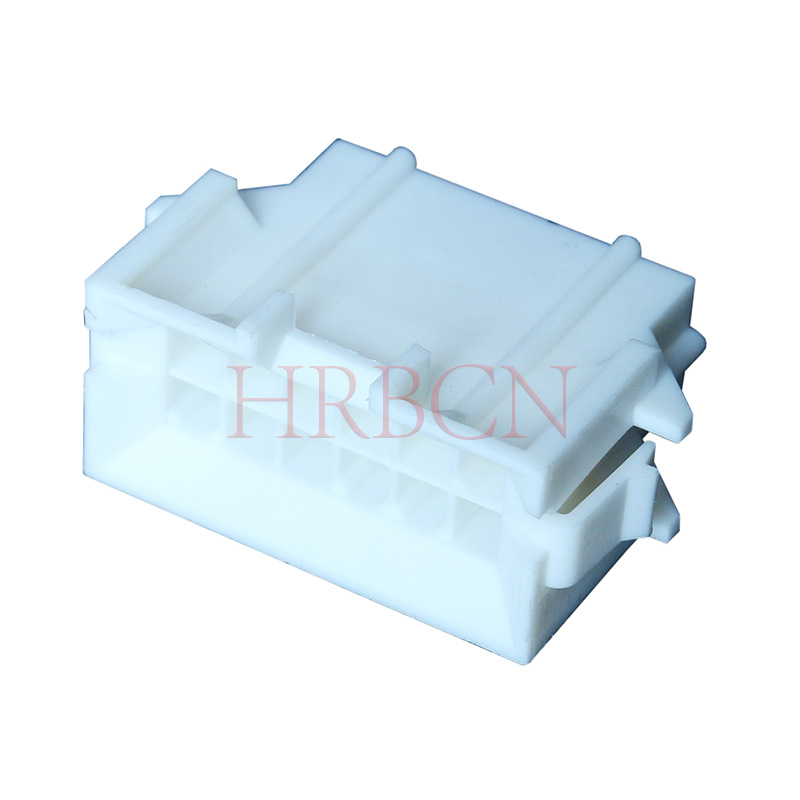

HRB Female Plug Crimp Housing Connector P42475

Quantity:
  • P42475-2xN-B, P42475-2xN-A
  • HRB

Description:


The HRB 4.2 pitch wire to wire connector system is made up of connector housing and crimp terminal, generally in Male and Female crimp housing, Male and Female crimp terminals.

P42475-2×N-B(Nylon UL94V-2), P42475-2×N-A(Nylon UL94V-0), series is Female connector electrical housing, Dual row with panel mount ears, available in multiple circuits from 4 poles to 36 poles, using with T4201 series male terminal(AWG#22-26; AWG#20-18, AWG#18-16 all tin plated and gold plated for customer's selection), mating with P42474-2×N-B series(Wire to wire connector).


Technical parameters:


1) Current Rating: 9A AC, DC
2) Voltage Rating: 600V AC, DC
3) Operating Temperature:V2: -25ºC to +85ºC
                                          V0: -40ºC to +130ºC
4) Contact Resistance: 10mΩ max
5) Insulation Resistance: 1000MΩ min.
6) Withstanding Voltage: 1500V AC/minute
7) Material: NylonUL94V-2/NylonUL94V-0
8) Terminal in housing retention force requirement: 6.5kg(min.)


Ordering Information:


Plug Housing connector, 4.20mm Pitch Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2&UL 94V-0, 4 to 36 Circuits


P42475-2×N-B/A

       ①        ②  ③   ④

①: HRB product series number

②: crimp housing row number

③: number of circuits/poles

④: crimp housing Material: B: UL94V-2,

                                           A: UL94V-0.


Part No.
Dimensions  Part No.
Dimensions
TYP UL94V-2 TYP UL94V-0 Cir Dim: A Dim: B Dim: C Dim: D  TYP UL94V-2  TYP UL94V-0 Cir Dim: A Dim: B Dim: C Dim: D
P42475-2×2-B P42475-2×2-A 4  4.20 9.60 16.30 19.80  P42475-2×8-B P42475-2×8-A 16 29.40 34.80 41.50 45.00
P42475-2×3-B P42475-2×3-A 6 8.40 13.80 20.50  24.00  P42475-2×9-B P42475-2×9-A 18 33.60  39.00 45.70 49.20
P42475-2×4-B P42475-2×4-A 8 12.60  18.00 24.70  28.20  P42475-2×10-B P42475-2×10-A 20 37.80  43.20 49.90 53.40
P42475-2×5-B P42475-2×5-A 10 16.80 22.20 28.90 32.40  P42475-2×11-B P42475-2×11-A 22 42.00 47.40 54.10 57.60
P42475-2×6-B P42475-2×6-A 12 21.00 26.40 33.10 36.60 P42475-2×12-B P42475-2×12-A 24 46.20 51.60 58.30 61.80
P42475-2×7-B P42475-2×7-A 14 25.20 30.60 37.30 40.80  P42475-2×18-B P42475-2×18-A 36  71.40 76.80 83.50 87.00


Detail Information:


Category Crimp Housings connector
Brand HRB
Application Power, wire to wire connector, wire to board connector
Circuits 4-36
Color White/natural
Flammability UL94V-0, UL94V-2
Gender Female
Glow-wire compliant  "Yes" and "No" are both available
Lock to mating part None
Material-Resign
Nylon
Number of rows Dual
Packing type
Bag
Panel mount Yes
Pitch - Mating Interface 4.2mm pitch
Pitch - Termination Interface 4.2mm pitch
Polarized to Mating Part Yes
Stackable No
Temperature Range - Operating -25ºC to +85ºC and -40°C to +105°C
Current - Maximum per Contact 13.0A


Product Application:


Home appliances

Pinball and slot machines

Vending Machines

Video poker and pachinko

White goods


Copiers

Office equipment

Printers


Food and beverage dispensers

Power Supplies Markets and Applications

Vending Machines


Fan Tray Assemblies


Backplanes

Hubs

Power supplies and distribution

Routers

Servers


Mate with(wire to wire connection):



P42474 Panel Mount Receptacle housing connectors

Use with:

T4201 male Crimp Terminal


P42475-2xN-A connector.pdf


1) Current Rating: 9A AC, DC
2) Voltage Rating: 600V AC, DC
3) Operating Temperature:V2: -25ºC to +85ºC
                                          V0: -40ºC to +130ºC
4) Contact Resistance: 10mΩ max
5) Insulation Resistance: 1000MΩ min.
6) Withstanding Voltage: 1500V AC/minute
7) Material: NylonUL94V-2/NylonUL94V-0
8) Terminal in housing retention force requirement: 6.5kg(min.)
