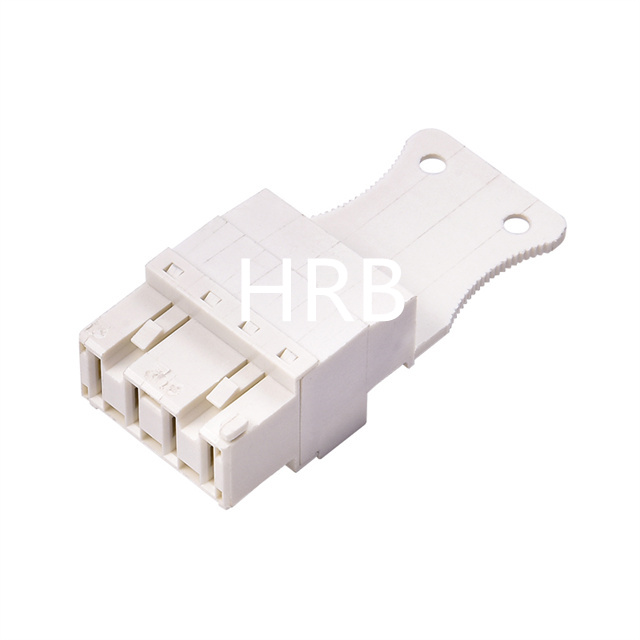

RAST 5 Printed circuit board connector for direct mating, with screw terminal, with lift clamp with protection against misplacing, alternatively with or without keying rib and (shorter) closed sides, consecutive placement without loss of pitch
Product Specification:
Current rating: 10A AC, DC MAX.
Voltage rating: 250V AC, DC
Temperature range: -40℃ to +120℃
Contact resistance: 10MΩMax.
Insulation resistance: 1000MΩMin.
Withstanding Voltage: 1500V AC/minute
Material: Housing: Nylon66 UL94V-0
Terminal: Phosphor bronze, Tin-plated
Clamp: Brass, Nickel-plated
Screw: Steel, Zinc-plated
Wire size: Section stranded wire: 0.14-2.5mm²(AWG#26-14)
Section solid wire: 0.14-4.0mm²(AWG#26-12)
Stripping length: 8±1mm
GWT: 750℃ IEC-60335-1
Product features:
On-site wiring technology, safe and reliable connection solution (2P~10PIN) VDE certified.
Shorter L/T, good performance.
It will soon create higher value and application experience for high-end white goods customers such as wall-mounted boilers, industrial boilers, heat pump air conditioners, etc.
