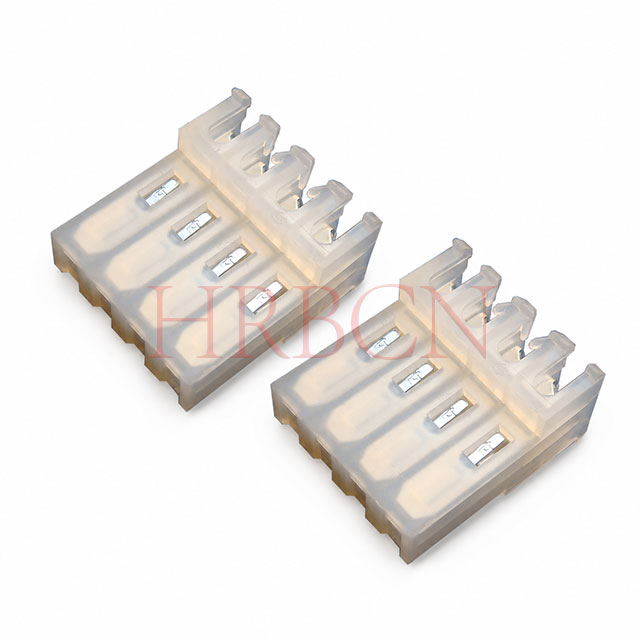

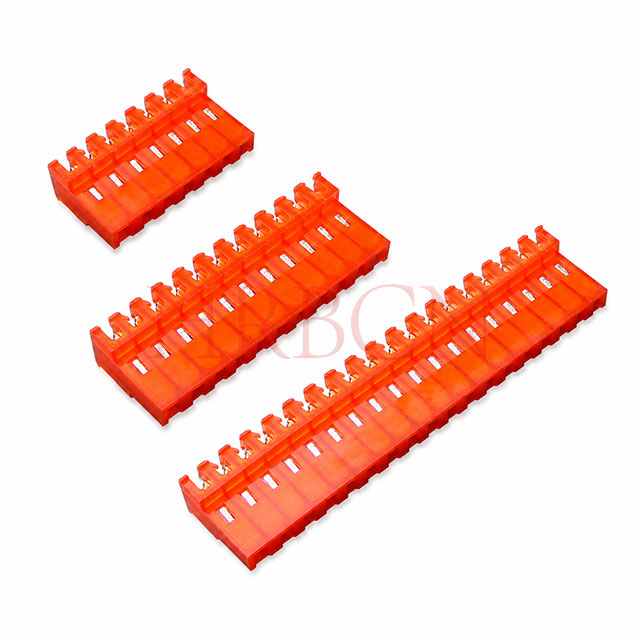

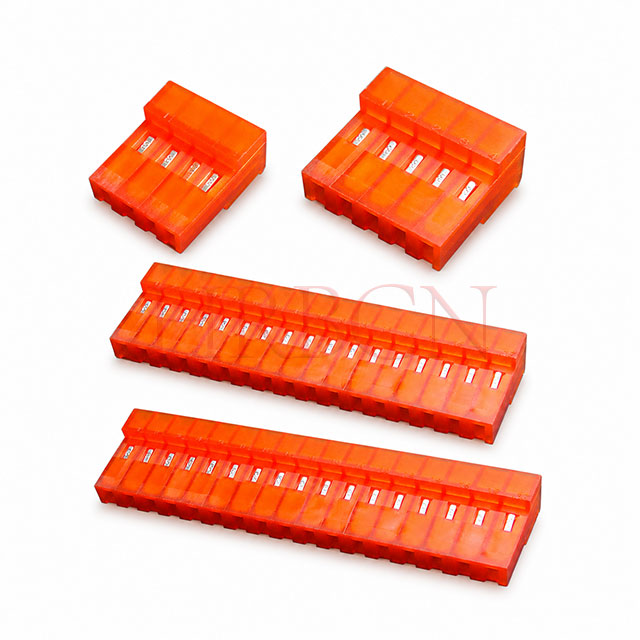

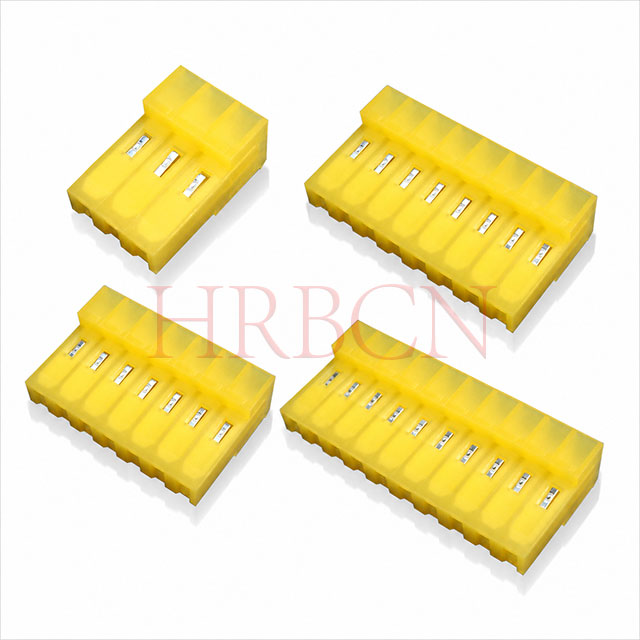

3.96mm pitch IDC connector Without Locking Ramp

M7060 Series 3.96mm pitch IDC connector without locking ramp, 90° closed end & 180° feed-through styles, 2-24 pins. UL94V-2 Nylon 66 housing, phosphor bronze terminals with tin/gold plating. Color-coded housing matches AWG18~AWG24 wires. Ideal for wire-to-wire and wire-to-board connections in home appliances and LED lighting.
  • Fully RoHS & REACH Compliant
  • UL&cUL Certified
  • UL 94V-2 Flame Retardant Housing
Availability:
Quantity:
Inquiry Add to RFQ List

  • M7060-N-C-P-R, M7060-N-C-P, M7060R-N-C-P-R, M7060R-N-C-P

  • HRB

  • 8536909000


3.96 Pitch IDC without Locking Ramp Polarizing Tabs


3.96mm pitch connector for indirect mating, insulation displacement technology (IDT), for individual conductors, without locking Ramp, with or without Polarizing Tabs.


HRB P/N definition

M7060-N-C-P-R

      ①②③④⑤⑥

①M7060: HRB series

②Without R(Blank): Feed through 180°

③N: Number of pins: 2-24

④C: Housing color, see below chart explanation

⑤P: Without locking ramp

⑥R: With polarizing tabs

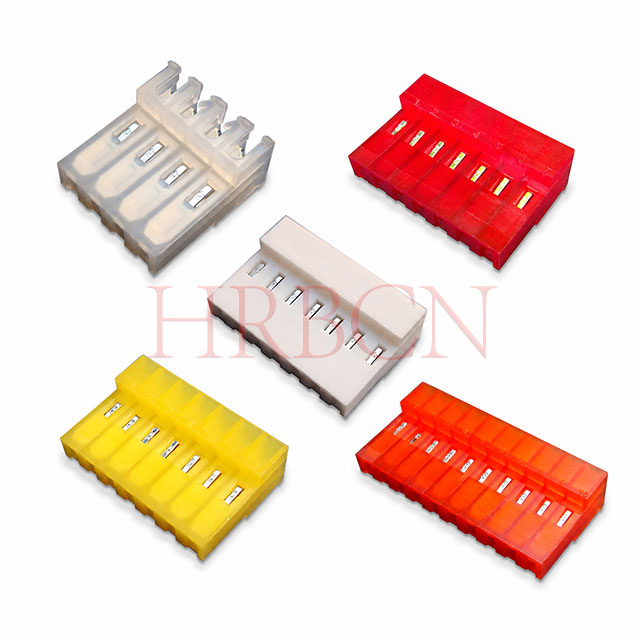

C Color Wire size
N Natural AWG18
O Orange AWG18
Y Yellow AWG20
R Red AWG22
W White AWG24

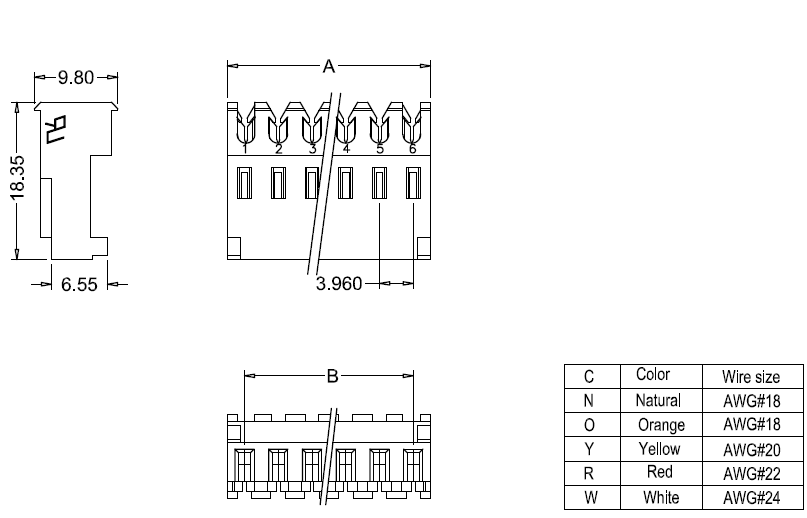

M7060-N-C-P-R dimensions

M7060-N-C-P-R IDC dimensions

Part  No.
Dimensions Part  No.
Dimensions Part  No.
Dimensions
UL94V-2 Circuits Dim:  A Dim:  B UL94V-2 Circuits Dim:  A Dim:  B UL94V-2 Circuits Dim:  A Dim:  B
M7060-2-C-P-R 2 7.92 3.96 M7060-10-C-P-R 10 39.60 35.64 M7060-18-C-P-R 18 71.08 67.32
M7060-3-C-P-R 3 11.88 7.92 M7060-11-C-P--R 11 43.41 39.60 M7060-19-C-P-R 19 75.04 71.28
M7060-4-C-P-R- 4 15.84 11.88 M7060-12-C-P-R 12 47.37 43.56 M7060-20-C-P-R 20 78.90 75.24
M7060-5-C-P-R 5 19.80 15.84 M7060-13-C-P-R 13 51.33 47.52 M7060-21-C-P-R 21 82.26 79.20
M7060-6-C-P-R 6 23.76 19.80 M7060-14-C-P-R 14 55.29 51.48 M7060-22-C-P-R 22 86.82 83.16
M7060-7-C-P-R 7 27.72 23.76 M7060-15-C-P-R 15 59.35 55.44 M7060-23-C-P-R 23 90.78 87.12
M7060-8-C-P-R 8 31.68 27.72 M7060-16-C-P-R 16 63.31 59.40 M7060-24-C-P-R 24 94.74 91.08
M7060-9-C-P-R 9 35.64 31.68 M7060-17-C-P-R 17 67.12 63.36



HRB P/N definition

M7060-N-C-P

      ①②③④⑤⑥

①M7060: HRB series

②Without R(Blank): Feed through 180°

③N: Number of pins: 2-24

④C: Housing color, see below chart explanation

⑤P: Without locking ramp

⑥Without R(blank): Without polarizing tabs

C Color Wire size
N Natural AWG18
O Orange AWG18
Y Yellow AWG20
R Red AWG22
W White AWG24

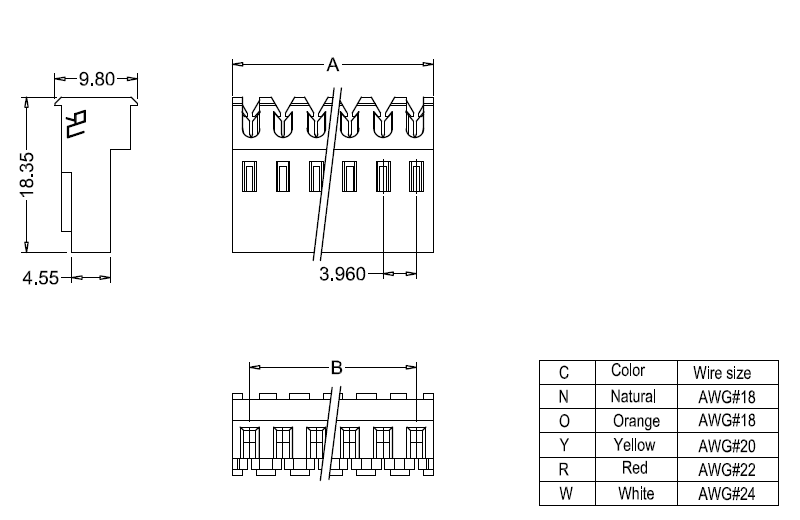

M7060-N-C-P dimensions

M7060-N-C-P IDC dimensions


Part  No.
Dimensions Part  No.
Dimensions Part  No.
Dimensions
TYP  UL94V-2 Circuits Dim:  A Dim:  B TYP  UL94V-2 Circuits Dim:  A Dim:  B TYP  UL94V-2 Circuits Dim:  A Dim:  B
M7060-2-C-P 2 7.92 3.96 M7060-10-C-P 10 39.60 35.64 M7060-18-C-P 18 71.08 67.32
M7060-3-C-P 3 11.88 7.92 M7060-11-C-P 11 43.41 39.60 M7060-19-C-P 19 75.04 71.28
M7060-4-C-P 4 15.84 11.88 M7060-12-C-P 12 47.37 43.56 M7060-20-C-P 20 78.90 75.24
M7060-5-C-P 5 19.80 15.84 M7060-13-C-P 13 51.33 47.52 M7060-21-C-P 21 82.26 79.20
M7060-6-C-P 6 23.76 19.80 M7060-14-C-P 14 55.29 51.48 M7060-22-C-P 22 86.82 83.16
M7060-7-C-P 7 27.72 23.76 M7060-15-C-P 15 59.35 55.44 M7060-23-C-P 23 90.78 87.12
M7060-8-C-P 8 31.68 27.72 M7060-16-C-P 16 63.31 59.40 M7060-24-C-P 24 94.74 91.08
M7060-9-C-P 9 35.64 31.68 M7060-17-C-P 17 67.12 63.36




HRB P/N definition

M7060R-N-C-P-R

      ① ② ③④ ⑤⑥

①M7060: HRB series

②R: Closed end 90°

③N: Number of pins: 2-24

④C: Housing color, see below chart explanation

⑤P: Without locking ramp

⑥R: With polarizing tabs

C Color Wire size
N Natural AWG18
O Orange AWG18
Y Yellow AWG20
R Red AWG22
W White AWG24

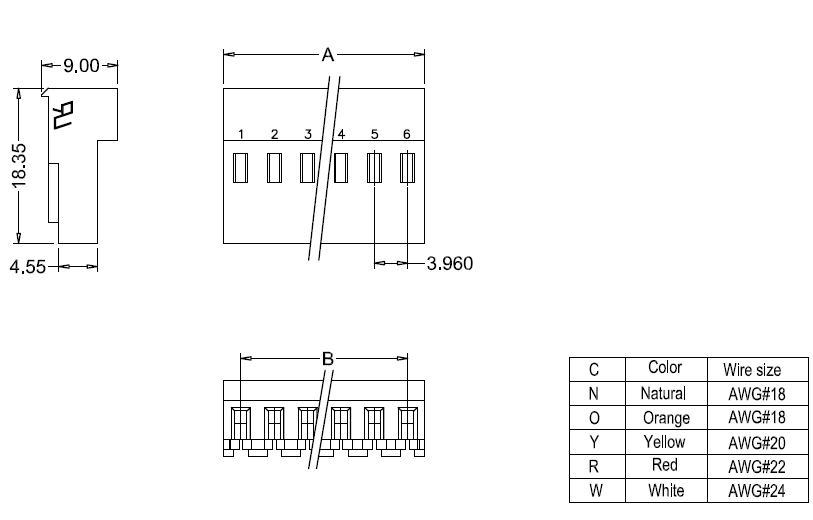

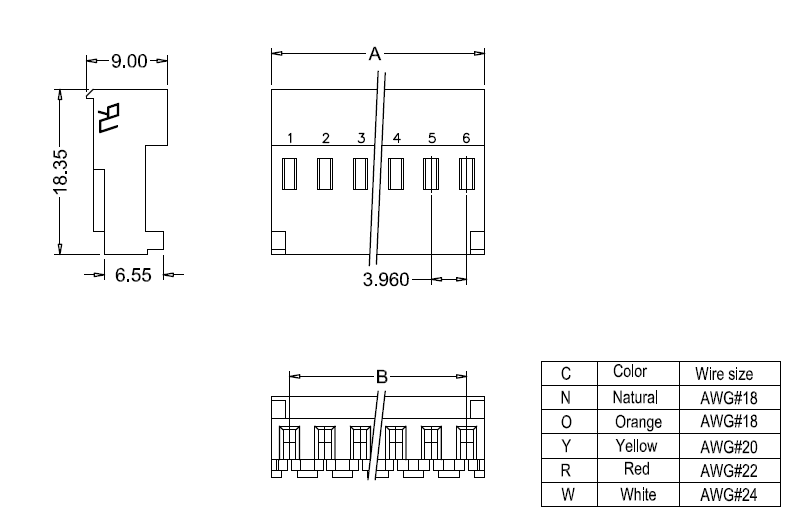

M7060R-N-C-P-R dimensions

M7060R-N-C-P-R IDC dimensions

Part  No.
Dimensions Part  No.
Dimensions Part  No.
Dimensions
UL94V-2 Circuits Dim:  A Dim:  B UL94V-2 Circuits Dim:  A Dim:  B UL94V-2 Circuits Dim:  A Dim:  B
M7060R-2-C-P-R 2 7.92 3.96 M7060R-10-C-P-R 10 39.60 35.64 M7060R-18-C-P-R 18 71.08 67.32
M7060R-3-C-P-R 3 11.88 7.92 M7060R-11-C-P-R 11 43.41 39.60 M7060R-19-C-P-R 19 75.04 71.28
M7060R-4-C-P-R- 4 15.84 11.88 M7060R-12-C-P-R 12 47.37 43.56 M7060R-20-C-P-R 20 78.90 75.24
M7060R-5-C-P-R 5 19.80 15.84 M7060R-13-C-P-R 13 51.33 47.52 M7060R-21-C-P-R 21 82.26 79.20
M7060R-6-C-P-R 6 23.76 19.80 M7060R-14-C-P-R 14 55.29 51.48 M7060R-22-C-P-R 22 86.82 83.16
M7060R-7-C-P-R 7 27.72 23.76 M7060R-15-C-P-R 15 59.35 55.44 M7060R-23-C-P-R 23 90.78 87.12
M7060R-8-C-P-R 8 31.68 27.72 M7060R-16-C-P-R 16 63.31 59.40 M7060R-24-C-P-R 24 94.74 91.08
M7060R-9-C-P-R 9 35.64 31.68 M7060R-17-C-P-R 17 67.12 63.36



HRB P/N definition

M7060R-N-C-P

      ① ② ③④⑤⑥

①M7060: HRB series

②R: Closed end 90°

③N: Number of pins: 2-24

④C: Housing color, see below chart explanation

⑤P: Without locking ramp

⑥Without R(blank): Without polarizing tabs

C Color Wire size
N Natural AWG18
O Orange AWG18
Y Yellow AWG20
R Red AWG22
W White AWG24

M7060R-N-C-P dimensions

M7060R-N-C-P IDC dimensions


Part  No.
Dimensions Part  No.
Dimensions Part  No.
Dimensions
TYP  UL94V-2 Circuits Dim:  A Dim:  B TYP  UL94V-2 Circuits Dim:  A Dim:  B TYP  UL94V-2 Circuits Dim:  A Dim:  B
M7060R-2-C-P 2 7.92 3.96 M7060R-10-C-P 10 39.60 35.64 M7060R-18-C-P 18 71.08 67.32
M7060R-3-C-P 3 11.88 7.92 M7060R-11-C-P 11 43.41 39.60 M7060R-19-C-P 19 75.04 71.28
M7060R-4-C-P 4 15.84 11.88 M7060R-12-C-P 12 47.37 43.56 M7060R-20-C-P 20 78.90 75.24
M7060R-5-C-P 5 19.80 15.84 M7060R-13-C-P 13 51.33 47.52 M7060R-21-C-P 21 82.26 79.20
M7060R-6-C-P 6 23.76 19.80 M7060R-14-C-P 14 55.29 51.48 M7060R-22-C-P 22 86.82 83.16
M7060R-7-C-P 7 27.72 23.76 M7060R-15-C-P 15 59.35 55.44 M7060R-23-C-P 23 90.78 87.12
M7060R-8-C-P 8 31.68 27.72 M7060R-16-C-P 16 63.31 59.40 M7060R-24-C-P 24 94.74 91.08
M7060R-9-C-P 9 35.64 31.68 M7060R-17-C-P 17 67.12 63.36





Q1: What is the pitch of this M7060 IDC connector?

A: The pitch is 3.96mm, a standard size for medium-power wire connection.

Q2: Does this connector have a locking ramp?

A: No. This model is designed without locking ramp. We also have models with locking ramp for your selection.

Q3: What orientations and pin options are available?

A: It comes in 90° closed end and 180° feed-through. Pin counts range from 2 pins to 24 pins. Polarizing tabs are optional to avoid wrong insertion.

Q4: What do different housing colors mean?

A: Each color corresponds to a specific wire gauge: Natural/Orange for AWG18, Yellow for AWG20, Red for AWG22, White for AWG24.

Q5: What are the material and flame retardant grade?

A: Housing: Nylon 66, UL94V-2 flame retardant grade; Operating temperature: -25℃ ~ +85℃. Terminal material: phosphor bronze.

Q6: What are the terminal surface finishes?

A: Two options: tin plating for general use and gold plating for high-reliability signal transmission.

Q7: What are the full electrical specifications?

A: Rated current: 5A AC/DC; Rated voltage: 600V AC/DC; Max contact resistance: 3.0mΩ; Min insulation resistance: 5000MΩ; Withstand voltage: 2200V AC per minute.

Q8: What accessories and mating parts does it support?

A: It mates with M3965 & M3965R series PCB headers for wire-to-board connection. M7061 & M7061R series housing covers are available to block dust and moisture.

Q9: What is the core advantage of IDT technology?

A: Insulation Displacement Technology allows wiring without stripping wire insulation, which greatly improves assembly efficiency for mass production.

Q10: What are the main application scenarios?

A: It is widely used for wire-to-wire and wire-to-board connections in household appliances, LED lighting fixtures, industrial control equipment and general electronic devices.


Current Rating
5A AC DC
Voltage Rating
600V AC DC
Operating Temperature
-25 ºC to +85 ºC
Contact Resistance
3.0mΩ max
Insulation Resistance
5000MΩ min.
Withstanding Voltage
2200V AC/minute
Material
Housing: Nylon66 UL94V-2
Terminal: Phosphor bronze
Terminal Finish
Tin plated
Gold plated
Orientation
90°
180°
Wire size
AWG18
AWG20
AWG22
AWG24
download M7060 Series Product specification.pdf

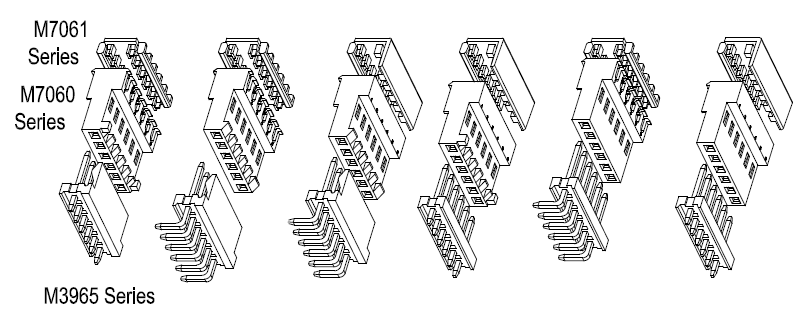

Wire to board connection
