You need good connections in small electronics. Right angle IP67 waterproof connectors help you use less space. They keep your devices safe from water and dust. Their strong seal and small size are great for tough places. These places include cars and factories. Many engineers pick these connectors for hard jobs. They work well in rough conditions. Market data shows IP67 connectors have about 40% of the market. This makes them a top pick for strong electronics. HRB gives these solutions with good materials and strong designs.
Tip: Picking the right connector helps PCB layout and makes devices last longer.
Key Takeaways
Right angle IP67 waterproof connectors help save space. They let cables run sideways. This lowers the wiring area by about 22%.
These connectors keep out dust and water very well. This makes them great for outdoor, car, and factory use.
IP67 connectors keep signals strong even in tough places. They work well when there is shaking or big temperature changes.
Using right angle connectors makes PCB layout easier. It helps stack boards and reach ports more easily.
The strong materials in IP67 connectors stop rust and handle heat or cold. This helps electronic devices last longer.
Installing IP67 connectors is easy and quick. You do not need special tools. This makes assembly faster and lowers mistakes.
Picking the right connector for your device is important. Think about power needs and where it will be used. This helps it work best.
HRB has many IP67 connectors for different uses. You can find the right one for your project.
Key Features of IP67 Waterproof Connectors

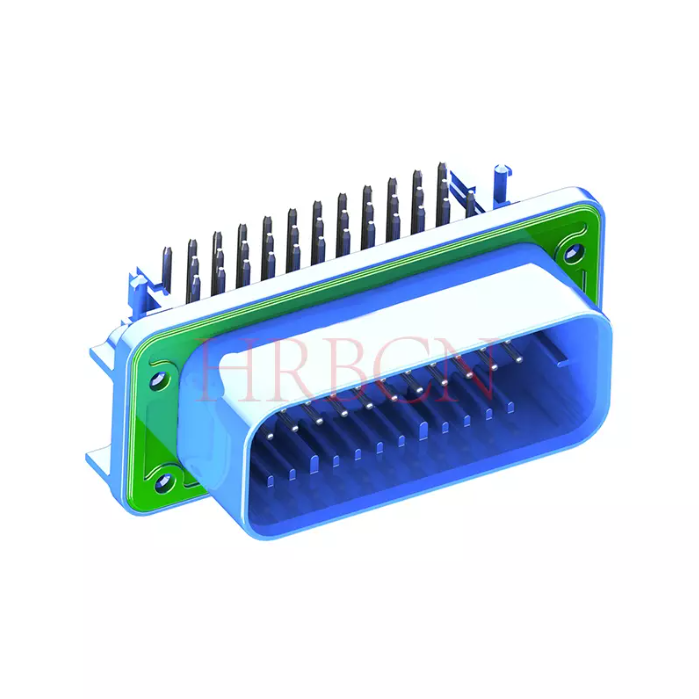

Right Angle Design
Space Efficiency
Right angle connectors help save space in devices. They let wires turn from up-and-down to side-to-side. You do not need extra space for cables. Using them can shrink the wiring area by about 22%. This is good for keeping heat channels open in powerful devices. Many cars and factories use these connectors to fit more parts in small spaces.
You can stack boards on top of each other with this design.
Ports on the front of your device stay easy to reach.
Boards can be close together and still connect well.
PCB Layout Flexibility
Designing small PCBs is hard. Right angle connectors make it easier. You can stack boards and still reach the ports. They help stop problems from shaking or bumps. They keep signals strong between boards. They also make building and testing cheaper and simpler.
Engineering Challenge | Description |
Space Savings | Lets you stack boards up and down, saving room in tight spots. |
Accessibility | You can still reach ports on the front, even with stacked boards. |
Signal Integrity | Keeps electrical connections strong between stacked boards. |
Exposure to Shock and Vibration | Helps prevent problems if the device gets bumped or shaken. |
Thermal Loads | Cooling is harder when boards are close together. |
Fabrication Complexity | More design and building steps can cost more money. |
Compliance Testing | Needs lots of testing to make sure it works well in important jobs. |
IP67 Rating Explained
Dust and Water Protection
IP67 waterproof connectors block dust and water. They keep out all dust. You can put them under water up to 1 meter deep. This keeps electronics safe in tough places. You can use them outside, in cars, or in factories.
IP Rating | Dust Protection | Water Protection |
IP65 | Some | Water jets |
IP66 | Some | Strong water jets |
IP67 | All | Underwater up to 1 meter |
IP68 | All | Underwater deeper than 1 meter |
Environmental Resistance
Connectors must work in hot and cold weather. IP67 connectors work from -40°C to +105°C. You can use them in freezing or very hot places. HRB connectors use strong materials like copper alloy and PBT. These materials fight rust and help devices last longer.
Material Type | Key Properties |
Plastics (Polycarbonate, Nylon) | Light, good at stopping electricity, tough, and do not soak up water. |
Metals (Stainless Steel, Aluminum) | Do not rust, are strong, spread heat, and stay stiff. |
Elastomeric Seals (Silicone, Rubber) | Block water and dirt, work in hot and cold. |
Advanced Materials (Ceramic, Glass Fiber-Reinforced Epoxy) | Very good at stopping electricity, stay strong in heat, do not soak up water. |
Compact Form Factor
Low Profile
You want devices to look nice and work well. IP67 connectors are thin and small. You can put them in slim devices and they still work great. Many top smartphones use these connectors to look good and stay sealed.
Tight Space Suitability
Making things smaller is popular in electronics. Over 65% of top smartphones in 2023 used IP67 or IP68 ports. Makers pick small, strong connectors to keep devices tiny and tough. You can use these connectors in car radar, outdoor lights, and factory controls.
Evidence | Description |
Over 65% of flagship smartphones released in 2023 integrated IP67 or IP68-rated USB‑C ports | Shows many top devices use IP67 connectors. |
Miniaturization trends are fueling innovation in waterproof connectors | People want smaller devices, so connectors get better. |
Manufacturers have opted for small and reliable connectors | Small connectors help devices look good and work well. |
Note: HRB IP67 waterproof connectors are good for wire-to-board and wire-to-wire uses. They help you make small and strong electronics for any place.
Benefits for Compact Electronics
Space-Saving Integration
Efficient PCB Use
Every bit of space matters in small devices. Right angle IP67 waterproof connectors help you use your PCB better. These connectors let you run cables along the sides. This means you can add more parts to your board. Boards can be stacked close together. You do not have to worry about wires sticking out. This keeps your device neat and tidy.
Benefit | How It Helps PCB Design |
Right angle layout | Wires run along the board edges |
Smaller footprint | More room for chips and sensors |
Easy stacking | Boards fit tightly together |
Reduced Crowding
Too many wires can cause problems in small devices. You want to keep wires from getting tangled. Good airflow is also important. Right angle waterproof connectors make it easier to fit things in tight spaces. You can bend cables more sharply. This keeps everything neat and easy to reach. It also makes fixing things simpler.
You can fit more parts in a small box.
Cable paths stay neat and clear.
Less crowding helps with cooling and repairs.
Reliable Waterproof Performance
Long-Term Durability
You want your device to last a long time. Waterproof connectors keep dust and water out. They help signals stay strong, even if things get wet. You can use them outside, in cars, or in factories. HRB connectors can handle shaking and big temperature changes. Your device will keep working well.
Corrosion Prevention
Rust can damage electronics. Waterproof connectors stop dust and water from getting inside. You can use them in boats, outdoor lights, or factory machines. These connectors stop rust and help your device last longer. Non-waterproof connectors can break if they get wet. Waterproof connectors keep your system safe.
Easy PCB Assembly
Simplified Installation
You want to build your device fast and easy. Right angle waterproof connectors are simple to install. You can snap them in without special tools. This saves time and lowers mistakes. HRB connectors have parts you can swap out. You do not need to take apart the whole device.
Automation Compatibility
Factories use robots to build electronics now. You need connectors that work with machines. Waterproof connectors keep dust and water out during building. The quick connect feature makes things faster. You can change parts quickly. This keeps your system running well.
Tip: HRB has waterproof connectors you can change for different needs. You can pick wire-to-board or wire-to-wire for your small device.
Assembly Feature | Benefit for Automation |
Quick connect design | Faster installation |
Modular parts | Easy replacement |
Dust and moisture seal | Reliable operation in production |
You can fix space and weather problems in small devices with the right waterproof connectors. HRB gives you choices that fit your needs. Your device will stay strong and work well.
Comparing IP Rated Connectors
Right Angle vs. Straight Connectors
Space Utilization
Designers need to use space wisely in small devices. Right angle connectors help save space going up and down. You can run cables along the side of the board. This is good for devices that cannot be tall. Phones and portable gadgets use right angle connectors to stay slim. Straight connectors are better when you need lots of cables close together. They let you plug cables straight into panels. This works well in control cabinets with many wires.
Connector Type | Space Utilization Characteristics |
Right Angle Connectors | Connects horizontally to PCB, saving vertical space, ideal for height-restricted applications like mobile devices. |
Straight Connectors | Suitable for densely packed layouts, allowing vertical plugging into panels for high-density cabling. |
Installation Differences
You will see differences when you put in these connectors. Right angle connectors make cables come out at a 90-degree angle. This helps avoid things in the way and keeps cables close to the device. You can use them where parts move, like robot arms. Straight connectors let cables go the same way as the plug. This is good when you need to connect and disconnect cables a lot. You often see straight connectors in control cabinets.
Connector Type | Characteristics | Applications |
Straight Connectors | Cable runs parallel to the plug axis | High-density layouts, frequent mating/disconnecting |
Right Angle Connectors | Cable exits perpendicular to the plug axis, avoids collisions, saves space | Flat-space applications, areas with moving parts |
IP67 vs. Non-Waterproof Types
Environmental Protection
Electronics need to last in tough places. IP rated connectors like IP67 and ip68 keep out dust and water. IP67 connectors block all dust and can go under water for a short time. Non-waterproof connectors do not stop dust or water. This makes them risky for outside or factory use. Ip68 connectors protect even better in deeper water.
Feature | IP67 Connectors | Non-Waterproof Connectors |
Dust Protection | Completely sealed against dust | Vulnerable to dust ingress |
Water Protection | Can withstand temporary submersion | No water protection |
Reliability in Harsh Conditions | High reliability in wet, dirty, or dusty environments | Limited reliability |
You find ip rated connectors in boats, outdoor lights, and factories. These connectors keep devices safe where dust and water are common.
Maintenance Needs
The IP67 rating gives strong protection from dust and water. You can use these connectors in places like car factories with lots of moisture and dirt. With IP67 or ip68 connectors, you do not need to fix or change parts often. Devices keep working, and you do not lose time or money.
Performance Table Overview
Space Efficiency
Waterproofing
Integration Ease
You can compare ip rated connectors by looking at key features. The table below shows how IP67 and ip68 connectors are better.
Performance Metric | IP67/IP68 Connectors | Standard Connectors |
Reliability in Wet and Dusty Environments | Maintains signal transmission, reduces downtime by up to 50% | Prone to corrosion and data loss |
Thermal Stability | Operates from -55°C to 125°C | Typically tops out at 70°C |
Operational Range | Effective in extreme temperatures | Fails rapidly in extreme conditions |
You can pick other connector types too. M12 connectors can reach IP67 or ip68 if installed right. D-Sub connectors also have waterproof options. Right angle connectors are best for saving space in small designs.
Tip: Choose ip rated connectors like IP67 or ip68 for the best protection and easy setup in small devices.
Selection and Application Tips
Choosing the Right Connector
Assessing Space and Pin Needs
First, look at how big your device is and how many pins you need. Small electronics do not have much space inside. Right angle IP67 waterproof connectors help you fit more parts on your board. Think about how much power your device uses. Some devices need 3A, but others might need 10A. Pick a connector type that works for your setup, like barrel, screw-type, or snap-fit. Check what the contacts are made of. Gold or tin plating helps stop rust and makes them last longer. Make sure you can see the + and − signs. This helps you connect wires the right way. If your device gets hot, pick materials that can handle high heat.
Check how much power your device needs.
Count how many pins you need.
Choose the connector type that fits your job.
Look for clear + and − signs.
Pick materials that work in your temperature range.
Environmental Considerations
Think about where you will use your device. If you need cables to be fully sealed, pick connectors with an IP67 rating. These connectors keep out dust and water. They are great for outdoor or marine use. Always check if you need a full ip rated receptacle for your project. HRB has wire-to-board and wire-to-wire options, so you can find what you need. If you need something special, talk to technical support for help.
Installation Best Practices
Ensuring Proper Sealing
Good sealing keeps your device safe. Always line up connectors straight and push them in gently. Check O-rings for dirt or damage before you connect. Clean seals with a lint-free cloth and isopropyl alcohol. Use a torque screwdriver for screw-type connectors so you do not make them too tight. Keep unused connectors covered with caps to stay clean. After you finish, test for good connections and insulation.
Line up and insert connectors carefully.
Check and clean O-rings.
Use the right tools to tighten.
Store connectors with caps on.
Test connections after you finish.
Avoiding Common Errors
Mistakes can cause leaks or bad connections. Do not force connectors together. Make sure seals are not pinched or broken. Do not use connectors with cracks or worn parts. Always follow the maker’s instructions for best results.
Tip: If you are not sure how to install, ask technical support for help. This can save you from making costly mistakes.
Application Examples
Automotive Electronics
You can use right angle IP67 waterproof connectors in cars and trucks. These connectors protect against dust, water, and shaking. They help keep things like sensors, lights, and cameras working in any weather.
Outdoor Lighting
Outdoor lights need strong connectors. IP67 connectors block all dust and can go under water for up to 30 minutes. You will see them in street lights, garden lights, and building lights.
Feature | Description |
Application | Connect and protect lighting systems outdoors |
Examples | Street lights, landscape lighting, architectural lighting |
Industrial Automation
Factories use these connectors in CNC machines, robot arms, and conveyor belts. They protect against dust and water. You can run cables easily in small spaces. Molded connectors seal tightly and stop shorts or system failures.
Note: HRB has many connectors for different jobs. You can always ask technical support for custom help.
You need right angle IP67 waterproof connectors for small electronics. These connectors help save space in your device. They also keep out water and dust. You can trust brands like HRB for strong parts. Engineers and designers should think about some important things:
Key Factors | Description |
Environmental Resistance | Pick connectors that work in wet, hot, or cold places. |
IP Ratings | Choose IP67 to block dust and water. |
Temperature Range | Use connectors that work from –40°C to 85°C. |
Corrosion Resistance | Gold-plated contacts stop rust and keep signals clear. |
Tip: Pick connectors that fit your project so they last a long time.
FAQ
What does IP67 mean for connectors?
IP67 means your connectors block all dust and can handle being under water up to 1 meter for 30 minutes. You get strong protection for your electronics in tough places.
Can I use IP67 connectors outdoors?
Yes, you can use IP67 connectors outside. These connectors keep out rain, dust, and dirt. You can trust them for outdoor lights, cameras, and sensors.
How do I know if my device needs an IP67 connector?
You need an IP67 connector if your device faces water, dust, or harsh weather. Check if your device will be outside, in a car, or in a factory. IP67 keeps your device safe.
Are IP67 connectors hard to install?
No, you can install IP67 connectors easily. You just line up the parts and push them together. The seal keeps out water and dust. You do not need special tools.
What is the difference between IP67 and IP68?
IP67 means your device can go under water up to 1 meter for 30 minutes. IP68 lets your device go deeper or stay under water longer. Both give strong dust and water protection.
Can I use IP67 connectors in cars?
Yes, you can use IP67 connectors in cars. These connectors protect against water, dust, and shaking. You keep your car’s electronics safe in all weather.
Do IP67 connectors stop rust?
Yes, IP67 connectors help stop rust. The seal keeps water and dust out. Your device stays safe from damage. You get longer life for your electronics.
How many times can I connect and disconnect IP67 connectors?
You can connect and disconnect IP67 connectors many times. The seal stays strong. You get reliable use for your device.
