Choosing the right rast connector is very important. It can change how your project works and lasts. Each project has its own needs and uses. Some projects face hard conditions. HRB&HRBCN Connector’s Rast Connector series is a good choice. These connectors have strong certifications. They help many industries. Readers will see easy steps and tips to pick the best one.
Key Takeaways
Picking the right RAST connector is very important for your project. It helps your project work well and last longer.
Learn how RAST 2.5 and RAST 5.0 connectors are different. Use RAST 2.5 when you need less power. Use RAST 5.0 when you need more power.
Always look at the electrical needs like current and voltage. Make sure the connector can handle what your project needs.
Think about the environment where you will use the connector. Pick connectors that can handle things like water, dust, and changes in temperature.
Check how strong the connector is. Choose connectors that do not break when there is movement or shaking.
HRB&HRBCN connectors have special certifications. These show they are safe and good quality for many uses.
Use a step-by-step way to pick your connector. Make a checklist so you do not make mistakes when choosing.
Think about what you might need later. Pick connectors that are easy to upgrade and can grow with your project.
RAST Connector Types and Applications
RAST 2.5 vs RAST 5.0
RAST connectors come in more than one size. The two most used types are RAST 2.5 and RAST 5.0. Each type is made for certain jobs. RAST 2.5 connectors are good for low or medium power. People use them in things like home electronics and lights. RAST 5.0 connectors can handle more voltage. They are used for medium power jobs, like in cars and factories.
Here is a table that shows how they are different:
Connector Type | Contact Pitch | Flow Capacity |
RAST 2.5 | 2.5 mm | Strong |
RAST 5.0 | 5.0 mm | Strong |
Another table shows where each connector works best:
Connector Type | Pin Pitch | Voltage Rating | Best Suited Applications |
RAST 2.5 | 2.5 mm | Up to 250 V | Home electronics, lights, sensors, control modules |
RAST 5.0 | 5.0 mm | Up to 400 V | Car electronics, factory controls, motor drives, medium power |

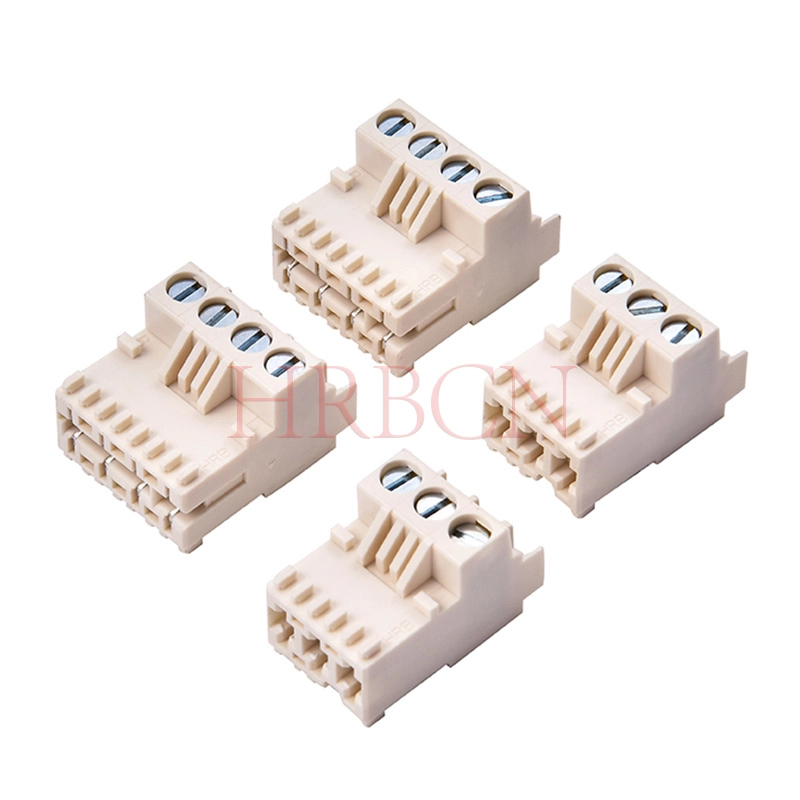

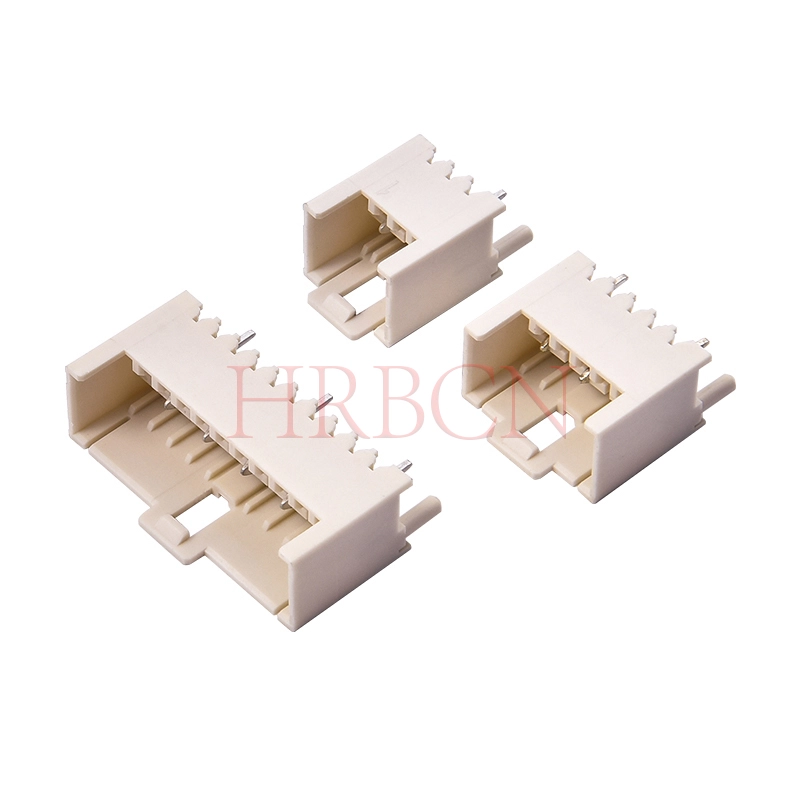

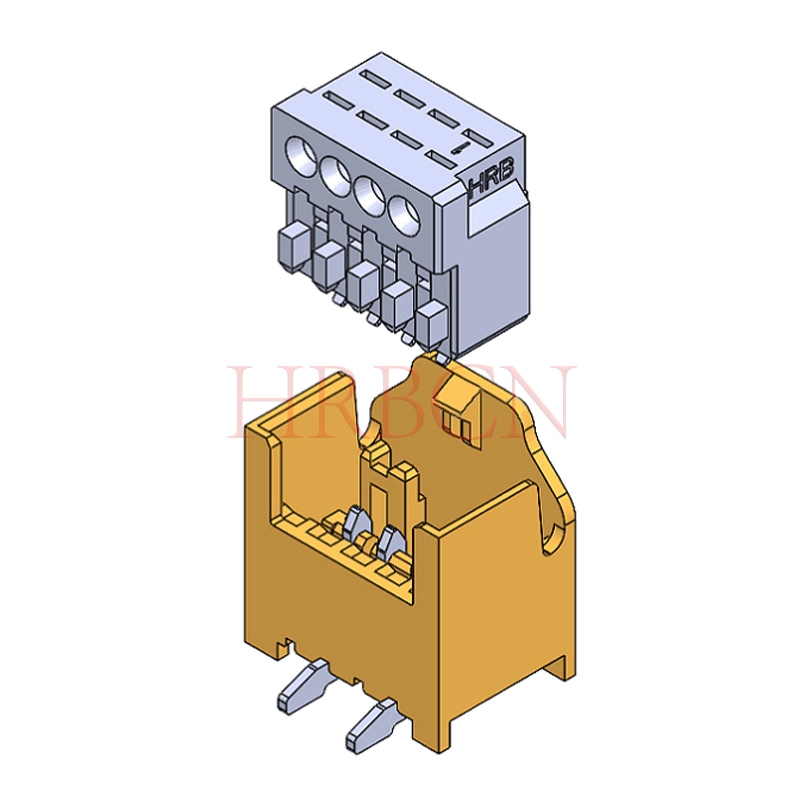

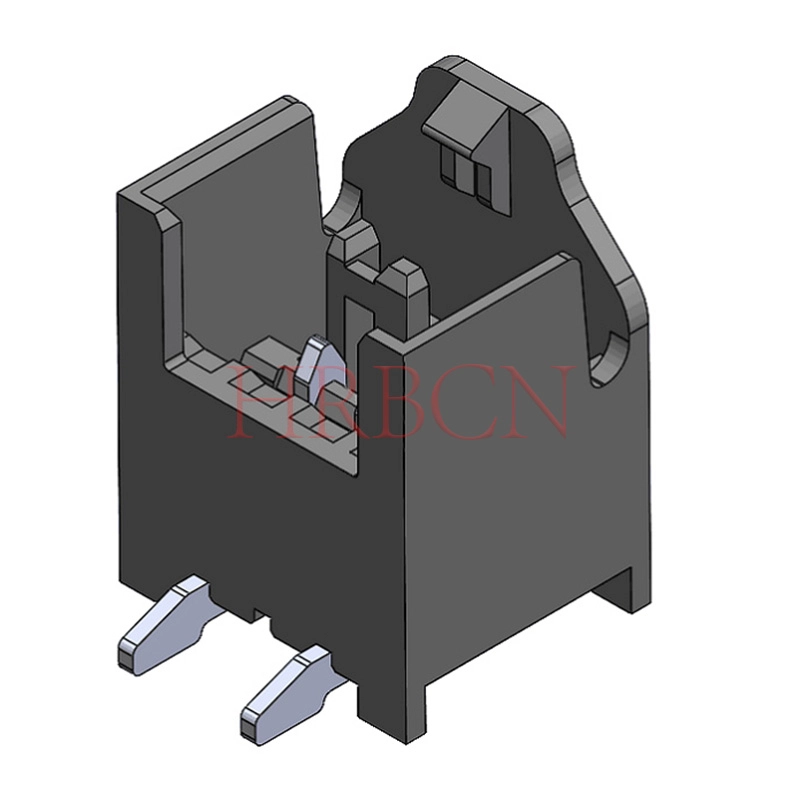

HRB&HRBCN Connector Product Range
HRB&HRBCN Connector has many rast connectors. Their products work for lots of needs. They make RAST 2.5, RAST 2.5 power, and RAST 5.0 connectors. These connectors are used in many jobs and fields. They are easy to put in and work well.
Here is a table with some details:
Specification | Value |
Rated current | 3A AC, DC |
Rated voltage | 32V AC, DC |
Operating temperature | -40˚C - +120˚C |
Contact resistance | maximum 10mΩ |
Insulation resistance | minimum 1000MΩ |
Withstand voltage | 1400V AC/min |
Wire range | AWG 24 to 22 |
HRB&HRBCN Connector makes rast connectors for tough jobs. Their connectors work in many places. They help people pick the right one for their project.
Industry Use Cases
RAST connectors are used in many fields. They help with different jobs. Here are some ways they are used:
Car makers use rast connectors for LED lights and control parts.
Home machines use rast connectors in things like fridges and air systems.
Factories use rast connectors for lots of wires and bigger power needs.
These connectors can change to fit new jobs. They help make sure things stay connected. HRB&HRBCN Connector makes sure their rast connectors work for each field.
Tip: Always check what you need and where you will use the rast connector. This helps you pick one that works well and lasts a long time.
Key Selection Criteria
Picking the right rast connector is not just about size or shape. Each project needs something different. You must think about power, where it goes, and how much stress it will get. Let’s look at what you should check before you choose a rast connector.
Electrical Requirements
First, think about the power needs. The rast connector must match your project’s current and voltage. If it cannot handle enough power, it might get too hot or stop working. Too much voltage can make sparks or break things. Always look at the datasheet for the right numbers. For example, home devices use less power than big machines.
Good electrical connections keep things safe and working well. Secure connections help stop short circuits or signal loss. Engineers check if the connector carries power without getting hot or wasting energy. They also check insulation resistance and how much voltage it can take before failing. These things are important for all uses, like smart homes or cars.
Environmental Factors
Next, think about where the connector will be used. Some connectors are inside clean rooms. Others are outside in rain, dust, or sun. Changes in temperature, wet air, and chemicals can affect connectors over time. For outdoor or factory use, connectors must handle tough places.
Sunlight can change connector materials a lot. Over time, sun can make plastics fade, crack, or break. This can hurt how the connector works and make it unsafe. Cracks let water in, which can lower insulation and cause problems. Chemicals in the air or from cleaning can also damage connectors. That’s why it is smart to pick rast connectors made from strong materials. These materials fight weather and chemicals. This helps connectors work well for years, even in hard places.
Mechanical Performance
Mechanical performance means how well a connector handles movement and bumps. Many things, like cars or machines, shake a lot. If a connector cannot handle this, it might come loose or break.
Makers test connectors in many ways. They use tough plastics like polyamide or reinforced polycarbonate. These materials spread out hits, so the connector does not crack. Locking parts keep connectors from slipping out when things shake. Strain relief parts protect wires from bending or breaking after lots of movement. All these things help keep connections strong, even when things get rough.
When you pick a rast connector, match the specs to your real needs. Think about power, place, and stress. This helps your project work well and last longer. A good connector means better results and fewer problems later.
Tip: Make a list of what your project needs before you pick. This helps you find the best rast connector for great results in any job.
HRB&HRBCN Connector Advantages
Certifications and Quality
HRB&HRBCN Connector is special because it cares a lot about safety and trust. The company has many important certifications from around the world. These show they make good quality rast connectors. People can count on these connectors to work well for a long time. Here is a table that lists the main certifications:
Certification Type | Description |
ISO 9001 | Quality management standard |
UL/cUL | Safety certification for electrical products |
TS16949 | Quality management for automotive industry |
TUV/VDE | Safety and quality certification |
IEC 60335-1 | Standard for household appliances regarding safety and performance |
These certifications mean HRB&HRBCN Connector follows strict safety rules. They check every rast connector before sending it out. Their team watches every step, from design to testing. This makes sure each rast connector is safe and works well.
HRB&HRBCN Connector handles design, mold making, and stamping.
They also do injection molding and careful inspections.
Their rast connectors always meet industry rules.
This helps companies follow the law in many jobs.
Their focus on quality makes them a top pick for safety.
Product Features
HRB&HRBCN Connector builds rast connectors with smart features. These features help the connectors last longer and stay safe. The connectors use strong materials that block UV rays and bad weather. They have strong locks that stop them from coming apart by accident. This keeps things working, even when there is shaking.
Here is a table that shows how they handle tough places:
Feature | Standard Connectors | HRBCN IP67 Connectors |
UV Resistance | Low | High |
Lifespan in Sunlight | Short | Extended |
Maintenance Frequency | High | Low |
Other features are:
They work in very hot or cold places, from -55°C to +85°C.
The connectors use good contact materials that lower heat and power loss.
Strong locks keep rast connectors in place, even if things shake a lot.
These features help people trust their rast connector for a long time. They know the connector will keep working and keep their project safe.
Ease of Installation
HRB&HRBCN Connector makes rast connectors simple to put in. The easy design saves time and helps people make fewer mistakes. The connectors fit with many systems and are easy to learn. Installers can connect wires fast and safely. This makes every project safer and more reliable.
Tip: If a rast connector is easy to install, people spend less time fixing things. They get better safety and trust for a long time.
HRB&HRBCN Connector’s rast connector series helps people feel calm. They know their project will stay safe and work well for years. The company’s focus on quality and safety makes them a smart choice for any job.
RAST Connector Selection Process
Step-by-Step Guide
A clear process helps everyone pick the right rast connector. People can follow these steps to make good choices for their projects.
Write down what your project needs. List the voltage, current, and how many connections you need.
Look at where the connector will be used. Will it face heat, moisture, or dust? Choose connectors that can handle these things.
Pick the pitch size. Small pitches save space. Big pitches carry more power.
Decide how you want to connect it. Crimp, solder, or PCB mount options change how easy it is to install.
Check the material quality. Good plastics and copper alloy contacts last longer.
Make sure it meets standards. Look for IEC, UL, or automotive certifications.
Test if it fits and installs well. Make sure the connector fits the board or wires and is easy to put in.
Tip: Make a checklist for each step. This helps you remember important details.
Common Mistakes to Avoid
Some people hurry and forget to check everything. Here are mistakes to watch for:
Not checking the current rating. If the rast connector cannot handle the load, it might break.
Forgetting about environmental protection. Some jobs need IP-rated connectors for moisture or dust.
Picking the wrong pitch size. This can cause space or power problems.
Not checking standards. Without certifications, the connector may not work in some jobs.
Not testing installation. Hard-to-install connectors waste time and cause mistakes.
Note: Careful selection stops problems and keeps things working well.
Working with Suppliers
Good suppliers make picking connectors easier. HRB&HRBCN Connector gives strong support and fast delivery. They answer questions and help with custom solutions for different jobs. When you work with suppliers, check these things:
Criteria | Description |
Pitch Size | Space between contacts; affects space and how much power it carries. |
Current Rating | Must match or be higher than the load for safe use. |
Environmental Protection | IP-rated connectors are best for tough places. |
Termination Type | Crimp, solder, or PCB mount options change how you install and how reliable it is. |
Material Quality | Good plastics and copper alloy contacts last longer. |
Standards Compliance | IEC, UL, or automotive certifications keep things safe and working well. |
HRB&HRBCN Connector helps customers pick connectors for all jobs. Their team gives advice and checks every detail. They make sure each rast connector fits what you need.
Callout: Working with trusted suppliers like HRB&HRBCN Connector makes picking connectors easier and safer.
Future-Proofing Your Selection
Picking a rast connector is not just for today. Projects can get bigger or change over time. Teams might need to add new parts or make more products. If you choose the right rast connector now, you can save money and time later. Let’s learn how to make sure your rast connector works as your project grows.
Design Flexibility
A good rast connector lets teams change things without starting over. Flexible design means you can switch parts or add new ones fast. HRB&HRBCN Connector makes rast connectors that work for many jobs. Their connectors fit small gadgets and big machines.
Here’s a table that shows what helps with future changes:
Feature | Benefit |
Adaptability | Works in many sectors, so upgrades need fewer changes. |
Ease of installation | Makes quick changes or repairs simple. |
Terminal blocks | Lets users rewire or upgrade easily, perfect for projects that change. |
Teams can use rast connectors with terminal blocks to add or change parts. This makes upgrades easy and quick. Simple installation means less time fixing things. If a company wants to add sensors or controls, they can do it fast. That is why design flexibility is important for rast projects.
Tip: Pick a rast connector that lets you make changes without starting over. This keeps your project ready for new things.
Scalability and Supply Chain
When projects grow, teams need more rast connectors. Sometimes, they need to build more things or add new features. HRB&HRBCN Connector helps with modular designs. These connectors let teams add or change parts fast. Tool-less design also saves time when fixing things.
Here’s a table that shows how HRB&HRBCN Connector helps with growth:
Feature | Description |
Modular Design | Makes it easy to disconnect and reconfigure systems. |
Scalability | Supports adding more modules as projects grow. |
Maintenance Efficiency | Tool-less setup saves time and labor costs. |
Planning for supplies is important too. Teams want to avoid running out of connectors. Here are some smart ways to keep rast connectors in stock:
Strategy | Description |
Build alliances with suppliers | Good partnerships help keep supplies steady and reliable. |
Buy in volume | Buying more at once can save money and stop shortages. |
Diversify supplier relationships | Using more than one supplier lowers risk if one has a problem. |
Improve demand forecasting | Planning ahead helps match supply with what the project needs. |
Optimize inventory management | Good tracking and restocking keeps projects moving smoothly. |
HRB&HRBCN Connector works with customers to plan for growth. They help teams set up supply chains for big orders or changes. This means you will have rast connectors even as your project gets bigger.
Note: Planning for growth and supplies keeps your rast project strong, even if things change.
Picking the right rast connector needs good planning. You should follow each step and check what your project needs. Use a checklist to get the best results. HRB&HRBCN Connector gives advice and has many products. Their technical team helps with making, fixing, upgrading, and designing. The table below shows how their help can make any project better:
Benefit | Description |
Improved Production Process | RAST connectors make building and making lots of electronics easier. |
Easier Repairs | Parts can be changed fast when something breaks, so work stops less. |
Upgradability | New parts can be added easily as technology gets better. |
Design Flexibility | Engineers can change and add new products more easily. |
Tip: Ask technical experts for help. This keeps your project working well and ready for new things.
FAQ
What is a RAST connector?
A RAST connector is a kind of electrical connector. It joins wires or cables to devices. People use it in cars and home machines. It is used in many other jobs too.
How do you choose the right pitch size?
Pitch size is the space between the pins. Small pitch sizes help save space. Big pitch sizes can carry more power. You should look at what your project needs before you pick.
Can RAST connectors handle outdoor use?
Yes, many RAST connectors from HRB&HRBCN Connector can block water, dust, and sunlight. They work well outside. Always check the product’s rating for your place.
Are HRB&HRBCN RAST connectors certified?
Yes! HRB&HRBCN Connector’s RAST connectors have certifications like ISO, UL, and VDE. These show the connectors are safe and good quality.
What industries use RAST connectors?
People use RAST connectors in cars, factories, smart homes, and medical tools. They fit many jobs because they are strong and work well.
How easy is it to install a RAST connector?
Most RAST connectors from HRB&HRBCN Connector are easy to use. Installers can connect them fast. This saves time and helps stop mistakes.
Where can someone get technical support?
HRB&HRBCN Connector’s team answers questions and helps with custom needs. You can contact them by email or phone. They help from start to finish.
