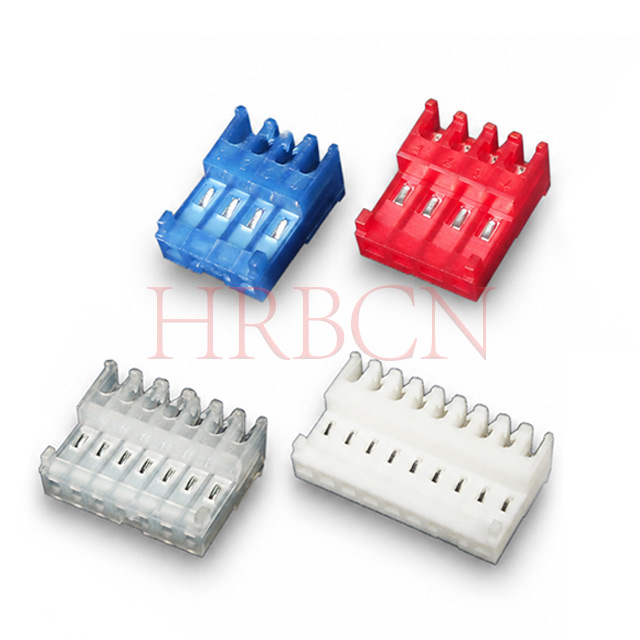

M2050-N-C-R(180°)
HRB
8536909000
M2050-N-C-R(180°)
① ② ③④ ⑤
①M2050: HRB series
②N: Number of pins: 2-24
③C: Housing color, see below chart explanation
④R: With polarizing tabs
⑤180°: Feed through
| C | Housing color | Wire size |
| R | Red | AWG22 |
| W | White | AWG24 |
| N | Natural | AWG24 |
| B | Black | AWG24 |
| b | blue | AWG26 |
| G | Green | AWG26 |

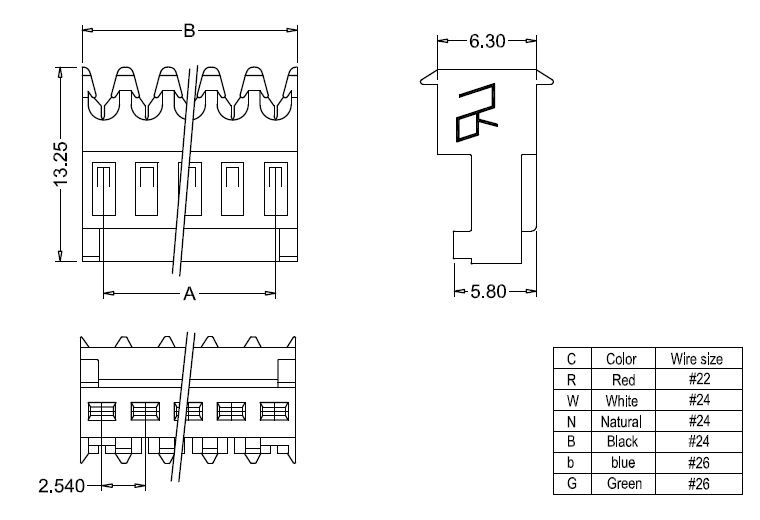

| Part No. | Dimensions | Part No. | Dimensions | ||||
| UL94V-2 | Circuits | Dim: A | Dim: B | UL94V-2 | Circuits | Dim: A | Dim: B |
| M2050-2-C-R(180°) | 2 | 2.54 | 5.08 | M2050-10-C-R(180°) | 10 | 22.86 | 25.40 |
| M2050-3-C-R(180°) | 3 | 5.08 | 7.62 | M2050-11-C-R(180°) | 11 | 25.40 | 27.94 |
| M2050-4-C-R(180°) | 4 | 7.62 | 10.16 | M2050-12-C-R(180°) | 12 | 27.94 | 30.48 |
| M2050-5-C-R(180°) | 5 | 10.16 | 12.70 | M2050-13-C-R(180°) | 13 | 30.48 | 33.02 |
| M2050-6-C-R(180°) | 6 | 12.70 | 15.24 | M2050-14-C-R(180°) | 14 | 33.02 | 35.56 |
| M2050-7-C-R(180°) | 7 | 15.24 | 17.78 | M2050-15-C-R(180°) | 15 | 35.56 | 38.10 |
| M2050-8-C-R(180°) | 8 | 17.78 | 20.32 | M2050-16-C-R(180°) | 16 | 38.10 | 40.64 |
| M2050-9-C-R(180°) | 9 | 20.32 | 22.86 | M2050-17-C-R(180°) | 17 | 40.64 | 43.18 |
Key Features

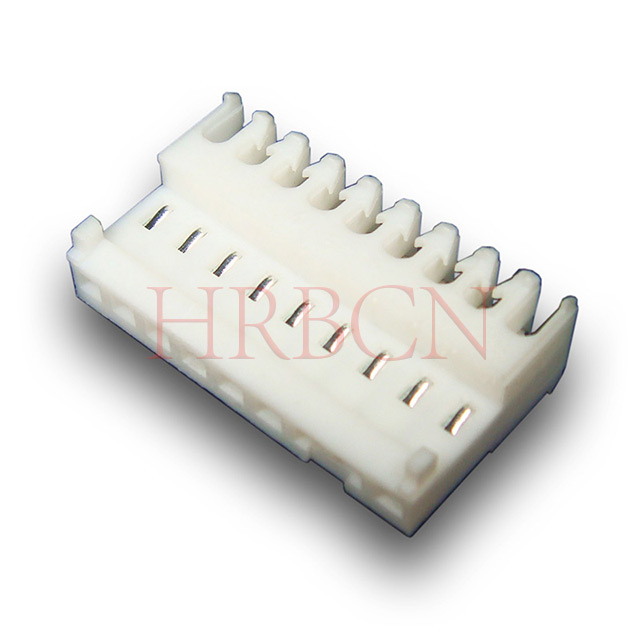

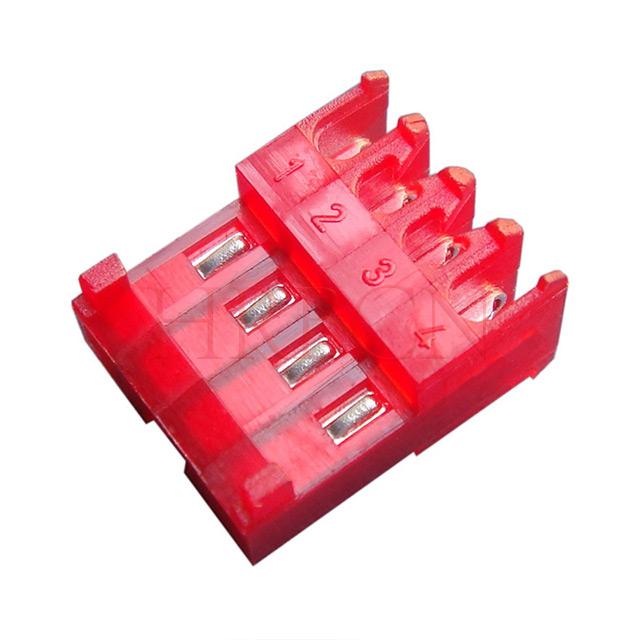

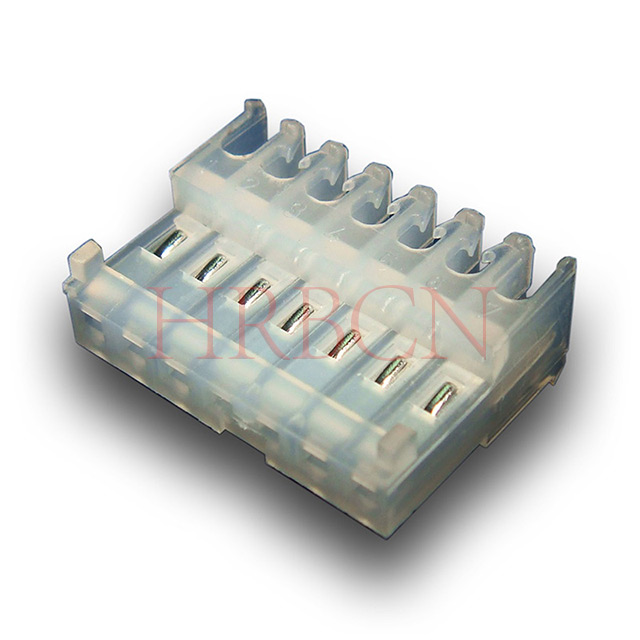

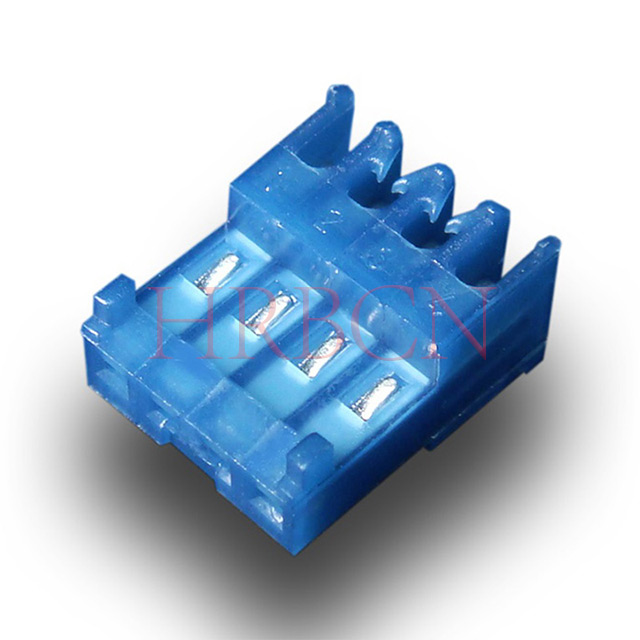

Polarizing tabs help prevent incorrect mating by enforcing a specific connector orientation.
IDC termination allows quick, solder-free assembly.
Positive alignment improves connection reliability.
Reduces risk of mismatching during installation.
Compatible with standard 2.54 IDC connector systems.
Robust housing provides secure cable retention.
UL94V-2 flame retardant housing, RoHS compliant

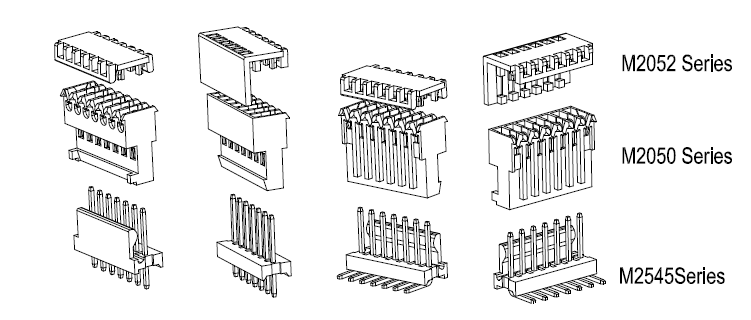

Designed to pair with M2052 series housing covers, effectively preventing dust, moisture and foreign debris from damaging exposed contact terminals.
M2050-N-C(180°): Indirect PCB mating; mates with M2545 and M2545R series PCB headers to achieve reliable wire-to-board interconnection.

Q1: What wire sizes are supported by 2.54 IDC connectors?
A: Typically supports 22–26 AWG, depending on the specific part number.
Q2: Is soldering required for termination?
A: No. IDC technology provides a solder-free wire termination process.
Q3: What is the function of the feedthrough design?
A: It allows signals to pass through the connector for daisy-chain or inline wiring applications.
Q4: What are the design implications of using 2.54 IDC Feed Through with polarizing tabs?
A: Polarizing tabs help prevent incorrect mating by enforcing a specific connector orientation. When designing the system, ensure that compatible polarized mating connectors are used and that adequate clearance is provided for the tab features. This can significantly reduce assembly errors and improve field-service reliability.
Q5: Are special tools required for assembly?
A: Hand tools or bench termination tools are recommended for consistent wire insertion.
Q6: What applications are these connectors commonly used in?
A: Industrial controls, appliances, instrumentation, and low-voltage electronic systems.
Procurement FAQs
Q1: What are the main benefits of IDC connectors compared to crimp solutions?
A: Faster assembly, fewer components, and reduced labor costs.
Q2: Are feedthrough and polarized versions available in multiple circuit counts?
A: Yes. Various positions and configurations are available to meet different design requirements.
Q3: Can these connectors help reduce assembly time?
A: Yes. IDC termination enables rapid mass termination without wire stripping.
Q4: Are polarized versions interchangeable with standard 2.54 IDC connectors?
A: They are designed for compatibility within the 2.54 IDC system while adding mating protection.
Q5: What factors should be considered when selecting a connector?
A: Circuit count, wire gauge, polarization requirements, and application environment.
Q6: Are these connectors suitable for high-volume production?
A: Yes. Their simple termination process supports efficient large-scale manufacturing.
Applications: Internal connections on control boards, sensor wiring, inter-module signal/power connections.
Advantages:
High-volume production → IDC connections reduce assembly costs.
Modular design → allows quick PCB replacement.
Low-current applications → matches MTA 100 ratings (typically 3–5A).
Applications: PLCs, drives, sensors, robot modules.
Characteristics:
High reliability requirements.
Modular and easy maintenance.
High pin-density → polarizing tabs prevent mis-insertion.
Applications: Dashboards, sensors, control modules.
Characteristics:
High reliability and error-proof connection → polarizing tabs are useful.
Applications: Base stations, routers, servers (internal signal connections).
Characteristics: Moderate quantity, important reliability and error-proofing.
