2.54mm pitch Dustproof Covers M2052 series

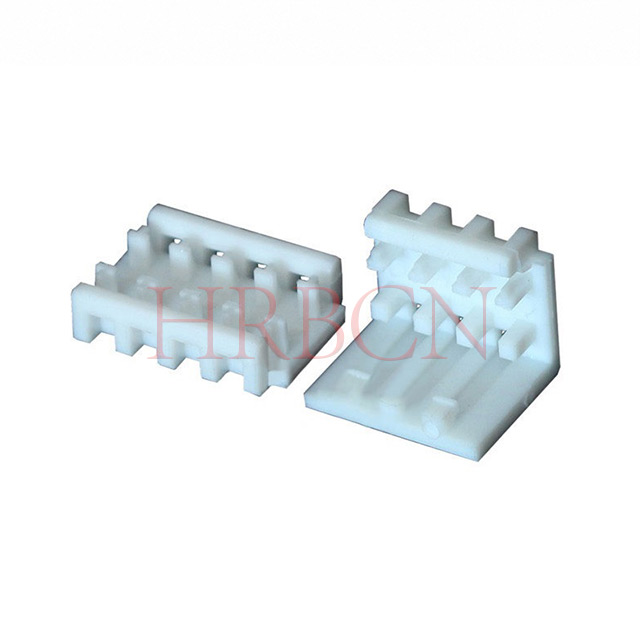

The HRB M2052 series includes 90° and 180° dustproof covers, specially developed for standard 2.54mm pitch IDC connectors. Manufactured from high-quality flame-retardant Nylon 66 that meets UL94V-0 standards, these covers deliver outstanding insulation, anti-aging and wear resistance for long-term reliable use.
Adopting a precision snap-fit structure, they can be installed and removed easily without extra tools, and lock tightly to avoid falling off under vibration. As effective protective accessories, they block dust, moisture and debris from entering the contact area, preventing terminal oxidation, corrosion and poor electrical connection.
Available in white color and full pin range from 2P to 24P, this series is widely applied in industrial control systems, home appliances, communication equipment and other electronic devices.
Availability:
Quantity:
Inquiry Add to RFQ List

  • M2052R-N-W, M2052-N-W

  • HRB

  • 8536909000

2.54 Pitch IDC Dustproof Cover

HRB P/N definition

M2052R-N-W

    ①    ②③

①M2052: HRB series

②With R: Closed end(90°), Without R(Blank):  Feed Through(180°)

③N: Number of circuits: 2-24

④W: color is white


M2052R-N-W dimension

M2052R-N-W dustproof cover dimension


Part No.
Dimensions Part No.
Dimensions
TYP UL94V-0 Circuits Dim: A Dim: B TYP UL94V-0 Circuits Dim: A Dim: B
M2052R-2-W 2 5.05 2.54 M2052R-10-W 10 25.37 22.86
M2052R-3-W 3 7.60 5.08 M2052R-11-W 11 27.91 25.40
M2052R-4-W 4 10.14 7.62 M2052R-12-W 12 30.45 27.94
M2052R-5-W 5 12.67 10.16 M2052R-13-W 13 32.99 30.48
M2052R-6-W 6 15.21 12.70 M2052R-14-W 14 35.53 33.02
M2052R-7-W 7 17.75 15.24 M2052R-15-W 15 38.07 35.56
M2052R-8-W 8 20.29 17.78 M2052R-16-W 16 40.61 38.10
M2052R-9-W 9 22.83 20.32 M2052R-17-W 17 43.15 38.10











M2052-N-W dimension

M2052-N-W feed through dust cover dimensions

Part No.
Dimensions Part No.
Dimensions
TYP UL94V-0 Circuits Dim: A Dim: B TYP UL94V-0 Circuits Dim: A Dim: B
M2052-2-W 2 5.05 2.54 M2052-10-W 10 25.37 22.86
M2052-3-W 3 7.60 5.08 M2052-11-W 11 27.91 25.40
M2052-4-W 4 10.14 7.62 M2052-12-W 12 30.45 27.94
M2052-5-W 5 12.67 10.16 M2052-13-W 13 32.99 30.48
M2052-6-W 6 15.21 12.70 M2052-14-W 14 35.53 33.02
M2052-7-W 7 17.75 15.24 M2052-15-W 15 38.07 35.56
M2052-8-W 8 20.29 17.78 M2052-16-W 16 40.61 38.10
M2052-9-W 9 22.83 20.32 M2052-17-W 17 43.15 38.10


Key Features

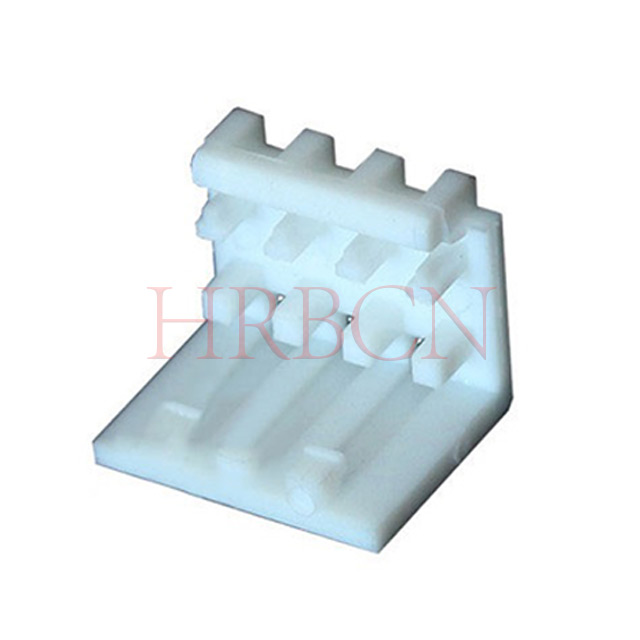

M2052R-N-W

  • Standard 2.54mm pitch, fully matched with M2050R series IDC connectors

  • Closed-end structure for end termination wiring

  • Tool-free snap-on assembly with integrated strain relief

  • UL94V-0 flame retardant PET, robust & long service life

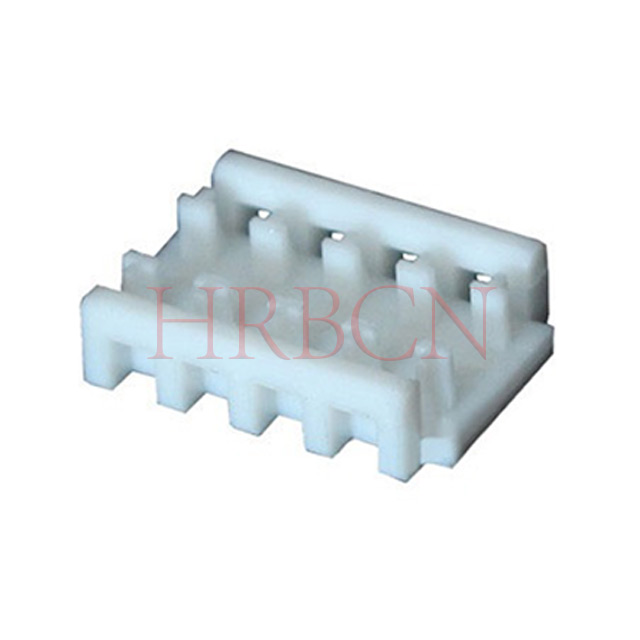

M2052-N-W

  • Standard 2.54mm pitch, compatible with M2050 IDC series

  • Feed-through design for daisy-chain continuous wiring

  • Easy snap-fit mounting without auxiliary tools

  • UL94V-0 fire-resistant PET, stable mechanical performance


Use with closed end and feed through IDC

M2052R series is used with closed end M2050R series

M2052 series is used with feed through M2050 series

2.54 IDC mating



FAQ for 2.54mm Pitch IDC Connector Dust Cover

Technical FAQs

Q: What pitch does this dust cover fit?

A: It is designed for standard 2.54mm pitch IDC connectors, with precise dimensions for perfect matching.

Q: What material is the dust cover made of?

A: It adopts high-quality flame-retardant engineering plastic, which is insulation, durable and compliant with UL94V-0 standard.

Q: What is the main function of this product?

A: It effectively blocks dust and moisture, preventing terminal oxidation, poor contact and short circuit to protect IDC connectors.

Q: Is it easy to install and remove?

A: Yes. It features a snap-fit structure, no tools required for quick installation and disassembly.

Q: Can it work in vibrating environments?

A: The built-in locking buckle ensures tight fixation. It will not fall off accidentally under normal vibration.


Procurement FAQs

Q: Do you provide dust covers for different pin counts?

A: Yes. We offer full range from 2P to 24P. Please tell us the exact position you need for quotation.

Q: What is your minimum order quantity?

A: We support both bulk orders and small batch orders. MOQ is negotiable based on your requirements.

Q: Can this cover replace parts of other brands?

A: It is fully compatible with mainstream 2.54mm IDC series.

Q: What are your delivery lead times?

A: Standard products are in stock and can be shipped within 3-7 working days after order confirmation.

Q: Do you accept customized services?

A: Custom colors and special specifications are available. Feel free to send us your detailed demands.


Current Rating
3A AC DC
Voltage Rating
250V AC DC
Operating Temperature
-40 ºC to +105 ºC
Contact Resistance
10 mΩ max
Insulation Resistance
5000 mΩ min
Withstanding Voltage
750V AC/minute
Material
Nylon66 UL94V-0
