Q: What are the basic parameters of 6.35mm Fully Insulated Female Disconnect Terminal (AWG 22-18)?
A: Quick Disconnect Terminal Type : Receptacle/Flag type
Wire Size: AWG22-18(0.32-0.82mm²)
Mating Tab Width: 6.35(0.250")
Mating Tab Thickness : 0.8mm
Compatible Insulation Diameter Range: 3.05mm/5.84mm

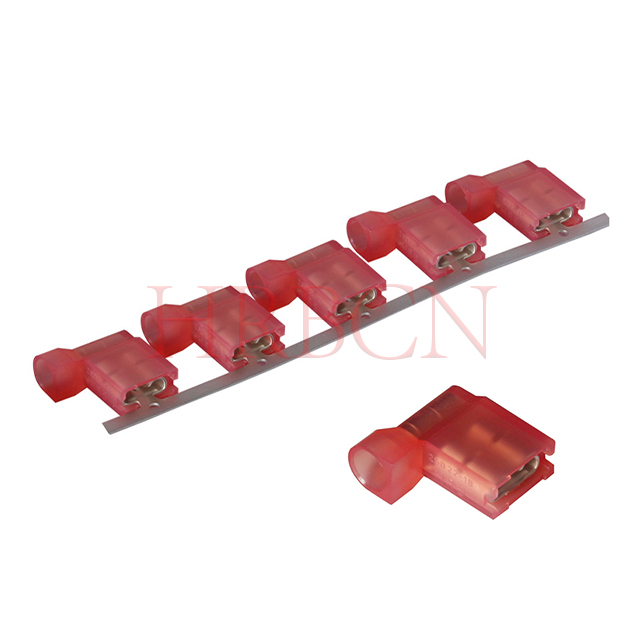

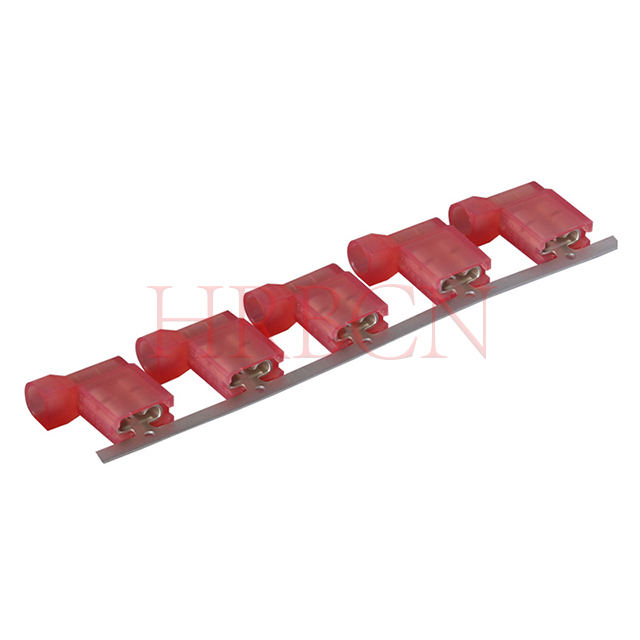

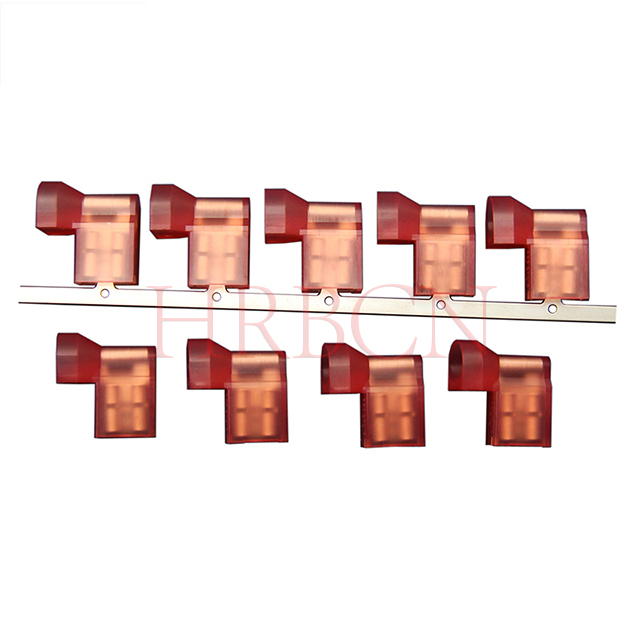

Q: What are the differences between M7600FNS-5(8)-R and M7600FNS-5(8)-R1 terminals? How to choose the right one?
A: All belong to the M7600FNS 6.35mm fully insulated female flag terminal series.
The coding rules are as follows:
①: (8) stands for terminal tab thickness: 0.8mm.
②: R / R1 represent different insulation inner diameter and wire gauge range, both for AWG 22-18 wiring. R=Ins. Dia, Max: 3.05mm; R1=Ins. Dia, Max: 5.84mm.
Selection guide:
①: 0.8mm (8) for high current, vibration-intensive and heavy-duty applications;
③: Pick R or R1 according to your actual wire outer diameter to ensure perfect crimping and insulation fit.
Q: What is the MOQ for 6.35mm 0.250" Insulated terminal?
A: MOQ: 5000pcs/item.
Q: What is the lead time for 6.35mm 0.250" Insulated terminal?
A: L/T: 3-4 weeks.
Q: What is the maximum temperature rating for this 6.35mm terminal?
A: The maximum temperature rating is 105ºC
Q: Can this AWG 22-18 receptacle be used in automotive vibration environments?
A: Yes, this AWG 22-18 receptacle, features secure contact retention that withstands typical automotive vibration levels. It is suitable for auxiliary circuits when installed per specifications.
Q: What is the difference between 6.35mm and 4.75mm connectors?
A: The difference is the width of the terminal tab. 4.75mm connectors are smaller and used for lighter applications, while 6.35mm
connectors handle higher currents.
Q: How do I choose the correct AWG size?
A: Select the connector based on your wire gauge. This product is designed for AWG 22-18 wires, ensuring a proper crimp fit.
Q: Are these connectors insulated?
A: Yes, they feature a fully insulated sleeve to prevent short circuits and improve safety.
Q: What wire size does AWG 22-18 support?
A: AWG 22-18 terminals are designed for wires with a cross-sectional area suitable for low to medium current electrical applications.
Q: What certifications do HRB connectors have (UL, RoHS, REACH)?
A: HRB connectors hold UL/cUL, RoHS, and REACH certifications, plus key automotive and industrial approvals.
UL/cUL: Certified under UL 1977 (file no. E322751)

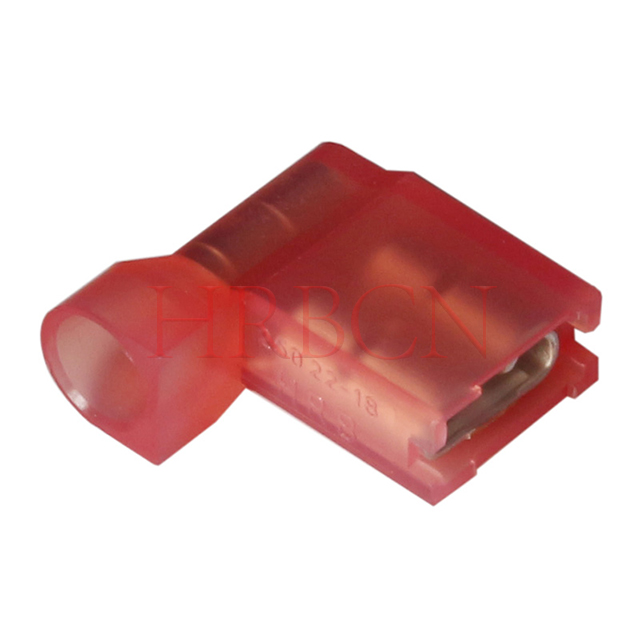

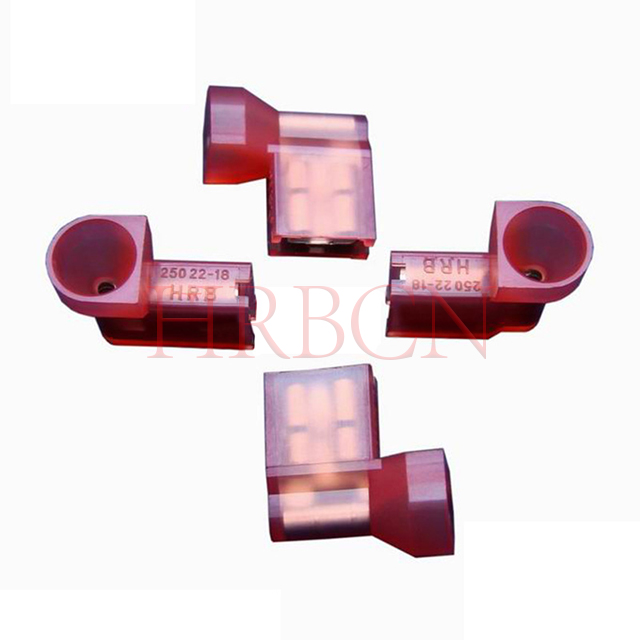

Q: What is a 6.35mm female flag type disconnect terminal?
A: A 6.35mm female flag type disconnect terminal is a fully insulated quick disconnect terminal with a flag-shaped 90° bent structure. It features a standard 6.35mm mating opening to connect with regular 6.35mm male terminals.
The flag angle design fits side installation and narrow space layout, commonly used for PCB modules, home appliances and automotive wiring harnesses.
Q: Is this terminal suitable for automotive use?
A: Yes, this fully insulated female disconnect terminal is widely used in automotive wiring systems due to its secure connection and
vibration resistance.
Q: What is the difference between straight female terminals and flag female terminals? How to choose the right type?
A: Straight female terminals feature an inline straight structure for straight-through wiring installation, suitable for narrow spaces and inline harness routing.
Flag type terminals come with a right-angle flag design, allowing side wiring and easy soldering or crimping. They are ideal for crowded wiring areas and vertical PCB mounting.
Choose straight type for linear inline wiring; select flag type for right-angle routing, limited installation space and PCB side connection.
