HRB IP67 IP69K Automotive Sealed WTW Connector
P/N definition

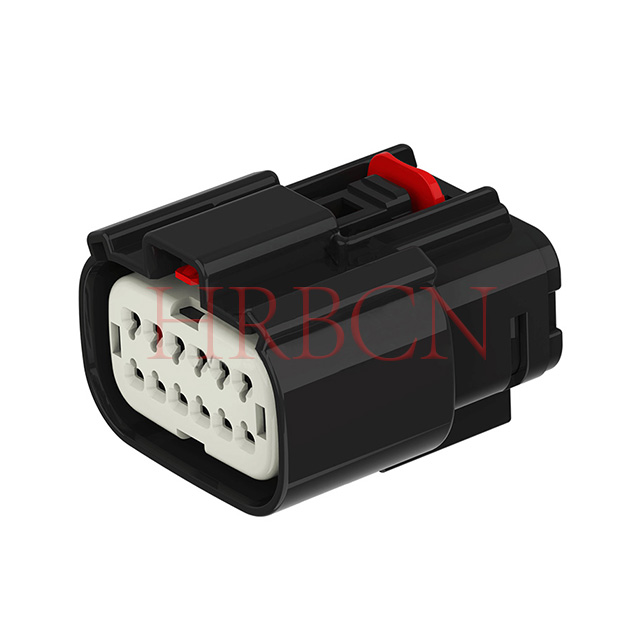

A-M35004-2xN-X-C-X-X
① ② ③ ④⑤⑥ ⑦
①A: Automotive application
②HRB item series number, Receptacle housing
③Pin No.: Dual-row, Number of pins per row: 2x2/2x3/2x4/2x6/2x8/2x10 Pin
④Keying code: A/B/C/D-type
⑤HSG Color: B: black, Y: yellow, LG: Light gray, DG: dark gray, SG: Stone gray, N: Natural
⑥Ring seal color: GN: green, R: Red
⑦C: With CPA, Blank: Without CPA

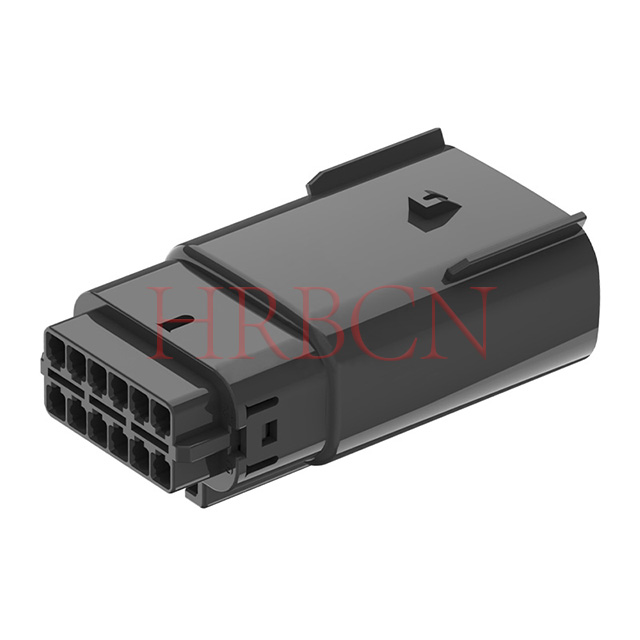

A-M35005-2XN-X-C
① ② ③ ④⑤
①A: Automotive application
②HRB Series, Plug housing
③Pin No.: Dual-row, Number of pins per row: 2x2/2x3/2x4/2x6/2x8/2x10 Pin
④Polarity: A: A-type; B: B-type; C: C-type; D: D-type
⑤Color: B: Black; Y: Yellow; LG: Light Gray; DG: Dark Gray; SG: Stone Gray
Core Advantages & Key Features
Meet IEC 60529 IP67 immersion and USCAR-2 IP69K high-pressure hot water washing standards. Fully sealed internal structure blocks dust, water and detergent ingress, ideal for food machinery, industrial washer and outdoor all-weather harsh environments.
Copper alloy contacts with standard tin plating for general industrial projects; customizable gold plating for coastal high-humidity, high-vibration or long-life equipment to reduce contact oxidation and signal attenuation.
PBT plastic housing features excellent heat resistance, anti-aging and mechanical toughness, stable working at -40°C ~ +125°C, resisting engine heat, outdoor cold and frequent temperature cycling.
Covers mainstream thin signal wires AWG14, AWG16, AWG18, AWG20, AWG22, flexible for sensor, low-current power and signal harness assembly.

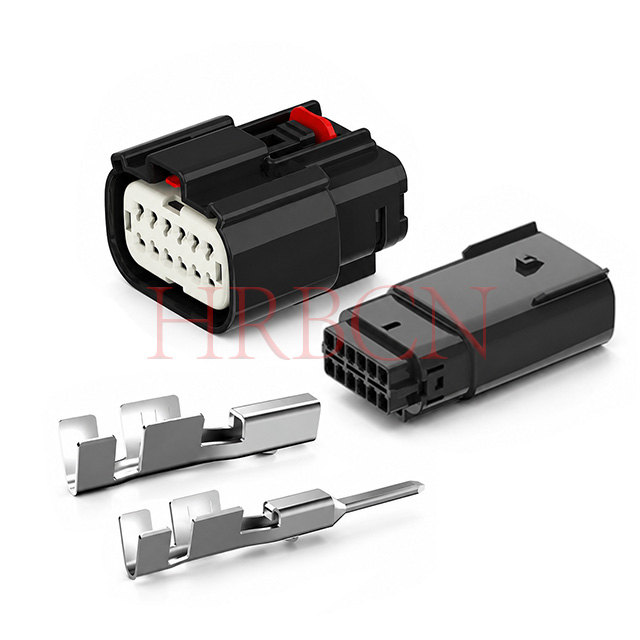

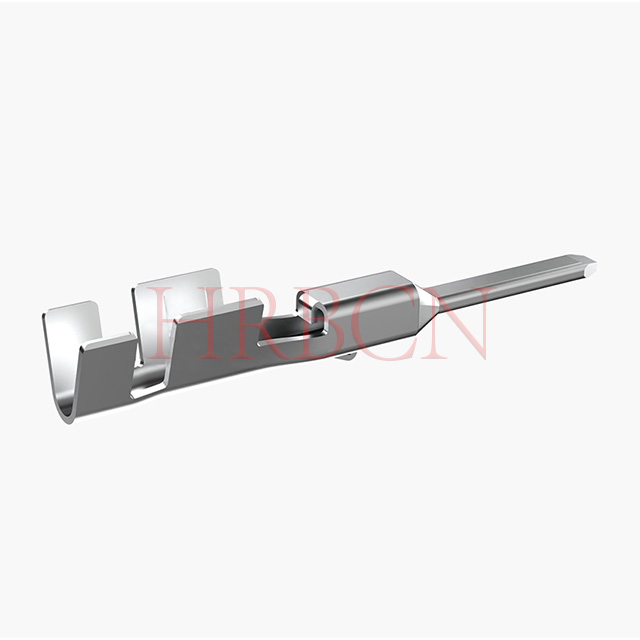

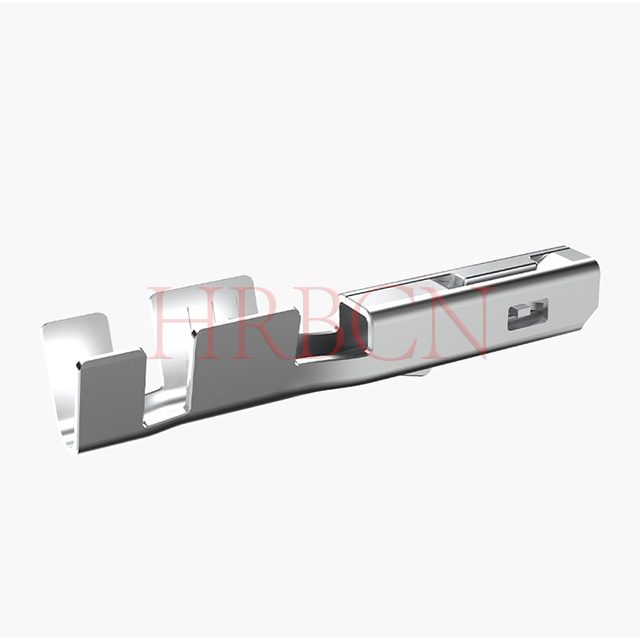

Full set of male/female housings and dedicated crimp terminals (A-T35005PS / A-T35004PS) available; separate bulk shipment of components to simplify harness factory production workflows.
Fully RoHS & REACH compliant, no restricted hazardous substances, smooth customs clearance for European and global export orders.
