Q: What are the basic parameters of 6.35mm Fully Insulated Female Disconnect Terminal (AWG12-10)?
A: Quick Disconnect Terminal Type : Receptacle/Flag type
Wire Size: AWG12-10(3.31-5.26mm²)
Mating Tab Width: 6.35(0.250")
Mating Tab Thickness : 0.8mm
Compatible Insulation Diameter Range: 8.13mm
Q: What is the MOQ for 6.35mm 0.250" Insulated terminal?
A: MOQ: 5000pcs/item.
Q: What is the lead time for 6.35mm 0.250" Insulated terminal?
A: L/T: 3-4 weeks.
Q: Can this AWG12-10 receptacle be used in automotive vibration environments?
A: Yes, this AWG12-10 fully insulated female receptacle is suitable for use in automotive vibration environments.
It features:
①A secure mating interface and internal locking design that resists loosening under continuous vibration.
②High-toughness nylon 66 insulation (UL 94V-2 rated) and tin-plated brass contacts, maintaining stable electrical performance even under shock and vibration.
③Meets typical automotive wiring harness requirements, making it ideal for on-board power circuits and vibration-prone applications.
Q: What is the difference between 4.75mm and 6.35mm connectors?
A: The difference is the width of the terminal tab. 4.75mm connectors are smaller and used for lighter applications, while 6.35mm
connectors handle higher currents.
Q: How do I choose the correct AWG size?
A: Select the connector based on your wire gauge. This product is designed for AWG12-10(3.31-5.26mm²) wires, ensuring a proper crimp fit.
Q: Are these connectors insulated?
A: Yes, they feature a fully insulated sleeve to prevent short circuits and improve safety.
Q: What wire size does AWG12-10 support?
A: This terminal is designed to support AWG12 to AWG10 wire gauges, corresponding to conductor cross-sectional areas of 3.31 mm² to 5.26 mm². It is engineered for high-current applications that require thicker wires.

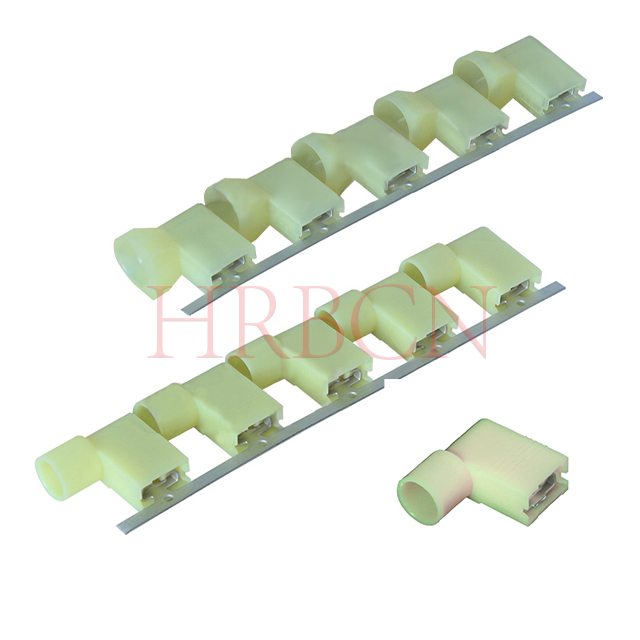

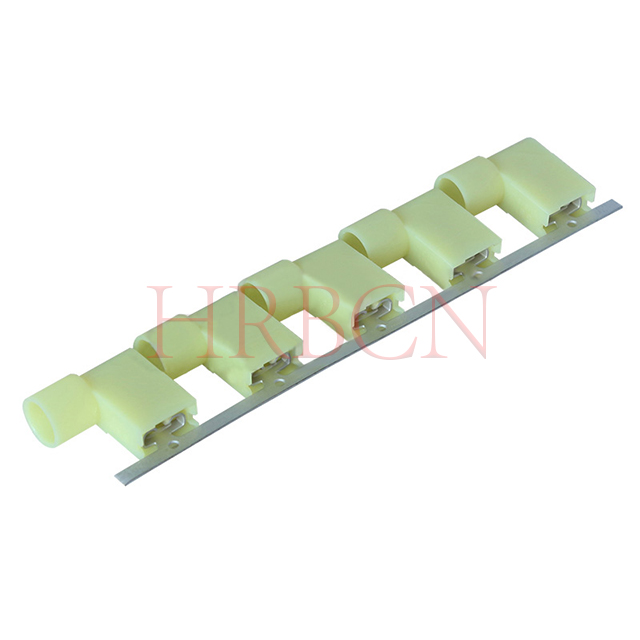

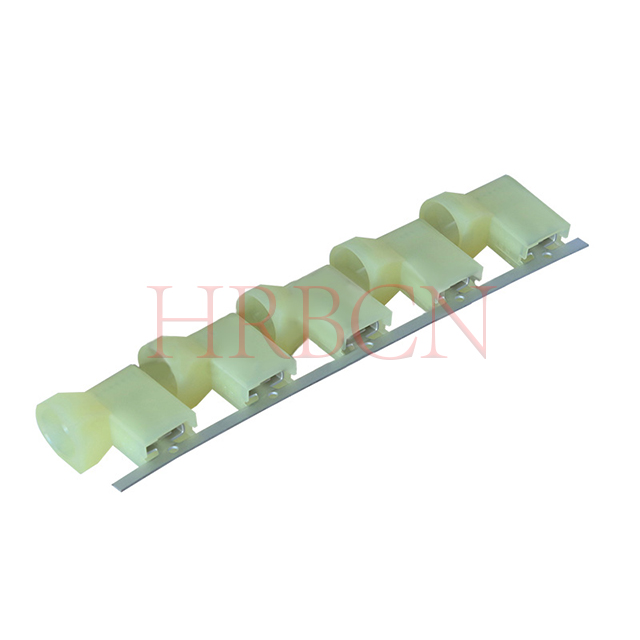

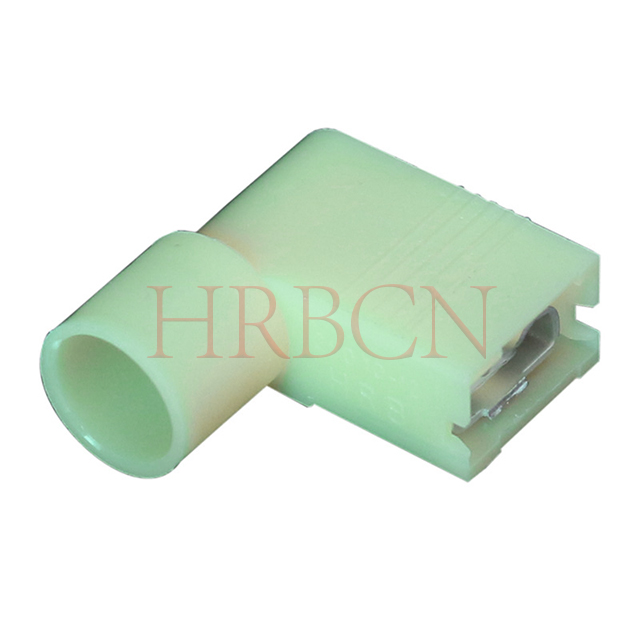

Q: What is a 6.35mm flag type female disconnect terminal for AWG12-10?
A: It is a 6.35mm (0.250 inch) flag-style fully insulated female quick disconnect terminal, specially designed to match AWG12–10 thick gauge wires.
It adopts a 90° flag bent structure for side entry and space-saving installation. Made of tin-plated brass with high-current carrying capacity, it fits high-power circuits. The full nylon insulation provides safe isolation, widely used in automotive wiring harnesses, high-current home appliances and electrical module connections.
Q: What is the difference between straight female terminals and flag female terminals? How to choose the right type?
A: Straight female terminals feature an inline straight structure for straight-through wiring installation, suitable for narrow spaces and inline harness routing.
Flag type terminals come with a right-angle flag design, allowing side wiring and easy soldering or crimping. They are ideal for crowded wiring areas and vertical PCB mounting.
Choose straight type for linear inline wiring; select flag type for right-angle routing, limited installation space and PCB side connection.
Q: What are the differences between AWG12-10, AWG16-14 and AWG22-18 terminals? How to choose the right wire gauge?
A: The three wire gauge ranges differ in wire thickness, cross-sectional area and current carrying capacity.
①AWG22-18: Thin wire, small cross-section, for low-current general electronics and small home appliances.
②AWG16-14: Medium wire size, moderate current load, suitable for standard home appliances and regular automotive circuits.
③AWG12-10: Thick wire, large cross-section, high current capacity, used for high-power equipment and heavy-duty automotive wiring harnesses.
Selection Guide
①Pick AWG22-18 for low-current ordinary circuits;
②Choose AWG16-14 for standard household and general automotive use;
③Select AWG12-10 for high-current, high-power applications.
Q: What are the differences among 0.110", 0.187", 0.205" and 0.250" terminals? How to choose the right size?
A: These numbers refer to the tab width of quick disconnect terminals in inches:
0.110" is the smallest size for low-current signal and auxiliary circuits;
0.187" is the most common general-purpose size for medium light-current wiring;
0.205" offers larger contact area for higher current and more stable connection;
0.250" is the largest size, designed for heavy-duty and high-power main circuits.
For selection, match the terminal tab width to your mating connector, wire AWG, working current and installation space. Use smaller sizes for signal lines, and larger sizes for main power and high-current applications.
