Most waterproof connectors are large in size, difficult to handle in a production environment and expensive. Meeting customer needs for a small form factor waterproof connector that is easy to handle and cost effective long been a challenge.
HRB wire to wire waterproof electrical connector meets the need for a small form factor waterproof connector. It has an IP67 waterproof rating per IEC 60529. It is on a 3.0mm pitch(contact to contact)

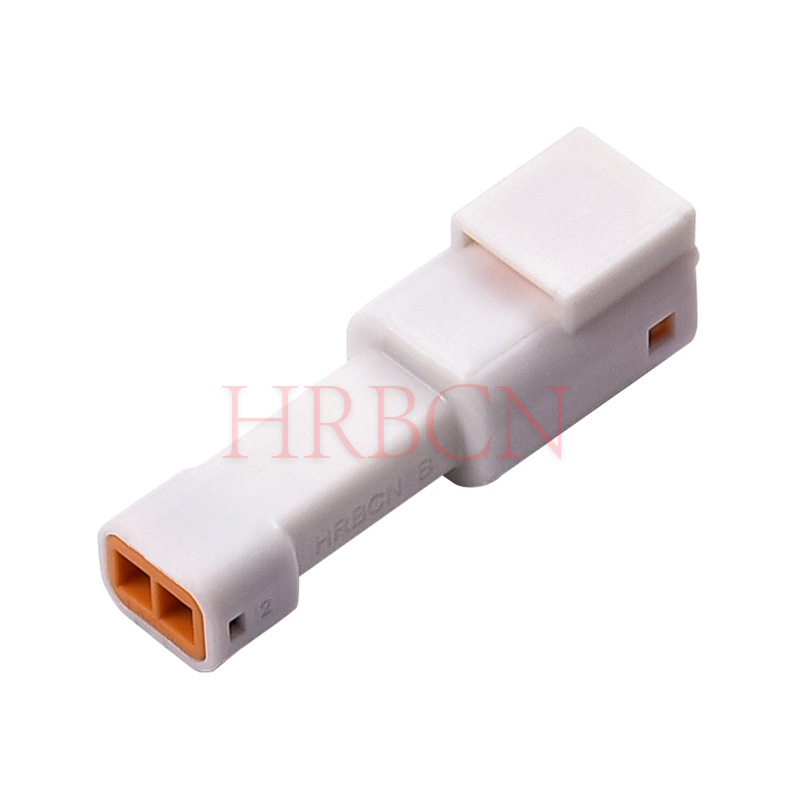

Wire to wire waterproof connector:
Wire to wire waterproof connector is available in 2,3,4,5,6 and 8 positions. These waterproof connectors deliver a cost effective solution by utilizing a brass tin plated tab contact and a copper alloy tin plated receptacle contact. The contact system has a 3 amp rating and 24-22 AWG wires.
Feature:
Waterproof performance
Contained seal ring
Solid rubber seal
Double-spring construction
Housing-to-terminal locks
Inner-housing lock
Wire range: AWG#22 to 24 Ø1.4- Ø 1.7mm Insulation O.D.
Application:
Electric vehicle
Electric motorcycle
Automobile camera built-in waterproof
Automotive battery built-in waterproof
Outdoor waterproofing applications
