P/N definition
M20032E-2XN-W
① ② ③ ④
①M20032E: HRB series, male housing, easily mating type
②2: dual row;
③N: Number of Pins per row 3/4pin
④W: Housing color is white

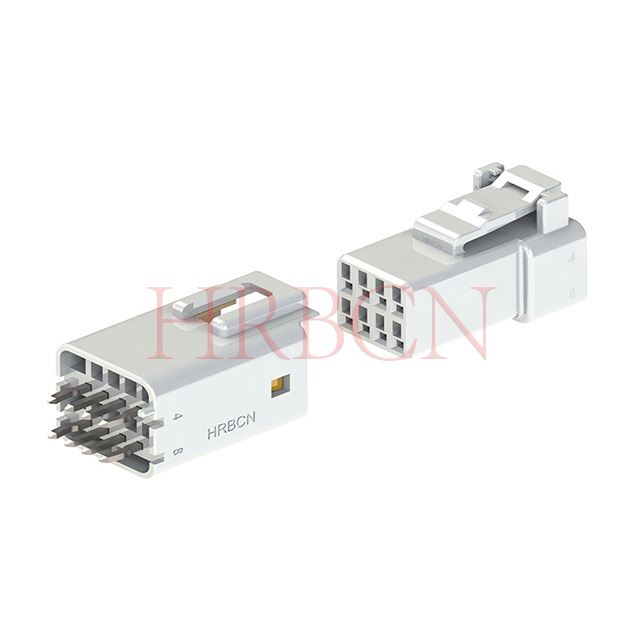

M20036E-2XN-W
① ② ③ ④
①M200336E: HRB series, PCB header
②2: dual row;
③N: Number of Pins per row 3/4pin
④W: Housing color is white

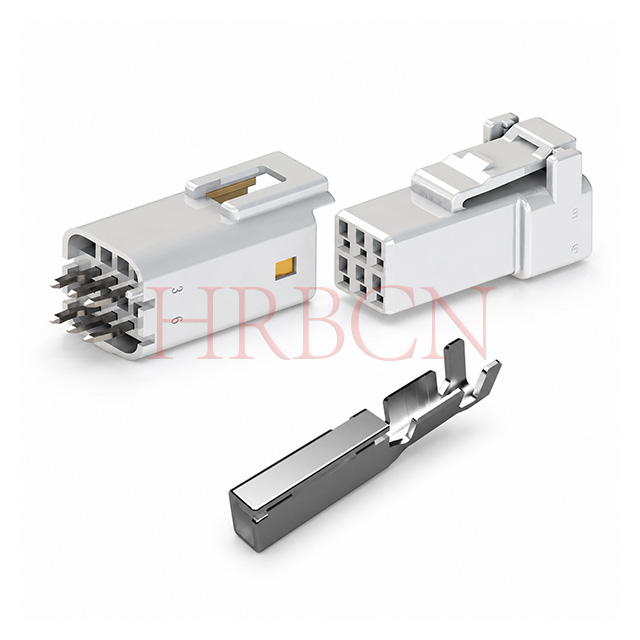

Key Features
IP67 waterproof & dust‑proof rating per IEC 60529 for dusty and moist outdoor operating conditions
Dual-row housing plug and PCB header, compact high-density design for reliable wire-to-board interconnection
TPA secondary lock mechanism prevents terminal back‑out under vibration & shock for long‑term harness reliability

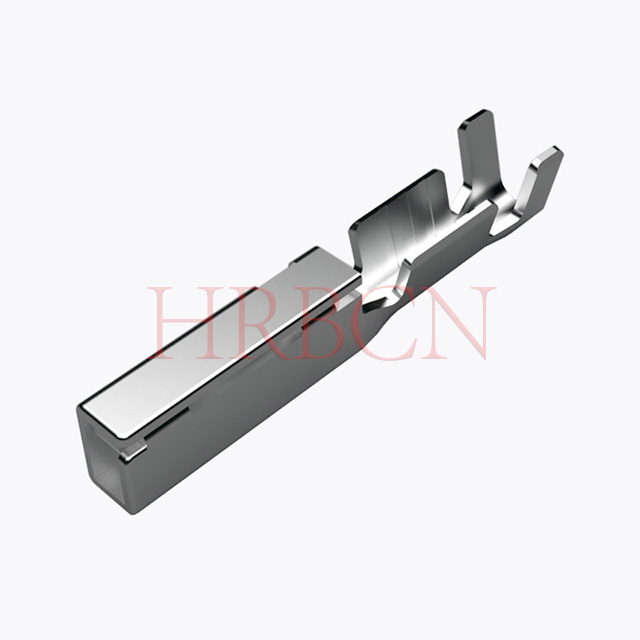

PBT UL94 V‑0 flame‑retardant housing, tin‑plated copper‑alloy contacts
Wide operating temperature: Housing: ‑40℃ ~ +130℃; PCB Header: ‑40℃ ~ +120℃
Rated 3A / 100V AC/DC, supports AWG 22‑24 wire gauges
Integrated silicone sealing elements ensure complete sealing when fully mated

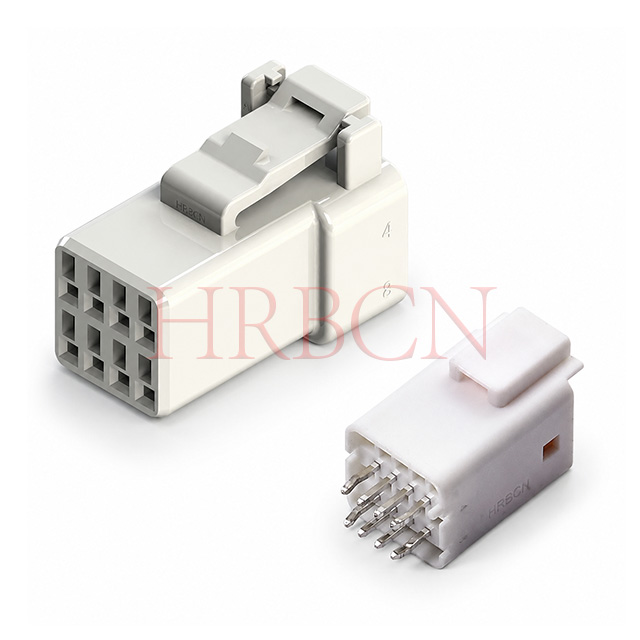

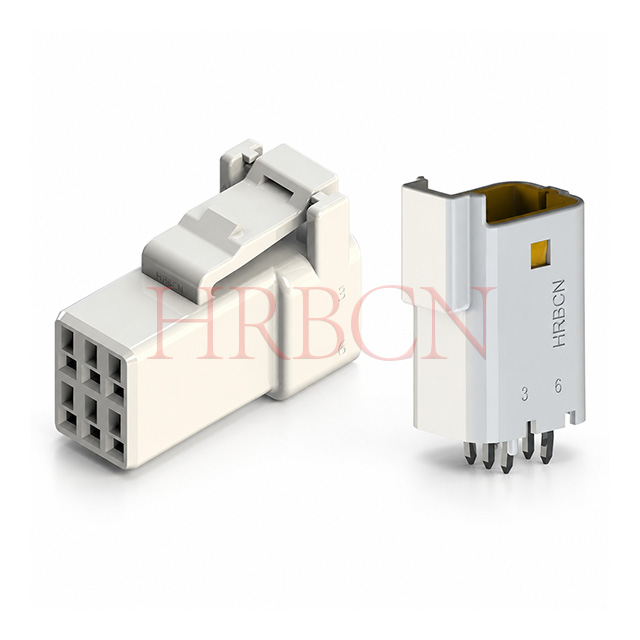

Available in 2×3‑pin, 2×4‑pin dual‑row configurations
RoHS & REACH compliant
UL approved
Easy mating and unmating

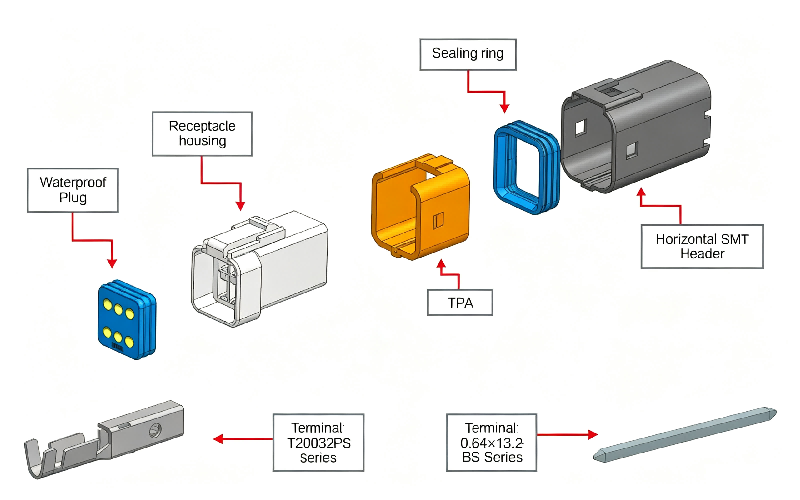

Exploded View
Waterproof seals, grommets, retainer and crimped terminals work in conjunction with receptacle housings and PCB header to provide reliable watertight, dust‑proof electrical interconnections.
Application Fields
HRB waterproof connectors are widely deploped across multiple harsh‑condition application scenarios, delivering stable signal and
power transmission for outdoor and mobility‑oriented devices.
- Outdoor Equipment: Lawn mowers and other garden machinery, withstand dust, moisture and outdoor temperature fluctuation.
- Vehicle 360° Surround System: Automotive panoramic imaging systems, reliable connection for on‑vehicle camera signal
transmission.
- Agricultural UAV: Agricultural spraying drones, resistant to humidity, dust and farm‑site harsh environment.
- Automotive Rearview Camera: Automobile rear‑view camera wiring harness, stable signal output for vehicle vision components.
- Outdoor Bicycles: E‑bikes and outdoor bicycles, durable connection for power and signal circuits.
- Powered Wheelchair: Electric mobility wheelchairs, guarantee safe and reliable power interconnection for mobility aids.
