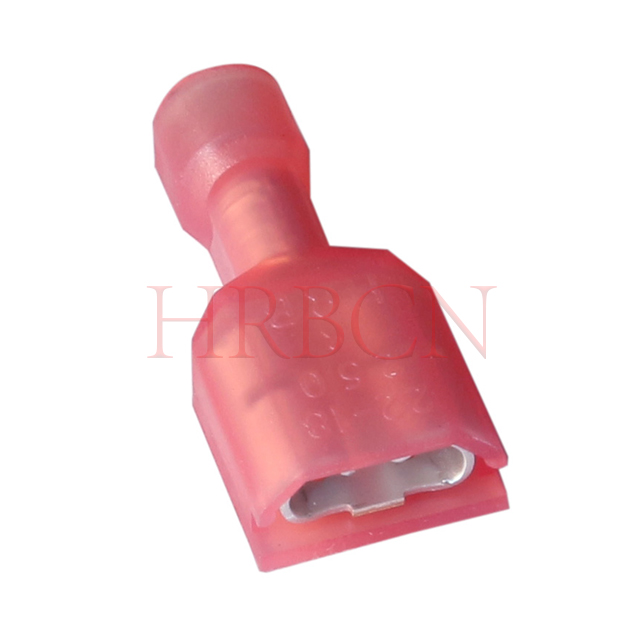

Q: What are the basic parameters of 6.35mm Fully Insulated Female Disconnect Terminal (AWG 22-18)?
A: Quick Disconnect Terminal Type : Receptacle/Straight type
Wire Size: AWG22-18(0.32-0.82mm²)
Mating Tab Width: 6.35(0.250")
Mating Tab Thickness : 0.8mm
Compatible Insulation Diameter Range: 3.05mm/5.84mm
Q: What is the MOQ for 6.35mm 0.250" Insulated terminal?
A: MOQ: 5000pcs/item.
Q: What is the lead time for 6.35mm 0.250" Insulated terminal?
A: L/T: 3-4 weeks.
Q: What is the maximum temperature rating for this 6.35mm terminal?
A: The maximum temperature rating is 105ºC
Q: Can this AWG 22-18 receptacle be used in automotive vibration environments?
A: Yes, this AWG 22-18 receptacle, features secure contact retention that withstands typical automotive vibration levels. It is suitable for auxiliary circuits when installed per specifications.
Q: What is the difference between 4.75mm and 6.35mm connectors?
A: The difference is the width of the terminal tab. 4.75mm connectors are smaller and used for lighter applications, while 6.35mm
connectors handle higher currents.
Q: How do I choose the correct AWG size?
A: Select the connector based on your wire gauge. This product is designed for AWG 22-18 wires, ensuring a proper crimp fit.
Q: Are these connectors insulated?
A: Yes, they feature a fully insulated sleeve to prevent short circuits and improve safety.
Q: What wire size does AWG 22-18 support?
AWG 22-18 terminals are designed for wires with a cross-sectional area suitable for low to medium current electrical applications.
Q: What certifications do HRB connectors have (UL, RoHS, REACH)?
A: HRB connectors hold UL/cUL, RoHS, and REACH certifications, plus key automotive and industrial approvals.
UL/cUL: Certified under UL 1977 (file no. E322751)
Q: What is a 6.35mm female disconnect terminal?
A: 6.35mm female disconnect terminal (also called a 0.25" female quick disconnect) is a common electrical crimp connector that mates with a 6.35mm (0.25") wide male tab/blade terminal. It provides a fast, tool-less connect/disconnect method for wires in electrical systems.
Q: Is this terminal suitable for automotive use?
A: Yes, this fully insulated female disconnect terminal is widely used in automotive wiring systems due to its secure connection and
vibration resistance.

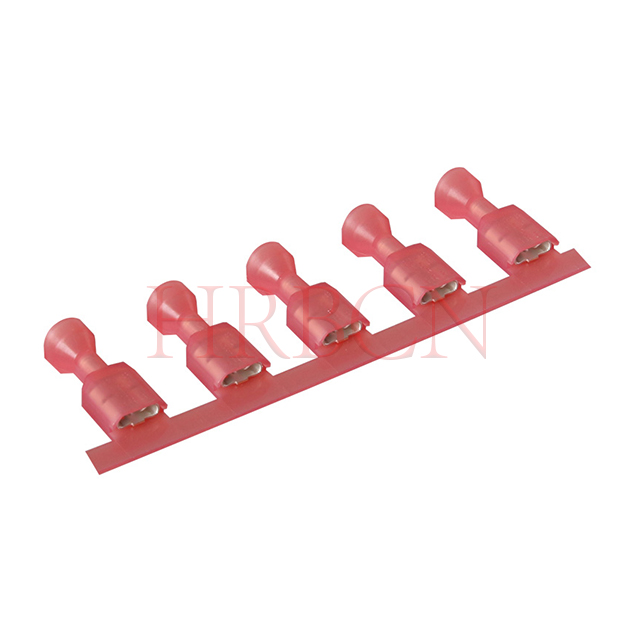

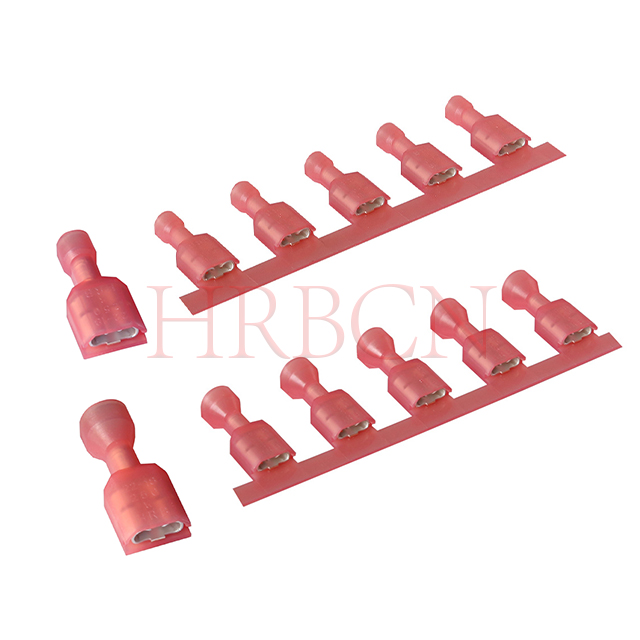

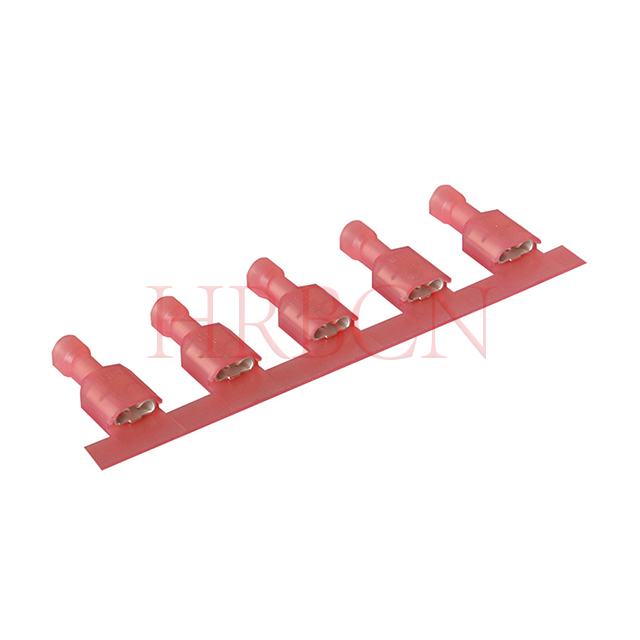

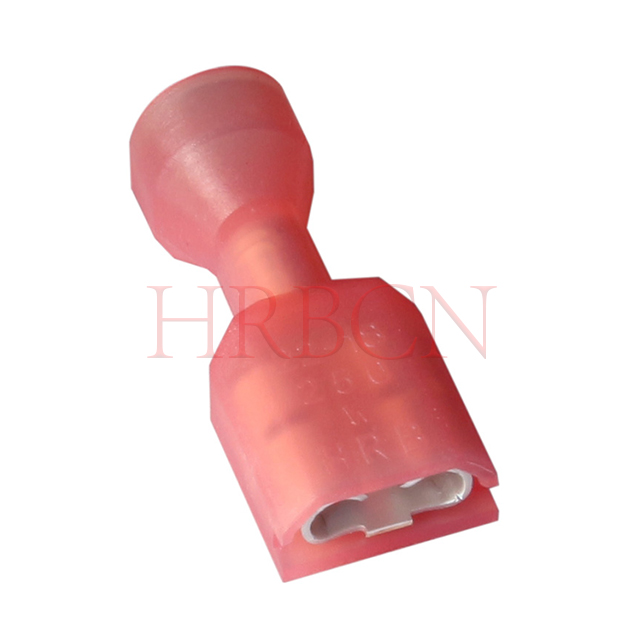

Q: What are the differences between M6350FNS-5(8)-R and M6350FNS-5(8)-R1, and how do I select the correct one for my application?
A: The main distinction between M6350FNS-5(8)-R and M6350FNS-5(8)-R1 is the maximum compatible wire insulation diameter. All electrical performance, mating dimensions and material specifications remain exactly the same.
Simply select the model according to the outer insulation diameter of your actual wire.
