This series is a type of industry standard products that are interchangeable, mutually matched, and mutually installed.This makes it very flexible to fit existing wiring harnesses, connectors or PCB headers.Spacing 6.35mm

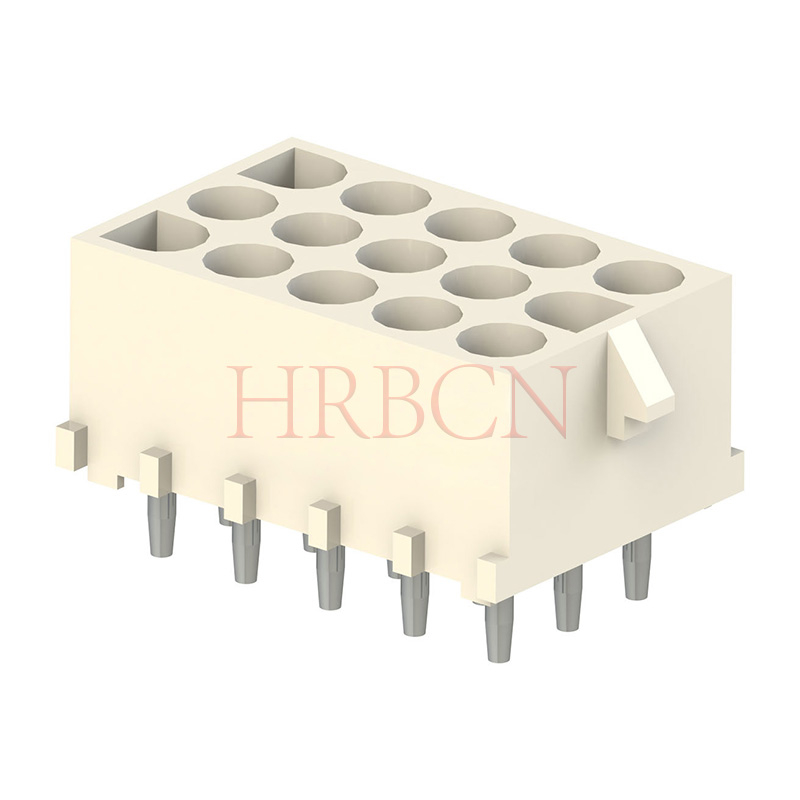

6.35mm pitch, HRB triple row PCB pin header. Male&Female, White&Natural.
Vertical header.
| Part No. | Dimensions | |||||
| TYP UL94V-2(Female) | TYP UL94V-2(male) | TYP UL94V-0(Female) | TYP UL94V-0(male) | Cir | Dim:A | Dim: B |
| M9848-3x2-NH(F) | M9848-3x2-NH(M) | M9848-3x2-WH(F) | M9848-3x2-WH(M) | 6 | 6.35 | 14.00 |
| M9848-3x3-NH(F) | M9848-3x3-NH(M) | M9848-3x3-WH(F) | M9848-3x3-WH(M) | 9 | 12.70 | 20.35 |
| M9848-3x4-NH(F) | M9848-3x4-NH(M) | M9848-3x4-WH(F) | M9848-3x4-WH(M) | 12 | 19.05 | 26.70 |
| M9848-3x5-NH(F) | M9848-3x5-NH(M) | M9848-3x5-WH(F) | M9848-3x5-WH(M) | 15 | 25.20 | 33.05 |
M9848-3xN-NH(M)&M9848-3xN-WH(M) catalog.pdf
This series is a type of industry standard products that are interchangeable, mutually matched, and mutually installed.This makes it very flexible to fit existing wiring harnesses, connectors or PCB headers.Spacing 6.35mm
6.35mm pitch, HRB triple row PCB pin header. Male&Female, White&Natural.
Vertical header.
| Part No. | Dimensions | |||||
| TYP UL94V-2(Female) | TYP UL94V-2(male) | TYP UL94V-0(Female) | TYP UL94V-0(male) | Cir | Dim:A | Dim: B |
| M9848-3x2-NH(F) | M9848-3x2-NH(M) | M9848-3x2-WH(F) | M9848-3x2-WH(M) | 6 | 6.35 | 14.00 |
| M9848-3x3-NH(F) | M9848-3x3-NH(M) | M9848-3x3-WH(F) | M9848-3x3-WH(M) | 9 | 12.70 | 20.35 |
| M9848-3x4-NH(F) | M9848-3x4-NH(M) | M9848-3x4-WH(F) | M9848-3x4-WH(M) | 12 | 19.05 | 26.70 |
| M9848-3x5-NH(F) | M9848-3x5-NH(M) | M9848-3x5-WH(F) | M9848-3x5-WH(M) | 15 | 25.20 | 33.05 |
