P9858-3xN-A-B-H&P9858-3xN-W-A-H catalog.pdf
Ordering Information:

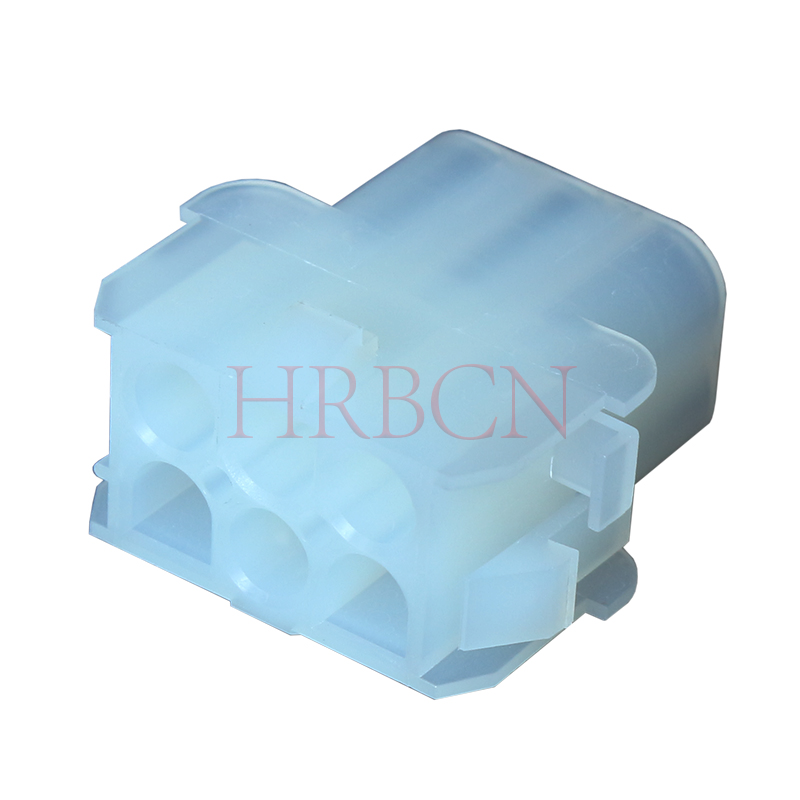

HRB 6.35 pitch, Female cap housing, Triple row, UL 94V-2, Natural color.
| Part No. | | Dimensions |
| TYP UL94V-2 | TYP UL94V-0 | Circuits | Dim: A | Dim: B |
| P9858-3×2-A-B-H-A/B | P9858-3×2-W-A-H-A/B | 6 | 14.00 | 6.35 |
| P9858-3×3-A-B-H-A/B | P9858-3×3-W-A-H-A/B | 9 | 20.40 | 12.70 |
| P9858-3×4-A-B-H-A/B | P9858-3×4-W-A-H-A/B | 12 | 27.10 | 19.05 |
| P9858-3×5-A-B-H-A/B | P9858-3×5-W-A-H-A/B | 15 | 33.20 | 25.20 |
Product Details:
| Product Type | Housing connector |
| Housing Type | Receptacle connector |
| Connector System | Wire to wire connector, wire to board connector |
| Connector & Contact Terminates To | Wire&cable |
| Contact type | Pin |
| Number of positions | 6-15 circuits |
| Number of rows | 3 rows |
| Row-to-Row Spacing | .25 mm [ 6.35 in ] |
| Contact Layout | Matrix |
| Operating Voltage (VAC) | 600 |
| Contact Retention | Without |
| Multiple Contact Types | Without |
| Panel Mount Retention Type | Patch & Tabs |
| Panel Mount Retention | With |
| Connector Mounting Type | Panel |
| Assembly Integration Feature | Without |
| Centerline (Pitch) | 6.35 mm [ .25 in ] |
| UL Flammability Rating | UL94V-2 |
| Housing Material | Nylon |
| Glow Wire Rating | "Yes" and "No" are both available |
| Operating Temperature Range | -25 – 85 °C |
| Sealed Condition | Not sealed |
| Standard | UL |
| Packaging Method | Package |
| For Use With | Appropriate Male Plug Housing
|
