M9848-1xN-W-H(M-L) catalog.pdf

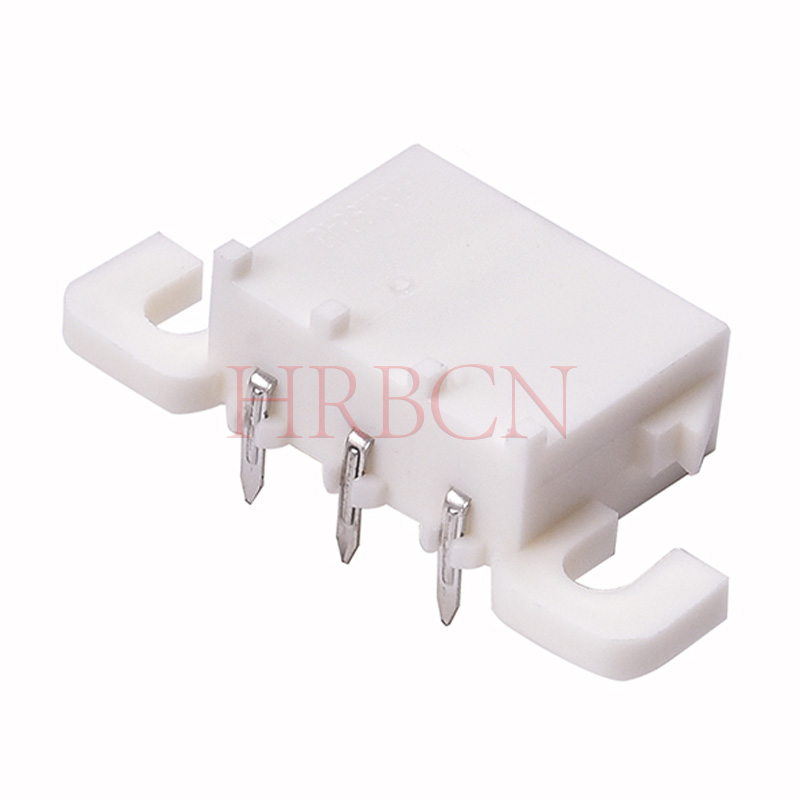

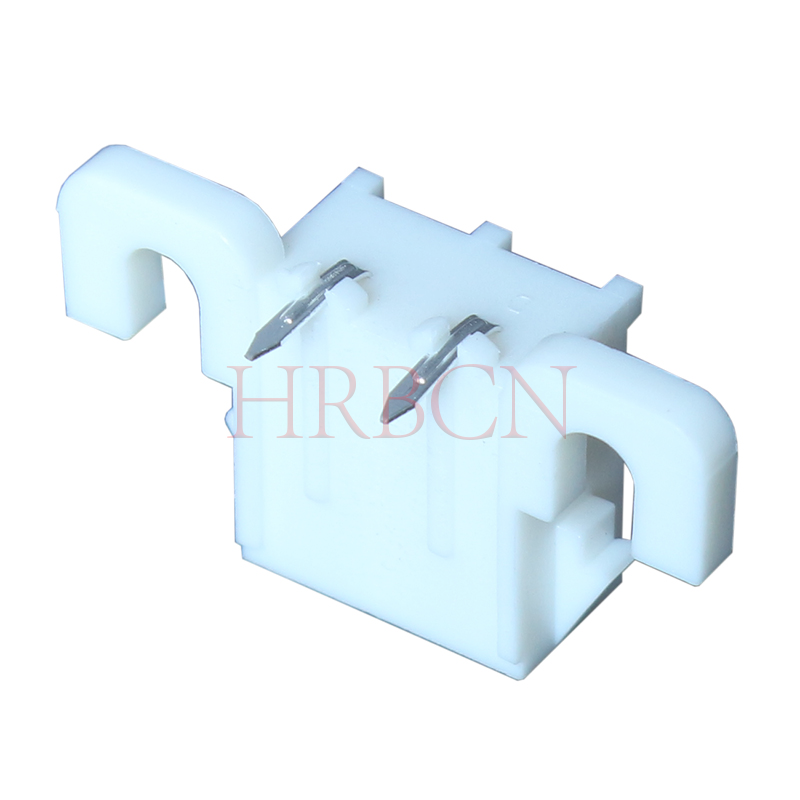

HRB 6.35mm pitch, single row PCB pin and socket header connector. Male&Female, White&Natural. Right angle header connector.
| Part No. | | | | Dimensions |
| TYP UL94V-2(Female) | TYP UL94V-2(male) | TYP UL94V-0(Female) | TYP UL94V-0(male) | Cir | Dim: A | Dim: B | Dim: C |
| M9848-1x2-N-H(F-L) | M9848-1x2-N-H(M-L) | M9848-1x2-W-H(F-L) | M9848-1x2-W-H(M-L) | 2 | 13.97 | 6.35 | 21.08 |
| M9848-1x3-N-H(F-L) | M9848-1x3-N-H(M-L) | M9848-1x3-W-H(F-L) | M9848-1x3-W-H(M-L) | 3 | 20.32 | 12.70 | 27.43 |
| M9848-1x4-N-H(F-L) | M9848-1x4-N-H(M-L) | M9848-1x4-W-H(F-L) | M9848-1x4-W-H(M-L) | 4 | 16.67 | 19.05 | 33.78 |
| M9848-1x5-N-H(F-L) | M9848-1x5-N-H(M-L) | M9848-1x5-W-H(F-L) | M9848-1x5-W-H(M-L) | 5 | 33.02 | 25.20 | 40.13 |
| M9848-1x6-N-H(F-L) | M9848-1x6-N-H(M-L) | M9848-1x6-W-H(F-L) | M9848-1x6-W-H(M-L) | 6 | 39.37 | 31.75 | 46.48 |
| M9848-1x7-N-H(F-L) | M9848-1x7-N-H(M-L) | M9848-1x7-W-H(F-L) | M9848-1x7-W-H(M-L) | 7 | 45.72 | 38.10 | 52.83 |
| M9848-1x8-N-H(F-L) | M9848-1x8-N-H(M-L) | M9848-1x8-W-H(F-L) | M9848-1x8-W-H(M-L) | 8 | 52.07 | 44.45 | 59.18 |
Detail Information:
| Product Type | PCB header |
| Housing Type | Plug |
| Connector System | Wire-to-Board |
| Connector & Contact Terminates To | Printed Circuit Board |
| Contact Type | Pin |
| Number of Positions | 2-8 |
| PCB Mounting Orientation | Right Angle |
| Number of Rows | 1 |
| Contact Layout | Inline |
| Operating Voltage (VAC) | 600 |
| Contact Current Rating (Max) (A) | 12,19 |
| Contact Retention | Without |
| Contact Termination Area Plating Material | Tin |
| Contact Mating Area Plating Material | Tin |
| Multiple Contact Types | Without |
| Termination Method to PC Board | Through Hole - Solder |
| Panel Mount Retention | Without |
| PCB Mount Alignment | Without |
| Strain Relief | Without |
| Mating Alignment | With |
| Mating Alignment Type | Polarization |
| PCB Mount Retention Type | Mounting Holes |
| Mating Retention Type | Positive Lock |
| PCB Mount Retention | With |
| Mating Retention | With |
| Centerline (Pitch) | 6.35 mm [ .25 in ] |
| UL Flammability Rating | UL94V-0/UL94V-0 |
| Housing Material | Nylon |
| Operating Temperature Range | -40 – 105 °C |
| Sealed Condition | Not sealed |
| Circuit Application | Power |
| Assembly Integration Feature | Without |
| Packaging Method | Box & Carton |
