(250) straight female terminal catalog.pdf
| Part No. | A | B | C | D | E | F | G | H | Wire size | Ins Dia. max |

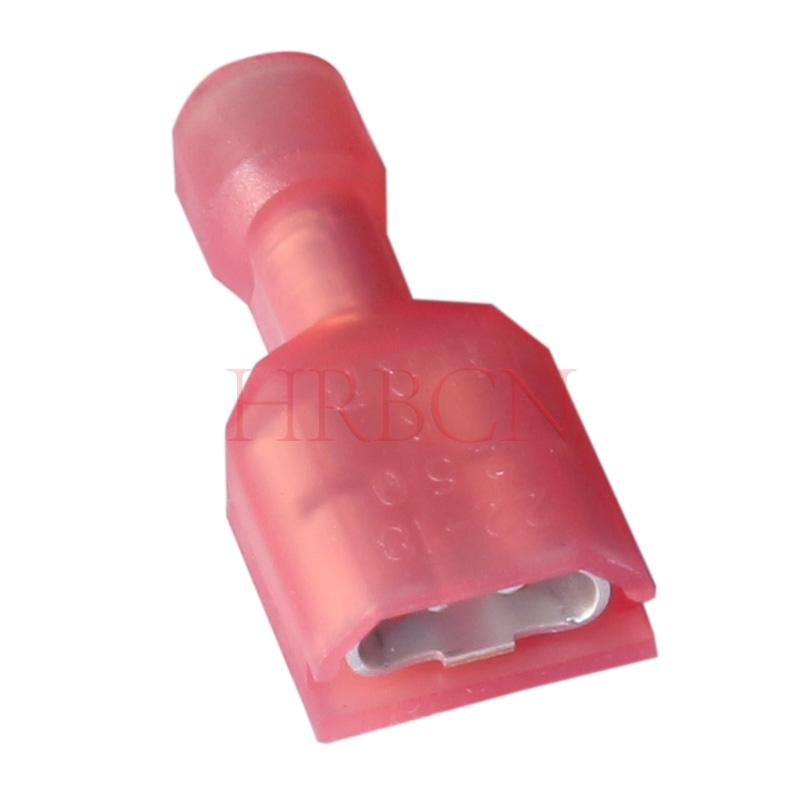

| M6350FN(S)-5(8)-R | 4.92 | 9.73 | 7.60 | 21.60 | 5.35 | 0.40 | 18.78 | 28.20 | AWG#22-18 | 3.05mm |
| M6350FN(S)-5(8)-R1 | 4.92 | 9.70 | 7.60 | 23.70 | 7.50 | 0.40 | 18.78 | 29.30 | AWG#22-18 | 5.84mm |
| M6350FN(S)-5(8)-b | 4.92 | 9.73 | 7.60 | 21.60 | 6.15 | 0.40 | 18.78 | 28.20 | AWG16-14 | 4.06mm |
| M6350FN(S)-5(8)-b1 | 4.92 | 9.73 | 7.60 | 23.80 | 8.30 | 0.40 | 18.78 | 29.30 | AWG16-14 | 6.60mm |
| M6350FN(S)-5(8)-Y | 6.4 | 9.75 | 7.60 | 23.60 | 10.20 | 0.40 | 18.80 | 28.10 | AWG12-10 | 8.13mm |
| M | 6350 | F | N | S | 8 | (5) | R1 |
| A | B | C | D | E | F | G | H |
A. Type: M=Finished
B. Product Type: 6350=Fully insulated Straight Female Terminal
7600=Fully insulated Flag Terminal
C. F=All inclusive insulation
D. N=Nylon
E. Packaging method: S=strip L=loose piece
F. Series: 1=2.8mm(0.110 in.) 2=5.2mm(0.205 in.)
8=4.8mm(0.187 in.) 5=6.3mm(0.250in.)
G. 5=thickness 0.50mm(0.020in.) 8=thickness 0.80mm(0.032 in.)
H. R=Red(22-18 AWG) R1=Conductor insulation max. diameter of 3.80mm
b=blue(16-14 AWG) b1=Conductor insulation max. diameter of 4.50mm
Y=Yellow(12-10AWG)
