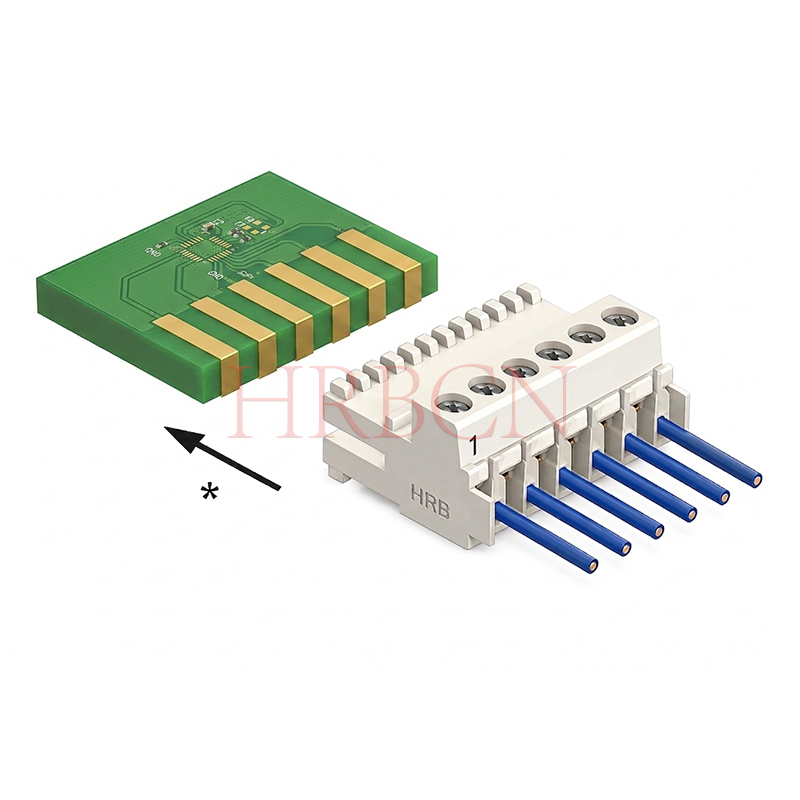

Engineered for robust and reliable wire-to-board connection solutions, HRB RAST 5 IDC direct-mating PCB connectors series are high-performance IDC direct mating connectors equipped with sturdy screw locking structure, closed side design and anti-mismatch keying ribs. Featuring reliable mechanical stability, excellent vibration resistance and international safety certification, this series provides durable connection performance for long-term operating environments.
Tailored for diversified industrial and civilian fields, RAST 5 IDC direct-mating PCB connectors series adapts to multiple application scenarios with stable electrical performance, high temperature resistance and reliable wiring structure. It is widely applied in household appliances, industrial automation, intelligent control systems, HVAC equipment, power facilities, environmental protection equipment and intelligent electrical products.
HRB RAST 5 IDC direct-mating PCB connectors Series | Application Description
Washing machines, refrigerators, heating equipment, kitchen appliances, water heaters and intelligent household control components, providing safe and stable wiring connection for daily electrical equipment.
Industrial control panels, sensing equipment, actuators, power control units and automated production equipment, ensuring stable signal and power connection under complex working conditions.
Air conditioning systems, heating ventilation equipment, intelligent building control units and environmental control devices, adapting to long-term continuous operation requirements.
Low-voltage power distribution units, power supply equipment, energy storage auxiliary components and industrial power facilities, realizing safe and firm wiring connection.
Intelligent instruments, electromechanical equipment, environmental protection facilities and outdoor electrical units, with strong adaptability to temperature changes and mechanical vibration.
With optimized structural design, standardized production and reliable quality standards, HRB RAST 5 IDC direct-mating PCB connectors series delivers cost-effective and high-quality connection solutions for global industrial and electrical industries.

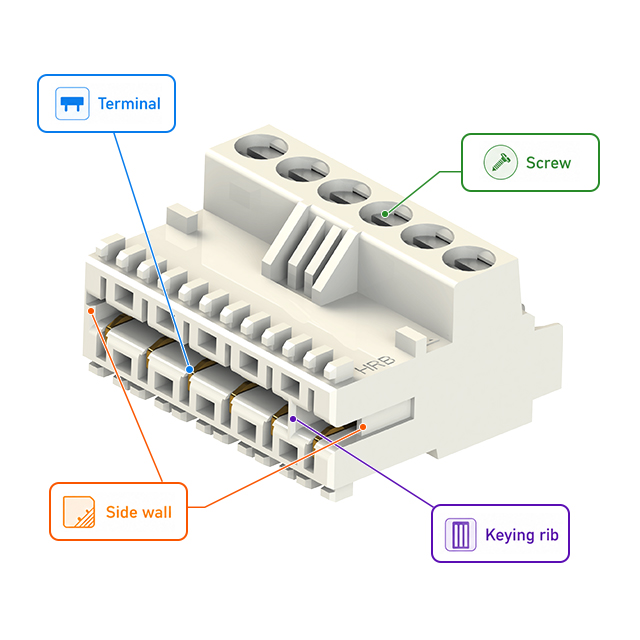

Why Choose HRB RAST 5 IDC direct-mating PCB connectors Screw-Lock Series
Drop-in compatible with RAST 5 standard, matching form, fit, and function for seamless design replacement.
Secure Screw-Lock Design: Prevents loosening under vibration; ideal for high-durability applications.
IDC + Screw Hybrid: Combines fast IDC termination with robust screw retention for maximum connection stability.
Keying & Closed Sides: Ensures correct mating, prevents short circuits, and enhances mechanical protection.
VDE Certified: Meets global safety standards for European and North American markets.
Wide Wire Compatibility: Supports 0.14–4.0mm² (AWG 26–12) wires for flexible power and signal routing.
Consecutive Placement: Enables dense PCB mounting without pitch loss, optimizing board space.
