Most waterproof connectors are large in size, difficult to handle in a production environment and expensive. Meeting customer needs for a small form factor waterproof connector that is easy to handle and cost effective long been a challenge.
HRB wire to board waterproof electrical connector meets the need for a small form factor waterproof connector. It has an IP67 waterproof rating per IEC 60529. It is on a 2.5mm pitch

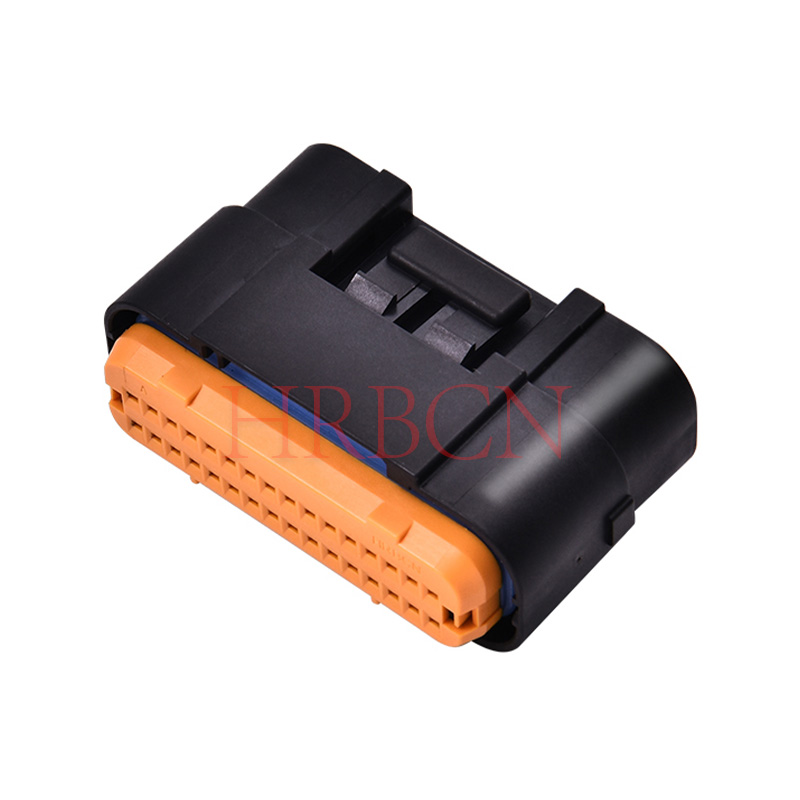

Wire to board waterproof connector:
Wire to board waterproof connector is available in 2x9, 2x13, 2x16, 2x17 and 2x20 positions. These waterproof connectors deliver a cost effective solution by utilizing a brass tin plated tab contact and a copper alloy tin plated receptacle contact. The contact system has a 3 amp rating and 22-16 AWG wires.
Feature:
Waterproof performance
Contained seal ring
Solid rubber seal
Double-spring construction
Housing-to-terminal locks
Inner-housing lock
Application:
Electric vehicle
Electric motorcycle
Automobile camera built-in waterproof
Automotive battery built-in waterproof
Outdoor waterproofing applications
Specification :
Rated Current: 3A AC,DC Max.
Rasted Voltage:100V ,AC DC
Withstand Resistance:1000mΩ Max.
Temperature Range:-40 degree to +120 degree
Applicable wire :AWG#22 to #16
