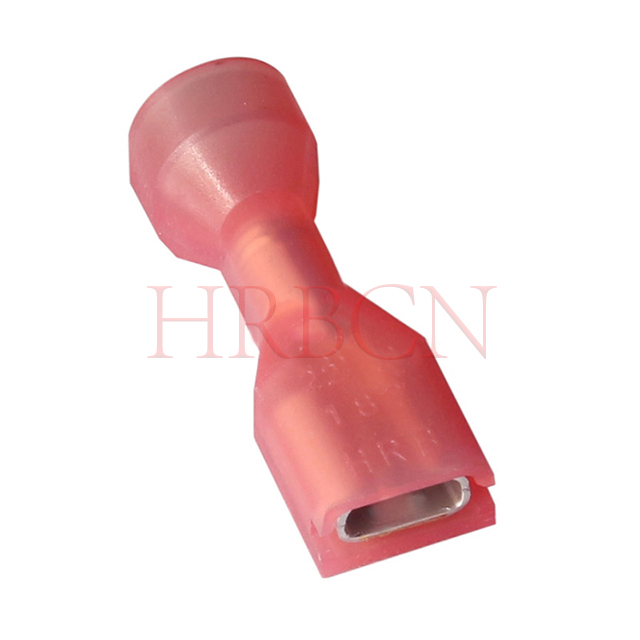

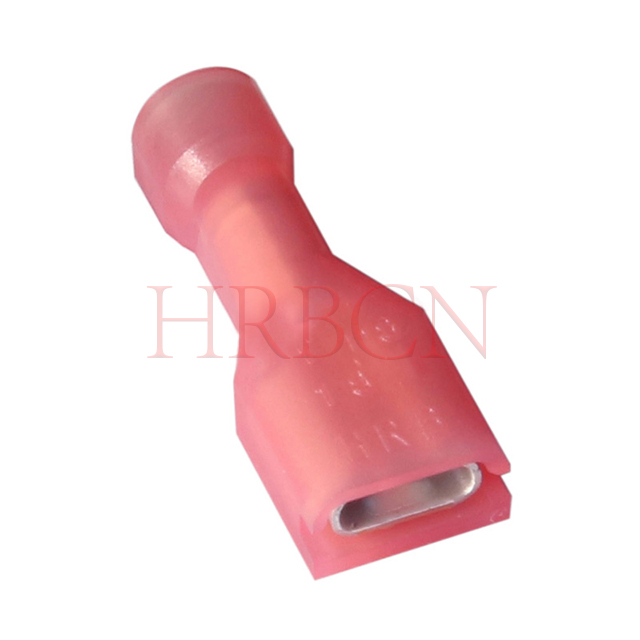

AWG22-18 4.8mm Straight Insulated Female Receptacle | HRB Connector

M6350FNS-8(5)-R; M6350FNS-8(8)-R; M6350FNL-8(5)-R; M6350FNL-8(8)-R;
M6350FNS-8(5)-R1; M6350FNS-8(8)-R1; M6350FNL-8(5)-R1; M6350FNL-8(8)-R1
Quick Disconnect Terminal Type : Receptacle
Wire Size: AWG22-18(0.32-0.82mm²)
Mating Tab Width: 4.8(0.187")
Mating Tab Thickness : 0.5mm/0.8mm
Compatible Insulation Diameter Range: 3.05mm/5.84mm
Availability:
Quantity:
Inquiry Add to RFQ List

  • M6350FNS-8(5)-R; M6350FNS-8(8)-R; M6350FNS-8(5)-R1; M6350FNS-8(8)-R1

  • HRB

  • 8536909000

P/N Definition

HRB P/N Mating Tab Thickness
 Compatible Insulation Diameter Range SPQ(pcs)
M6350FNS-8(5)-R 4.8x0.5mm 3.05mm 2500/reel
M6350FNS-8(8)-R 4.8x0.8mm 3.05mm 2500/reel
M6350FNL-8(5)-R 4.8x0.5mm 3.05mm 1000/bag
M6350FNL-8(8)-R 4.8x0.8mm 3.05mm 1000/bag
M6350FNS-8(5)-R1 4.8x0.5mm 5.84mm 1500/reel
M6350FNS-8(8)-R1 4.8x0.8mm 5.84mm 1500/reel
M6350FNL-8(5)-R1 4.8x0.5mm 5.84mm 1000/bag
M6350FNL-8(8)-R1 4.8x0.8mm 5.84mm 1000/bag

  • Type: M=Finished

  • Product Type: 6350=Fully insulated Straight Female Terminal

  • F=All inclusive insulation

  • N=Nylon

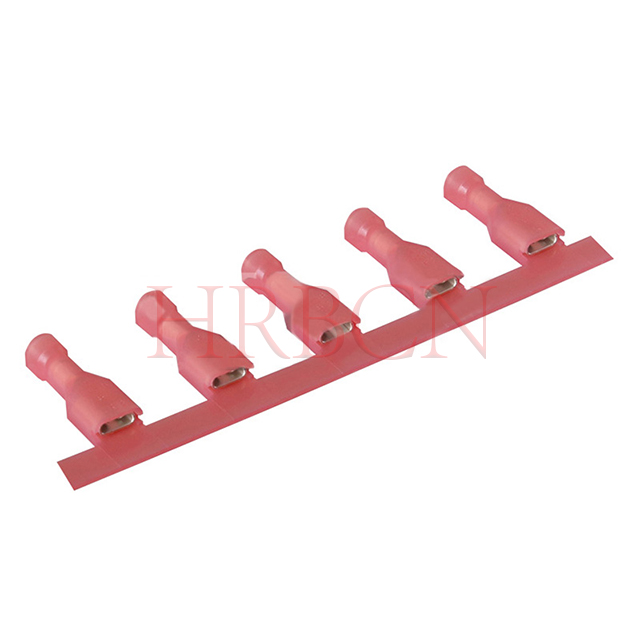

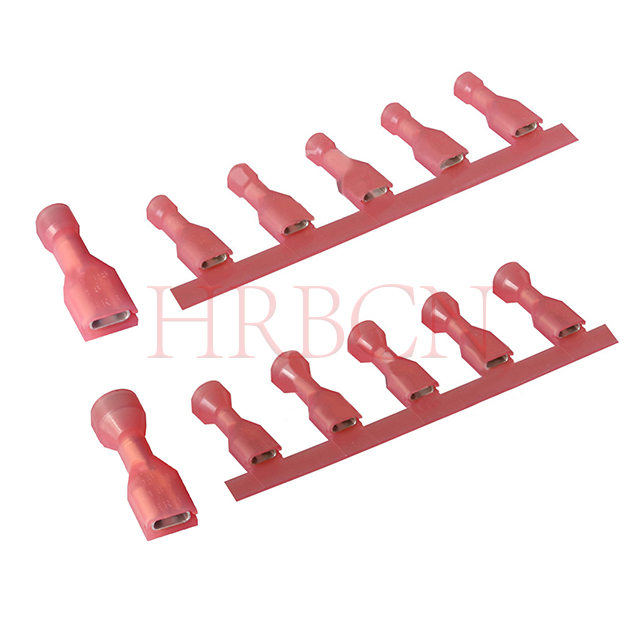

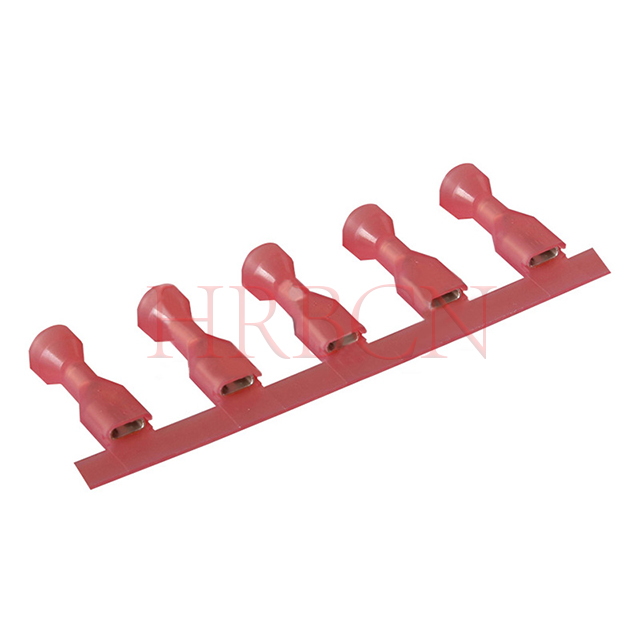

Packaging method: S=strip L=loose piece

  • Series: 8=4.8mm(0.187 in.)

  • R=Red(22-18 AWG), Ins. Dia, Max: 3.05; R1=Red(22-18 AWG), Ins. Dia, Max: 5.84


Technical Parameters

  • Current Rating: 10A AC, DC

  • Voltage Rating: 300V AC, DC

  • Operating Temperature: -25 ºC to +105 ºC

  • Material: Housing: Nylon66 UL 94V-2; Terminal: Brass. Tin-plated

  • Tab Size: 4.8x0.8mm or 4.8x0.5mm

  • Applicable wire: AWG 22-18(0.32-0.82mm²)

  • Compatible Insulation Diameter Range: 3.05mm/5.84mm

  • The insertion force and male terminal: ≤7.8kg

  • The withdrawal force and male terminal: ≥3.0kg

  • Line Terminal and the force: ≥5.0kg


Product Feature

  • Terminal Features : Wire Stop

  • Capacity: Single

  • Crimp: F-Crimp

  • Barrel Type: Closed

  • Terminate to: Wire&cable

  • With Insulation: Fully insulated

  • Mating Retention Type: Dimple lock

  • Packing: Strip/Reel, or loose pieces in bag options

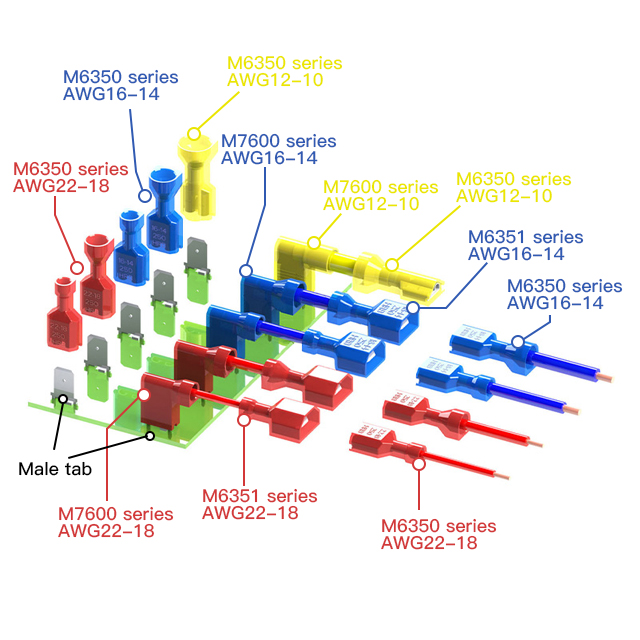

Mating Diagram


HRB AWG22-18 0.32-0.82mm2 Straight Insulated Female Receptacle(M6350 series AWG22-18) is usually mating with

  • M6351 series AWG22-18

  • Male tabs

FASTON TERMINAL mating

Cross Reference | Interchangeable Standard Terminals


This HRB 4.8mm 0.187" insulated female receptacle conforms to global standard specifications and is fully interchangeable with standard quick disconnect terminals used worldwide.

It offers direct replacement capability with matching form, fit, and function for standard wiring systems.




Q: What is the MOQ for 4.8mm 0.187" Insulated terminal?

A: MOQ: 5000pcs/item.

Q: What is the lead time for 4.8mm 0.187" Insulated terminal?

A: L/T: 3-4 weeks.

Q: How can I get a quotation from HRB connector?

A: You can easily get a quotation for HRB connectors by providing key information.

Submit your requirements including product model, pitch, quantity, application, and technical specifications.

For custom designs, send drawings or samples. Our team will review your request and provide a professional and timely quotation for standard and custom connectors.

Q: What certifications do HRB connectors have (UL, RoHS, REACH)?

A: HRB connectors hold UL/cUL, RoHS, and REACH certifications, plus key automotive and industrial approvals.

UL/cUL: Certified under UL 1977 (file no. E322751)

Q: Is HRB Connector a reliable manufacturer in China?

A: Yes, HRB is a reliable and professional connector manufacturer in China.

With decades of production experience, it holds IATF 16949, ISO 9001, UL, RoHS and REACH certifications. Strict quality control, advanced production facilities and mature testing processes ensure stable performance.

HRB provides high-quality standard and custom connectors for automotive, industrial, consumer electronics and global markets.





Compliance

  • EU RoHS Directive(EU) 2015/863 amending Annex II to Directive 2011/65/EU

  • End-of Life Vehicles Directive(2000/53/EC)

  • AfPS GS 2019: 01 PAK-Polycylic Aromatic Hydrocarbons(PAHs)

  • European Regulation POPs (EU) 2019/1021

  • European Regulation POPs (EU) 2024/2570

  • European Regulation POPs (EU) 2025/718

  • European Regulation POPs (EU) 2023/1608

  • European Regulation POPs (EU) 2019/1021

  • European Regulation POPs (EU) 2025/843

  • European Regulation POPs (EU) 2025/1930

  • Regulation (EC) Np 1907/2006 concerning the REACH

  • US California Proposition 65

Product certificates

Safety approvals&certification: UL&cUL

UL Flammability Rating: UL 94V-2





Universal fully insulated quick-connect terminals are widely applied in various fields, specifically including:

  1. Home Appliances: HVAC systems, refrigerators, washing machines, dishwashers, ovens, and water heaters, providing safe and convenient wiring connections for household electrical components.

  2. Automotive: Vehicle wiring systems, including lighting, sensors, actuators, and EV auxiliary systems, ensuring stable connection even under vibration.

  3. Industrial Controls: Motors, drives, power supplies, PLCs, sensors, and control panels, meeting the needs of industrial low-voltage wiring.

  4. Electronics & Lighting: Power supplies, LED drivers, consumer electronics, and audio equipment, with reliable insulation and quick connection performance.

General Purpose: Suitable for low/medium voltage, small current, and safe quick-disconnect low-voltage power and signal connections, widely used in household appliances, automotive, industrial, and electronic equipment fields.
