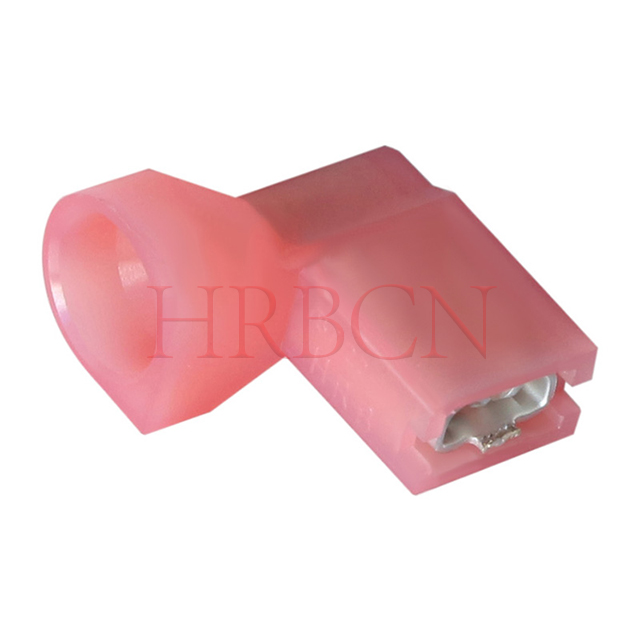

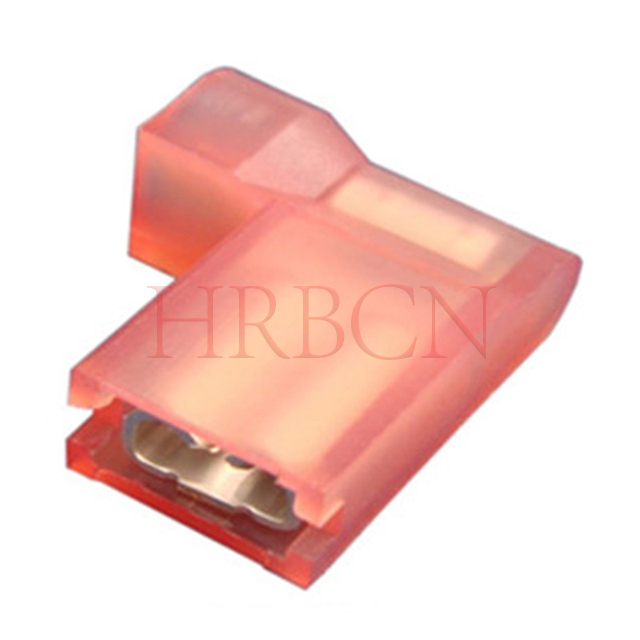

Q: What are the basic parameters of 4.8mm Fully Insulated Female Disconnect Terminal (AWG 22-18)?
A: Quick Disconnect Terminal Type : Receptacle/Flag type
Wire Size: AWG22-18(0.32-0.82mm²)
Mating Tab Width: 4.8(0.187")
Mating Tab Thickness : 0.5mm/0.8mm
Compatible Insulation Diameter Range: 3.05mm/5.84mm
Q: What are the differences among M7600FNS-8(5)-R, M7600FNS-8(8)-R, M7600FNS-8(5)-R1, M7600FNS-8(8)-R1 terminals? How to choose the right one?

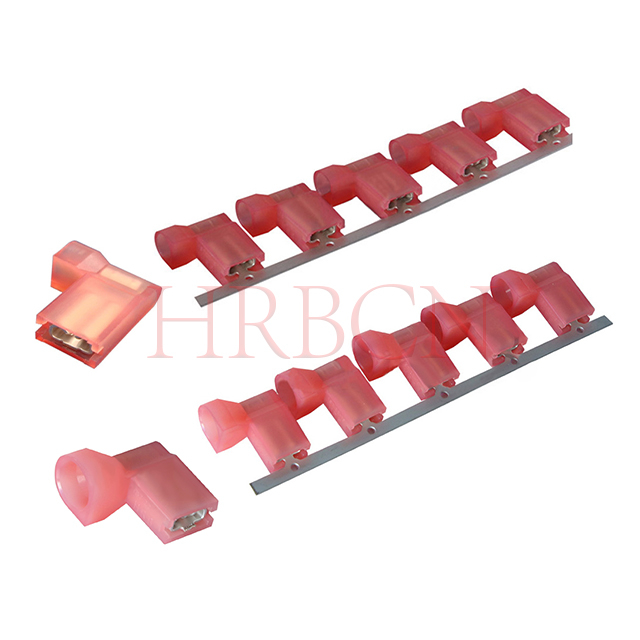

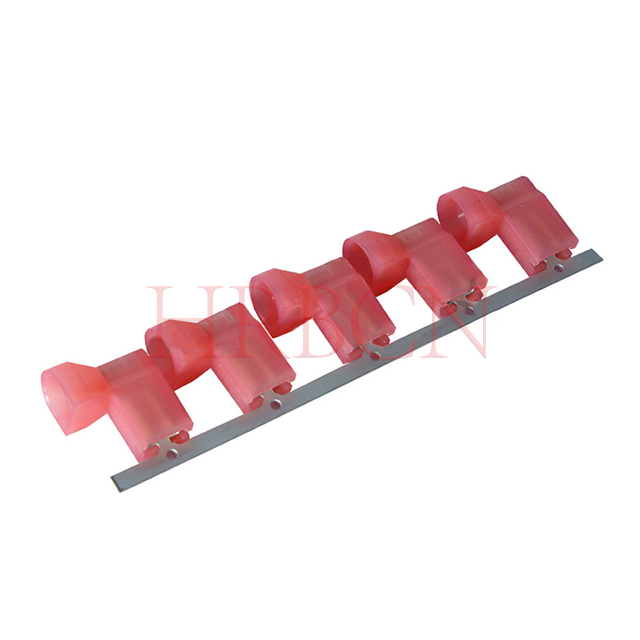

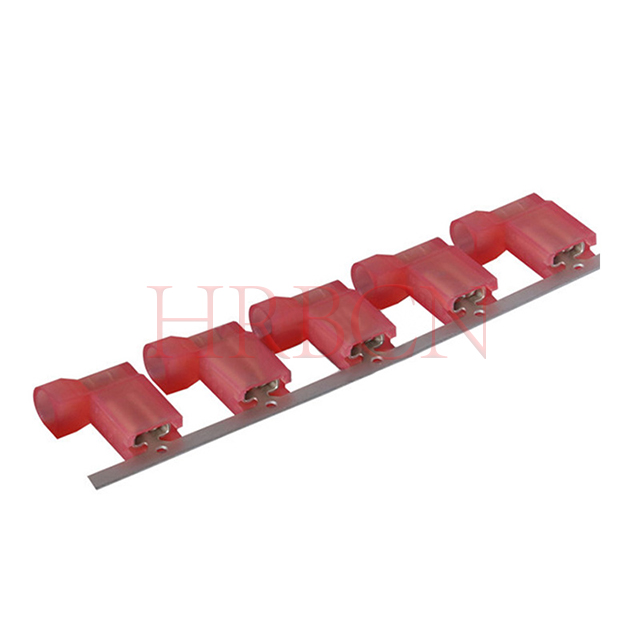

A: All belong to the M7600FNS 4.8mm fully insulated female flag terminal series.
The coding rules are as follows:
①: (5) / (8) stands for terminal tab thickness: 0.5mm and 0.8mm respectively.
②: R / R1 represent different insulation inner diameter and wire gauge range, both for AWG 22-18 wiring. R=Ins. Dia, Max: 3.05mm;
R1=Ins. Dia, Max: 5.84mm.
③: 0.8mm tab thickness provides better conductivity, stronger vibration resistance and higher load capacity than 0.5mm type.
Selection guide:
①: Choose 0.5mm (5) for conventional low to medium current general wiring;
②: Select 0.8mm (8) for high current, vibration-intensive and heavy-duty applications;
③: Pick R or R1 according to your actual wire outer diameter to ensure perfect crimping and insulation fit.
Q: What is the MOQ for 4.8mm 0.187" Insulated terminal?
A: MOQ: 5000pcs/item.
Q: What is the lead time for 4.8mm 0.187" Insulated terminal?
A: L/T: 3-4 weeks.
Q: What is the maximum temperature rating for this 4.8mm terminal?
A: The maximum temperature rating is 105ºC
Q: Can this AWG 22-18 receptacle be used in automotive vibration environments?
A: Yes, this AWG 22-18 receptacle, features secure contact retention that withstands typical automotive vibration levels. It is suitable for auxiliary circuits when installed per specifications.
Q: What is the difference between 4.8mm and 6.3mm connectors?
A: The difference is the width of the terminal tab. 4.8mm connectors are smaller and used for lighter applications, while 6.3mm
connectors handle higher currents.
Q: How do I choose the correct AWG size?
A: Select the connector based on your wire gauge. This product is designed for AWG 22-18 wires, ensuring a proper crimp fit.
Q: Are these connectors insulated?
A: Yes, they feature a fully insulated sleeve to prevent short circuits and improve safety.
Q: What wire size does AWG 22-18 support?
A: AWG 22-18 terminals are designed for wires with a cross-sectional area suitable for low to medium current electrical applications.
Q: What certifications do HRB connectors have (UL, RoHS, REACH)?
A: HRB connectors hold UL/cUL, RoHS, and REACH certifications, plus key automotive and industrial approvals.
UL/cUL: Certified under UL 1977 (file no. E322751)
Q: What is a 4.8mm female disconnect terminal?
A 4.8mm female disconnect terminal is a type of electrical connector designed to fit a 4.8mm male tab, allowing quick and secure
wire connections.
Q: Is this terminal suitable for automotive use?
A: Yes, this fully insulated female disconnect terminal is widely used in automotive wiring systems due to its secure connection and
vibration resistance.
Q: What is the difference between straight female terminals and flag female terminals? How to choose the right type?
A: Straight female terminals feature an inline straight structure for straight-through wiring installation, suitable for narrow spaces and inline harness routing.
Flag type terminals come with a right-angle flag design, allowing side wiring and easy soldering or crimping. They are ideal for crowded wiring areas and vertical PCB mounting.
Choose straight type for linear inline wiring; select flag type for right-angle routing, limited installation space and PCB side connection.
