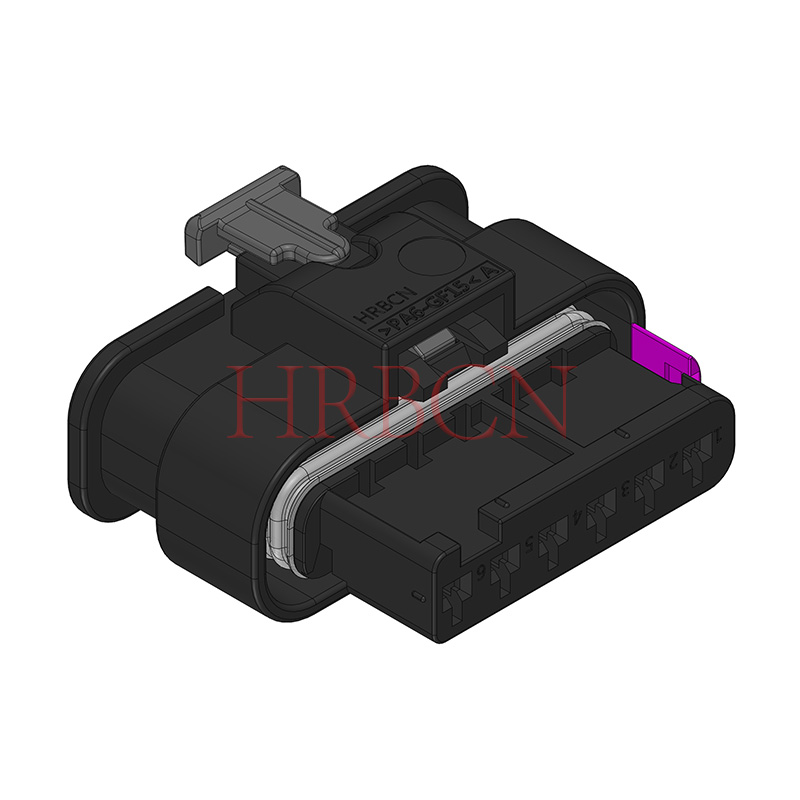

4.0Pitch 5/6/8 Pole Receptacle Housing for Locking Contact

Availability:
Quantity:
Inquire Add to Basket

  • A-M4023-5, A-M4023-6, A-M4023-8

  • HRB&HRBCN

*Electrical Specification

Contact Resistance: 20 mΩ Max.

Dielectric Withstanding Voltage:1500 VAC One Minute.

Current Rating: 10 Amper Max.(20~16#)

Voltage Rating: 250V AC/DC Max.

Insulation Resistance: 100 MΩ min.

Operating Temperature: -40℃ To +130℃.

Waterproof Rating：IP69K


Single row: 2/3/4/5/6/8Pin


Previous:
Next:
Receptacle Housing Connector waterproof receptacle HRB waterproof connector 4.0mm pitch automotive connector
