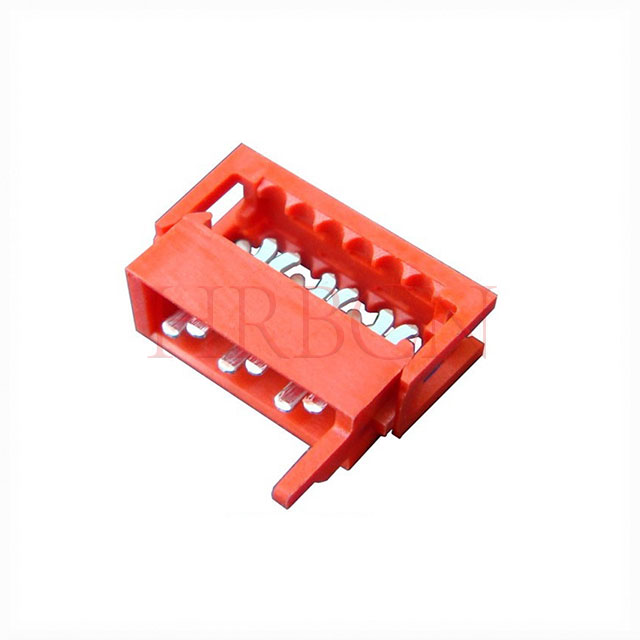

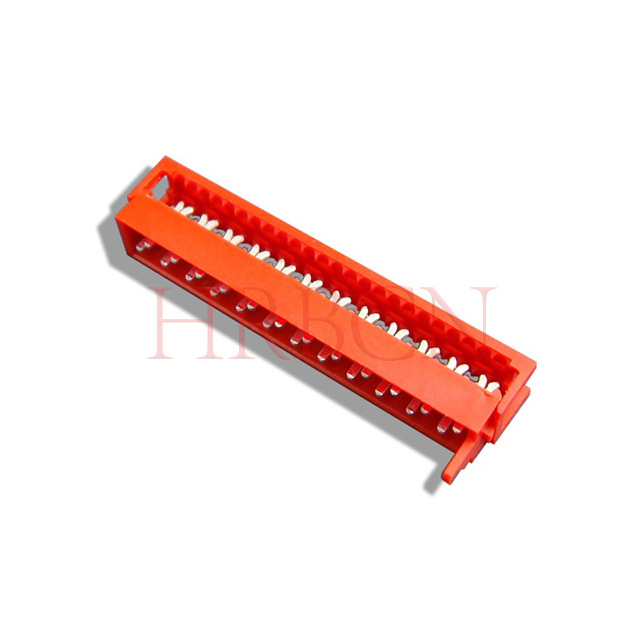

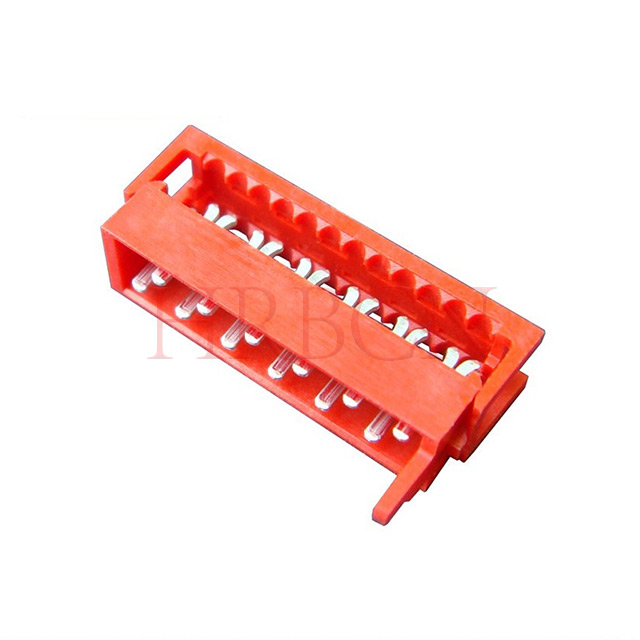

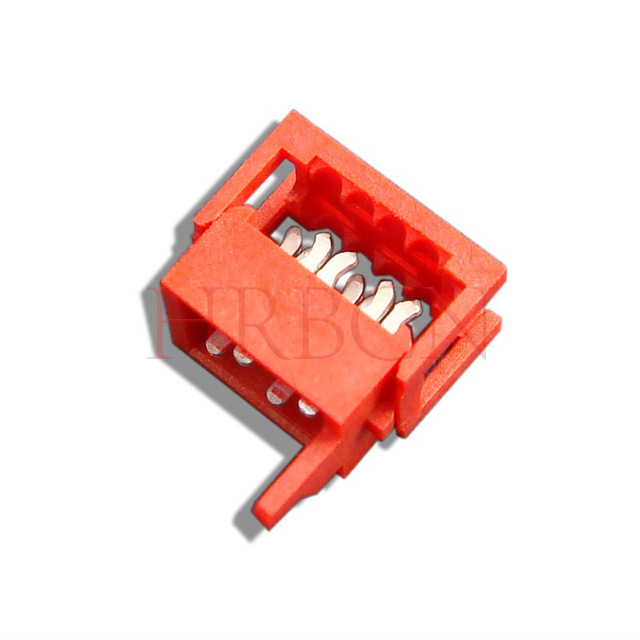

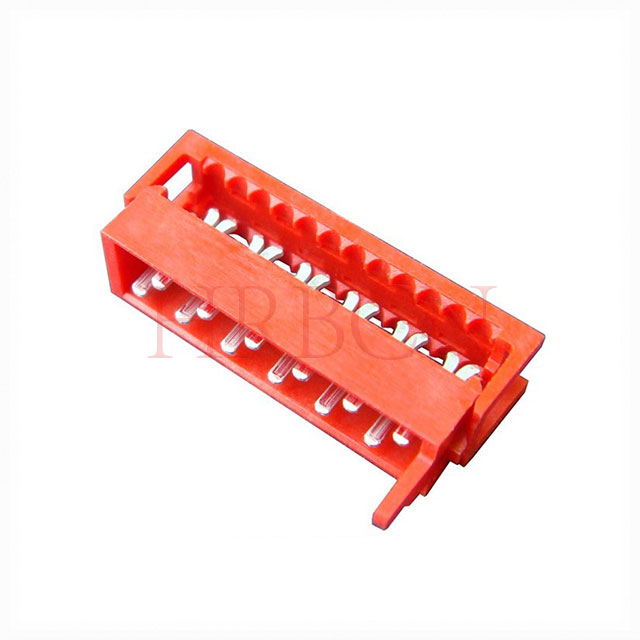

Q: What is the pitch of this connector?

A: The connector features a standard 1.27mm pitch with dual row design.

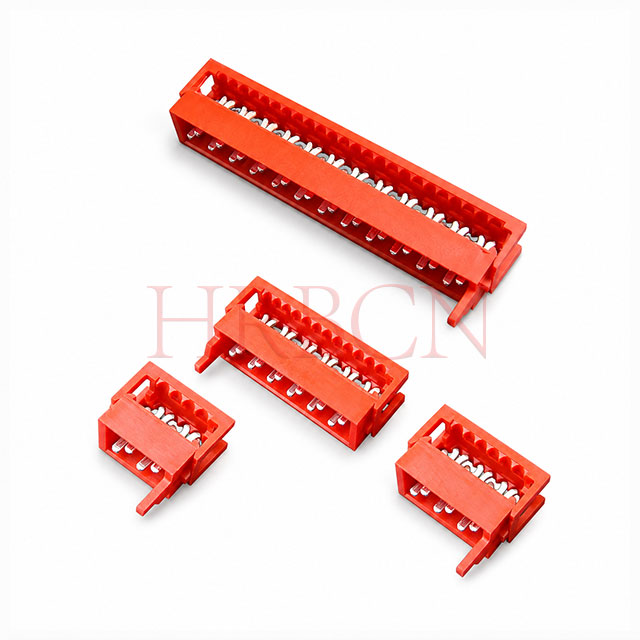

Q: What pin counts are available?

A: We offer multiple options from 2 pins up to 24 pins to meet different wiring requirements.

Q: What color is the insulator housing?

A: The housing is red, made of UL94 V-0 flame retardant material.

Q: What mounting type does this header adopt?

A: It is vertical through-hole (DIP) mounting, suitable for wave soldering.

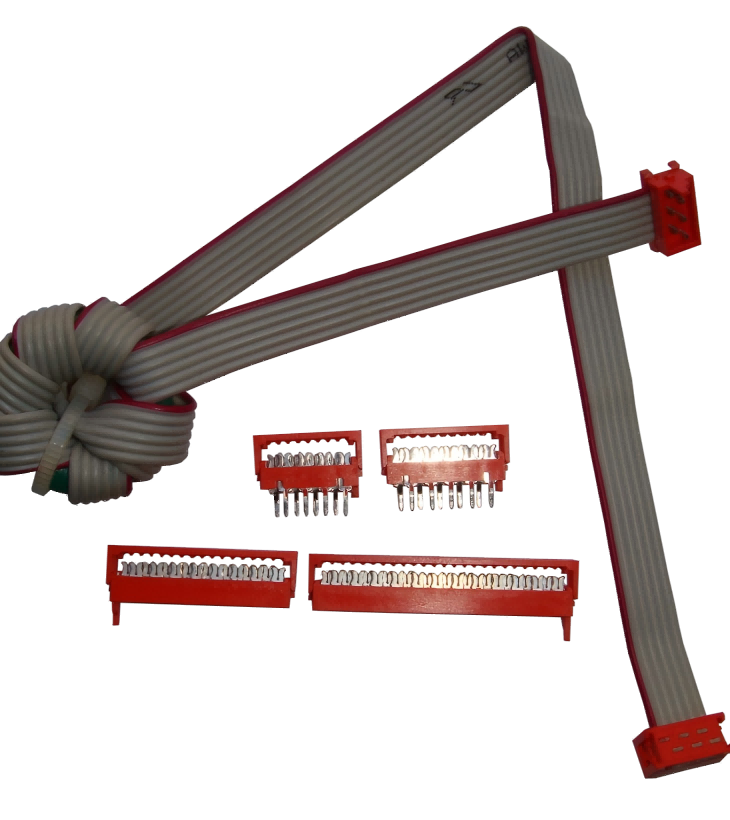

Q: Which type of cable can be matched?

A: It is designed for flat ribbon cable with IDC termination, compatible with 28AWG cables.

Q: Is it easy for assembly?

A: Yes. The IDC structure enables fast and stable cable connection without complex crimping tools.

Q: What are the rated current and voltage?

A: Rated current is 1A, and rated voltage is 100V AC/DC. It is mainly used for signal transmission.

Q: What is the operating temperature range?

A: The working temperature ranges from -40°C to +105°C, supporting use in various harsh environments.

Q: What material are the contacts made of?

A: Contacts are made of phosphor bronze with tin plating, ensuring good conductivity and oxidation resistance.

Q: What devices is this connector widely used for?

A: It is ideal for industrial automation, test equipment, robotics, automotive electronics, audio & video devices and consumer electronics.

Q: Can it replace conventional 1.27mm IDC wire-to-board connectors?

A: Yes. It follows universal industry standards and is fully compatible with same-spec interface products.

Q: Can you provide customized pin numbers?

A: Custom service is available. Please contact our team for your specific demands.

Q: Is the product compliant with environmental regulations?

A: All products comply with RoHS and REACH standards.
