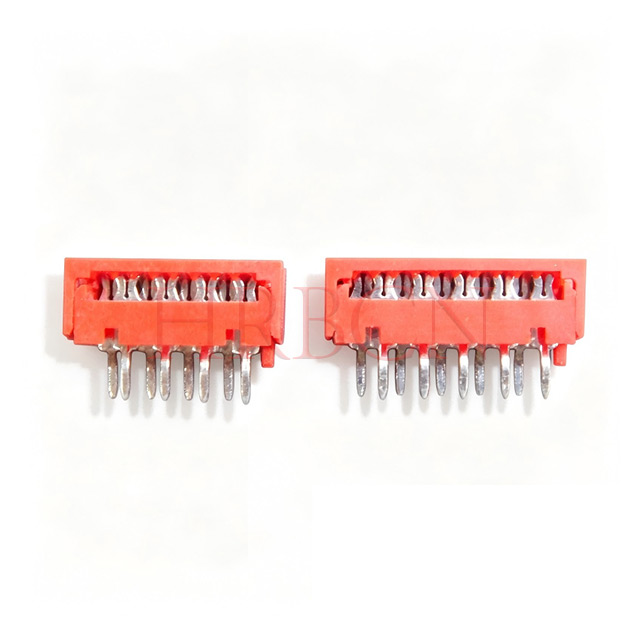

1.27 IDC Paddle Board Connector M2548-2xN(P)

Share to:

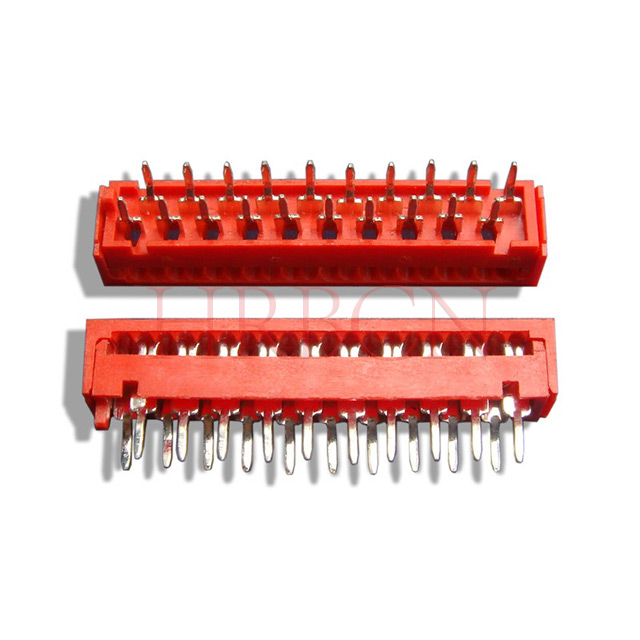

1.27mm Pitch Dual Row Vertical DIP Header M2548-2xN(P)

High‑density 1.27mm pitch vertical through‑hole header designed for ribbon cable IDC termination. Dual row, DIP mounting, ideal for space‑constrained signal connections in drones, industrial controls and consumer electronics.

Availability:

Quantity:



Inquiry Add to RFQ List

Model:
M2548-2xN(P)
Brand:
HRB
Code:
M2548-2xN(P)

Definition

1.27mm pitch ribbon to board connector, DIP, dual rows, 4 to 24 pins

Part No.		Dimensions	Part No.		Dimensions
TYP UL94V-0	Circuits	Dim: A MAX	TYP UL94V-0	Circuits	Dim:A
M2548-2×2(P)	4	8.60	M2548-2×8(P)	16	23.80
M2548-2×3(P)	6	11.10	M2548-2×9(P)	18	26.30
M2548-2×4(P)	8	13.60	M2548-2×10(P)	20	28.90
M2548-2×5(P)	10	16.20	M2548-2×11(P)	22	31.40
M2548-2×6(P)	12	18.70	M2548-2×12(P)	24	34.00
M2548-2×7(P)	14	21.30

Features

Pitch: 1.27mm, dual-row
Mounting: Vertical DIP (Through Hole) for easy soldering
Termination: IDC (Insulation Displacement Connection) for flat/ribbon cable
Circuits: 4–24 positions
Rated current: 1A; Rated voltage: 100V AC/DC
Housing: High‑temperature UL94 V‑0
Terminal: Phosphor bronze, tin‑plated for good conductivity
Operating temperature: ‑40℃ ~ +105℃
RoHS compliant

Application

Drone & UAV internal wiring
Industrial control & test equipment
Medical devices
Consumer electronics & home appliances
Signal‑level board‑to‑cable connections

1.27mm pitch idc puncture terminal AMP pierce terminals TE imitation M2548-2xN(P)
