You need good electrical connections every day. The RAST 5 Connector is made for safe and neat wiring in big systems. Using connectors like this helps things work well and keeps people safe. HRB&HRBCN Connector gives reliable RAST connectors to many industries. These include cars, smart home devices, and machines used in factories. Here are some places where these connectors are important:
Industry |
|---|
Automotive |
Connected Home & Smart Appliances |
Industrial Machinery |
Medical Technologies |
Data Centers & Artificial Intelligence |
Key Takeaways
RAST 5 connectors help make wiring safe and easy in many industries, like cars, smart home gadgets, and big machines.
These connectors have a 5.0mm pitch. This means they can use thicker wires and carry more power. They are good for jobs that need a lot of electricity.
RAST connectors use keying and polarization. These features stop people from making wrong connections. This keeps things safe and helps prevent mistakes when installing.
Insulation displacement technology lets you connect wires fast and easily. You do not need to strip the wires first. This saves time and helps avoid errors.
RAST 5 connectors are strong and work well. They meet tough safety rules. This makes them great for hard jobs and rough places.

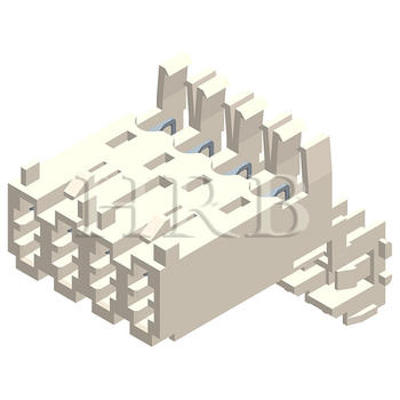

RAST 5 Connector Overview
Standard and Pitch
Connectors must follow rules for safety and performance. The RAST 5 Connector uses the RAST standard. It has a 5.0mm pitch between each contact. This space lets you use thicker cables and more current. You can use RAST 5 for things that need a lot of power, like motors or heaters. The bigger pitch helps with heat and makes it easier to install.
Here is a quick look at the main specifications for RAST 5 connectors:
Specification | Value |
|---|
Pitch (Centerline) | 5 mm |
Operating Temperature | -25 to +105 °C |
Maximum Current Rating | 28 A (for 10 AWG wire) |
Wire Size | 22-10 AWG |
Voltage Rating | 380 V |
Positions Available | 2-10 |
IEC 60335-1 Glow-Wire Available | Yes |
UL94 Rating Available | V-0 |
Color/Keying Available | Yes |
Agency Approvals | UL, VDE |
Available Configurations | Wire-to-Panel, Motor Mount |
RAST 5 connectors work with many cable sizes and high current. This makes them good for tough jobs. HRB&HRBCN Connector makes RAST connectors that meet these rules. Their products pass hard tests and have certifications like UL, VDE, and IEC 60335-1.
Tip: If you pick RAST connectors from HRB&HRBCN Connector, your system will meet world safety and quality rules.
Keying and Polarization
You do not want to make mistakes when you connect wires. RAST connectors use keying and polarization to help you connect things right. Keying means each connector has its own shape or color. This stops you from putting a cable in the wrong place. Polarization makes sure you cannot plug it in backwards. This keeps your equipment safe.
HRB&HRBCN Connector gives you many keying and color choices for RAST connectors. You can pick what you need for your project. This helps you keep wires neat and lowers mistakes.
You also get the benefit of certifications from HRB&HRBCN Connector. These include ISO 9001, UL, VDE, and IATF 16949. You can trust every RAST connector meets top industry rules.
Note: Keying and polarization make RAST connectors safer and easier to use, especially when you have lots of cables in one place.
Features of RAST Connectors
Insulation Displacement Technology
Insulation displacement technology helps you connect wires fast. You do not need to strip the insulation from the cable. The connector has contacts inside that cut through the insulation. This makes a strong electrical connection. You save time and make fewer mistakes when putting things together.
Unlike crimped connectors, IDC connectors have contacts inside. These contacts cut through the wire’s insulation without stripping it first. IDC connectors use less force to connect wires than crimping does.
RAST connectors use insulation displacement for both signal and power. You can connect wires quickly and keep them safe from damage. This method works well with many cable types. It also keeps your wiring neat and tidy.
Secure Locking Mechanisms
Connectors need to stay in place so they do not come loose. RAST connectors have locking mechanisms that keep them secure. These locks hold the connector tightly to the panel or device. Your connection stays stable even if there is vibration or movement.
HRB&HRBCN Connector makes rast 5 connectors with strong locks. You can feel sure your cable will not slip out. The locking system lets you release the connector easily when you need to fix or change parts.
Flexible Configurations
You can pick from many rast connector configurations. These connectors work in cars, home appliances, and other devices. You choose the number of positions, color coding, and keying options for your project.
Feature | Specification | Benefit |
|---|
Material | Polyamide | Strong and good insulation |
Connection Type | Screw Terminal | Safe and steady connections |
Size | Compact Design | Saves space in small areas |
HRB&HRBCN Connector offers rast 5 in different layouts. You can use them for wire-to-panel or motor mount setups. The flexible design fits tight spaces and tricky wiring. You get a connector that matches your cable and your system.
Tip: Flexible configurations make systems easy to install and fix.
Applications of RAST 5 Connector
Automotive and Industrial Use
You can find rast 5 connectors in cars and factories. These connectors help make systems safe and strong. In cars, rast connectors power control panels and battery systems. Electric vehicles and new dashboards need steady connections. The connectors carry high currents and keep cables tight. They work well even if it gets hot or shakes a lot.
Factories use rast connectors in PLC boards and robots. You need good insulation to stop signal problems. HRB&HRBCN Connector makes rast connectors for hard jobs. You can ask for special PCB connector designs. The company gives fast reviews and has special lines for making them. You get a connector that fits what you need.
HRB&HRBCN Connector solutions for cars and factories:
Power car control panels and battery systems.
Support PLC boards and robots.
Give high insulation for signal safety.
Make custom connectors for special needs.
You can count on rast connectors from HRB&HRBCN Connector to work well in tough places.
Home Appliances and Consumer Electronics
You see rast connectors in many home gadgets. These connectors keep wires neat and safe. Smart appliances use rast 5 in washers, fridges, and ovens. You can install them easily and keep cables tidy. The connectors fit small spaces and let you change layouts.
Electronics use rast connectors for fast building. You find them in TVs, speakers, and smart hubs. The connectors help you make fewer mistakes and build things faster. HRB&HRBCN Connector gives rast connectors that meet world safety rules. You get strong and long-lasting connections.
Device Type | Typical Use of RAST 5 |
|---|
Washing Machine | Motor and control wiring |
Refrigerator | Power and sensor cable |
Oven | Heating element connection |
Smart TV | Internal board wiring |
Audio System | Speaker and power cable |
Pick rast 5 connector solutions from HRB&HRBCN Connector for safe, easy, and approved connections in your home and electronics.
Advantages of RAST 5 Connector
Easy Installation
You want wiring to be fast and simple. The rast 5 connector helps you do this. You do not need to strip the cable first. The insulation displacement method lets you push the cable in. It fits tightly right away. You finish your work faster and with less effort.
You can save up to 70% of your installation time compared to traditional connectors.
Pluggable systems let you install and change connections quickly and safely.
You reduce the risk of wiring errors because the design guides the cable into place.
HRB&HRBCN Connector makes rast connectors easy to put together. You get a product that helps you work smarter. You can finish your projects on time.
High Current Capacity
You need connectors that handle lots of power. The rast 5 connector has a 5.0mm pitch. This lets you use thicker cables and more current. It works well for motors, heaters, or power supplies. You can trust rast 5 to give steady power in tough places.
HRB&HRBCN Connector checks every product to meet strict rules. You get connectors that pass UL, VDE, and ISO certifications. Your system stays safe and reliable, even when used a lot.
Durability and Reliability
You want your connections to last a long time. Rast connectors have strong locks and tough materials. They keep the cable secure and keep electrical contact over time. You can count on these connectors for daily use and important jobs.
Core Mechanical Parameter | Description |
|---|
Insertion Force | Total load needed to connect, ensuring stable electrical contact. |
Withdrawal Force | Resistance during removal, keeping the interface secure. |
Terminal Retention Force | Locks terminals in place to prevent back-out. |
Mechanical Durability | Maintains performance through many connection cycles. |
Vibration Resistance | Keeps contact steady during movement or shaking. |
Mechanical Shock Resistance | Holds up under sudden impacts or jolts. |
HRB&HRBCN Connector uses strong materials and smart designs. You get connectors that last longer and work better. Certifications show you can trust these products anywhere.
Tip: Pick rast connectors from HRB&HRBCN Connector for easy installation, high power, and long-lasting reliability.
Comparing RAST Connectors
When you choose connectors for your project, you need to know how different types compare. You want the right connector for your cable and your system. Let’s look at how rast 5 stands out from other options.
RAST 5 vs. RAST 2.5
You see rast 5 and rast 2.5 in many devices. Both follow the rast standard, but they have different pitches. Rast 5 has a 5.0mm pitch. Rast 2.5 uses a 2.5mm pitch. Rast 5 lets you use thicker cable and higher current. Rast 2.5 fits smaller spaces and lower power needs. You pick rast 5 for motors, heaters, and power supplies. Rast 2.5 works well for sensors and control signals.
Feature | RAST 5 | RAST 2.5 |
|---|
Pitch | 5.0mm | 2.5mm |
Max Current | Higher | Lower |
Cable Size | Thicker | Thinner |
Application | Power | Signal |
Tip: If you need more power and bigger cable, rast 5 is your best choice.
RAST 5 vs. Pin Headers
Pin headers are simple connectors. You use them for basic board-to-board connections. Rast connectors offer more safety and better locking. You get insulation displacement with rast, so you do not strip the cable. Pin headers need soldering or crimping. Rast connectors handle higher current and keep your cable secure. You use rast for tough jobs and pin headers for light tasks.
Pin headers: Good for small boards and light signals.
Rast: Better for power, strong cable, and secure connections.
RAST 5 vs. Terminal Blocks
Terminal blocks let you connect wires with screws. You use them in control panels and wiring boxes. Rast connectors give you faster installation. You push the cable in and get a tight fit. Terminal blocks take more time and need tools. Rast connectors handle vibration and movement better. You use rast for quick, safe, and strong connections.
Feature | RAST 5 | Terminal Block |
|---|
Installation | Fast | Slower |
Locking | Secure | Screw-based |
Cable Handling | Push-in | Screw-in |
Application | Power/Signal | Control Panel |
Note: Rast connectors save you time and keep your cable safe in busy systems.
You can count on the rast 5 connector for safe and quick cable connections. It works well in many industries. The table below shows why rast connectors are popular:
Feature/Advantage | Description |
|---|
Standardization | Works with many vendors and systems |
Automated Assembly | Fits modern manufacturing needs |
Secure Locking Mechanism | Keeps every cable connection safe |
Compliance with Safety Norms | Meets strict European safety standards |
HRB&HRBCN Connector is known for quality and reliability.
Pick rast 5 for your next project. You can trust HRB&HRBCN Connector to keep cables safe.
FAQ
What does "RAST 5" mean?
"RAST 5" is a connector with a 5.0mm pitch. This standard lets you connect wires fast and safely. You can use it in many different devices.
Can you use RAST 5 connectors outdoors?
You can use RAST 5 connectors outside if you pick weather-resistant types. Always look at the product details from HRB&HRBCN Connector to make sure they work outdoors.
How do you install a RAST 5 connector?
You push the wire into the connector. The contacts inside cut through the insulation and hold the wire tight. You do not need to strip the wire before connecting.
What industries use RAST 5 connectors most?
You see RAST 5 connectors in cars, factories, home appliances, and electronics. These connectors are good for systems that need safe and steady wiring.
