P/N Definition
P5012-X-W-XXX-XX
① ② ③ ④ ⑤
①: HRB item series number
②: Number of pins: 2-8
③: Housing color: White
④: Keying code: 000-999
⑤: Lock code: A0, A1, A2, B0, B1, B2, etc.
T8800BS-X
① ②
①: HRB item series number
②: Wire size

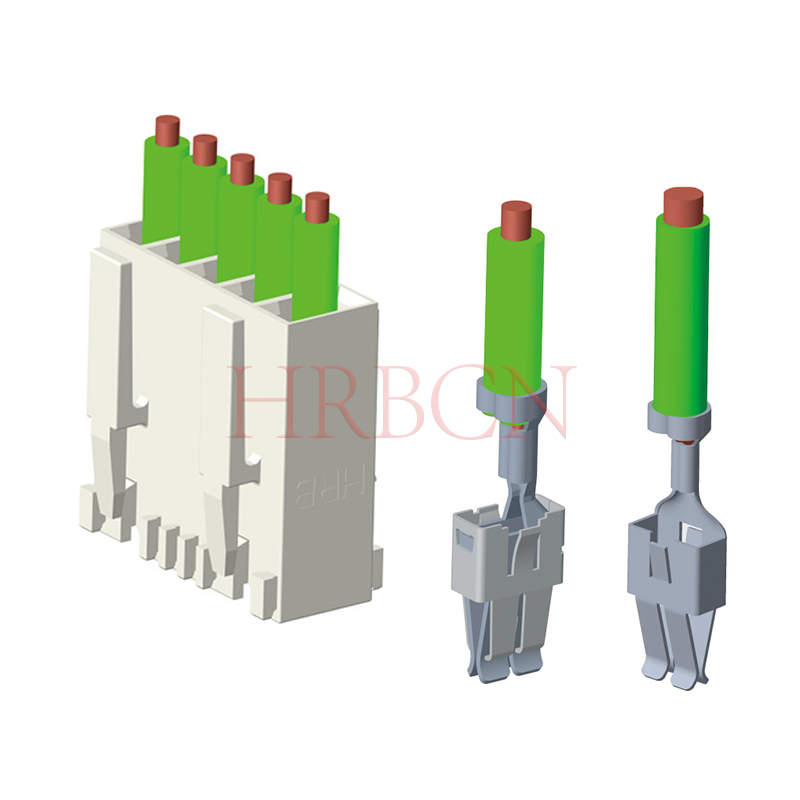

Regarding the P5012&T8800BS series crimp housing and terminals, examples of keying configurations are listed below. Other standard keying options are available upon request. Please contact HRB sales for further details.
Number of pins (2-8pins) | HRB P/N Keying Examples | Pitch(mm) |
2
| P5012-2-W-000-A0 P5012-2-W-022-A0 P5012-2-W-041-A0 etc. | 5.0 |
| 3 | P5012-3-W-001-A0 P5012-3-W-034-A0 P5012-3-W-042-A0 etc. | 5.0 |
HRB P/N | SPQ/Reel(pcs) | Wire size |
| T8800BS-2 | 2500 | 0.5-1.0mm2 |
| T8800BS-2-K | 2500
| 1.0-2.5mm2 |
T8800BS-2A-K
| 2500 | 2.5-4.0mm2 |
Technical Parameters
P5012 series Housing:
Operating Temperature: -40℃~+120℃
Insulation Resistance: 1000mΩ min.
Material: Housing: Nylon66 UL94V-0
GWT: 750℃ IEC-60335-1
T8800 series Terminal:
Current rating: 7A AC/DC Max.
Voltage rating: 250V AC/DC Max.
Contact resistance: 10mΩ max.
Material: Brass, Tin plated.

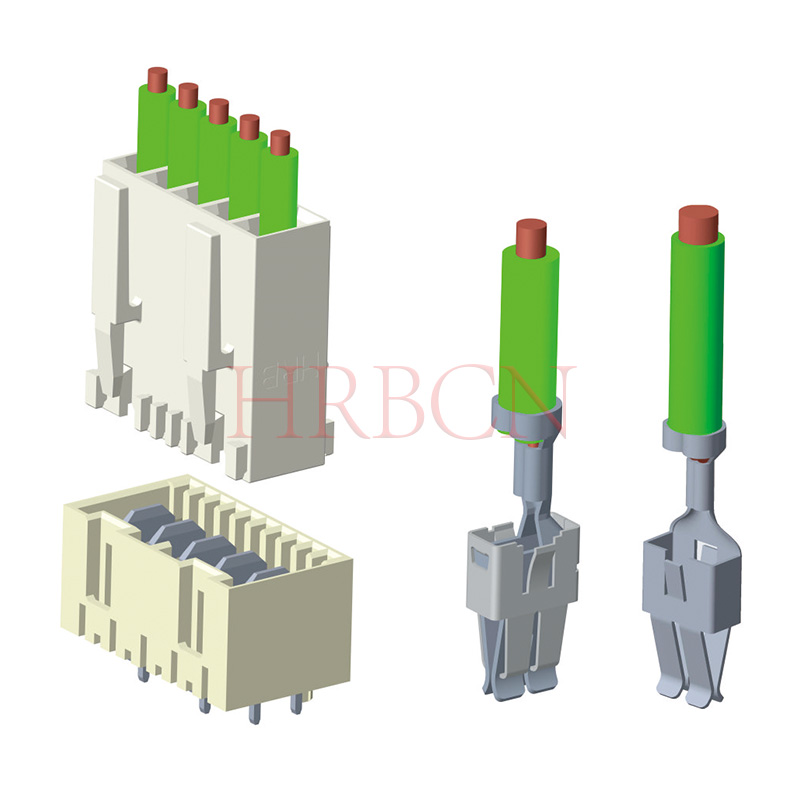

Mating Parts
HRB RAST 5.0 M940X series Pin Header
