Q: Why Choose RAST 2.5 & RAST 5.0?
A: Dual Pitch Flexibility: RAST 2.5 for compact, low-to-medium power; RAST 5.0 for high-current, rugged applications.
High Efficiency: HRB connectors feature IDC termination that eliminates wire stripping and crimping, cutting assembly time by 50%+ for automated lines.
Proven Reliability: 4-point contact design, glow-wire compliance, and positive locking ensure long-term performance in extreme conditions.
Global Standardization: Interchangeable with RAST-compliant connectors from leading manufacturers, reducing supply chain risks.
From compact smart home devices to heavy-duty industrial machinery, RAST 2.5 and RAST 5.0 connectors deliver unmatched versatility, reliability, and cost-efficiency for modern electronic design.
Q: What is the difference between RAST 2.5 and RAST 5.0 connectors?
A: The main difference lies in pitch size and current rating. RAST 2.5 adopts 2.5mm compact pitch for space-saving and low to medium power connection; RAST 5.0 features 5.0mm pitch, suitable for high-current and high-power applications. Both follow unified industry standard structure with foolproof mating and locking design.
Q: What are the main application scenarios of RAST series connectors?
A: They are widely used in household white goods, smart home devices, HVAC systems, building automation, automotive interior electronics, industrial control panels and power supply equipment, covering wire-to-board, board-to-board and wire-to-wire connection needs.
Q: Are RAST connectors resistant to high temperature and vibration?
A: Definitely. The series adopts high-quality insulation materials and optimized structural design, with excellent temperature tolerance and anti-vibration performance, stable for long-term operation in household, HVAC and automotive harsh working environments.
Q: Does HRB RAST series support IDC termination?
A: Yes. HRB RAST 2.5 and RAST 5.0 connectors support professional IDC termination technology, which omits wire stripping and crimping procedures, greatly improving production efficiency and suitable for automated mass assembly lines.

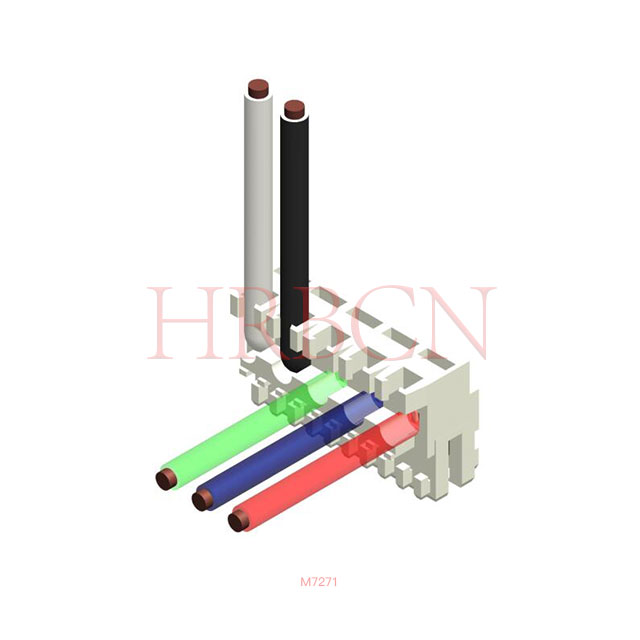

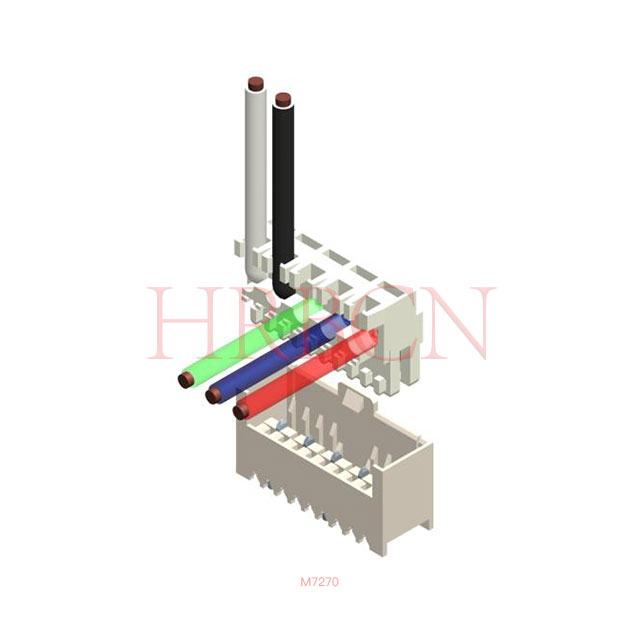

Q: Do RAST 2.5 and RAST 5.0 have anti-misinsertion function?
A: Yes. Built-in polarization and keying structure effectively prevent mismating. Equipped with secure locking mechanism to avoid loose connection caused by vibration, ensuring connection stability and safety.
Q: Can HRB RAST series replace conventional standard connectors?
A: Yes. HRB RAST 2.5 and RAST 5.0 follow universal industry standard dimensions and installation specifications, with good compatibility, which can perfectly replace conventional standard interconnect components and reduce procurement costs.
Q: What wiring methods are available for RAST connectors?
A: It supports IDC insulation displacement connection and traditional crimping wiring methods, flexible for different production processes, manual assembly and automatic assembly lines are both applicable.

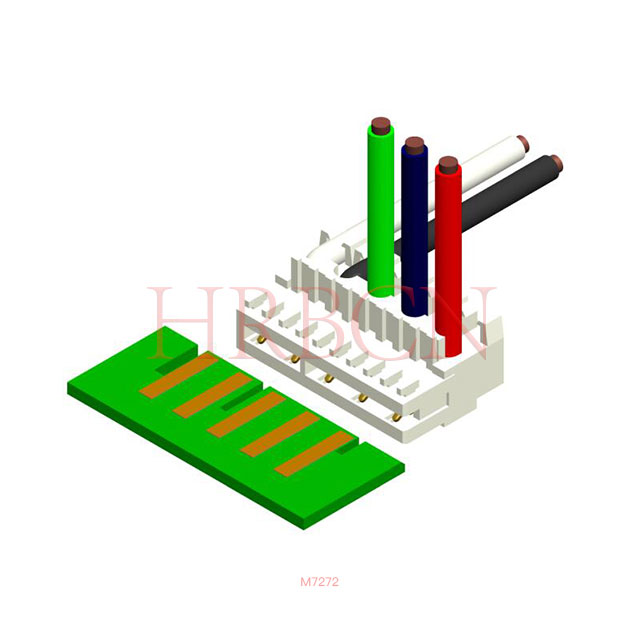

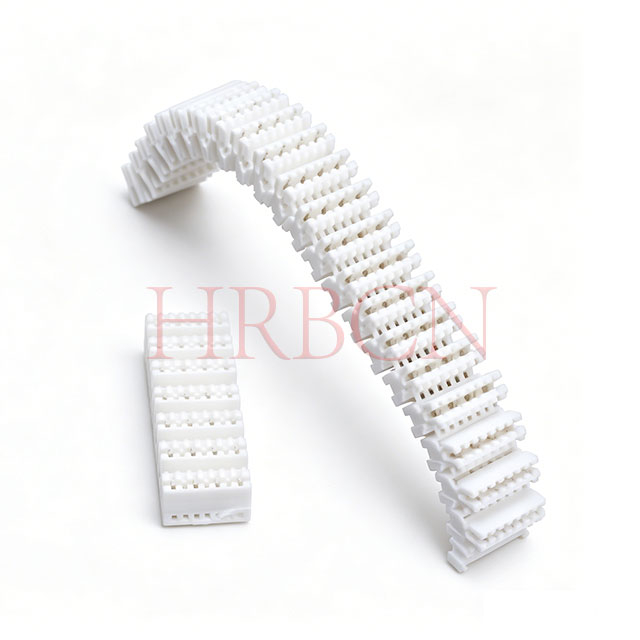

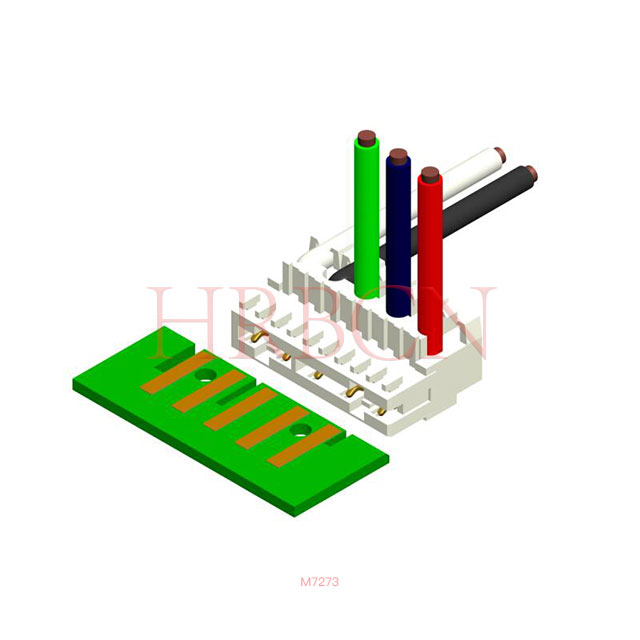

Q: What is the packaging method of RAST 2.5 IDC Connector M727X?
A: Our RAST 2.5 IDC connectors Connector M727X adopt standard reel packaging suitable for automatic SMT mounting.
