P9920-N-B-H catalog.pdf
Ordering Information:

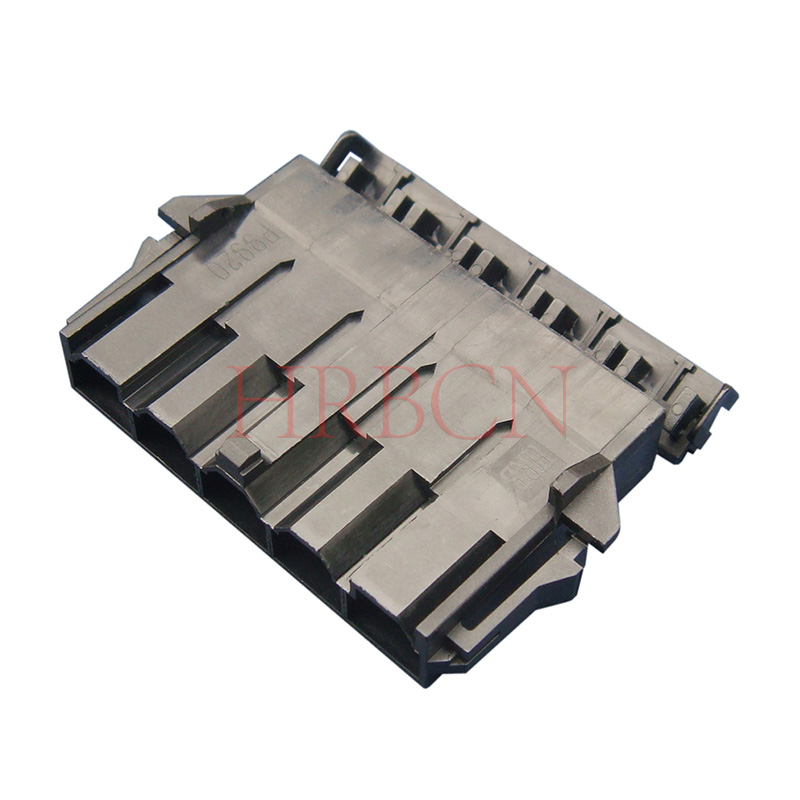

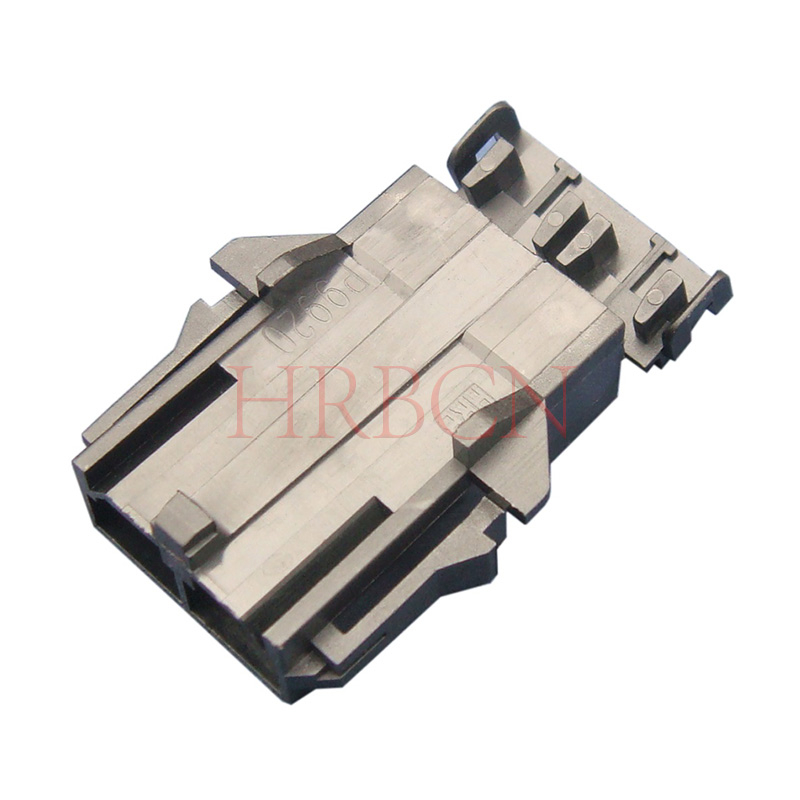

10.00mm Pitch Female Plug Housing, Single Row, 2 to 6 Circuits.
| Part No. |
| Dimensions
|
| TYP UL94V-0 | Circuits | Dim: A | Dim: B |
| P9920-2-B-H-A/B | 2 | 10.00 | 31.30 |
| P9920-3-B-H-A/B | 3 | 20.00 | 41.30 |
| P9920-4-B-H-A/B | 4 | 30.00 | 51.30 |
| P9920-5-B-H-A/B | 5 | 40.00 | 61.30 |
| P9920-6-B-H-A/B | 6 | 50.00 | 71.30 |
Detail Information:
| Category | Crimp Housings |
| Brand | HRB |
| Application | Power, Wire-to-Board connector |
| Circuits | 2-6 circuits |
| Color - Resin | Black |
| Flammability | 94V-0 |
| Gender | Plug |
| Glow-Wire Compliant | "yes" and "No" are both available |
| Lock to Mating Part | Yes |
| Material - Resin | Polyester |
| Number of Rows | 1 |
| Packaging Type | Bag |
| Panel Mount | No |
| Pitch - Mating Interface | 10.00mm |
| Polarized to Mating Part | Yes |
| Stackable | No |
| Temperature Range - Operating | -40°C to +105°C |
Mate with:
P9910 male housing
Use with:
Terminal Position Assurance Clip Included
T9920PS Male Crimp Terminals
